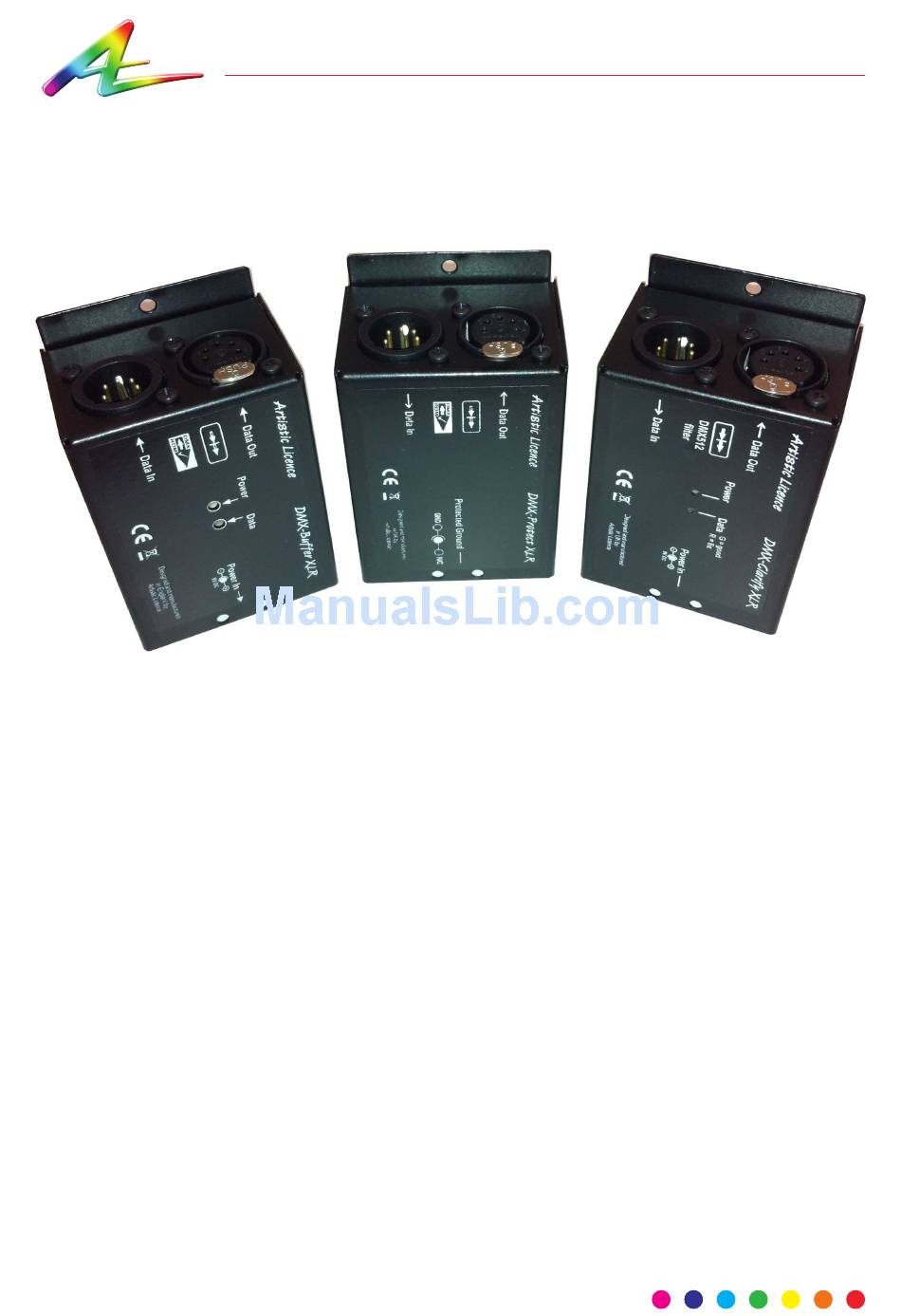

- Page 1 Artistic Licence DMX-Buffer, DMX-Clarify & DMX-Protect User Guide DMX-Buffer, DMX-Clarify & DMX-Protect User Guide Version 1-1...
- Page 2 MUST be installed in an appropriate IP rated cabinet. Do not allow this product to be exposed to rain or moisture. Do not allow liquid to penetrate the product. Please recycle all packaging. Copyright © Artistic Licence Engineering Ltd. All rights reserved. Download the user guide by scanning the following QR code: Page 2...
- Page 3 Connections DMX-Buffer & DMX-Clarify DMX-Protect Reference Type Description Connection Data out Connection Data in Connection Power Input Power indication Data indication Connection Page 3 DMX-Buffer, DMX-Clarify & DMX-Protect User Guide...
-
Page 4: Mounting Diagram
Type: Ground referenced Pin 1: Connected to Internal Logic Ground DMX512 Output Type: Ground referenced Pin 1: Connected to Internal Logic Ground Internal Logic Ground Connects to Ground Power Input LED indication DMX-Buffer, DMX-Clarify & DMX-Protect User Guide Page 4... - Page 5 Data output: standard 5-pin female XLR connector y Data input: standard 5-pin male XLR connector with internal termination y DMX-Buffer is also available with RJ45 Ethercon input/output connectors y Data output: standard 5-pin female XLR DMX-Clarify detailed operation DMX-Clarify is designed to solve product compatibility problems. There are numerous products on the market that will not accept the wide range of legal DMX timings and data.
-
Page 6: Application Diagram
Application Diagram DMX-Buffer In the diagram below, two DMX-Buffer products are used to provide an extra 600m of cable run. DMX Controller DMX-Buffer DMX-Buffer Fixture 1 Fixture 2 Fixture 32 300m 300m 300m Terminated DMX-Clarify In the diagram below, DMX-Clarify is used as an in-line buffer to provide a filtered DMX signal to a group of fixtures that cannot handle RDM. - Page 7 Power & Electrical Power / Data Input voltage: 9 VDC Package Contents Input connector: DC jack (1 no.) DMX-Buffer (XLR or RJ45) or DMX-Clarify Input power (max): 5 W User guide Duty cycle: 80% @ 25°C Accessories (not included) DC fuse: internal resettable fuse for control electronics PSU-9-1.5-DCJ...
-
Page 8: Warranty
Waste Electrical & Electronic Equipment authorisation. In order to discuss a request to (WEEE) return goods, please email: Artistic Licence is a member of a WEEE Sales@ArtisticLicence.com compliance scheme and will happily recycle any of our products that you, at your expense, return to us.
