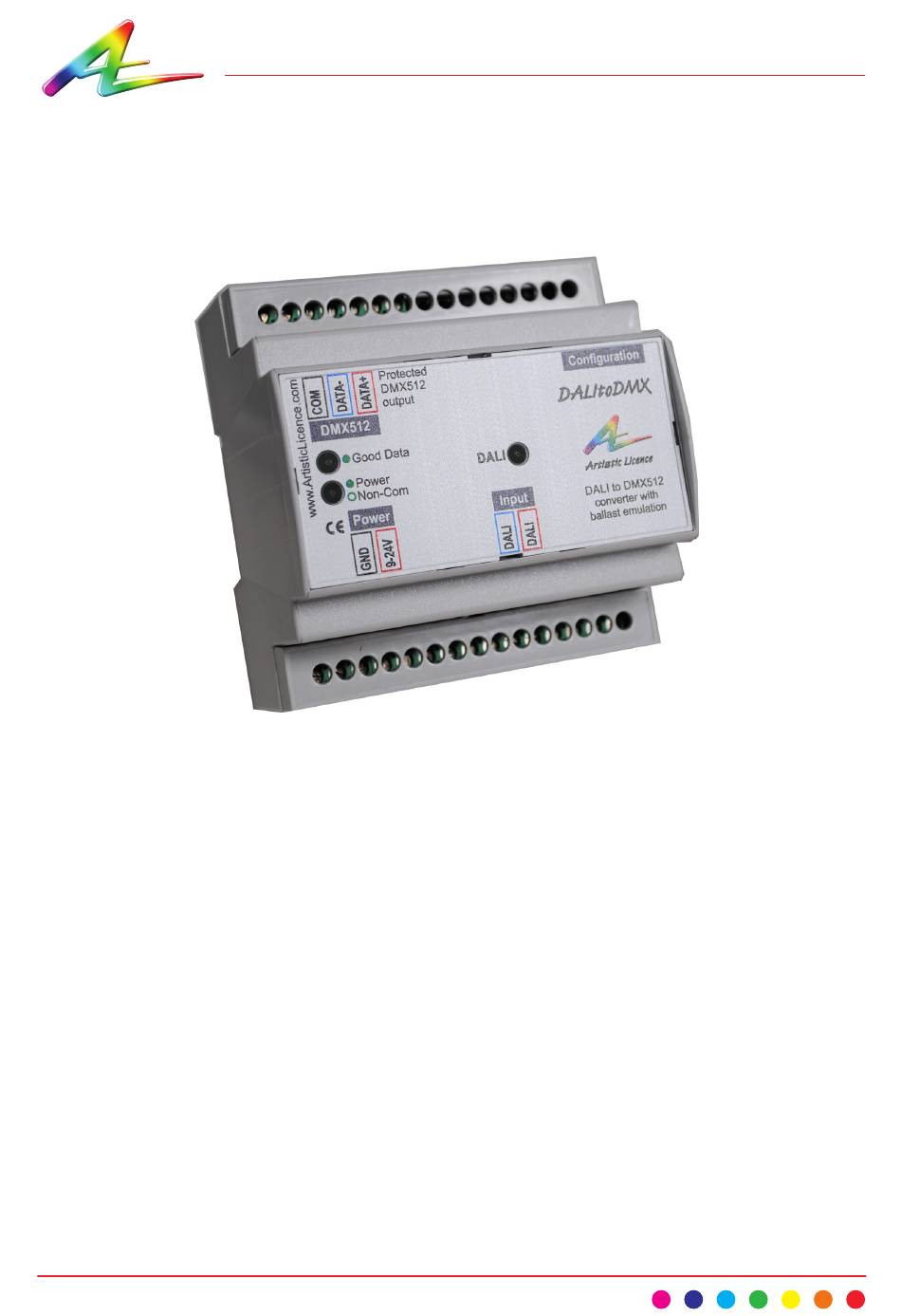

- Page 1 Artistic Licence DALItoDMX User Guide DALItoDMX User Guide Version 1-1...
- Page 2 IP rated cabinet. Do not allow this product to be exposed to rain or moisture. Do not allow liquid to penetrate the product. Please recycle all packaging. Copyright © Artistic Licence Engineering Ltd. All rights reserved. Download the user guide by scanning the following QR code: Page 2...
-
Page 3: Mounting Diagram
Not Used Sets number of virtual DALI devices 3 & 4 (see Table 1 on page 4) OFF (default): No dimming curve correction ON: Exponential curve correction OFF (default): Device Mode ON: Trigger Mode Mounting Diagram Page 3 DALItoDMX User Guide... - Page 4 (see page 6). Device Mode (normal operation) In Device Mode (ensure DIP switch 6 is set to OFF), DALItoDMX simulates virtual DALI devices, each of which controls a single DMX channel. This is shown conceptually in Figure 1 below.
- Page 5 DMX Channel Device number a command to adopt a new level. DALItoDMX offers three fade times of 0 (instant), 1 or 4 seconds. Other input values of fade times are treated as 0 (instant). Fade...
-
Page 6: Trigger Mode
The virtual devices are pre-commissioned to define this triggering structure. The tables in Appendix 3 detail the pre-programmed relationship between the virtual devices and the DMX output slots. Page 6 DALItoDMX User Guide... -
Page 7: Led Indicators
Flashes to off when DALI data is present. Failure Mode In the event that the DALI Bus power supply goes off, if it is not reinstated after 1 second then all the relevant DMX outputs will snap to full intensity. Page 7 DALItoDMX User Guide... -
Page 8: Troubleshooting
(see ‘Failure Mode’ on page 7). The DALI go to unexpected device will stay at that intensity until DALItoDMX next refreshes intensities it. Dali-Scope can be used to read the device’s System Failure Level. -
Page 9: Appendix 1 - Dali Primer
Root-device – The main entity of an RDM enabled controller at once. product. There is only one per RDM product. Sub-device – Subsidiary entities of an RDM device. Page 9 DALItoDMX User Guide... -
Page 10: Appendix 2 - Supported Dali Commands
ON power is ON Query: Replies: Version Number Current Version Query: Replies: Device Type Device Type Query: Replies: Actual Level Current Value Query: Replies: Max Level Max Value Query: Replies: Min Level Min Value Page 10 DALItoDMX User Guide... - Page 11 Not implemented Replies “Not Replies “Not Fade Rate applicable” applicable” Query: Replies: 176 - 191 Scene Levels Scene Levels Query: Replies: Groups 0 to 7 Group Assignment Query: Replies: Groups 8 to 15 Group Assignment Page 11 DALItoDMX User Guide...
-
Page 12: Appendix 3 - Trigger Mode Mapping Tables
Table iv: Mapping for 64 virtual devices Appendix 4 - Trigger Mode Scene Selection Table DALI DALI DALI DALI Table v: Scene Value Scene Value Scene Value Scene Value DMX values corresponding to individual scene selection Page 12 DALItoDMX User Guide... - Page 13 Power / Non-commission / Good data / Power & Electrical DALI & Bus power Input voltage: 9-24 VDC Ordering Info Input connector: (1) 2-pin screw terminal Product code: DALItoDMX Accessories (not included) Input power (max): 10 W DC fuse: internal resettable fuse for PSU-24-2-FER control electronics...
-
