Summary of Contents for Artistic Licence Rail-Split DMX

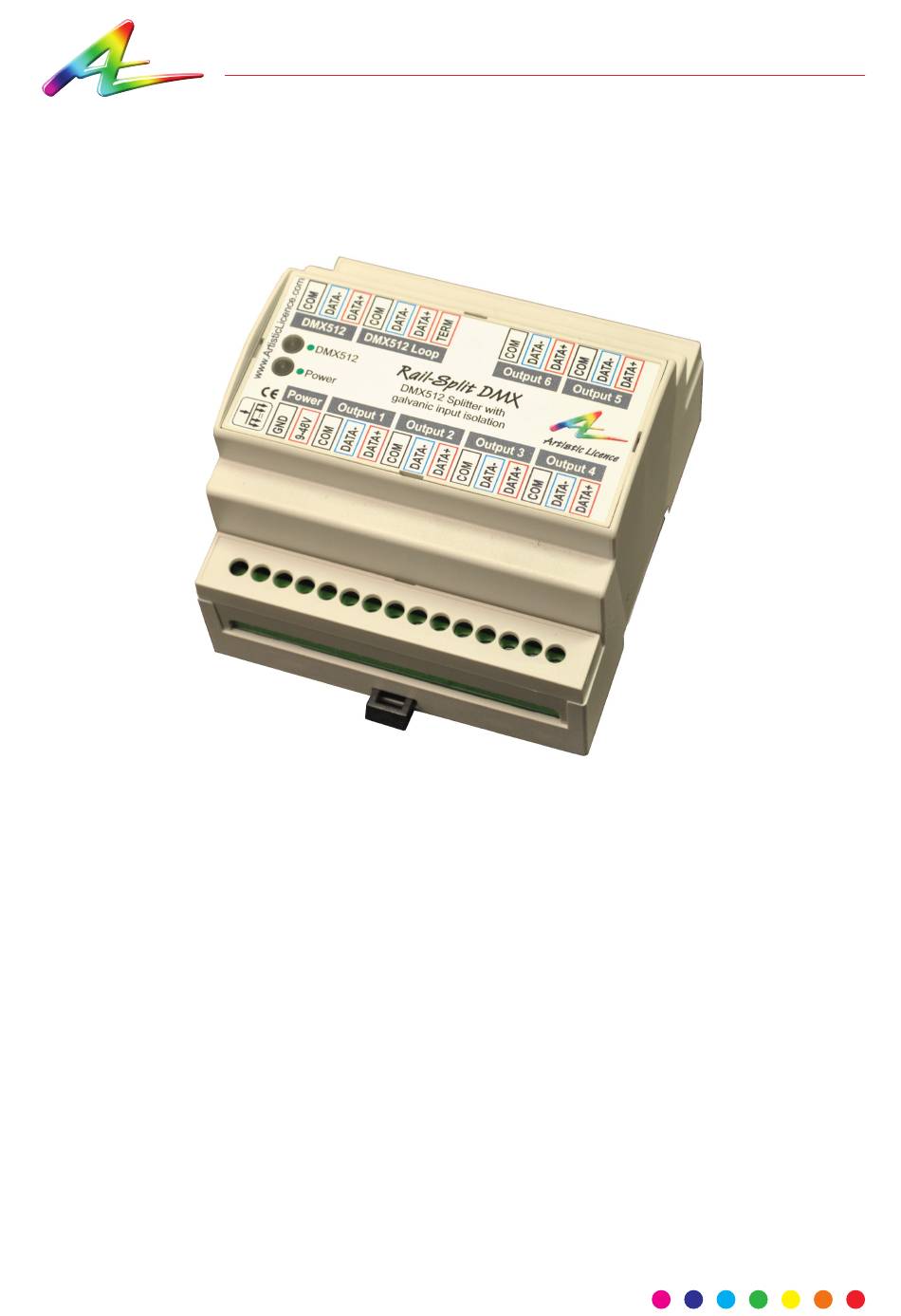

- Page 1 Artistic Licence Rail-Split DMX User Guide Rail-Split DMX User Guide Version 1-2...
- Page 2 MUST be installed in an appropriate IP rated cabinet. Do not allow this product to be exposed to rain or moisture. Do not allow liquid to penetrate the product. Please recycle all packaging. Copyright © Artistic Licence Engineering Ltd. All rights reserved. Download the user guide by scanning the following QR code: Page 2...
-
Page 3: Mounting Diagram
Mounting Diagram 88 mm 4 mm DMX512 DMX512 Loop Output 6 Output 5 Rail-Split DMX DMX512 DMX512 Splitter with Power galvanic input isolation Artistic Licence Power Output 1 Output 2 Output 3 Output 4 Page 3 Rail-Split DMX User Guide... -
Page 4: Key Features
Data + Overview Rail-Split DMX is a uni-directional DMX512 splitter and distribution amplifier. By design, Rail-Split DMX does not support RDM, allowing a cost-saving to be passed on to those customers who do not require bi-directionality. Customers requiring RDM functionality should order the sister product, Rail-Split RDM, as opposed to Rail-Split DMX. -
Page 5: Application Diagram
Earth-Ground and 0V the DMX outputs become Ground Referenced. Otherwise the DMX outputs are Floating. When the recommended PSU is used, DMX outputs are Floating. Application Diagram The diagram below shows how Rail-Split DMX could be utilised in a typical application. DMX Controller Device 1 Device 2... -
Page 6: Operation
Green = DMX activity DMX512 DMX512 Loop Output 6 Output 5 Rail-Split DMX DMX512 DMX512 Splitter with Power galvanic input isolation Artistic Licence Power Output 1 Output 2 Output 3 Output 4 Bottom (Power): Green = Power Page 6 Rail-Split DMX User Guide... - Page 7 Input voltage: 9-48 VDC User guide Ordering Info Input connector: 2-pin screw terminal (1 no.) Product code: Rail-Split DMX Input power (max): 8 W Accessories (not included) Duty cycle: 100% @ 25°C PSU-9-1.5-FER DC fuse: internal resettable fuse for control...
-
Page 8: Warranty
Waste Electrical & Electronic Equipment authorisation. In order to discuss a request to (WEEE) return goods, please email: Artistic Licence is a member of a WEEE Sales@ArtisticLicence.com compliance scheme and will happily recycle any of our products that you, at your expense, return to us.
