Summary of Contents for Artistic Licence Rail-Split RJ45

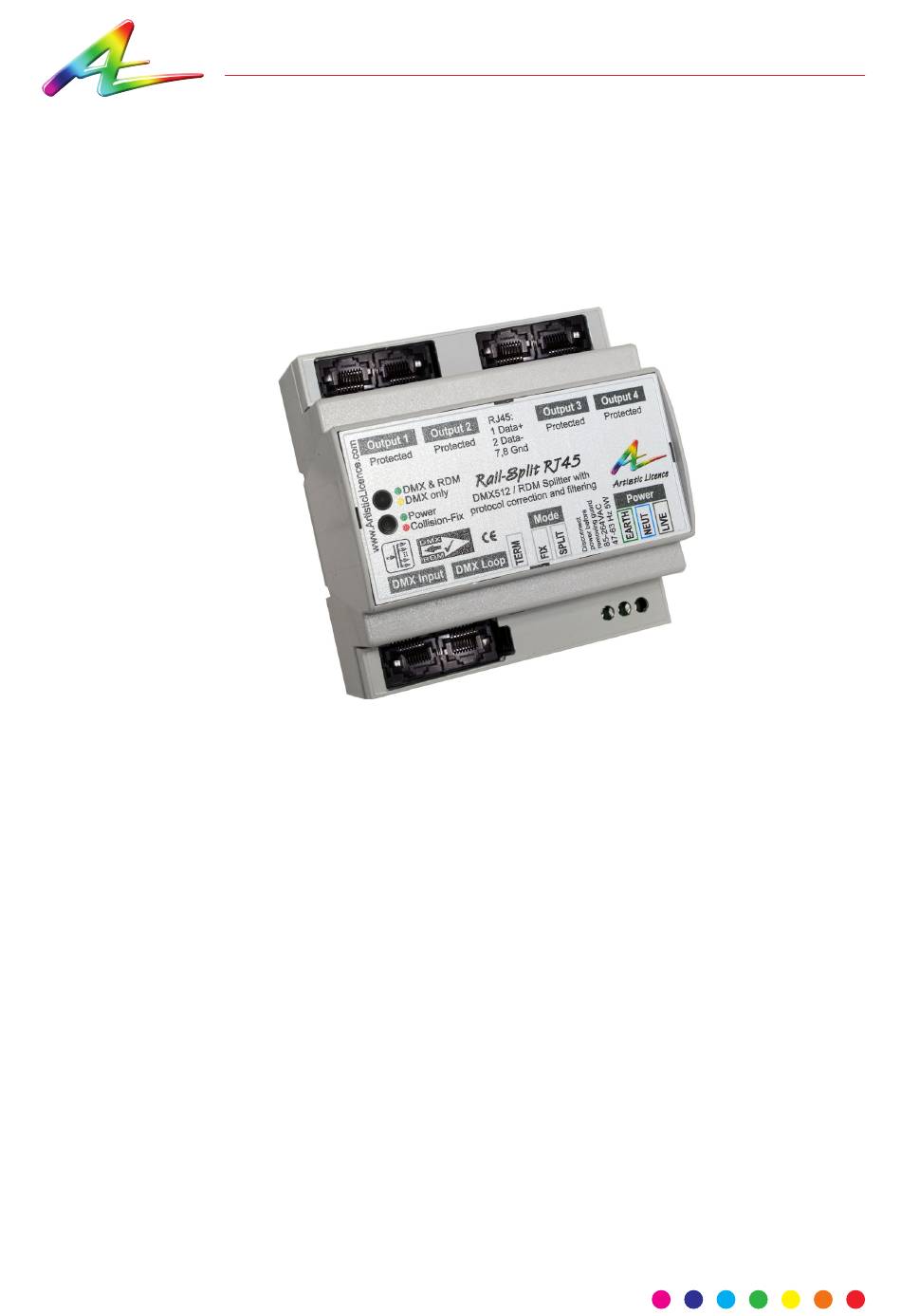

- Page 1 Artistic Licence Rail-Split RJ45 User Guide Rail-Split RJ45 User Guide Version 1-0...
- Page 2 MUST be installed in an appropriate IP rated cabinet. Do not allow this product to be exposed to rain or moisture. Do not allow liquid to penetrate the product. Please recycle all packaging. Copyright © Artistic Licence Engineering Ltd. All rights reserved. Download the user guide by scanning the following QR code: Page 2...
-
Page 3: Mounting Diagram
(ref. 5) is visible. Remove the black plastic shorting plug from the upper pin and place it over the lower pin. Alternatively, a plug-in RJ45 terminator can be fitted to connector 4 (not supplied). Mounting Diagram Page 3 Rail-Split RJ45 User Guide... - Page 4 Overview Rail-Split RJ45 is a fully bi-directional DMX512 splitter and distribution amplifier, with the added feature of a ‘data fixer’ for DMX. The latter functionality is used for resolving flickering problems arising from product incompatibility issues - see ‘Fixer Mode’ on page 6 for more information.
-
Page 5: Application Diagram
Ground referenced Pins 7 & 8: Connected to Internal Logic Ground Internal Logic Ground Connects to Ground Power Input Application Diagram The diagram below shows how Rail-Split RJ45 could be utilised in a typical application. Page 5 Rail-Split RJ45 User Guide... -
Page 6: Operating Modes
Accepts refresh period from 23 ms – 1000 ms and outputs 30ms Filters out multiple consecutive breaks Re-times bytes of 1 stop bit to 2 stop bits Filters out all non-zero start code packets Re-times digital signal Page 6 Rail-Split RJ45 User Guide... - Page 7 Input voltage: 85-264 VAC (47-63 Hz) Rail-Split RJ45 Input connector: 3-pin screw terminal Ordering Info Input power (max): 5 W Product code: Rail-Split RJ45 Duty cycle: 100% @ 25°C DC fuse: internal resettable fuse for control electronics DMX512 Outputs Mode: ground referenced...
-
Page 8: Warranty
Waste Electrical & Electronic Equipment authorisation. In order to discuss a request to (WEEE) return goods, please email: Artistic Licence is a member of a WEEE Sales@ArtisticLicence.com compliance scheme and will happily recycle any of our products that you, at your expense, return to us.
