Summary of Contents for Artistic Licence Rail-Demux

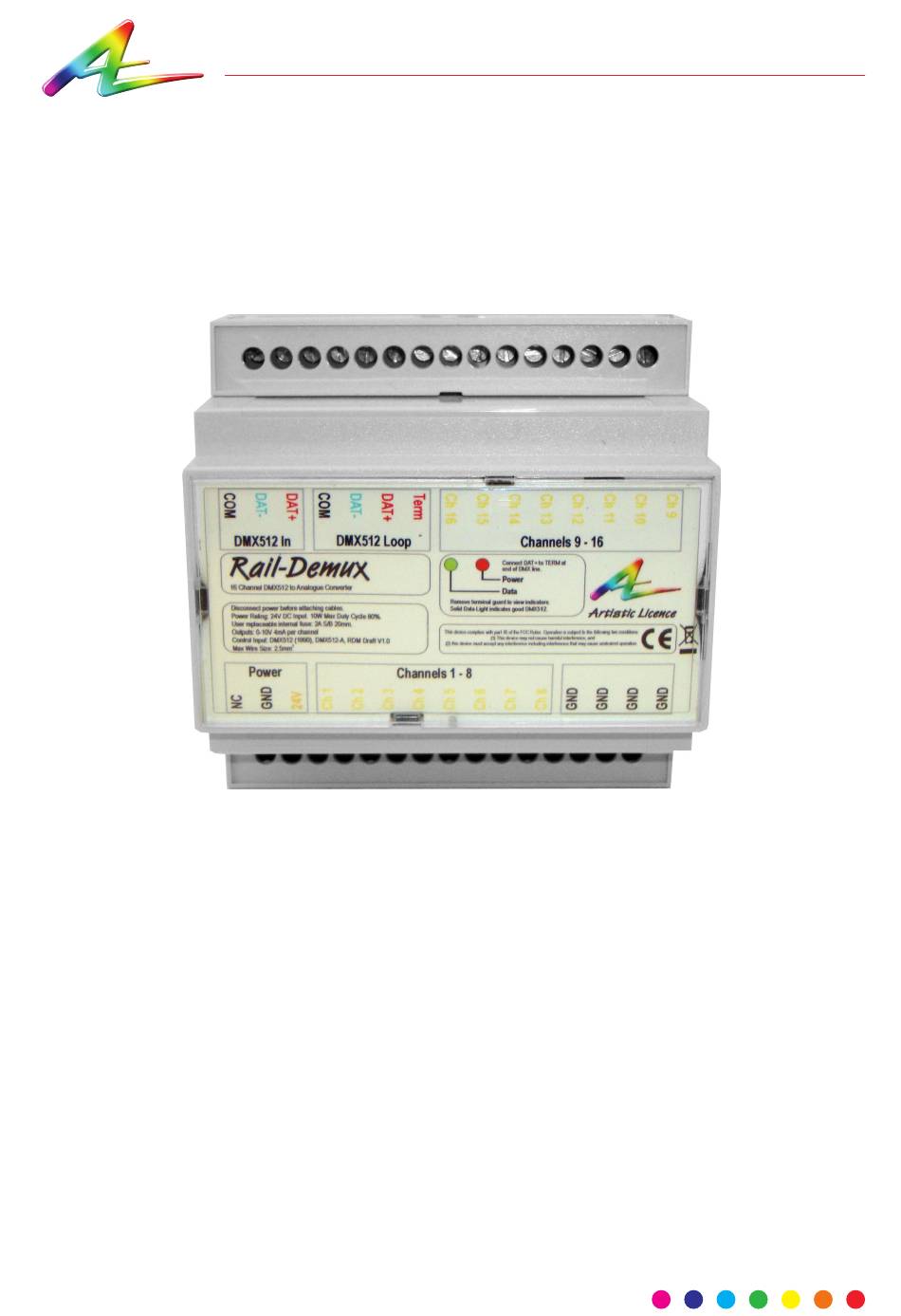

- Page 1 Artistic Licence Rail-Demux User Guide Rail-Demux User Guide Version 3-0...
- Page 2 MUST be installed in an appropriate IP rated cabinet. Do not allow this product to be exposed to rain or moisture. Do not allow liquid to penetrate the product. Please recycle all packaging. Copyright © Artistic Licence Engineering Ltd. All rights reserved. Download the user guide by scanning the following QR code: Page 2...
-
Page 3: Mounting Diagram

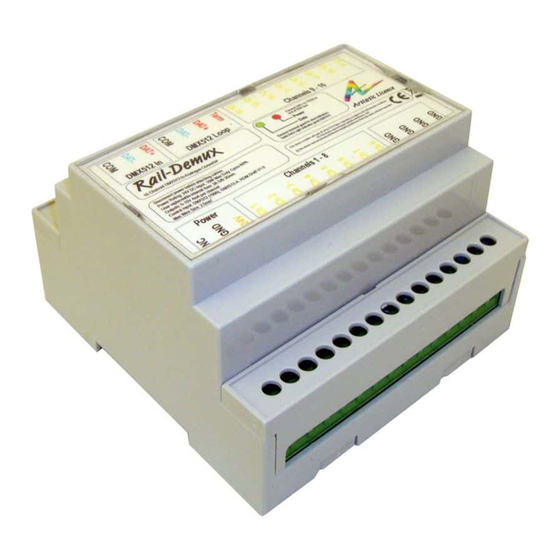

This is enabled by fitting a wire link between Term and DAT+. Mounting Diagram To use the surface mount option push the three bottom tabs out until they click into place. We recommend using an M4 Pan head screw. Page 3 Rail-Demux User Guide... - Page 4 Connects to Ground Power Input Overview Rail-Demux is a DIN-rail or surace mounted device that converts DMX512 into 16 analogue outputs. The standard that defines the output is ANSI E1.3 - 2001 (R2016). DMX512 to analogue conversion has two key applications: upgrading older analogue dimmers and driving fluorescent ballasts fitted with a 0-10V control facility.
-
Page 5: Summary Of Key Features
DAT+). that a ferrite core be fitted onto the DC power Analogue Outputs lines as close as possible to the Rail-Demux. This protects the unit from any electrical spikes Two 8-pin screw terminals are used for the 16 that appear on the DC line. -
Page 6: Wiring Diagram
... up to 16 outputs PSU-24-2-FER Output Application Diagram The diagram below shows how Rail-Demux could be utilised in a typical application. In this example, it enables dimming of 16 fluorescent ballasts by a DMX controller. 0 to 10V 0 to 10V... - Page 7 Configuration Rail-Demux uses one channel to control each output, requiring 16 channels in total. There are various configuration options (including start address programming). These are accessed using RDM, which requires a suitable programming interface. One option is Commissioner rdmx, a handheld RDM programming tool available from Artistic Licence.
- Page 8 Package Contents Operating relative humidity (max): 80% non-condensing Rail-Demux Ordering Info IP rating: IP20 indoor use only Product code: Rail-Demux Certification: CE, WEEE, RoHS Accessories (not included) Warranty: 2-year (return to base) Power & Electrical PSU-24-2-FER Input voltage: 24 VDC Input power (max): 15 W Input connector: 2-pin screw terminal (1 no.)
-
Page 9: Warranty
Waste Electrical & Electronic Equipment authorisation. In order to discuss a request to (WEEE) return goods, please email: Artistic Licence is a member of a WEEE Sales@ArtisticLicence.com compliance scheme and will happily recycle any of our products that you, at your expense, return to us.
