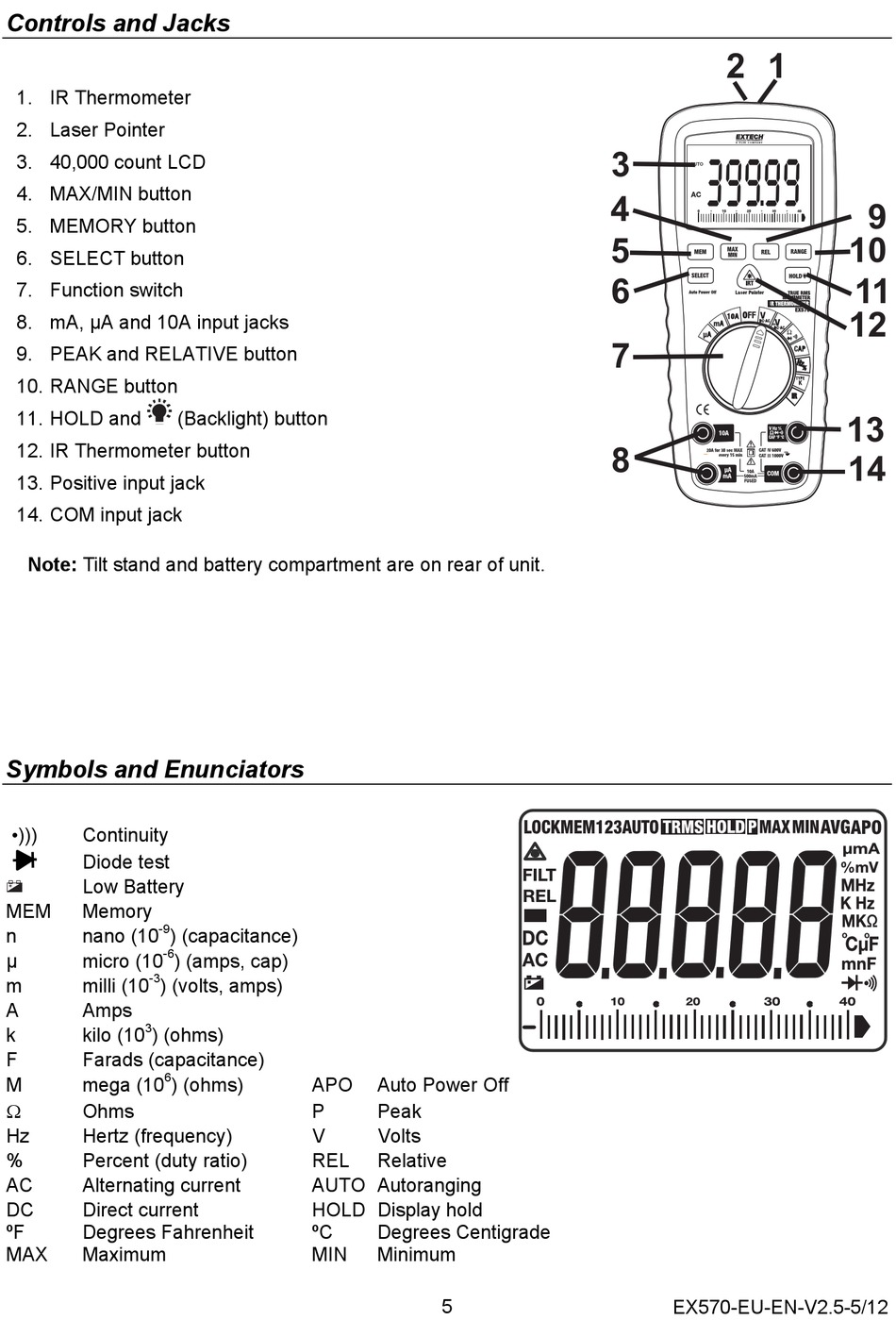

Controls and Jacks
1. IR Thermometer
2. Laser Pointer
3. 40,000 count LCD
4. MAX/MIN button
5. MEMORY button
6. SELECT button
7. Function switch
8. mA, µA and 10A input jacks
9. PEAK and RELATIVE button
10. RANGE button
11. HOLD and
12. IR Thermometer button
13. Positive input jack
14. COM input jack
Note: Tilt stand and battery compartment are on rear of unit.
Symbols and Enunciators
•)))
Continuity
Diode test
Low Battery
+
MEM
Memory
-9
n
nano (10
) (capacitance)
-6
µ
micro (10
) (amps, cap)
-3
m
milli (10
) (volts, amps)
A
Amps
3
k
kilo (10
) (ohms)
F
Farads (capacitance)
6
M
mega (10
) (ohms)
Ohms
Hz
Hertz (frequency)
%
Percent (duty ratio)
AC
Alternating current
DC
Direct current
ºF
Degrees Fahrenheit
MAX
Maximum
(Backlight) button
APO
P
V
REL
AUTO Autoranging
HOLD Display hold
ºC
MIN
Auto Power Off
Peak
Volts
Relative
Degrees Centigrade
Minimum
5
2
1
3
4
5
6
7
8
EX570-EU-EN-V2.5-5/12
9
10
11
12
13
14
