Summary of Contents for Citronic CDM8:4s

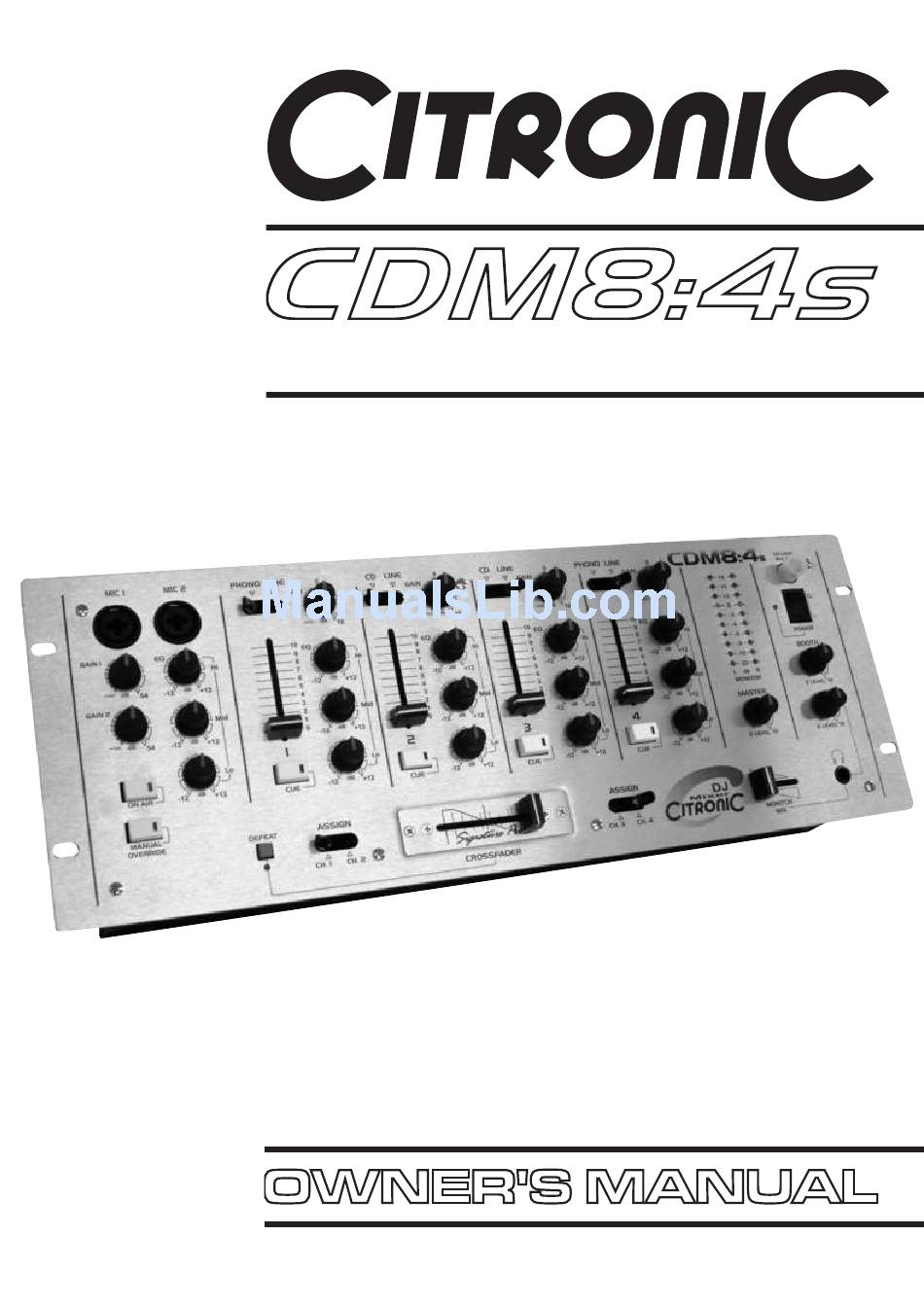

  • Page 1 Professional DJ Mixer Ref. No: 172.773...
  • Page 2 Power Supply - The power supply for your CDM8:4s is built into the mixer and will be fitted with a mains plug specifically for the mains supply in your country. If it does not match the power socket you wish to use check with your dealer before you plug it in.

  • Page 3: Front Panel Illustration

    Front Panel Illustration Features & Functions Top Panel Microphone Section 1. Microphone 1 Input A combination XLR & ¼” jack socket mounted on the front face of the mixer for connecting your microphones and offer both balanced or unbalanced connections: Balanced Input Wiring: Tip: Pin2:...

  • Page 4: Crossfader Section

    5. Microphone EQ Controls Both microphone inputs share a 3 Band Eq stage prior to the ON AIR switch. EQ Control ‘Lo’ This control allows 12dB of cut or boost to the low frequencies. EQ Control ‘Mid’ This control allows 12dB of cut or boost to the mid frequencies. EQ Control ‘Hi’...

  • Page 5: Rear Panel Illustration

    18. Headphone Socket (Standard Stereo 1/4" Jack) L/H Channel - Tip R/H Channel - Ring Ground - Sleeve Minimum Load Impedance - 32 Ohms Power Output - 316 mW 19. Headphone Level Control Sets desired level to headphones. Headphone program depends on the position of the monitor pan control. 20.
  • Page 6 The remote start facility on the CDM8:4s is ideal for use with Citronic Turntables PD-1 and RT:1 as well as the Citronic CD-2 & CD-4 Dual CD players. Please see the diagram below for wiring.

  • Page 7: Block Diagram

    Block Diagram ™...

  • Page 8: Technical Specification

    Technical Specification Parameter Phono Line/CD Sensitivity -53dBu 46dBu 0dBu (1.73mV) (4mV) (775mV) Input Impedance Source Z Ohm 150 Ohm 2K Ohm Max Gain 50dB <-70 to +10dB S/N Ratio* 68dB 73dB > 87dB Freq Response** 25Hz to 30KHz RIAA < 10Hz to 24 KHz THD *** 0.042% <...
  • Page 9 CE Marking EMC Conformity The CDM8:4s has been tested to demonstrate compliance with the EMC 89/336/EEC directive, under which the following harmonised standards apply: EN552020 Electromagnetic Immunity EN61000-3-2 Mains Harmonic Disturbance Limits iii) EN61000-3-3 Voltage Fluctuations Limits EN55013 Electromagnetic Compatibility...
