- Page 1 Item ref: 170.875UK CSD-series 170.876UK 170.877UK Compact Mixers with B/T and DSP User Manual Version 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 Introduction Thank you for choosing a Citronic CSD-series mixer as part of your professional sound system. This product has been developed to provide a wide range of facilities for professional and reliable sound reinforcement. Please read and keep this manual to achieve the best results from your purchase and avoid damage through misuse.
-
Page 3: Console Layout

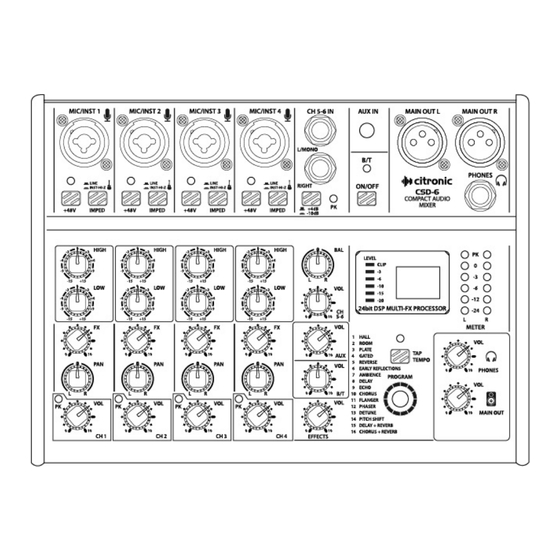

Console layout Each CSD compact mixing console has a bank of mono input channels which can accept a balanced microphone input or switchable line/instrument input. There is also a stereo input for playback devices or line level instruments. All preamps have studio grade, low noise architecture for the cleanest possible path throughout the signal chain. -
Page 4: Channel Controls
Channel controls 4. HIGH EQ This control can boost or cut the high frequencies by ±15dB (12 o’clock position is zero) 5. LO EQ This control can boost or cut the low frequencies by ±15dB (12 o’clock position is zero) 6. -
Page 5: Dsp Effects
AUX and B/T Wireless Receiver CSD-series mixers have an additional stereo AUX input and B/T wireless section. 16. AUX IN 3.5mm stereo input for connecting mp3 player or smart phone. 17. B/T LED Flashes when B/T receiver is active and stays lit when paired. Flashes slowly when a track is playing. -
Page 6: Output Section
Output Section 27. MAIN OUT L+R Left and Right main balanced line outputs via XLRM connectors to be fed onto amplification or recording equipment. 28. PHONES output Stereo 6.3mm jack output for headphone monitoring 29. VU Meters Left & Right LED main out level indicators. 30. -
Page 7: Operation
If a smart phone or tablet is to be connected as a wireless audio source, press the B/T button (18) until the B/T LED is flashing (17). Search on the smart phone or tablet for a device called “Citronic” and select to connect for audio playback. The B/T LED will stop flashing when connection is successful. -
Page 8: Specifications
Specifications Model CSD-4 CSD-6 CSD-8 2 x combo XLR/jack 4 x combo XLR/jack 6 x combo XLR/jack Inputs + stereo jack + stereo jack + stereo jack Power supply 5Vdc 1A (adaptor included) Power consumption max. EQ: low ±15dB @ 80Hz EQ: high ±15dB @ 12kHz Phantom power... - Page 9 Copyright© 2019. AVSL Group Ltd. Appendix CSD-series Mixers User Manual...
