INSTALLATION
AND
OPERATING
INSTRUCTIONS

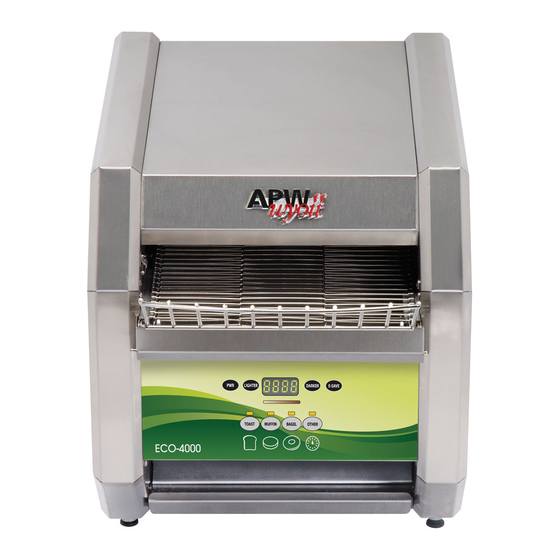

Models: QST-350E, QST-350L, QST-500E, QST-500L
INTENDED FOR OTHER THAN HOUSEHOLD USE
RETAIN THIS MANUAL FOR FUTURE REFERENCE
UNIT MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the Installation, Operating and Maintenance
Instructions thoroughly before installing or servicing this equipment.
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or
death. Read the Installation, Operating and Maintenance Instructions thoroughly before installing or servicing
this equipment.
This equipment has been engineered to provide you with year-round dependable service when used according
to the instructions in this manual and standard commercial kitchen practices.
Phone:
+1 (214) 421-7366
Fax:
+1 (214) 565-0976
Toll Free:
+1 (800) 527-2100
Website:
www.apwwyott.com
ECO-4000
1
P/N 8898800 5/10
APWWYOTT
729 Third Avenue
Dallas, TX 75226
Advertisement
Table of Contents
Related Manuals for APW Wyott QST-350E
Summary of Contents for APW Wyott QST-350E
- Page 1 INSTALLATION OPERATING INSTRUCTIONS Models: QST-350E, QST-350L, QST-500E, QST-500L ECO-4000 INTENDED FOR OTHER THAN HOUSEHOLD USE RETAIN THIS MANUAL FOR FUTURE REFERENCE UNIT MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 2: Table Of Contents
3. Never touch quartz or steel heaters. Warranty Information: Reliability Backed By APW Wyott’s Warranty: All APW Wyott Toaster Ovens are backed by a one year parts and labor warranty, including On-Site Service calls within 50 miles of authorized service technicians. Service Information:... -
Page 3: Specifications
This message is used when special information, instructions or identification are required relating to procedures, equipment, tools, capacities and other special data. SPECIFICATIONS QST MODEL VOLTS WATTS QST-350E 1700 QST-350L 1700 QST-500E 2800 QST-500E 2800... -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS If the carton appears damaged, or damage is discovered once the carton is opened, stop immediately and contact the freight company to file a damage claim. CAUTION: The ECO TOASTER Oven is shipped assembled except for installation of the crumb tray assembly. -
Page 5: Operation
OPERATION 1. The controls that operate the belt conveyor speed and the heaters are located on the front of the unit. 2. The On/Off switch is used to turn the unit on or off. Once the unit is turned on the conveyor will automatically run. - Page 6 3. The display will display a “-“then the word “HEAT” when the unit has completed its heat up cycle it will display “IdLE.” 4. After the display shows “IdLE” the unit is ready to use. 5. Press the “OTHER” Button located at the right side of the control panel. 6.
- Page 7 PROGRAMMING INSTRUCTIONS (DIGITAL) Product Key Programming Toast Button 1. Press and hold the “LIGHTER” and “DARKER” buttons simultaneously for 20 seconds. 2. The display will display “PROG”. 3. Press the “TOAST” Button. 4. The Display will display “sped” then the current speed setting numeric value. 5.
-
Page 8: Cleaning
4. The display will display “sped” then the current speed setting numeric value. 5. Pressing the “DARKER” button will increase the numeric value, increasing the conveyor speed. Pressing the “LIGHTER” button will decrease the numeric value, which will decrease the conveyor speed. -
Page 9: Troubleshooting
Using a damp rag with mild soap solution, wipe down all areas of the conveyor. DO NOT ATTEMPT TO • CLEAN THE QUARTZ OR METAL HEATERS. When units are in the stacked configuration, it is still necessary to clean between the units. Using a damp •... -
Page 12: Parts Lists & Exploded Views
PARTS LISTS & EXPLODED VIEWS QST EXPLODED VIEW 500E... - Page 13 PARTS LISTS & EXPLODED VIEWS ECO 4000 500E Parts Lists Item Part # Title Item Part # Title Item Part # Title 86621-00 LEG 1" CHROME 15346-00 CORD, 14/3 HSJO NEMA 6-20P 72" 48395600 DRIVE SHAFT ASSY SEGMENTED BELT 21851450 COVER, ELEMENT CART.
- Page 14 PARTS LISTS & EXPLODED VIEWS ECO 4000 500L...
- Page 15 PARTS LISTS & EXPLODED VIEWS ECO 4000 500L Parts List Item Part Number Title Item Part Number Title 86621-00 LEG 1" CHROME 44 21851439 TRAY CRUMB 21851482 ELEMENT, 208V 1400W 46 21851464 PANEL, CONTROL QST VL 21851453 BRACKET, ELEMENT CART. 47 21851458 SIDE, CONVEYOR LS QST MOUNTING (L) QST...
- Page 16 NOTES:...
-
Page 17: Warranty
Authorized Service Agencies. The use of other than APW Wyott Authorized Service Agencies will void this warranty and APW Wyott will not be responsible for such work or any charges associated with same. The closest APW Wyott Authorized Service Agent must be used.
