Preparation

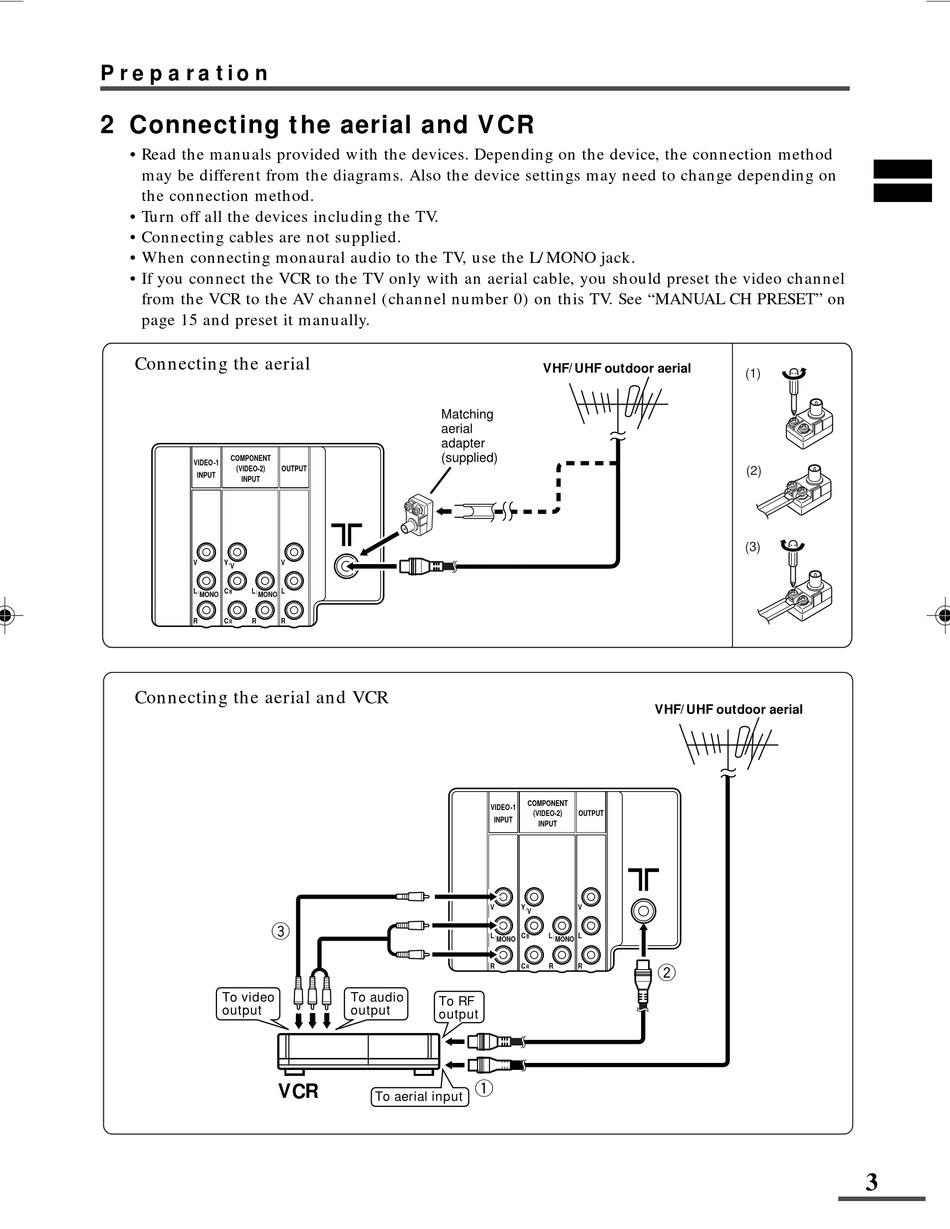

2 Connecting the aerial and VCR

• Read the manuals provided with the devices. Depending on the device, the connection method
may be different from the diagrams. Also the device settings may need to change depending on
the connection method.
• Turn off all the devices including the TV.
• Connecting cables are not supplied.
• When connecting monaural audio to the TV, use the L/MONO jack.
• If you connect the VCR to the TV only with an aerial cable, you should preset the video channel
from the VCR to the AV channel (channel number 0) on this TV. See "MANUAL CH PRESET" on
page 15 and preset it manually.
Connecting the aerial
COMPONENT
VIDEO-1
( VIDEO-2 )
INPUT
INPUT
V
Y
/
V
L
C
L
B
/
/
MONO
MONO
R
C
R
R
Connecting the aerial and VCR
To video
output
OUTPUT
V
L
R
3
To audio
output
VCR
To aerial input
VHF/UHF outdoor aerial
Matching
aerial
adapter
(supplied)
COMPONENT
VIDEO-1
( VIDEO-2 )
OUTPUT
INPUT
INPUT
V
Y
V
/
V
L
C
L
L
B
/
/
MONO
MONO
R
C
R
R
R
To RF
output
1
(1)
(2)
(3)
VHF/UHF outdoor aerial
2
3
