Fuho AP-460 Manual

4ch standalone dvr
Hide thumbs Also See for AP-460:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual

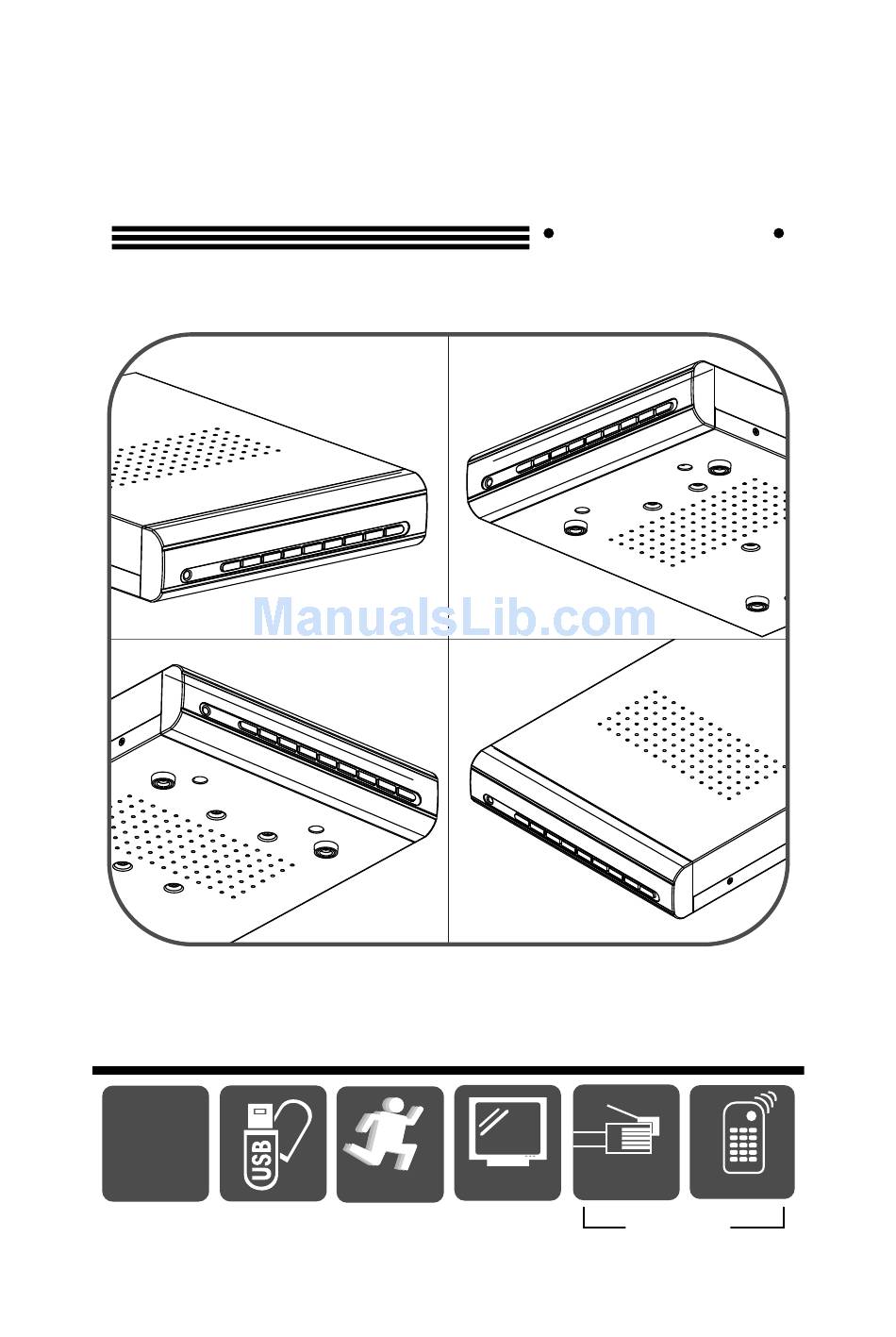

4CH STANDALONE DVR
M
A
N
U
A
L
2009 AUG.
Ver 1.1
4ch
LAN
XGA
Remote
MOTION
MOTION
OPTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-460 and is the answer not in the manual?

Questions and answers

Related Manuals for Fuho AP-460

Summary of Contents for Fuho AP-460

  • Page 1 4CH STANDALONE DVR 2009 AUG. Ver 1.1 Remote MOTION MOTION OPTION...

  • Page 2: Hdd Support List

    HDD SUPPORT LIST Warning： Should you wish to install a new hard drive in this unit, a list of tested hard drives shown to be compatible can be found below. SATA Brand Maxtor Seagate HITACHI Capacity/ 250GB 250GB 250GB 250GB Model Number STM3250318AS ST3250824AS...
  • Page 3 USB FLASH DISK SUPPORT LIST Warning： We recommend having the USB flash disk by using the following USB flash disk support list to ensure the compatibility with the DVR and best performance. Remote PC Firmware Brand Capacity Backup ViewingPASS Update Transcend 4 GB PASS...

  • Page 4: Table Of Contents

    CONTENTS 1、FEATURES 2、SPECIFICATIONS 3、INSTALLATION 4、FRONT PANEL 5、OPERATION MENU 6、BACKUP 7、 RECORDING PROCEDURE 8、 4-CH CONTINOUS RECORDING HOURS ON SATA 400GB HDD 9、DVR VIEWER USER GUIDE 10、 CONTROL REMOTE GUIDE...

  • Page 5: Features

    1、FEATURES 、 1 Triplex (Recording, Playback, Network simultaneously) 2、Up to 60fps Recording Speed。 3、USB flash disk backup。 4、Adjust Up/Down/Left/Right screen position。 5、Video Input Signal: NTSC / PAL。 6、Video Compression: Modified MJPEG 7、Manual, Motion, & Programmed。 8、Motion Detection with Adjustable Time Duration。 9、Search Data by Date and Time。...

  • Page 6: Specifications

    2、SPECIFICATIONS Video Format NTSC/PAL Operating System Embedded RTOS VGA Output D-SUB 15Pin VGA Video Input BNC x 4 (1Vp-p 75Ω) Audio Input RCA x 1, Line-In Video Output BNC x 1(Main Monitor) Audio Output RCA x 1, Line-Out Language Multi-Language NTSC 120 fps (4 ×...

  • Page 7: Installation

    3、INSTALLATION REAR PANEL TYPE 1 AUDIO IN DEFAULT DC12V VIDEO OUT AUDIO OUT VIDEO IN TYPE 2 AUDIO IN DEFAULT DC12V VIDEO OUT AUDIO OUT VIDEO IN (1) XGA Output (TYPE 2) (2) Video Output: BNC x 1 (3) Video IN: BNC x 4 (4) Audio Input: RCA x 1, Line-In (5) Audio Output: RCA x 1, Line-Out (6) Host USB...

  • Page 8: Front Panel

    4、FRONT PANEL Up Arrow/CH1: Navigate up through menu options/ Camera 1 full screen display Down Arrow/CH2: Navigate down through menu options/ Camera 2 full screen display Left Arrow/CH3: Navigate left through menu options/ Camera 3 full screen display Right Arrow/CH4: Navigate right through menu options/ Camera 4 full screen display Menu: Main menu/ Show percentage of the hard drive used.

  • Page 9: Operation Menu

    5、OPERATION MENU Type A Without Network Setup Camera Record Motion Detection Screen Audio System Search Language English Exit 2008/07/01 13:21:14 Type B With Network Setup Camera Record Motion Detection Screen Audio System Network Search Press to select items Language English Exit to enter 2008/07/01 13:21:14...
  • Page 10 Record Setup Record Record Speed Record Quality High Event Rec Duration Record Schedule 2008/07/01 13:21:24 Press to select items to enter Press MENU to exit (1)Record Speed： Set the number of frame per second (fps). NTSC：default: 15 fps，maximum total frame: 60 fps. PAL ：default: 12 fps，maximum total frame:50 fps.
  • Page 11 Motion Detection Setup Motion Detection Setup Channel Sensitivity Alarm Duration Motion Area Smart Record 2008/07/01 13:21:36 Press to select items to enter Press MENU to exit (1)Channel：The diagram above shows Channel 1. (2)Sensitivity：To set Off, or 1 to 4， default: Off. (3)Alarm Duration：To set alarm duration when alarm is triggered by a moving object: Off, 5, 10, 15, 20, 25, 30 seconds, or continuous.
  • Page 12 Audio Audio Record Mute Input Volume Output Volume 2008/07/01 13:21:50 Press to select items to enter Press MENU to exit (1) Record： On/Off (2) Mute ： On/Off (3) Input Volume： A djust input volume (4) Output Volume： Adjust output volume. System System Hard Disk Setup...
  • Page 13 (1) Hard Drive Disk Setup Hard Drive Disk Setup Overwrite Enable Format HDD Size : 238463MB Used: 4737MB DISK0: 238463MB ST3250824AS PRESS (Ch4) TO STOP RECORDING FIRST 2008/07/01 13:21:50 Press to select items to enter Press MENU to exit (1.1) Overwrite Enable: Enable overwrite when HDD capacity is full: Yes: When HDD overwrite is taking place, the data is stored in duration of 4 hours per event and being recorded continuously.
  • Page 14 (3) Time Set Time Set Time Set 2008/07/02 14:08:37 Apply 2008/07/02 14:21:50 (3.1)Time Set：YYYY/MM/DD HH:MM:SS (3.2)Apply：Update and save all changes. (4) Event List Event List  005 08/07/01 13:24:32 REC START 005 08/07/01 09:42:32 REC STOP 005 08/07/01 09:42:32 REC START 005 08/07/01 09:42:32 REC STOP 005 08/07/01 09:42:32 REC START...
  • Page 15 (7) F/W Upgrade: F/W Upgrade 1.5.7 1201 Current Ver 1.5.7 1201 Firmware Reading..2008/07/01 13:36:46 Please save updated firmware on a USB flash drive. Stick it into USB port. The screen will show both current version and new version of firmware. ●...
  • Page 16 Time Search Time Search Start 2008/07/04 09:56:11 2008/07/07 16:12:44 2008/07/04 09:56:11 (CH1,CH2)SET (CH3,CH4)SELECT (MENU)EXIT (PLAY)PLAY 2008/07/01 14:21:50 (1)Set Search of time, then press "play" button to start playback. (2)Playback: ＊Press button for fast forward. Press one more time for faster speed. Total three variable speeds.

  • Page 17: Backup

    6、BACKUP Start 2008/07/01 13:31:20 2008/07/01 13:31:21 Size 192 KB USB BACKUP MODE (CH1) Start Time, (CH2) End Time (CH4) Start Backup, (STOP) EXIT 2008/07/01 13:31:23 (1)Stick USB flash Drive into USB port (2)Press “ ” button， (3)Press “ ” button to enter backup menu (4)Press “...

  • Page 18: Recording Procedure

    7、RECORDING PROCEDURE (1)Press button to start recording. The symbol, will appear on the top right hand corner of each channel in the screen that indicates it is recording live regardless the recording mode is set on continuous or motion recording. 8、4-CH CONTINOUS RECORDING HOURS ON SATA 400GB HDD Recording Results in NTSC Standard...

  • Page 19: Dvr Viewer User Guide

    9、DVR VIEWER USER GUIDE 1.Playback Recorded File (1.1)Start VVF SLPlayer (1.2)Point the cursor in the screen and right-click “Open File”. Pick and choose the file you want to view in ( .vvf) and play. 2.Capture an image (2.1) During the playback of the backup file, click “Pause”, located on the bottom of the screen.
  • Page 20 3. Convert File to AVI Format (3.1) Point the mouse cursor to the screen, and press the right button on the mouse, pick and choose「Export」/「AVI」 (3.2) Set Input/Output File 、Compression、Export Channel and Audio. (3.3) Click “OK” to start converting file to AVI format. 4.

  • Page 21: Remote Control Guide

    10、REMOTE CONTROL GUIDE (OPTION) CH2 display CH1 display Record CH3 display Quad display/ Sequence Switch CH4 display MUTE MENU Navigator Fast Reverse Fast Forward Play Stop record/ Stop playback Pause...
  • Page 22 4CH STANDALONE DVR H12C460V01...
