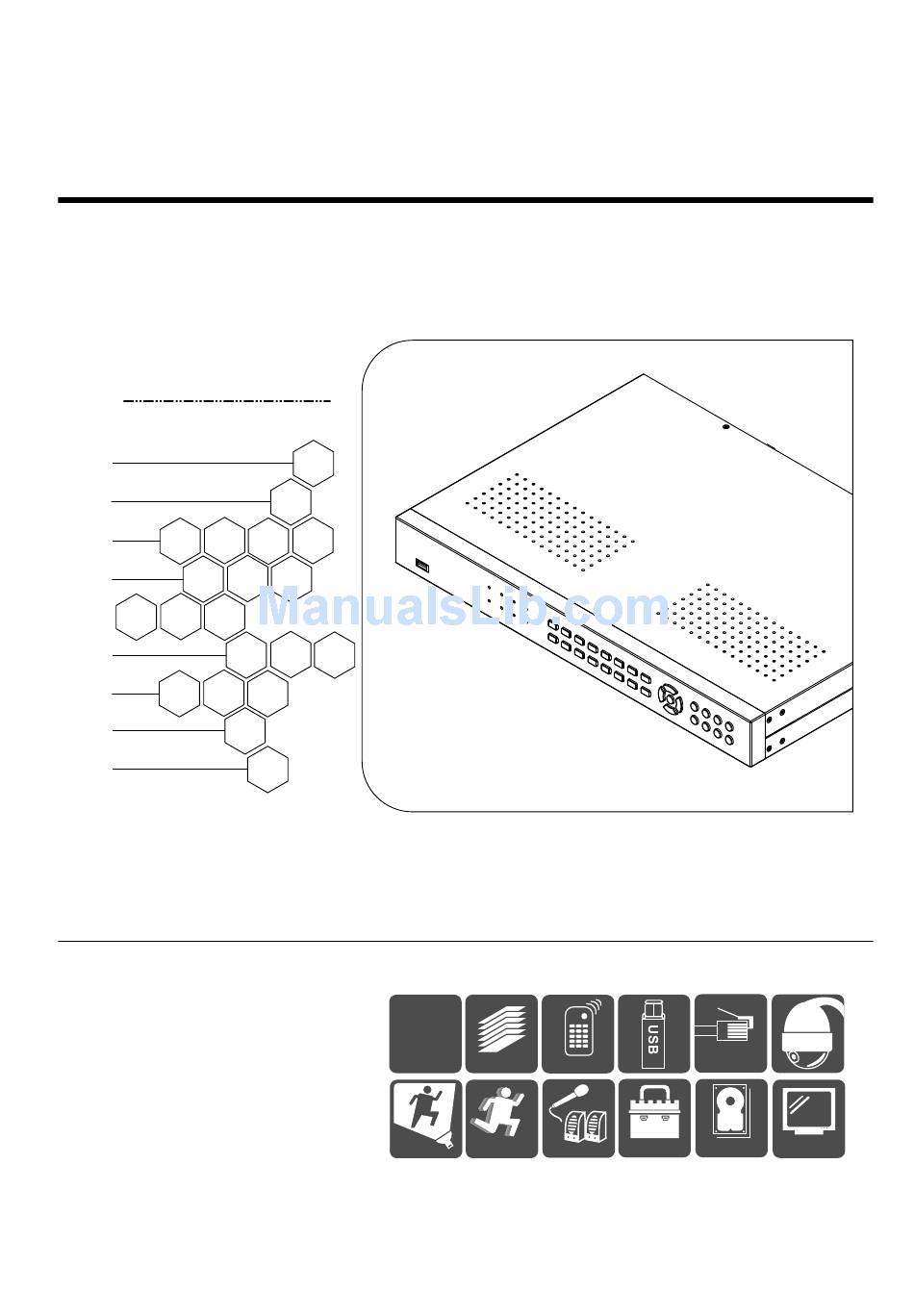

16CH STAND ALONE
MANUAL
2008 AUG. Ver.4.0
16CH
MJPEG
Remote
ALARM
MOTION
MOTION
Audio
Audio
ALARM
LAN
XGA
TRIPLEX
TRIPLEX
HDDx2
OPTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA-1620 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fuho TA-1620

  • Page 1 16CH STAND ALONE MANUAL 16CH MJPEG Remote 2008 AUG. Ver.4.0 TRIPLEX TRIPLEX HDDx2 ALARM MOTION MOTION Audio Audio ALARM OPTION...
  • Page 3: Table Of Contents

    CONTENT 1) SPECIFICATION 2) FRONT PANEL 3) REAR PANEL 4) INITIALIZATION 5) DVR SYSTEM SETUP TIME/DATE SET HDD FORMAT SET FACTORY RESET VIDEO SYSTEM LANGUAGE BUZZER RELAY ENABLE AUDIO SOUND CHANGE PASSWORD FIRMWARE UPDATE 6) DISPLAY SETUP CAMERA NAME COLOR SET AUTO SEQ.
  • Page 4: Specification

    1) SPECIFICATION Video Type NTSC Video Input 16 CH Input/ 1V p-p / 75 Ohm / BNC Audio Input 1 CH Input/ RCA Video Output 2 CH Monitor Output / BNC Audio Output 1 CH Output / RCA Display Mode Full Mode,4/9/13/16 Division,Circulate Auto Switcher Display Resolution 720 x 480...
  • Page 5: Front Panel

    2) FRONT PANEL POWER PLAY NETWORK MENU LOCK FREEZE ZOOM ZOOM FREZ LOCK POWER PLAY NETWORK USB plug Indicator Led LOCK FREEZE ZOOM Channel Buttons Direction/Auto Switcher Direction/Auto Switcher/ System Info./Display mode Direction/System Inf Direction Direction/Display mode MENU PLAY/PAUSE STOP RECORD Functions MENU...
  • Page 6 Front Panel Power, Record, Playback, Network, USB Archive, Zoom magnify, Status Indicator Freeze, Key Lock (LED) USB drive, firmware update & backup USB plug Full Mode given under status of recording and playback Channel no Press the buttons to show 4, 9, 13 and 16 divisions. Display Mode Double clicks to view each channel from the divisions.
  • Page 7: Rear Panel

    3) REAR PANEL VIDEO OUT POWER VIDEO OUT 1 AUDIO IN ALARM VIDEO IN DC12V VIDEO OUT 2 AUDIO OUT RS-485 Power RJ45 PORT Camera input 1~16 Input (OPTION) Network Audio Input connection Speaker RS-485 output ALARM Alarm sensor input / output (DB25) 1、...
  • Page 8: Initialization

    4) INITIALIZATION £ Power Supply Use the power cord provided in the package to connect the power supply (AC115V~AC230V). £ Connect BNC of Cameras to BNC of DVR Coaxial cable cat6 or above is suggested. £ DVR Network Cabling Please connect HUB or Router to the TCP/IP port with RJ connector and make sure the led is light.
  • Page 9: Dvr System Setup

    5) DVR SYSTEM SETUP enter MENU. Select 【SYSTEM SET】to set or change the options. Press £ TIME /DATE SET 1.Select【TIME /DATE SET】and press button to select the options. Press button to change the settings not under recording status. 2.Date formats 【FORMATE】:yyyy/mm/dd、mm/dd/yyyy、dd/mm/yyyy 3.Time displays on screen when 【DISPLAY】”ON”, not on screen when “OFF”.
  • Page 10: Video System

    £ VIDEO SYSTEM Select【VIDEO SYSTEM】and press to select (NTSC) or (PAL) system. £ LANGUAGE Select【LANGUAGE】and press to select language on screen display. £ BUZZER SOUND Select【BUZZER SOUND】and press to set “ON”or “OFF”of buzzer sound. £ RELAY ENABLE Select【RELAY ENABLE】and press to enable or disable relay device.
  • Page 11: Display Setup

    6) DISPLAY SETUP . Select 【DISPLAY SETUP】to set up display of each channel. Enter into MENU £ CAMERA NAME Enter【CAMERA NAME】 to name the camera on screen display. Select the camera no andress to name the camera. Select the letters, numbers or symbols at the bottom of screen with maximum 6 bites for camera's name.
  • Page 12: Ptz Setup & Operation

    7) PTZ SETUP & OPERATION Make sure to understand the usage for speed dome before your setting up【PTZ】 £ PTZ SETTING 1. Select the Speed Dome camera from【CHANNEL SELECT】and setup【DEVICE ID】 accordingly. 2. Setup【FAST DOME TYPE】and then【PROTOCOL】. Finish setup of【BAUDRATE】 to operate Speed Dome camera.
  • Page 13: Dvr Recording Setup

    8) DVR RECORDING SETUP Enter and select【RECORD SETUP】to setup recording functions. £ OVER WRITE Select【OVER WRITE】and press “YES” to overwrite data in HDD or “NO” not overwrite it. ※Caution:It's impossible to undo overwritten data. £ REC SPEED & QUALITY Select【REC SPEED】and press to setup recording speed.
  • Page 14: Dvr Recording Operation

    9) DVR RECORDING OPERATION This DVR provides three recording modes, manual recording, sensor & motion recording and schedule recording. £ MANUAL RECORDING Manual recording is pressed to start recording by the user. 1. Press to start recording and saving data to HDD. There will be a red ● marked on screen display when recording.
  • Page 15: Sechedule Recording

    5.Set【BUZZER TIME】for buzzer duration seconds, available from 01 to 99 seconds ( default on 05 seconds). 6.Sensor recording time, default on 10 seconds, is subject to【SENSOR REC TIME】 and ranges from 10 seconds to 99 seconds. Enable【ALARM SCREEN】to provide full screen display for the alarm triggered camera. £...
  • Page 16: Dvr Playback

    10) DVR PLAYBACK 4 palyback modes are provided as 「DIRECT PALY」、「PLAY TIME SELECT」、 「RECORD EVENT LIST」and 「MANUAL RECORD LIST」Press to enter palyback. £ DIRECT PLAY Use DIRECT PLAY to retrieve the initial video records. 1. Press and select【DIRECT PLAY(10)】to start playback. 2.
  • Page 17: Files Backup

    11) FILES BACKUP DVR provides USB backup & CD-RW backup. Backup should be play via NetViewer program. For details, please refer to chapter 13. NetViewer £ USB BACKUP Live images or video records can be saved as backup files in USB flash. 2 modes are available “STILL”...
  • Page 18: Network Setup

    12) NETWORK SETUP Press to enter menu. Select【NETWROK SETUP(4)】to setup network. A remote user could download instruction manual and NetViewer via IE browser. User could remotely access the DVR through NetViewer. £ SETUP 【IP MODE(4-4)】(footnote 3) : ” Static IP” & “DHCP” 1.”Static IP”...
  • Page 19: Netviewer Operation

    13) NETVIEWER OPERATION £ Instruction Network Viewer make it possible to monitor, playback and back up video remotely. £ System Requirement OS:Windows 2000 or above £ Software Retrieving & Installation BACKUP SET USB BACKUP COPY PC APPLICATION CD_RW BACKUP ENTER EXIT £...
  • Page 20 £ INTERFACE (1) Video Display Video comes up to this area in divisions subject to setting. (2) Status Indicator It lights up while recording. It lights up while AVI backup. It lights up while saving video to PC LOCAL (3) Buttons Press to start monitor in remote Real time monitor Stop monitor or backup files...
  • Page 21 (4) Division Options Click to choose a display mode. (5) Playback playback for CD-RW backup ScanDisk playback for USB or PC backup FilePlay (6) Close Netviewer the button to exit system £ Network connection setting Press to enter Netviewer setup. ¦...
  • Page 22 ¦ Common: 1. 「Enable One Channel Transfer」: Click this function to improve video stream fluency through the internet. Better disable this function while video backup. 2. 「Enable Connection Check」: Click to check IP address automatically. Attention: This option is not suggested when network is doing but gets no response about「IP Addr」...
  • Page 23 « Attention:Within video display area, click right button of mouse to get JEPG images from single or all channels. Also, it can print/ restore images and display as watermarks. £ Network Viewer is able to do PTZ control if DVR does not have PTZ setup. Click PTZ「Set PTZ CH」:...
  • Page 24 £ AVI Backup Click for below window. Select the channel (CAM) no. you want to back up and click OK to start backup. When backup is finished, just click stop backup « Attentions: 1. AVI converting requires large system resources. Better click to backup the video stream to PC's HDD instead.
  • Page 25 £ FilePlay Click to enter FilePlay 「FilePlay」can read: 1. Video files from USB flash drive 2. Video files from PC's HDD 3.Control bar: Play Pause First Page Previous Page Next Page Final Page ‧22‧...
  • Page 26: Storage

    14) STORAGE £ System info Press “INFO” button on remote controller to get information of HDD model、capacity、 used volume % 、overwritten times、record list、event list、IP address and firmware version. HDD USED is yellow blocked while video is being recorded. STORAGE INFO MASTER  SLAVE HDD MODEL SAMSUN SV ST380011A HDD SIZE   160G...
  • Page 27: Remote Controller

    15) REMOTE CONTROLLER OPEN/CLOSE Channel Split Mode STOP PLAY PAUSE Navigator Enter MENU INFO LOCK PREV NEXT FREZ ZOOM AUTO MUTE ZOOM IN ZOOM OUT AUTO PAN PTZ Control £ OPEN/CLOSE : CD Drive £ REC : Start/Stop Recording £ Channel : Single channel display in recording/playback mode.
  • Page 28: Default Setting Table

    16) DEFAULT SETTING TABLE 1'st Menu 2'nd Menu 3'rd Menu Default 1'st Menu 2'nd Menu 3'rd Menu Default IP Addr Not Change Not Change Date Not Change Gateway Not Change Time Time Set YYYY/MM/DD Sub Net Not Change Format IPMode Static IP Display Network...
  • Page 29: Record Time Table

    17) RECORD TIME TABLE Record Quality NTSC Resolution 8.8 GB/hr 6.4 GB/hr 4.9 GB/hr 4.2 GB/hr 720 * 240 4.6 GB/hr 3.4 GB/hr 2.9 GB/hr 2.5 GB/hr 2.2 GB/hr 1.6 GB/hr 1.32 GB/hr 1.2 GB/hr 8.2 GB/ 5.8 GB/ 5.4 GB/ 4.7 GB/ 720 * 288 4.0 GB/...
  • Page 30: Hdd Compatibility

    19) HDD COMPATIBILITY Brand NameModel Size Seagate 160GB ST3160812AV Seagate 250GB ST3250310CS Seagate 500GB SA3500641AS Seagate 750GB ST3750330AS HITACHI 250GB HDT725025VLA380 HITACHI 320GB HDT725032VLA360 HITACHI 500GB HDP725050GLA360 HITACHI 750GB HDS721075KLA330 HITACHI HDS721010KLA330 Maxtor 250GB STM3250820AS Maxtor 320GB STM3320820AS Maxtor 500GB STM3500630AS 250GB WD2500AVJS...
  • Page 31 H12C162001...
