4CH H.264 DVR NAHRÁVACÍ ZAŘÍZENÍ
Uživatelský manuál
2011 SRPEN V2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HA-640 and is the answer not in the manual?

Questions and answers

Related Manuals for Fuho HA-640

Summary of Contents for Fuho HA-640

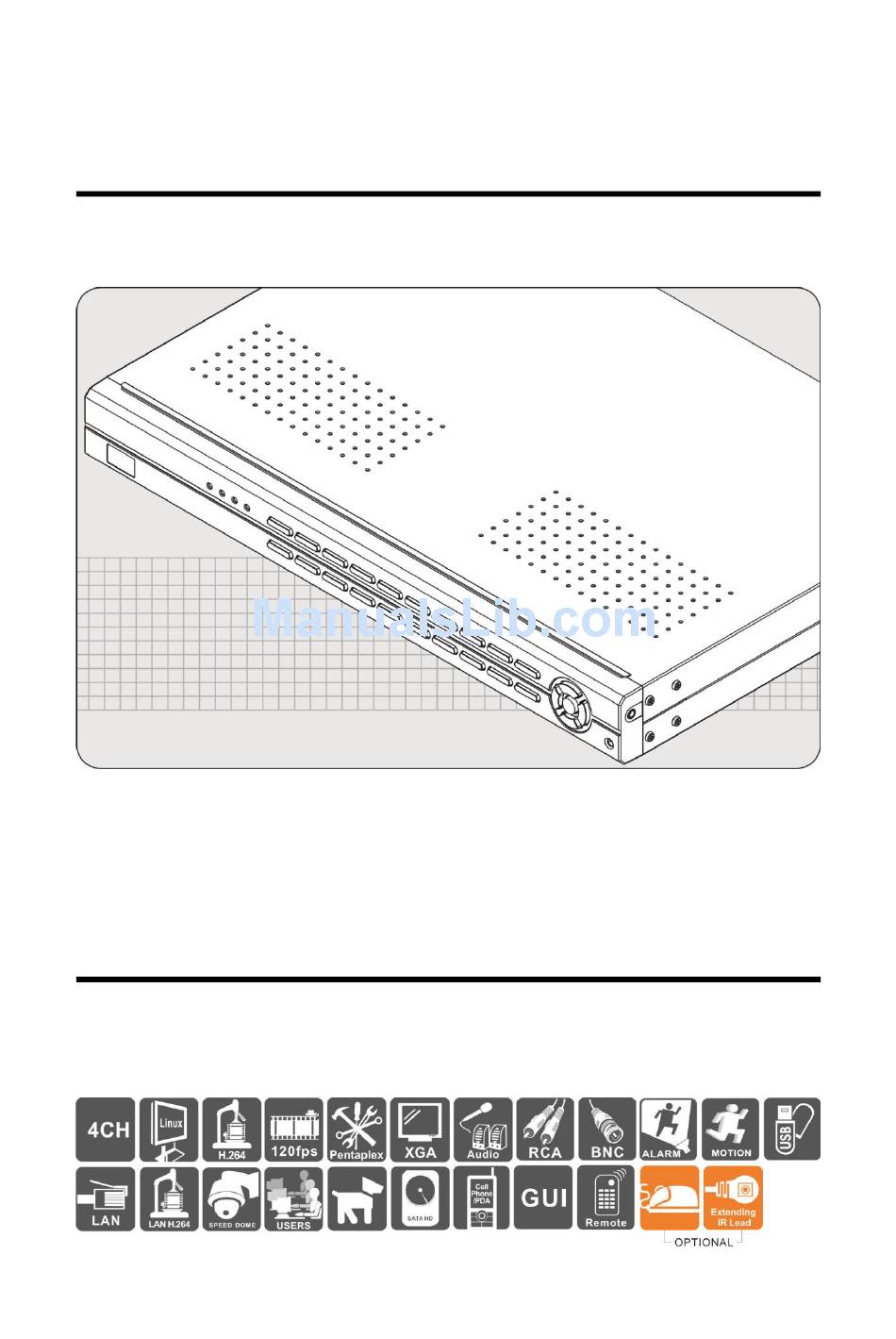

  • Page 1 4CH H.264 DVR NAHRÁVACÍ ZAŘÍZENÍ Uživatelský manuál 2011 SRPEN V2.1...
  • Page 2 WARNING  Do not expose the DVR under the sunlight, heat or wet environment while installation. As it could decrease the performance of DVR and damage the machine.  Do not touch the power plug or case with wet hands as this could result electric shock.

  • Page 4: Table Of Contents

    CONTENTS Specification ..................... 1 Front Panel ....................2 Installation ....................3 DVR Installation ..................3 System Operation ..................4 Display Setup ................... 6 Search ...................... 8 Main Menu ....................10 8.1 Camera Setup ................10 8.2 Record Setup ................. 12 8.3 Alarm Setup ...................

  • Page 5: Specification

    1. Specification Video Format NTSC Video Input 4 CH Input / BNC Audio Input 4 CH Input / RCA Video Output 1CH Output / BNC Audio Output 1CH Output / RCA XGA Output 800x600, 1024x768, 1280x1024, 1440x900 Alarm Input 4CH Alarm In Alarm Output Buzzer, 1 x Relay Out (N.O, N.C) Display Mode...

  • Page 6: Front Panel

    2. Front Panel Under the live viewing mode, press MENU to enter the main menu. MENU Under the menu mode, press MENU to go to the upper menu. Under the playback mode, press the STOP button to stop the Stop operation or go to the upper menu.

  • Page 7: Installation

    3. Installation USB Mouse 2.0 USB myš Input 4/8CH Video vstup (BNC) VIDEO IN 1CH Video výstup (BNC) VIDEO OUT 1CH Audio výstup (RCA) AUDIO OUT 4CH Audio vstup AUDIO IN Alarm I/O ALARM Vstup napájení DC12V PC Monitor výstup RJ-45 síťové...

  • Page 8: System Operation

    Please refer to Installation for external alarm I/O installation. Please refer to Alarm Setup.  Speed Dome Installation This device can support 3 kinds of communication protocol (Pelco D, Pelco P & MIKAMI)  Power Installation Please use the provided power cable and adaptor to connect the DVR (AC100V~AC240V).

  • Page 9: Main Menu Operation

     Virtual Keyboard Operation The text input of the virtual keyboard is as below: Front Panel & Remote Menu Operation Mouse Operation Control Operation Select character from virtual keyboard [Up/Down/Left/Right] [Move Cursor] Keyin the select character [Enter] [Left Click] Exit the virtual keyboard [MENU] [Left Click]out of selection area Key Description of Virtual Keyboard...

  • Page 10: Display Setup

    Setup Operation Front Panel & Remote Control USB Mouse Select [Up/Down/Left/Right] [Moving Cursor] Confirm Select Setting [Enter] [Left Click] Change the Select Setting [Left/Right] [Left Click] Return to Upper Menu [MENU] [Exit] 6. Display Setup There are 3 kinds of screen display mode: Live, Auto Switching and PTZ. DVR. ...
  • Page 11 Setup Operation Front Panel & Remote Control USB Mouse Select Item [Left/Right] [Moving Cursor] Enter the Select Item [Up/Down] [Moving Cursor] Confirm the Select Item [Enter] [Left Click] Exit [MENU] [Left Click] out of selection area  Please set the speed dome properly before control PTZ. Please refer to PTZ Setup.

  • Page 12: Search

    Setup Operation Front Panel & Remote Control USB Mouse  Fast Rewind [Fast Rewind]  Fast Forward [Fast Forward] | Step Forward [StepForward] Step/Pause [Step/Pause] |  Play 1x [Play]  Stop [Stop] Digital Zoon none Drag by Left Click 1~4Single Channel Display [1~4 Channel] Select Channel [Double left click]...
  • Page 13  Select any of 4 channels to playback.  Record List Front Panel & Remote Setup Operation USB Mouse Controller Enter Select Item [Enter] [Left Click] Select Item [Up/Down/Left/Right] [Moving Cursor] Return to Upper Menu [MENU] [Left Click] First Page Previous Page Next Page Last Page...

  • Page 14: Main Menu

    8. Main Menu Front Panel & Remote Setup Operation USB Mouse Controller Select Item [Up/Down/Left/Right] [Moving Cursor] Enter Select Item [Enter] [Left Click] Exit Main Menu [MENU] [Right Click] 8.1 Camera Setup  Channel Select one channel to set. Use CopyButton to copy present settings to other channels.

  • Page 15: Baud Rate

     PTZ Setting  Type Speed dome model type. Set: PTC-301, PTC-203ST, FUM 626, JG_QG988, FUM 622SD, FUM 628 or off. Please select the correct communication protocol if you enable this setting.  Protocol Speed dome protocol. Set: PELCO P, PELCO D, MIKAMI or off. ...

  • Page 16: Record Setup

    Set PTZ Rightward Number Preset Setting This function is preset 95 enter the menu Save Preset Setting Clear Preset Setting Clear All Preset Setting Return to Upper Menu [MENU] [Right Click]  Buzzer Duration The buzzer ON duration when video loss. ...

  • Page 17: Alarm Setup

     Record Schedule Front Panel & Remote Setup Operation USB Mouse Controller Enter Select Item [Enter] [Left Click] Select Channel [Up/Down] [Moving mouse wheel] Select Time&Date [Up/Down/Left/Right] [Click/Drag-draw] Return to Upper Menu [MENU] [Right Click]  Copy (1)Select source (2) Select target (3) Press COPY icon to copy. 8.3 Alarm Setup ...

  • Page 18: Motion Detection

    8.4 Motion Detection  Motion Detection Select the channel to set. COPY icon can copy the present setting to other channels.  Channel Status Enable/disable motion detection for each camera. Set: On/Off  Sensitivity Sensitivity level of motion detection. Set: 1~10. Higher value equal more sensitive.

  • Page 19: Network Setup

    8.5 Network Setup  Mode Set the connection method. Set: Static IP, DHCP, PPPoE.  Media port Port used for stream media. Default is port 9000.  Webport Port used for web access. Default is port 80.  Command Port Port used for settings.
  • Page 20  DDNS setting  DNS1 First Domain Name Server，Default : 168.95.1.1  DNS2 Second Domain Name Server, Default :168.95.192.1  DDNS Enable/disable Dynamic Domain Name server. Values: On, Off.  DDNS Server DDNS Server, Values: 3322, dyndns, cctvdvr. When using DDNSserver, server name and account/password are required.

  • Page 21: Log Search

    8.6 Log Search  Log type Set conditions for searching: type and time range. Log type can be ALL, Alarm, Operation, Motion Detection, and Video Loss.  Start/End time Set the search range (Year/Month/Day).Press START to search. Front Panel & Remote Setup Operation USB Mouse Controller...

  • Page 22: Backup

    8.7 Backup  Channel Backup all channels or single channel 1-4.  Record Type Select all, normal or alarm.  Start/End time Select the backup range of time. Press Search to start searching. The record list will be shown if available and follow [Record list] to backup. 8.8 System...

  • Page 23: Time Setting

    8.8.1 Time Setting  Date/Time Select by using virtual keyboard.  Date Format Setup Set: YY/MM/DD, MM/DD/YY.  Time Format Setup Set: 24Hours, 12Hours.  Time Zone Setup Time Zone setting of DVR.  NTP Setting（Network Time Protocol） NTP: On or Off Schedule Time: Using virtual keyboard NTP server: Using virtual keyboard 8.8.2...

  • Page 24: Display Setting

     Overwrite Enable/Disable Overwrite, Values: On/Off. If Overwrite is enabled, the period can be set as 6, 12, 24, 36, 48 hours and 7, 15, 30, 60 days.  Pack Time Set the required packing time frame to allow the system to pack each saving file under continue recording mode.

  • Page 25: System Information

     Switching Sequence Set the switching sequence of channels.  Video Margin Set the display margins of the screen. They are Left, Right, Top and Bottom with range between 0 - 36.  XGA Resolution XGA Resolution: 800x600, 1024x768, 1280x1024, 1440x900. 8.8.4 System Information Provide the firmware version, MAC address, HDD status….

  • Page 26: System Language

     Remote ID setup Can adjust remote control ID to control multiple DVR.  Administrator account/password Administrator account allows user to access all of functions.  User account/password Access rights can be assigned by setting. 8.8.6 System Language  Language Values: Traditional Chinese, Simplified Chinese and English.

  • Page 27: System Maintenance

    8.8.8 System Maintenance  Auto maintenance: Set time for auto rebooting. Value: On/Off. Auto Rebooting setting  F/W update Please plug the USB memory stick into the USB port on the DVR rear panel after download the new firmware to the USB memory stick.

  • Page 28: Cell Phone Monitoring Operation

    9. Cell Phone Monitoring Operation  JAVA Script surveillance: 1. The mobile Phone must support JAVA Script 2. To download the JAVA software: open Internet Browser on the mobile phone, and enter the IP address of the DVR and add /viewer.jar at the end. Example: http://xx.xxx.xxx/viewer.jar.
  • Page 29 ■ Android Software install/setup procedure Before the installation, please check the ”Allow Non-market application” or “unknown source” checkbox in your mobile phone< PIC 1~2>. <PIC 1> < PIC 2> First method 1. First, please make sure the PC synchronize software had installed and activated in your Android mobile phone.
  • Page 30 <PIC 3> <PIC 4> Method two You may copy the APK installation package to your mobile phone or memory card, and then install it through other software. 1. Copy the “Castillo player” software package to your mobile phone through USB or directly to SD memory card.
  • Page 32 3. Run the AppInstaller program, install the APK software package from your SD memory card<PIC 7~8>. <PIC 7> <PIC 8> 4. After the installation, you may find the “Castillo Player” in your program list, click it to run the program<PIC 9>. <PIC 9>...
  • Page 34 5. Press the “Setup” button to setup the connection setting <PIC 10>. Enter your individual configuration<PIC 11>. <PIC 10> <PIC 11> 6. After setting complete, enter a name you prefer then click the “Add to my favorite” checkbox to save the setting<PIC 12~13>. <PIC 12>...
  • Page 36 7. Press “Connect” button<PIC 14>, it’ll connect to the DVR according to your setup, and you may see the DVR picture after the connection established<PIC 15>. <PIC 14> <PIC 15> 8. <PIC 16>Operate instruction below: Connect/Disconnect Set up Channel Display screen PTZ Zoom/aperture/focal Snap shot PTZ direction control...
  • Page 38 ■ iPhone software install/setup procedure 1. Download the “Castillo player” in AppStore then install it to your IPhone. <PIC 1~6> <PIC 1> <PIC 2> <PIC 3> <PIC 4> <PIC 5> <PIC 6>...
  • Page 39 2. Run the “Castillo Player” after installation<PIC 7>. Press “setup” button to setup the connection setting<PIC 8>. Enter your individual configuration then press “back” button to go back to the main screen<PIC 9>. <PIC 7> <PIC 8> <PIC 9> 3. Press “Play” button, then you may see the DVR live view picture after the connection established <PIC 10~11>.
  • Page 40 4. <PIC 12> Operate instruction below: Display screen Zoom/aperture/focal distance PTZ direction control Channel Connect/Disconnect Set up Snap shot Next page Full screen <PIC 12>...
  • Page 41 ■ Symbian Software install/setup procedure 1. Copy the Symbian player to your mobile phone or memory card; you may see the example below in the case of NOKIA. <PIC 1~5> <PIC 1> <PIC 2> <PIC 3> <PIC 4> <PIC 5> 2.
  • Page 42 <PIC 6> 3. Before the installation, please make sure you had cancel the “Only Signed Application”, also cancel the “Connection credentials check” <PIC 7~11>. <PIC 7> <PIC 8> <PIC 9>...
  • Page 43 <PIC 10> <PIC 11> 4. Enter the folder which you’d saved the live view software “fuho_20110221.sisx”, double click to install, follow the instruction to proceed <PIC 12~22>. <PIC 12> <PIC 13> <PIC 14> <PIC 15> <PIC 16> <PIC 17>...
  • Page 44 <PIC 18> <PIC 19> <PIC 20> <PIC 21> <PIC 22> 5. After the installation, enter the “Installed Application” and you may see the “Castillo Player” inside <PIC 23~25>. <PIC 23> <PIC 24> <PIC 25>...
  • Page 45 6. Click and run the Castillo Player program <PIC 26~27>. <PIC 26> <PIC 27> 7. Press the “Setup” button to setup the connection setting. After setting complete, click the “Add to my favorite” button to save the setting. Press “Connect” button, it’ll connect to the DVR according to your setup <PIC 28~32>.
  • Page 46 <PIC 31> <PIC 32> 8. <PIC 33>Operate instruction below: Display Screen PTZ direction control Zoom/ Aperture/ Channel Focal distance Connect / Disconnect Exit Snapshot Set up Full screen Next page Add to <PIC 33>...
  • Page 47 ■ Windows Mobile Software install/setup procedure 1. Please install “Microsoft ActiveSync” into the PC before installing CAB software. 2. Execute the Microsoft ActiveSync program in your PC first, and connect the Windows Mobile SmartPhone to PC via USB, then it’ll synchronize the SmartPhone and PC.
  • Page 48 <PIC 2> 5. Please disconnect the SmartPhone from your PC, and begin the installation below: 6. Execute the Castillo Player CAB install package from the File browser, you may find it in your mobile device folder <PIC 3~5>. <PIC 3> <PIC 4>...
  • Page 49 setting up. After the installation, you may find the “Castillo Player” in your program <PIC 6~10>. <PIC 6> <PIC 7> <PIC 8> <PIC 9> <PIC 10> 8. Run the Castillo Player program, press the “Setup” button to setup the connection setting.
  • Page 50 screen <PIC 11~14>. <PIC 11> <PIC 12> <PIC 13> <PIC 14> 9. Press “Connect” button, it’ll connect to the DVR according to your setup, and you may see the DVR picture after the connection established <PIC 15~16>.
  • Page 51 <PIC 15> <PIC 16>...
  • Page 52 10. <PIC 17>Operate instruction below: Channel Connect/Disconnect Display screen PTZ direction Control snapshot control Zoom/aperture/focal distance <PIC 17>...
  • Page 53  Blackberry Software Connect Procedure Blackberry RTSP Connect procedure: Verify Authentication, website address input format as below rtsp://(website address)/ch(channel number)?user=(user ID)&pwd=(user password) e.g. rtsp://f16.cctvdvr.com.tw:554/ch2?user=2222&pwd=2222 Mobile Webpage: Please enter the ID & password again after you login, or you’ll get black screen of permission denied as below:...

  • Page 54: H264 Player Operation

    H264 Player Operation  Preface H264 Player software allows to playback the backup saving file from the DVR.  System Requirement Operating System: Windows 2000, XP, Vista, Windows 7.  Program obtainment and installation While user start to backup the file from DVR, the system will automatically copy the H264Player.exe file and recorded data to the backup device for example, an USB flash memory stick.

  • Page 55: User Interface

    Step4: Install Confirmation Step 5: Installation Complete  User Interface Open File Click Pause Click Stop Click Play 1x Click Fast Forward Click Slow Forward Click Capture the image (snap Click shot) to the host computer...

  • Page 56: Web Operation

    Volume Control Drag Rewind Click Step Forward Click Mark start time Click Mark end time Click Backup Click Right click the mouse to open the Pop-up Menu pop-up menu including Setting, Language, About H264Player, Exit Web Operation  Preface The Web Application Manager allows the user to remotely monitoring, playback, and backup through the DVR.

  • Page 57: Live Mode

     User Interface  Login Page Please login user name and password from the setting of DVR end.  Live mode Start/Stop the Live Monitoring Click Click Start recording or Stop recording Record the Footage to Computer (saving path: Setup/Information) Click to snap shot the image (saving path: Snapshot the Image...
  • Page 58 PTZ Control Please refer “PTZ” for more information  Playback (1) Select Date Event Search (2)Click (3)Click Playback Click on pop up file list Click “Fast Forward” (Speed: 2X, 4X, 8X, 16X) Fast Forward Click “ Rewind” (Speed: 1/2, 1/ 4X, 1/ 8X, 1/ 16X) Rewind Click “Previous”or “Step”...
  • Page 59  DVR Setting Cameras Please refer “Camera Setup” for more information Record Please refer “Record Setup” for more information. Alarm...
  • Page 60 Please refer “Alarm Setup” for more information. MotionDetection Please refer “Motion Detection” for more information. Network setting E-MAIL...
  • Page 61 Log search  System Setting Date/Time Setting HDD Management...
  • Page 62 Display System Information Account/password...
  • Page 63 Audio Setting System Maintenance  Host setting...

  • Page 64: Default Setting

    Default Setting Item Default Setting Item Default Setting Channel Overwrite HDD Setup Resolution Normal Pack Time 60 Mins Frame Rate Real-time Date Format YY/MM/DD Record Setup Quality Highest Time Format 24 Hours Time Setup Audio Disable Time Zone GMT+08:00 Schedule Always Daylight Saving Channel 1...

  • Page 65: Hdd Support List

    HDD Support List Suggest to install the Hard Driver listed below to make sure the compatibility. Brand Model Number Capacity ST3250310CS 250G ST3320410SV 320G ST3500418AS 500G ST3500312CS 500G SEAGATE ST3750528AS 750G ST31000424CS ST31500541AS 1.5T ST32000542AS HCT721025SLA380 250G HCT721032SLA380 320G HITACHI HCP725050GLA380 500G HCT721010SLA360...

  • Page 66: Usb Flash Memory Stick Support List

    USB Flash Memory Stick Support List The following recommended flash drives have passed all testing procedures and are safe to a: backup, b: Playback by PC, and c: update firmware. Brand Model Number Capacity Jetflash V20 Jetflash V20 Transcend Jetflash V30 Jetflash V20 Adata C801...

  • Page 67: Operation System For Mobile Phone Application

    Operation System For Mobile Phone Application Version Mobile Phone Software CastilloPlayer(Android_1.5~2.1).apk Android 2.1、2.2、2.3 CastilloPlayer(Android_2.2~2.3).apk iPhone Castillo player 3.x、4.x WinMobile 6.5.x CastilloPlayer_5.0.3.CAB Symbian S60 v3 above CastilloPlayer_5.1.713.sisx Support RTSP BlackBerry None Protocol 3G Data Rate Data Transfer Speed (bps) Verified Brand Model Support WCDMA (3G)
