Fuho AP-460 Manual

4ch dvr lan card
Hide thumbs Also See for AP-460:

Advertisement

Quick Links

Download this manual

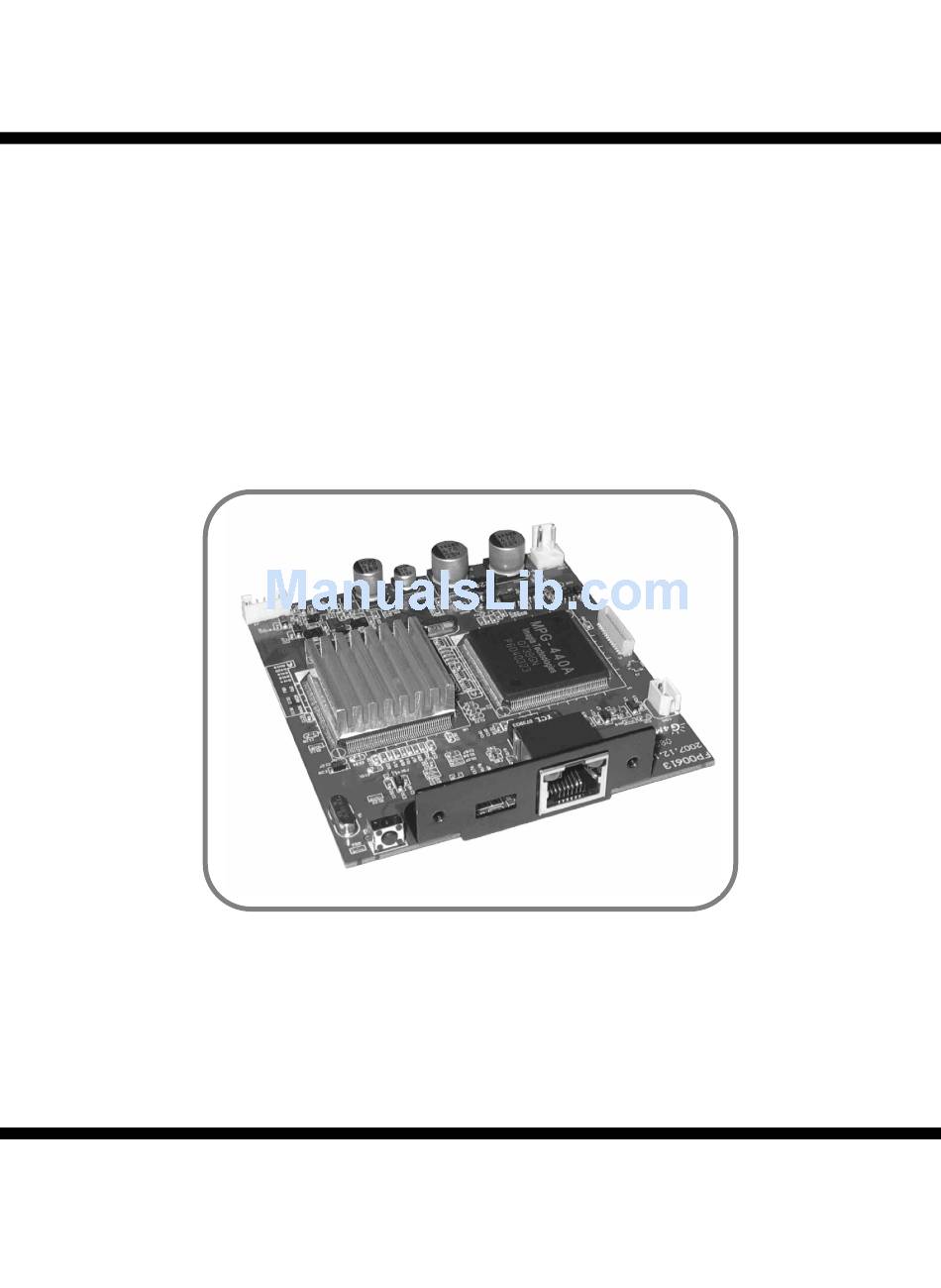

4CH DVR LAN Card
MANUAL
2008 APR.
Ver 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the AP-460 and is the answer not in the manual?

Questions and answers

Related Manuals for Fuho AP-460

Summary of Contents for Fuho AP-460

  • Page 1 4CH DVR LAN Card MANUAL 2008 APR. Ver 1.0...
  • Page 2 空 白頁...
  • Page 3 CONTENT .... 1 I. LAN Card SPECIFICATIONS ........... 2 II.LAN Card ....16 III. USER GUIDE of AVPlayer ..... 18 IV. MOBILE PHONE VIEW...

  • Page 4: Lan Card Specifications

    I. LAN Card SPECIFICATIONS Compression MPEG4 Resolution / 720X480 Transmission Speed 360X240 HALF D1 720X240 QCIF 180X120 Network Protocol TCP/UDP/IP, DHCP, SMTP, HTTP, DDNS, NTP, PPPoE File Format MPEG-4 video stream Recorded format MPEG-4 video stream Movement on image Motion Detection Internet Explorer 5.0 or above Controller Interface Mobile Monitor System (Option)

  • Page 5: Ii.lan Card

    II.LAN Card 1. Use a cross-over cable to connect DVR and PC. Definition of cross-over cable: Brown Green/White Brown/White Green Green Orange/White Blue/White Blue Blue Blue/White Green/White Orange Orange Brown/White Orange/White Brown COLOR PIN# 2. LAN Card default setup as follows: Network Status Enternet MAC Address 00-16-55-00-00-3F...
  • Page 6 b. Select “Local Area Connection” by clicking mouse on the right. Click “Properties” accordingly. c.Select “TCP/IP” and click “Properties.”...
  • Page 7 d.Select “Use the following IP address” to input IP address, Subnet mask and Default gateway. Click ”OK” accordingly. 4. Follow the following procedure to make sure IP address correct. a. Click “Start” “Run” and input “cmd” Click “OK”.
  • Page 8 b.Enter DOS and input “ipconfig”. Click “enter” to inspect IP address, Subnet mask and Default gateway. ■ IP SET (1) Run IPCameraSearcher program Run IPCameraSearcher.exe program, the setup window will appear on your computer (2). IPCameraSearcher Instruction 1.Search(S): Search all the LAN Card in the network. Click one of the LAN Card address to login.
  • Page 9 5.Update IP(I): Set the IP address of the indicated LAN Card, then press “OK” to reboot the LAN Card. 6.Update Name(N): Change user name of the indicated LAN Card, then press “OK” to reboot the LAN Card. 7.Update Port P : Set the port of the indicated LAN Card and press “OK”to reboot the LAN Card.
  • Page 10 (3). IE LOGIN To Login: 1. In IPCameraSearcher, click the IP address of the indicated LAN Card 2. In IE, type the IP address of the indicated IP address. ★USERNAME:admin ★PASSWORD: ( N/ A) (4). Internet Homepage Interface Operation Guide If login succeeded, the viewer will be appeared as below: 1.PLAY/PAUSE：Play/Stop view。...
  • Page 11 ■ SYSTEM SETUP 1. STATUS (1).Sysetm Version Software version：Upgrade function by firmware update. (2).Network Status: ▲MAC address：MAC address of LAN Card. ▲IP address：IP address of AN Card. ▲Subnet Mask：Subnet Mask of LAN Card. ▲Default Gateway：Default Gateway of LAN Card. ▲DHCP State: Dynamic Host Configuration Protocol. When using static IP, the status will show“Disable, ”the opposite will be “Enabled.”...
  • Page 12 2. VIDEO & AUDIO SETTINGS 2.1 VIDEO SETTINGS ˙CBR Set the Constant Bit Rate of Video ： ˙Resolution：Picture resolution. Four levels of resolution are provided for selection. ˙Limit Frame Rate to: Frame rate transmitting per second is defined by the internet connection speed.
  • Page 13 3. NetWorking 3.1 IP Address Configuration ˙There are two ways to set the IP address ： ˙Obtain IP address via DHCP: Obtain IP address via Dynamic Host Configuration Protocol. ˙Use the following IP Address: Set the static IP address manually. 3.2 DNS configuration ˙Two DNS IP addresses are allowed within this model.
  • Page 14 4. PPPoE 4.1. PPPoE CONFIGURATION ˙ Enable PPPoE：Enable or disable PPPoE. ˙User Name：Insert the user name from by ISP provider. ˙Password: Insert password from ISP provider. ˙MTU (128~1492): Maximum Transmission Unit, the largest packet that can pass onwards in communication protocol, is calculated in bytes of the size.
  • Page 15 5. DDNS Signing up at DynDNS, PeanutHull, or perfecteyes before setting DDNS is required. 5.1 DYNAMIC DNS ˙Choose Server: Choose the DDNS server that provided by DynDNS, PeanutHull, and perfecteyes. ˙DNS Account: Account number provided by DDNS server, ex. test. dyndns.org.
  • Page 16 6. DATE & TIME 1.Current Server Time Show current time at the LAN Card. 2. Time Zone Choose the time zone where the system is at. 3. Time Mode When network is functioning, the time can be set according to the server. 4.
  • Page 17 2. ADMINISTRATOR In this section, the user can add, delete, enable/disable anonymous user, and set the LAN Card name. 2.1 USER LIST ˙Add or remove users. ˙Add: Click to add new users. ˙Remove: Select a user name then click “remove” to remove the user. 2.2 ANONYMOUS USER SETTINGS ˙Yes: Users can view the picture without user name and password.
  • Page 18 3 Management 3.1 Change Password ˙ User Name: Insert user name. ˙Password: Insert new password. ˙Confirm Password: Insert again the password to confirm. 4 RTSP Settings 1.RTSP Settings ˙Frame Rate the rate of P frame and I frame ： ★ The higher the number is, the fewer the quantity be transmitted, and the picture is not accurate.

  • Page 19: User Guide Of Avplayer

    III. USER GUIDE of AVPlayer This software AVPlayer can play the recorded files with an *.av extension and also can convert an *av file to an *.avi file 1.1 THE MAIN FUNCTION OF AVPlayer ˙Play the recorded file with an av extension ˙Supports the file conversion from *.av to *.avi.
  • Page 20 OpenFile： Open the *.av recorded file. File information： Location of the File Path and Total Time for the video length Play Control：Fast Reverse Reverse Play 、 、 、 、 Pause Play Fast Forward 、 、 、 Fast Reverse/Forward: 2X、4X 8X 16X 32X Snapshot：one click can capture one JPG image.

  • Page 21: Mobile Phone View

    IV. MOBILE PHONE VIEW 1、JAVA Supported Mobile Phone The mobile phone should be able to support .JPG file, CLDC1.1, or MIDP 2.0 (or more current version). Remark: MIDP（Mobile Information Device Profile）, designed for mobile phone and PDA, is the main APIspecification to support JAVA for mobile phones. Comparison of MIDP2.0 and MIDP1.0: MIDP2.0 performs better than MIDP1.0 in many functions,ex.
  • Page 22 4.Click “Open” to connect the set IP of 3.Click “Advance configuration” LAN Card or website. For example: to open website, add website, delete website or exit the program http://192.168.1.126/ . Note: A backslash '/'must be entered. http://192.168.1.126/ 5. The view shows up in the Mobile Phone after connecting LAN Card.
  • Page 23 H12C061301...
