Connecting the Receiver

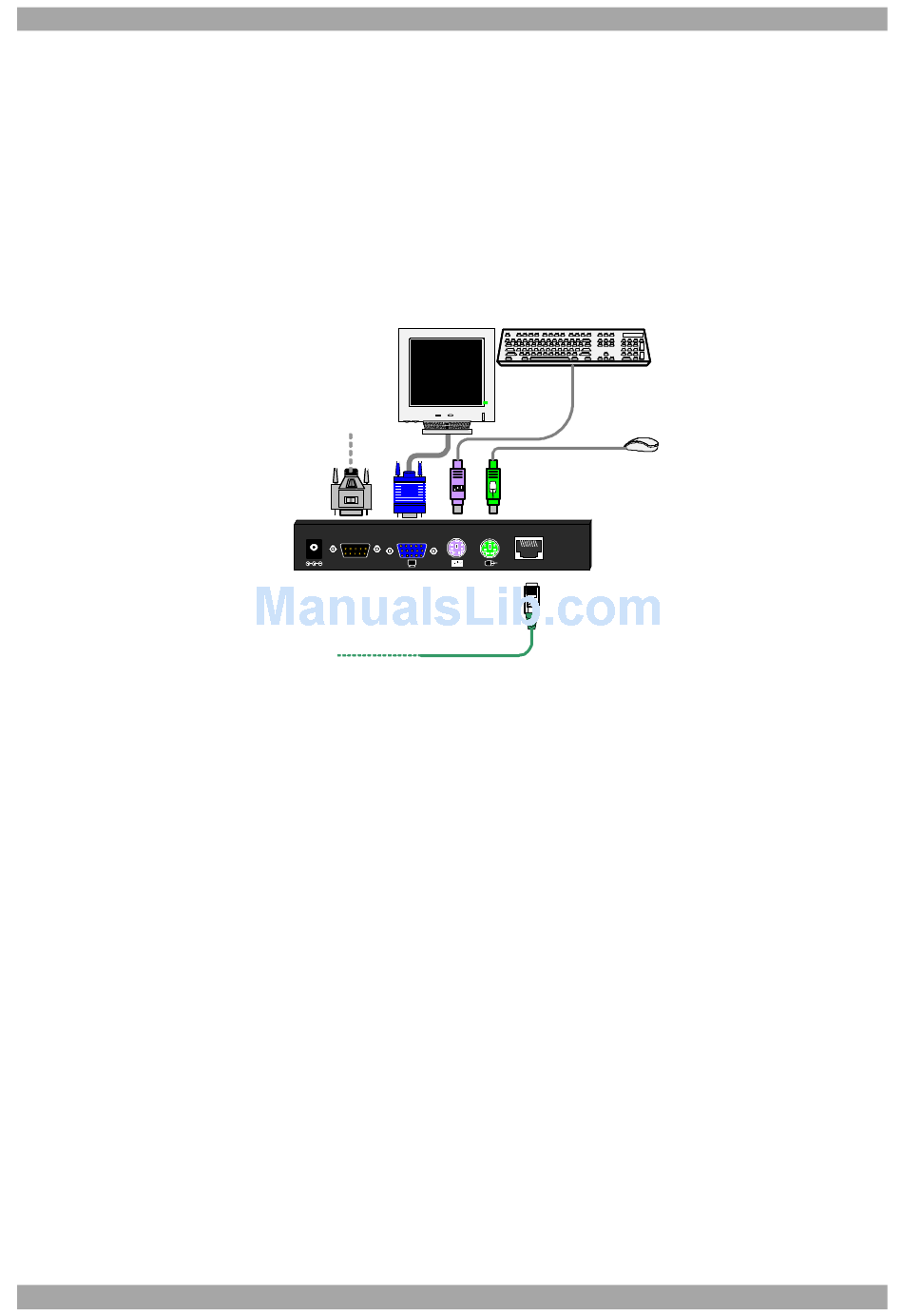

Figure 10 below illustrates the KVM and Serial connections of the KVMS
Extender Receiver. Depending on the type of application you have, follow the steps
now outlined for the KVM and/or Serial connections.
KVM connections: Connect a keyboard monitor and mouse to the Receiver's
KVM ports.
Serial connections: Connect the Serial device to the Receiver's Terminal port

11. Connecting to the power supply

1. Connect the supplied 5VDC power adapters to the Transmitter and Receiver
and plug into a wall socket.
2. Power on the computer. The KVMS Extender system transmits the KVM and
Serial signals.

12. Adjusting the picture quality

When necessary, you can adjust the picture quality temporarily using the
Adjustment hotkey; Shift, D. From the Receiver position press Shift, release Shift
then press D, the picture adjusts. There are 6 looped preset adjustments. Press the
hotkey until the picture quality is satisfactory. Once the Receiver is switched off
the adjustment is lost. Adjustments are only saved in the KVMS Settings mode, see
the section below.

13. Configuring the KVMS system

The KVMS system has a number of configuration options. For example, control,
timeout, DDC refresh and video tuning. Also for UNIX servers, you must
configure the keyboard setting.
KVMS EXTENDER
To Serial device
5VDC
TERMINAL
CAT5 cable to Transmitter
Figure 10 Receiver connections
SD
P 11 0
Receiver
SYSTEM
