Connecting the Transmitter for a dual control application

Figure 9 below illustrates the KVM and Serial connections of the KVMS Extender
Transmitter. Depending on the type of application you have, follow the steps now
outlined for the KVM and/or Serial connections.
KVM connections:
1. Connect a keyboard monitor and mouse to the Transmitter's Console ports.
2. Connect one end of the 3 in 1 CPU cable to the Transmitter's Computer ports.
3. Connect the other end of the 3 in 1 CPU cable to the computer's Video card and
Keyboard and Mouse ports.
Serial connections:
1. Connect the Serial Extender cable to the Transmitter's Computer port and to a
Serial port of the computer.
2. Connect the Serial device to the Transmitter's Terminal port.
KVMS EXTENDER
5VDC
Serial Extender cable
3 in 1 CPU cable

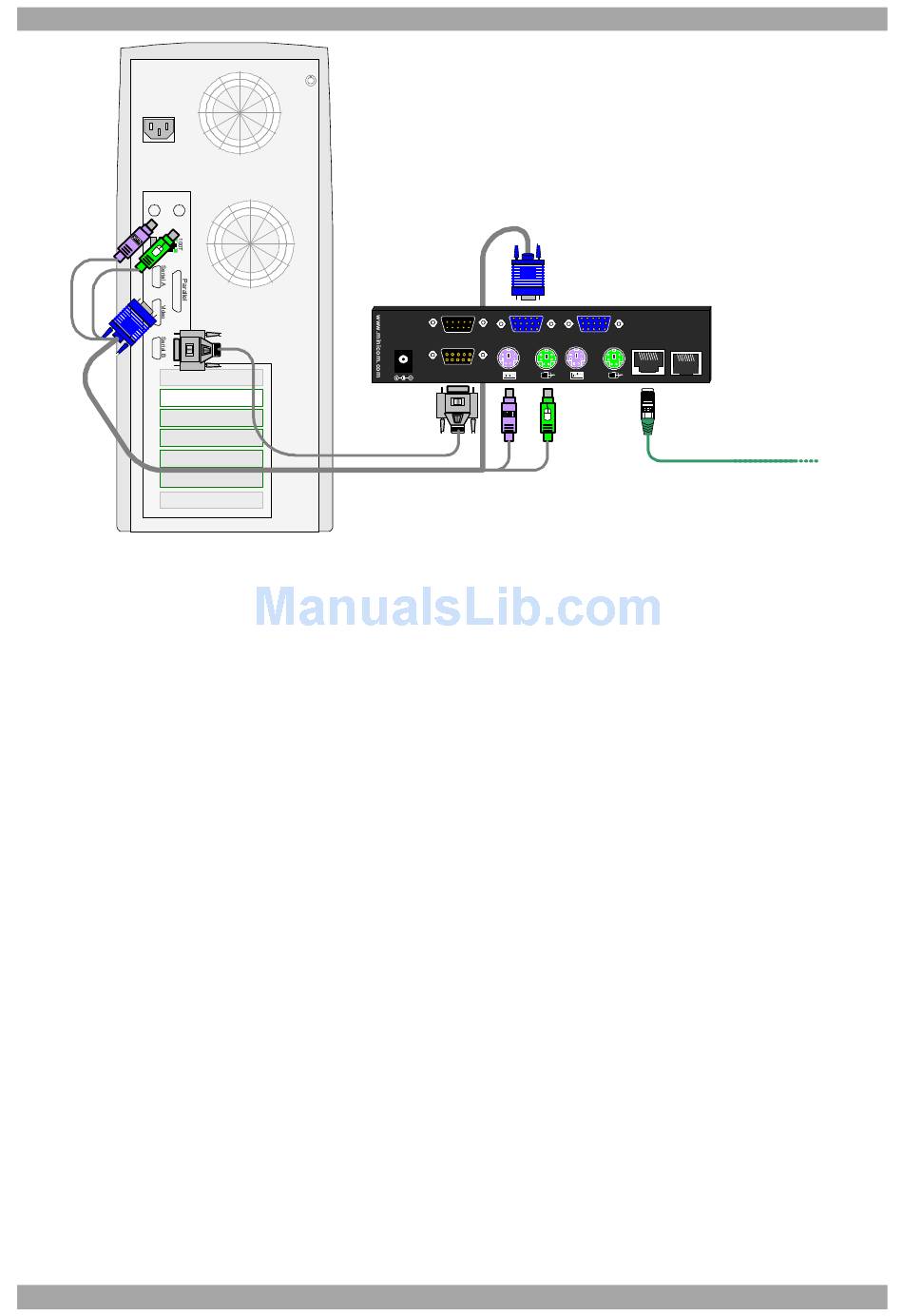

Figure 8 Transmitter connections – Extender
TERMINAL COMPUTER CONSOLE
COMPUTER
7
Transmitter
SYSTEM SERVICE
CAT5 cable to Receiver
