Minicom KVMS Extender User Manual page 9

KB Mouse
Note! Although we recommend connecting the Transmitter to a switched off
computer, you can connect it to a switched on computer.
To do so you must connect it in the following order:
1. Connect a keyboard monitor and mouse to the Transmitter's Console ports.
2. Connect the supplied 5VDC power adapter to the Transmitter, plug into a wall
socket and power the Transmitter on.
3. Connect one end of the 3 in 1 CPU cable to the Transmitter's Computer ports.
4. Connect the other end of the 3 in 1 CPU cable to the computer in the following
order:
(A) Mouse connector.
(B) Keyboard connector.
(C) Video connector.
USER GUIDE
To Serial device
5VDC
Serial Extender cable
3 in 1 CPU cable

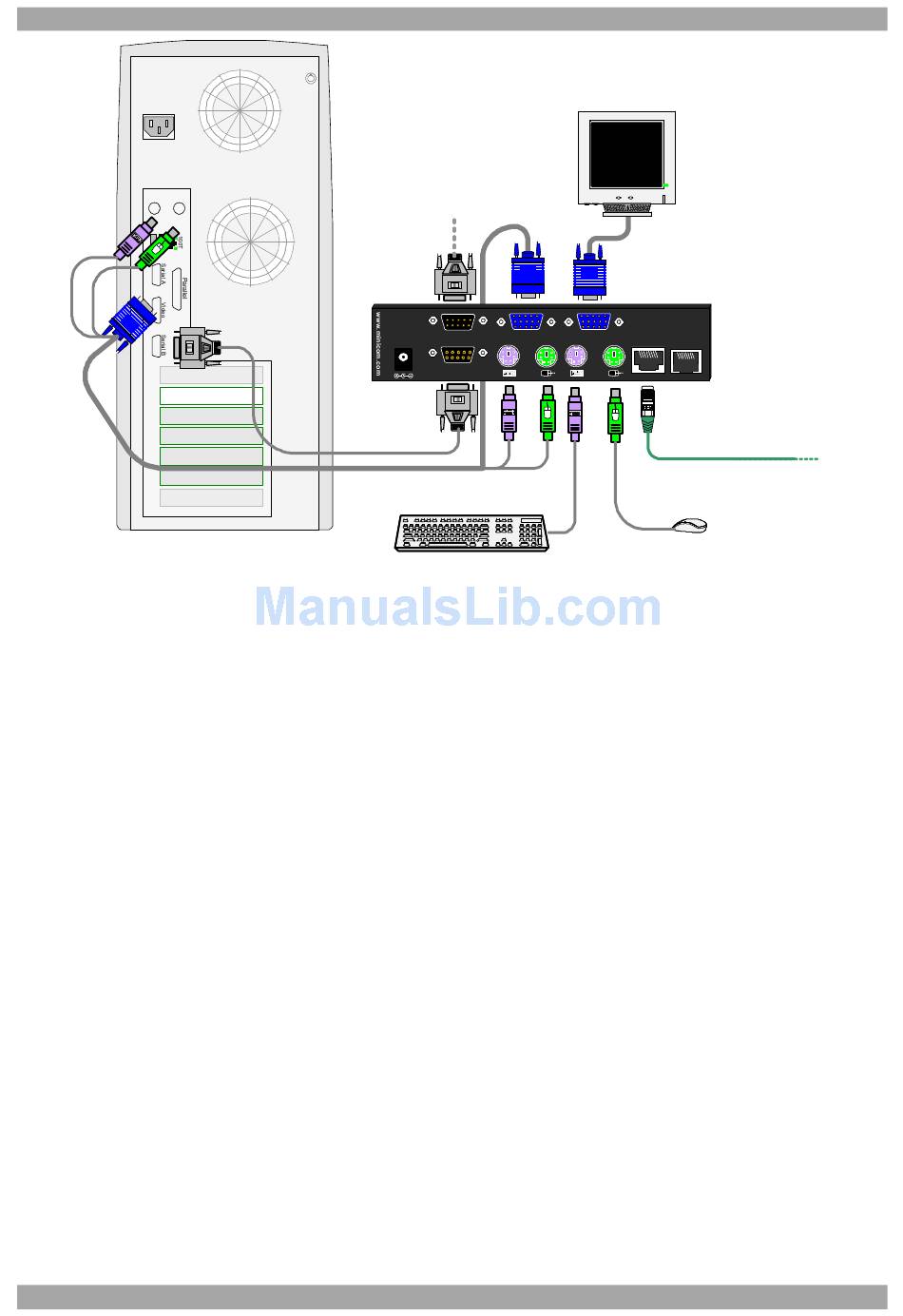

Figure 9 Transmitter connections – dual control
TERMINAL COMPUTER CONSOLE
COMPUTER
8
P1 1 0 S D
Transmitter
SYSTEM SERVICE
CAT5 cable to Receiver
