5. Connecting the Transmitter

Connect the Transmitter as illustrated in Figure 2.
Note! Although we recommend connecting the Transmitter to a switched off
computer, you can connect it to a switched on computer.
To do so, you must connect it in the following order:
1. USB connector.
2. Video connector.

6. Connecting the Receiver

Connect the Receiver as illustrated below.

7. Connecting the CAT5/6/7 cable

A CAT5/6/7 cable connects to the RJ45 ports of the Transmitter and the VDS Dual
Screen.
QUICK INSTALLATION GUIDE
To USB Port
To Video
port

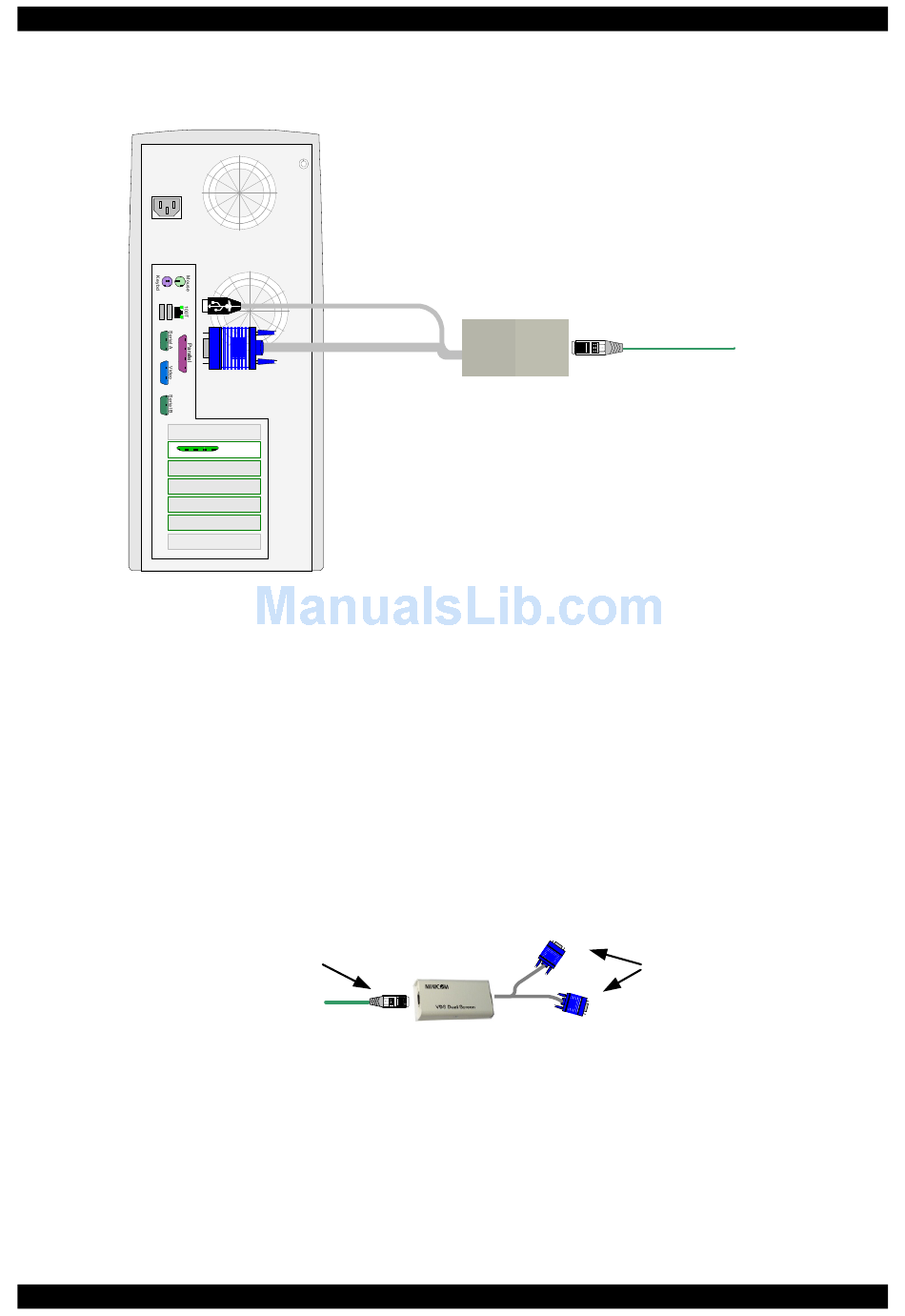

Figure 2 Transmitter connections
System cable to
Transmitter / Line
Splitter
Figure 3 Receiver connections
Transmitter
VDS Dual Screen
2
To VDS Dual Screen
/ Line Splitter
To
monitors
