Features and Description of the Maxim II System
Mixer/amplifier (IMA-420)
is the nucleus of the classroom
sound field system. The pendant transmitter, body-pack transmitter
or handheld microphone transmitter: transmit the vocal signal via
infrared light to the dome sensor installed on the ceiling. The signal is
then sent via cable to the receiver input of the mixer/amplifier. The
signal is detected and then processed through the power amplifier to
the speakers.

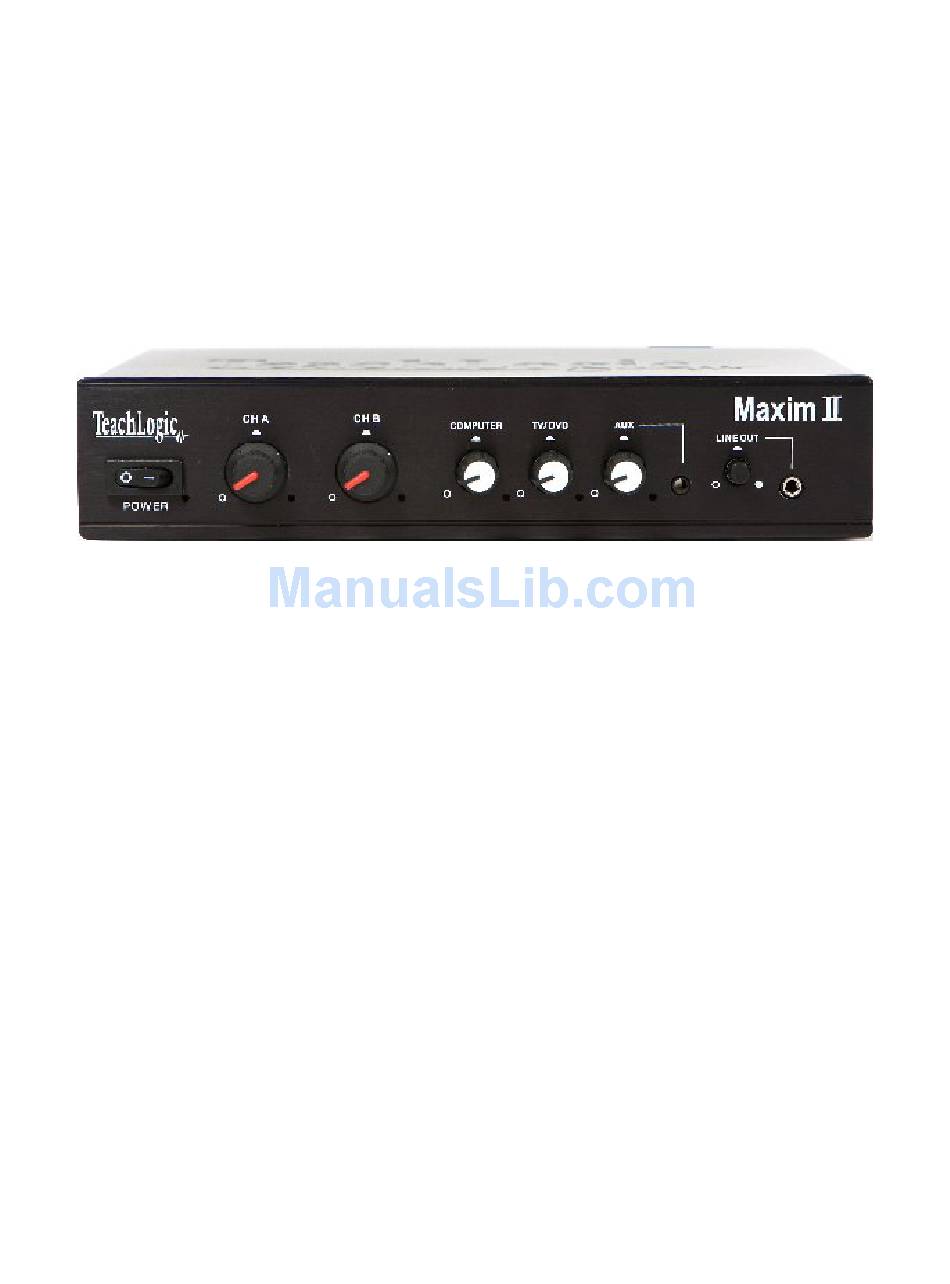

Front Panel

_______________________________________________
Power Switch with an associate red LED to indicate presence of
power.
Channel "A" & "B" wireless microphone volume controls.
IR Indictor, LED adjacent to each control knob will light "Green"
when a transmitter on that channel is turned "on", validating an IR
transmission signal is being received.
Auxiliary Input Controls for adjusting the volume of each media
input source; COMPUTER, TV/DVD, AUX.
will light "Green" when an audio signal is present on that input.
Front Panel Auxiliary Input for "ipod" or similar device (3.5mm). The
rear auxiliary input will disengage when the front input is in use and
the "AUX" control will adjust the volume.
Line Out is for an "Assistive Listening System", Personal FM system
or could used as a record output. Gain control adjusts the output
signal to match the input of the auxiliary devise.
