Standard Parts; Indoor Unit Accessories; Outdoor Unit Accessories - Fujitsu SPLIT TYPE AIR CONDITIONER Installation Manual

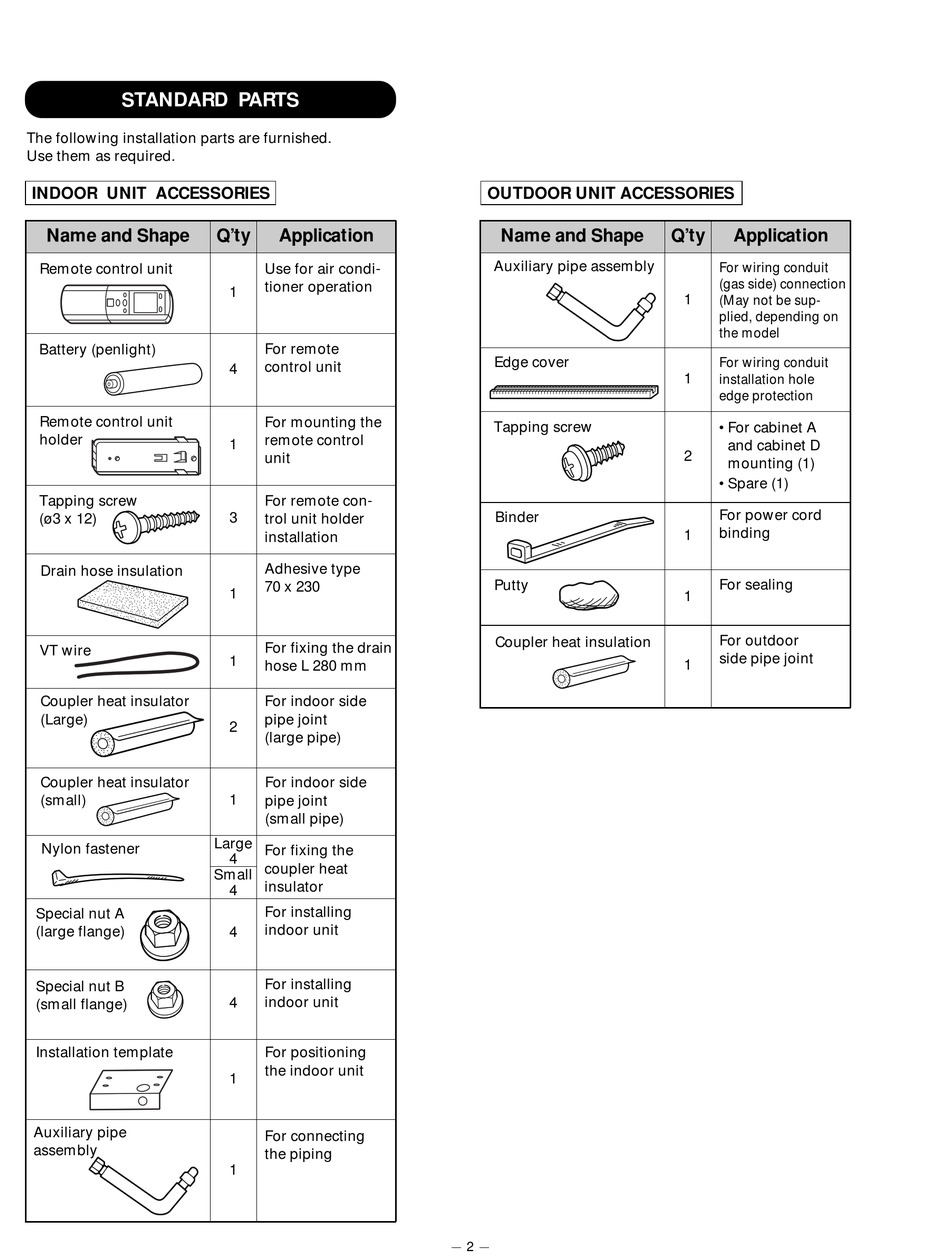

STANDARD PARTS

The following installation parts are furnished.
Use them as required.

INDOOR UNIT ACCESSORIES

Name and Shape
Remote control unit
Battery (penlight)
Remote control unit
holder
Tapping screw
PPP @@@
(ø3 x 12)
Drain hose insulation
VT wire
Coupler heat insulator
(Large)
Coupler heat insulator
(small)
Nylon fastener
Special nut A
(large flange)
Special nut B
(small flange)
Installation template
Auxiliary pipe
assembly
Q'ty Application
Use for air condi-
tioner operation
1
For remote
control unit
4
For mounting the
remote control
1
unit
For remote con-
3
trol unit holder
installation
Adhesive type
70 x 230
1
For fixing the drain
1
hose L 280 mm
For indoor side
pipe joint
2
(large pipe)
For indoor side
1
pipe joint
(small pipe)
Large
For fixing the
4
coupler heat
Small
insulator
4
For installing
indoor unit
4
For installing
4 indoor unit
For positioning
the indoor unit
1
For connecting
the piping
1

OUTDOOR UNIT ACCESSORIES

Name and Shape
Auxiliary pipe assembly
Edge cover
Tapping screw
Binder
Putty
Coupler heat insulation
2
Q'ty Application
For wiring conduit
(gas side) connection
1
(May not be sup-
plied, depending on
the model
For wiring conduit
1
installation hole
edge protection
• For cabinet A
• and cabinet D
2
• mounting (1)
• Spare (1)
For power cord
binding
1
For sealing
1
For outdoor
side pipe joint
1
