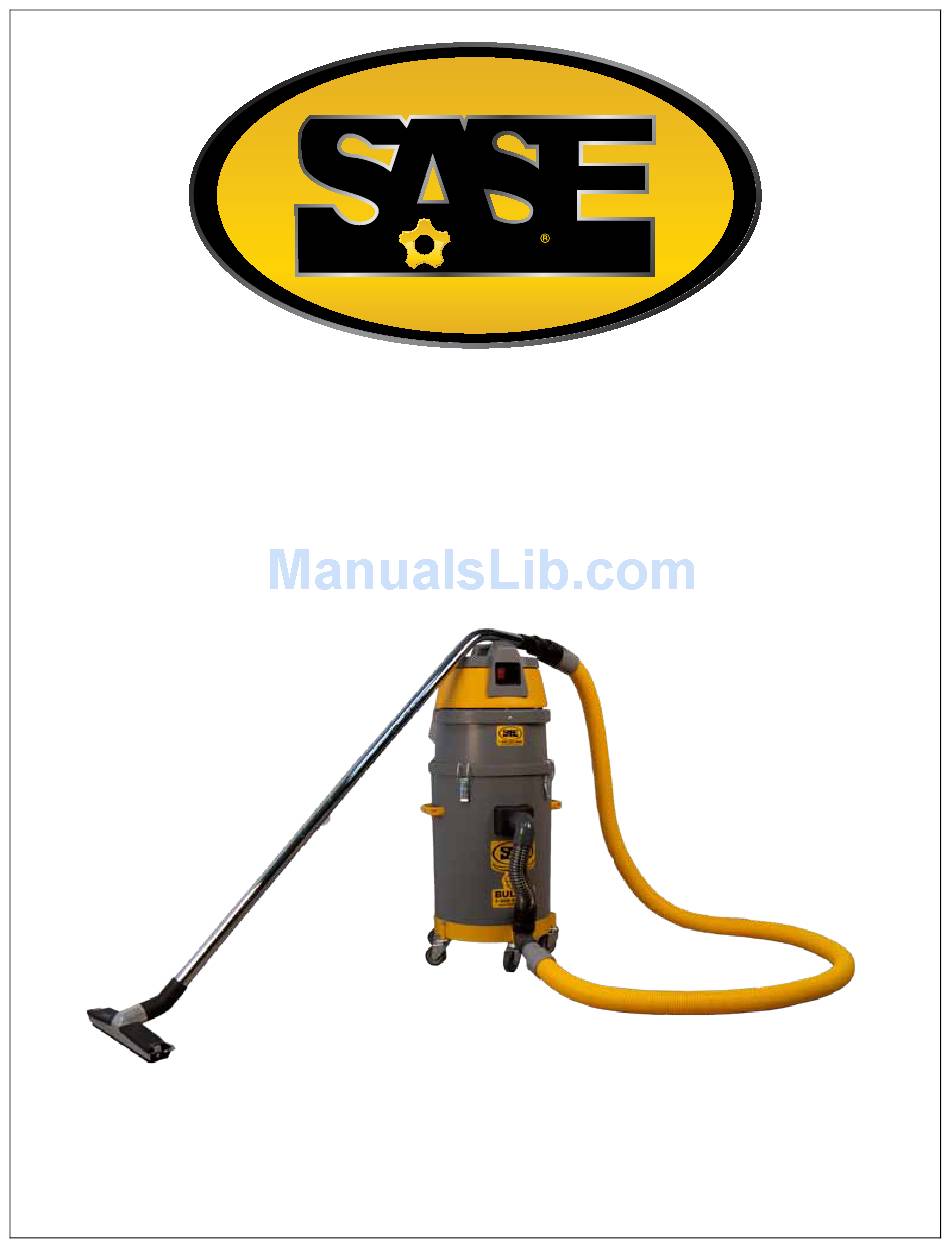

- Page 1 SASE Bull 50 Vacuum Manual SASE Company, Inc. Phone 800.522.2606 or Fax 877.762.0748 www.SASECompany.com...
- Page 3 SASE is able to provide unsurpassed service and technical support for the contractor. At SASE we engineer and manufacture our own equipment, which allows us to be in control of the quality of the equipment we sell. SASE offers a complete line of concrete preparation and polishing equipment, our newest introduction being our new line of PDG planetary diamond grinders, which is setting a new standard for the concrete grinding and polishing industry.
- Page 5 SASE Company Inc. Equipment Safety Policy Statement SASE Company, Inc. is adamant that safety is one of the highest priorities for both our employees and customers. When considering set-up and operation of any piece of equipment supplied, manufactured, distributed, rented or serviced by SASE Company, Inc., the safety and protection of people should always be a top priority.
-
Page 7: Table Of Contents
Maintenance of the vacuum head ................14 Replacing filters ......................... 15 In general ........................15 Control and replacing tube-filter ................. 15 Replacing HEPA-filter ....................16 Disposal of used filters ....................16 Troubleshooting ......................... 17 Service and repair ......................18 BULL SASE Company, Inc... -
Page 8: Description Of The Bull 50

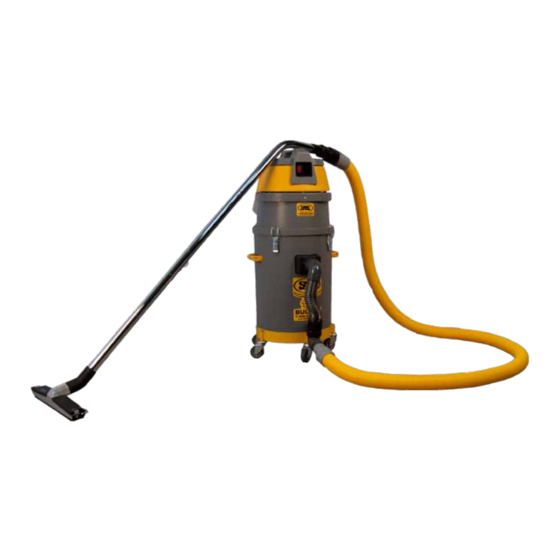

Users manual BULL 50 Industrial vacuum cleaner for vacuuming fine dust Congratulations with your new BULL 50 Industrial vacuum cleaner from SASE Company, Inc. BULL 50 is an industrial vacuum cleaner developed to collect very fine dust. BULL 50 meets the requirements for a handy industrial vacuum cleaner in the building and construction industry. -
Page 9: Technical Data
2400 23,5 Air flow, max. l/sec Suction power, max. Noise level, 1 m dB(A) Noise level, 4 m dB(A) Filter area, tube filter 8000 Container capacity Height Length Width Weight without accessories Container coupling Ø40 BULL SASE Company, Inc... -
Page 10: Accessories
3. Crevice nozzle ................80.34.4000 4. Adaptor for furniture nozzle ............80.34.4002 5. Furniture nozzle ................80.34.3604 6. Round brush .................. 80.34.4001 7. Floor nuzzle B-370 with brush and wheels ........84.38.3620 8. Tubes .................... 80.52.2160 BULL SASE Company, Inc... -
Page 11: Description Of The Main Parts
Is the pointer in the red section during operation, it indicates that the filter is being blocked and the air velocity to small. The filter can be cleaned during operation by using the pressure relief valve. BULL SASE Company, Inc... -
Page 12: Dust Container With Tube Filter
Dust can also be collected directly in the dust container. The classic P10 filter bag can be used if plain dust is being collected. NOTE: The filter bag cannot be completely filled when collecting very fine dust. BULL SASE Company, Inc... -
Page 13: Applications
Does the safe use or maintenance of the appliance raise any questions, do not hesitate to contact either your dealer or SASE Company, Inc. ... -
Page 14: Mode Of Operation
Finally the air leaves the appliance under the yellow vacuum head. IMPORTANT! Do not cover the vacuum head during operation. If the air- flow is blocked the vacuum head may be over-heated. BULL SASE Company, Inc... -
Page 15: Assembling
Connect the appliance to 120 V power supply with a reliable connection to earth. Make sure that the power supply corresponds with the data on the data plate. BULL 50 is now ready to collect dust. The suction and collecting process is described in details in the following chapter. BULL SASE Company, Inc... -
Page 16: Collecting Dry Dust
Press the hose against the pressure relief valve. Vacuum is now being build up inside the machine and in the hose. At the same time the springs in the filter tubes will be pressed together. BULL SASE Company, Inc... - Page 17 To be safe having the sufficient air velocity in pipe and hose, it is recommended to clean the filter and if necessary to empty the appliance, if the pointer of the manometer enters the red section. BULL SASE Company, Inc...
-
Page 18: Emptying
Have no filter bag been used, the dust container can now be emptied. If filter bag have been used: Release the filter bag from the container coupling Close the filter bag with the patented bag closing system. The filter bag can now be disposed. BULL SASE Company, Inc... -
Page 19: Re-Ordering Filter Bag Etc
Re-ordering filter bag with plastic sack and filter bag P10 Filter bag with plastic sack ................84.64.0015 Filter bag P10 ....................84.64.0010 Cleaning and maintenance IMPORTANT! The appliance must not be connected to the poser supply during cleaning or maintenance. BULL SASE Company, Inc... -
Page 20: Cleaning And Maintenance
To secure the reliability of the appliance an annual inspection at an authorised service centre is recommended. It is recommended to let an authorised service centre inspect the suction motors after approximately 800 working hours. BULL SASE Company, Inc... -
Page 21: Replacing Filters
A damaged or worn tube filter must be replaced. A replacement of the tube filter should include a replacement of the HEPA-filter as well. Please see the next section. BULL SASE Company, Inc... -
Page 22: Replacing Hepa-Filter
The bottom of the HEPA-filter is made of a thin metal material, so be sure not to tighten the screw too much. Disposal of used filters When disposing used filters make sure that they are disposed according to the guidelines given by local and national environmental authorities. BULL SASE Company, Inc... -
Page 23: Troubleshooting
The tube filter may be blocked. Clean the tube filter (Refer to the section ”Manometer and filter cleaning during operation”). The HEPA-filter may be blocked. Replace the HEPA-filter. (Refer to the section “Replacing HEPA-filter”). BULL SASE Company, Inc... -
Page 24: Service And Repair
No repair attempts have been made by parties other than SASE Company, Inc. or authorised service centres approved by SASE Company, Inc. Service and repair free of charge includes spare parts and the cost for related working hours. -
Page 25: Spare Parts List
BULL SASE Company, Inc. Spare parts list Pos. Description Itemnr. Pos. Description Itemnr. Screw 81970030 Wheel 81873821 Screw 83970023 Switch 81754560 Supply terminal 81750040 Self-adhesive contact plate 83894180 Relief bracket 81750060 Thread inset 83974190 Muffling condenser 81750070 HEPA-filter 84675006 Line entrance... - Page 26 BULL Spare parts list SASE Company, Inc.
- Page 27 BULL Spare parts list SASE Company, Inc.
