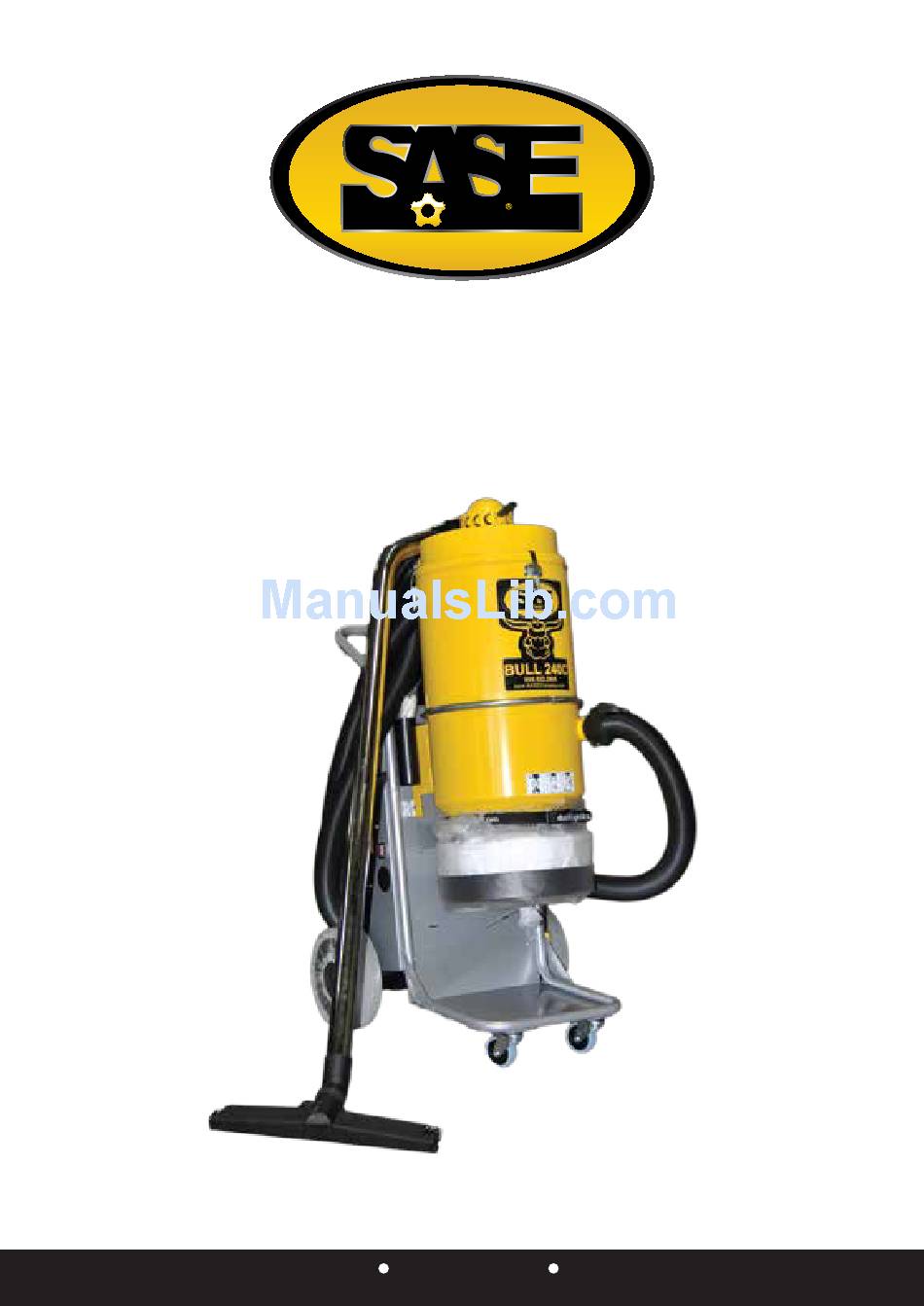

- Page 1 SASE BULL 240C Dust Collection System Manual www.SASECompany.com 800.522.2606 sales@SASECompany.com...
-
Page 2: Table Of Contents
Contents Symbols Safety Instructions Intended Use Design of the Bull 240 Product Description Technical Data Warnings Maintenance and Service Replacement of the Dust Bag Replacement of the Polyester Filter Replacement of the HEPA Filters Manual Cleaning of the Polyester Filter (Back flush) - Page 3 Symbols Warning! Be cautious when you see this sign and pay attention to the warning relevant to the situation. Safety precautions accompanied by this symbol indicate a danger of injury. Important! When you see this symbol, pay attention as some important and relevant information is mentioned.
-
Page 4: Safety Instructions
Intended Use The Bull 240 is intended for general cleaning in both commercial and industrial environments. The Bull 240 in its standard version is NOT intended for the suction of water or wet, explosive or inflammable material. -
Page 5: Design Of The Bull 240

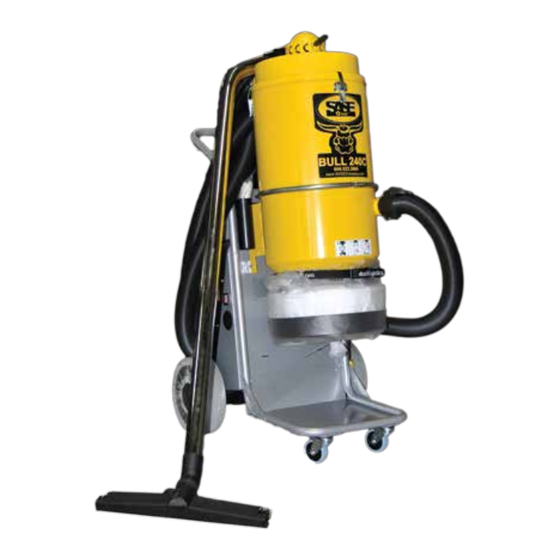

Design of the Bull 240C Lever for manual filter cleaning Top of the cyclone Cyclone (filter housing) with polyester filter Top of the HEPA filter housing (Bull 240C has two HEPA filters) Strap to secure the dust bag Dust bag www.SASECompany.com... -
Page 6: Product Description
The Bull 240C is principally made of iron and painted with powder coating. The choice of material and production method has been very important Environment during the design of the mobile vacuum cleaner. The Bull 240 is recyclable to 98 %. Exceptions are some electrical components. No solvents are used during the coating, neither for cleaning nor coat mixing. - Page 7 Technical Data [cm] 56x80x112 Size (LxWxH) [kg] Weight (approx.) 230/120 Voltage 16 / 17,7 Current [kW] Power consumption Air volume [mbar] Vacuum [dB] Sound level Polyester lter [%DOP] 98,89 Filtration 2x0,5 HEPA lter H13 [%DOP] 99,95 Dust bag [mm] Hose Ø Consumables Dust bags (10 pcs) SAS.0009510...
-
Page 8: Warnings
Put the used filter in a large plastic bag and seal it tightly. You should always seal used dust bags too. 6. The Bull 240 must never be used without filter, dust bag or vacuum filter. 7. All service, repair and trouble-shooting of the Bull 240 and the vacuum pump are to only be performed by authorized staff. -
Page 9: Maintenance And Service
Maintenance and Service Before any kind of maintenance or service is carried out, turn off the machine and remove the power supply from its socket. This does not apply for the manual cleaning of the filter. Check the filter regularly, at least once a week or other suitable interval depending on use. -
Page 10: Replacement Of The Dust Bag
Replacement of the Dust Bag Turn the central vacuum off and unplug the power supply. Strap Loosen the strap securing the bag holder in place. Dust Close the dust bag with the sealing strip, which is found at the upper edge of the plastic bag. -
Page 11: Replacement Of The Polyester Filter
Replacement of the Polyester Filter When replacing the filter, it is recommendable to use a breathing mask. Always treat both new and used filters with utmost care. Even a very small damage or a hole on a filter will severely reduce its filtration abilities. A used filter may still contain dust, which can be potentially harmful to the health and/or the environment and should therefore be disposed of according to governmental regulations. - Page 12 Replacement of the HEPA Filter When replacing the filter, it is recommendable to use a breathing mask. Always treat both new and used filters with utmost care. Even a very small damage or a hole on a filter will severely reduce its filtration abilities. A used filter may still contain dust, which can be potentially harmful to the health and/or the environment and should therefore be disposed of according to governmental regulations.
- Page 13 Manual Cleaning of the Polyester Filter (back flush) Start the Bull 240 by turning the switch to 2. Place a hand at the end of the hose (alternatively on the pipe if the hose is removed, but the hose will provide better results).
- Page 14 Trouble-shooting The trouble-shooting must be carried out by an authorized professional. The Bull 240 does not start, neither with the main switch in 1st or 2nd position. Check that there is power to the vacuum cleaner. If any of above protector or fuse will go out again at a new attempt to start the machine, the probable cause is a shortcut.
-
Page 15: Ec Declaration Of Conformity
SASE Company 2475 Stock Creek Blvd. Rockford, TN 37853 Product designation Bull 240 We declare that the above-mentioned products comply with the following European Directives: Low Voltage Directive 2006/95/EC Machinery Directive 2006/42/EC EMC Directive 2004/108/EC with regards to the Harmonised Standard EN 60 439-1... - Page 16 Figure 1 Contents of an elongated bag supply box Figure 2 Elongated bag components 1. Elongated Bag – folded plastic tube with packaging strings 2. Elongated Bag– plastic holder 3. Assembled elongated bag holder without packaging strings, ready for installation Sase Company...
- Page 17 2. Design of the mobile dust extraction unit Figure 4 Cyclone of a mobile dust extraction unit without elongated bag Cyclone (filter housing) with polyester filter Balls supporting the elongated bag holder Figure 5 Close-up on one of the two supporting balls Sase Company...
- Page 18 Figure 6 Step-by-step demonstration of the elongated bag installation 5. Make sure that the supporting balls are in position. They should be resting in the groove (see figure 7). Figure 7 The supporting ball in position on the holder (view from below) Sase Company...
- Page 19 3.1. Changing the bags 1. Pull the plastic tube downward, over the elongated bag holder, until you reach the desired length. 2. Use a tie wrap to close the end of the bag. The machine is now ready to be used. Sase Company...
- Page 20 4. Use a pair of scissors to cut between the two tie wraps. 5. Dispose of the full bag. Pull down the bag so it rests on the frame to insure a better support once it starts filling up. The machine is now ready to be used again. Sase Company...
- Page 21 3. Let go of the balls which should now be stopped by the holder. 4. Finish removing the holder by pulling it down. 5. Install the new folded tube on the holder (see 3. Installation). 6. Place the holder back onto the mobile dust extraction unit (see 3. Installation). Sase Company...
- Page 22 (1) year from original date of purchase. In the event that you should have a claim SASE shall repair, replace or remedy the defective parts resulting from the faulty design, materials or workmanship. Note: This warranty is only valid for equipment either sold by SASE or by an authorized wholesaler or distributor.
- Page 23 SASE PRODUCT & WARRANTY REGISTRATION WARRANTY IS VOID IF NOT RETURNED AND REGISTERED WITH SASE WITHIN 30 DAYS OF PURCHASE COMPANY NAME AND TITLE STREET ADDRESS CITY STATE COUNTRY PHONE EMAIL DATE OF PURCHASE SERIAL NUMBER INVOICE NUMBER OF PURCHASE...
