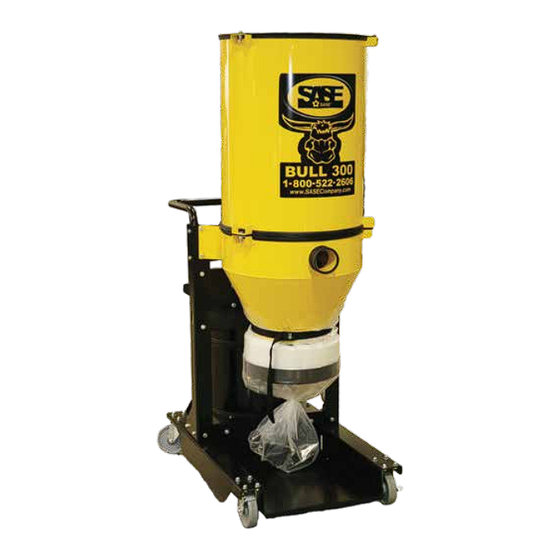

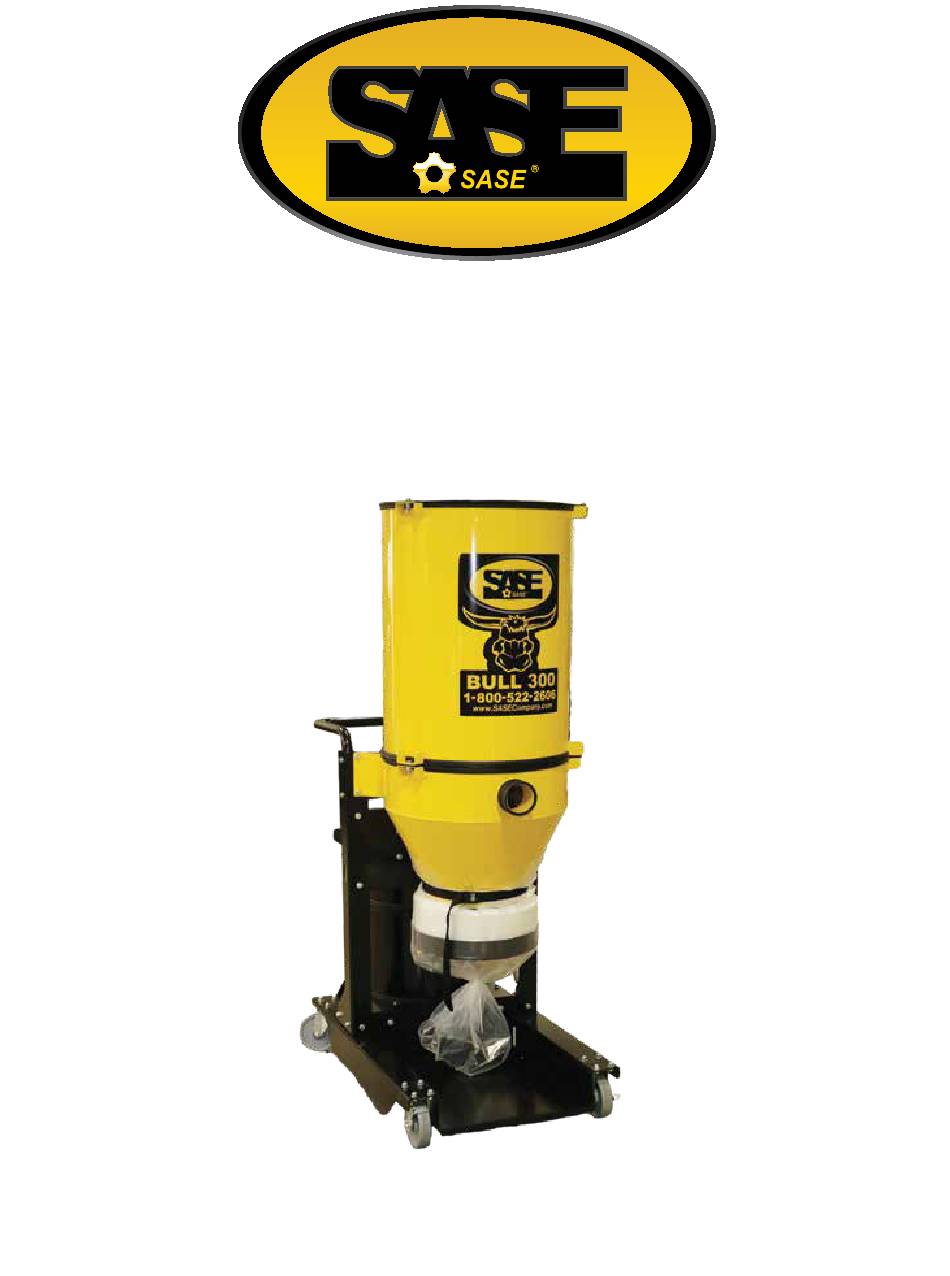

- Page 1 SASE Bull 300 EBS Industrial Vacuum MANUAL SASE Company, LLC 800.522.2606 │ SASECompany.com...
- Page 2 SASE Bull 300EBS Industrial Vacuum Operating Instructions Instructions for Installation, Repair, and Maintenance CONTENTS SECTIONS Forward Page 2 Warranty Page 3 Health & Safety Recommendations Section 1: Bull 300 Section 2: DRAWINGS Section 3: Maintenance Instructions Section 4: Accessory Item Data Sheets...
- Page 3 FOREWORD o achieve the safe installation and operation of your new SASE Bull 300 EBS vacuum system, we urge you to become familiar with the information in this manual. The SASE Bull 300 EBS industrial vacuum cleaning system is designed for heavy duty operation.
-
Page 4: Warranty
WARRANTY SASE warrants this equipment to operate within the limits of our specification when properly used, properly operated, and properly maintained. Various subsystems are warranted as follows: Vacuum Producer: 6 months Limited to premature failure due to poor workmanship by manufacturer. -
Page 5: Health And Safety
BEFORE OPERATING OR SERVICING THIS EQUIPMENT . his section outlines some of the health and safety issues that must be acknowledged when operating or servicing your SASE industrial vacuum cleaning system. It is important that plant operators are made aware of the responsibility... - Page 6 If your process is to be changed, or if you have any concerns, we suggest you contact us to see how we can assist you to ensure that the operation of your SASE industrial vacuum cleaning system is as safe as possible. Isolate Electrical Before Maintenance DO NOT ATTEMPT ANY MAINTENANCE WORK UNTIL ALL ELECTRICAL POWER HAS BEEN DISCONNECTED.
- Page 7 Use CAUTION When Using the Hoses SASE vacuum systems use blowers that develop very high vacuum conditions which can be dangerous if caution is not observed. DO NOT PUT THE END OF THE HOSE AGAINST YOUR...
- Page 8 " 612.78 " 374.65 INLINE FILTER & MOTOR HOUSING " 977.87 20" 3" 76.20 " 1686.69 " " 943.22 292.72 " DISCHARGE " 422.52 486.02...
- Page 9 FILTER HOUSING PLATE SHAKER RACK FILTER HOUSING SHAKER BOOT FILTER BAG INLINE FILTER FILTER PLATE ASSY DISCHARGE FLAP HOPPER FRAME with CASTERS MOTOR HOUSING ASSY with SILENCER...
- Page 10 31" 787.40 EBS 300 41" 1041.40 SKID 20" 3" 76.20 " " 1200.68 1816.63 " 1670.58 " 292.72...
- Page 11 SASE Parts List - BULL 300 EBS Replacement Parts Part # Recommended SASE ELONGATED VACUUM BAGS 4" X23.5" SAS.0009510 Box of 4 NWA.300EBS HEPA FILTER MOTOR, VACUUM FLO-TEK 110V NWA.00065 (FOR 110V SYSTEM) MOTOR, VACUUM FLO-TEK 220V NWA.00070 (FOR 220V SYSTEM) NWA.00089...
-
Page 12: Maintenance Instructions
The Filtration System The SASE Bull 300 EBS is designed to handle super-fine powders, so the filtration sub-system is its “heart” and must be maintained properly. The unit is equipped with twelve (12) inverted bag type tubular filters which collect the fine dust particles on the filter’s inside surfaces during... - Page 13 Before commissioning, remove top filter housing cover and check to ensure all bags are firmly secured to the lower filter bag plate. The top of the bags are attached to the shaker rack using 5/16” nuts at the top of the filter housing. The shaker rack is secured in place by use of bungee cords and the bags must not be loose or out of place.
- Page 14 Removing Elongated Bags Operators must be outfitted with Access the filters by removing the vacuum producer section. To change appropriate the elongated bags, clip the plastic wrap on each bag tied on the filter respirators and shaker assembly inside the tank at the top. must wear protective clothing Squeeze the spring cuff at the bottom of the bag compressing the snap ring into...
- Page 15 The inline filter supplied with this unit will help prevent damage to the exhauster in case of failure of a primary elongated bags. Should the air flow of the SASE Bull 300 EBS become reduced, check that the inline filter has not become blinded by dust by removing the inline filter housing cover.
- Page 16 The Special Hopper with discharge flap & torsion spring Bull 300 EBS comes with a specially designed discharge hopper with a perforated baffle located efficiently slow down the dust and collect above the discharge chute. The discharge chute is equipped with a discharge flap and torsional spring to retain the flap in position and partially crack open when the unit is not in operation.
-
Page 17: Vacuum Seals
Vacuum Seals If you experience a “lack of suction”, almost certainly there is a leak in a seal somewhere in the system. The following is a short list of common fail points: Check all gasket seals. If air is leaking in through these seals, dust will normally collect on the inside surface of the housing showing the exact location of the leak. - Page 18 Section 4 LAMB ELECTRIC Model: 119892-00 SPECIAL FEATURES DESCRIPTION - Suitable for 120v AC operation, 50/60 Hz - One stage - UL component recognized - 120 volts - Provision for grounding - 9.0" / 229 mm diameter - 10 mm shaft and bearing system - Dual ball bearings - Flat fan system - Tangential discharge...
- Page 19 PRODUCT BULLETIN 119892-00 DIMENSIONS Manufactured under Patent nos. US5789893, TW81993, SG38957, ZA96/2766, US5760519, EP0702448B1, ZA95/7123 under license from Switched Reluctance Drives Ltd. Other US and foreign patents pending. Copyright code 1998. All rights reserved. IMPORTANT NOTES: Pictorial and dimensional data are subject to change without notice. Contact factory for current revision levels. WARNING When using AMETEK/Lamb Electric bypass motors in machines that come in contact with foam, liquid (including water) of other foreign substances, the machine must be designed and constructed to prevent those substances from reaching the fan system, motor housing...
- Page 20 EPITROPIC FILTER MEDIA - BAG FILTER FOR APPROVAL CERTIFIED NOTE: EPITROPIC MEDIA FELT (ANTI-STATIC) - FOR MORE PHYSICAL PROPERTIES REFER TO EPITROPIC FELT FILTER MEDIA PAGE (S) ALL DIMENSIONS ARE IN INCHES (mm) DIA. LENGTH FILTER AREA PART # In (mm) In (M) SQFT / (M2) QTY = 12...
- Page 21 VACUUM PRODUCER ACCESSORY - INLINE FILTER REPLACEMENT FILTER ELEMENT PAPER/HEPA MEDIA PAPER ELEMENTS Particle Size vs. Filter Efficiency on paper media at indicated face velocity: • Nominally 99.9% efficient at 10 micron • Heavy duty industrial strength paper surrounded 1 O cfm/ft media by heavy gauge galvanized expanded metal 15 cfm/ft...
- Page 22 SUBJECT: SUMMARY: The new SASE Bull 300 vacuum motor features an Interrupter Brush Type Vacuum Producer. Under normal use the brushes are designed to run for approximately 1,000 hours. Located inside the brush is a nylon dowel that lifts the brush off the contact surface, breaking the electrical contact and stopping the motor before commutator wear and damage occurs.
