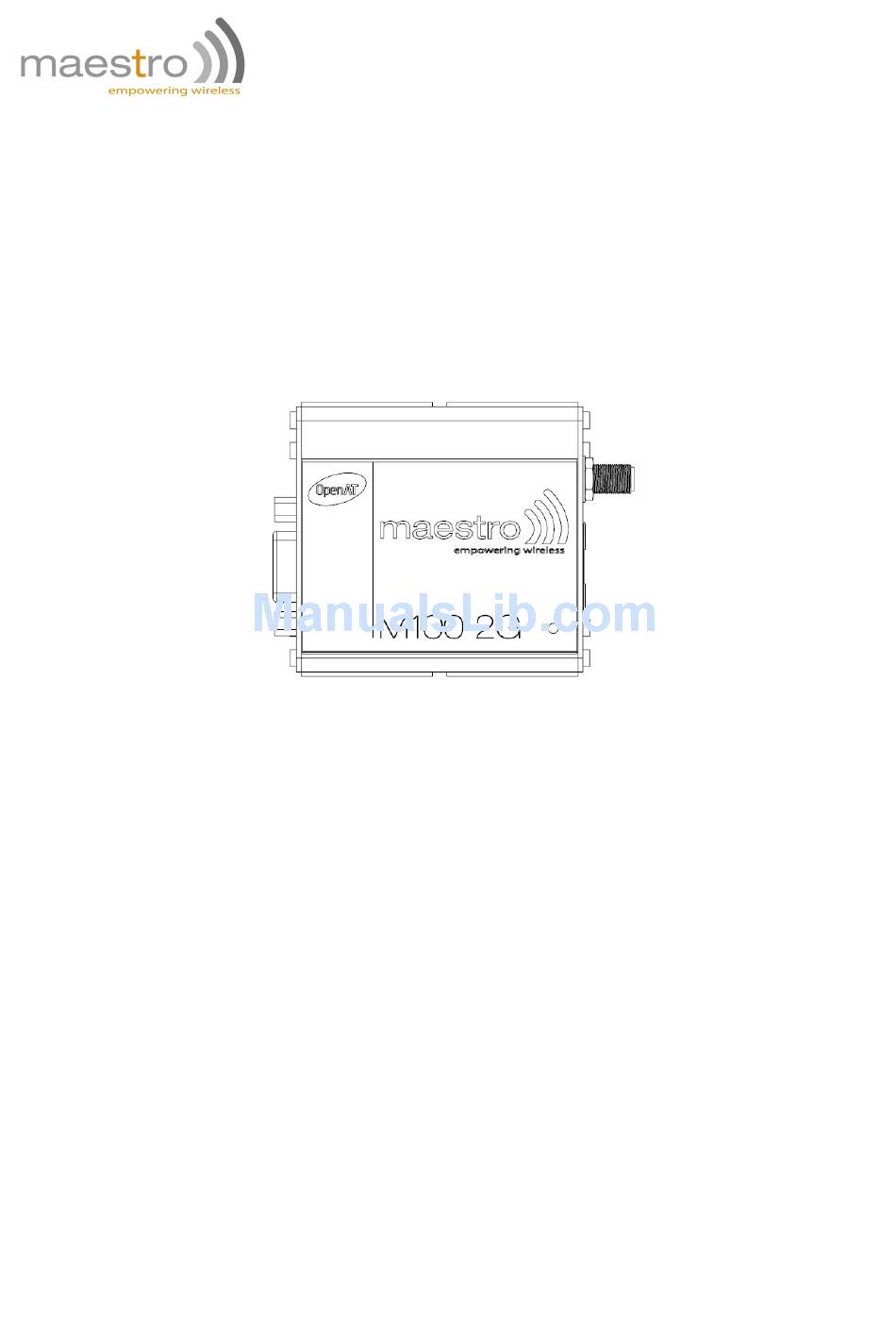

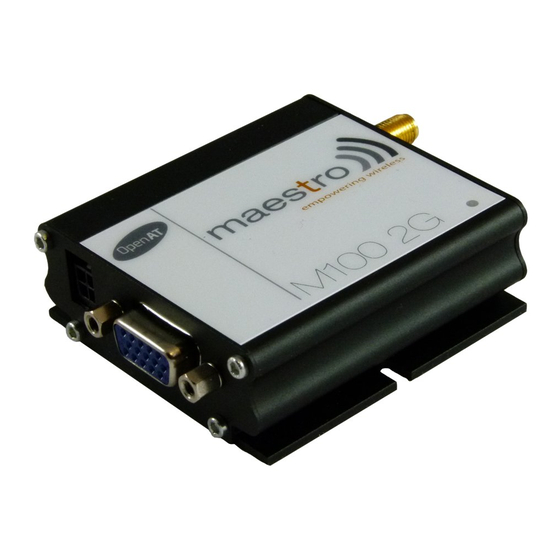

  • Page 1 100 2G AESTRO & U UICK TART UIDE ANUAL ERSION MAESTRO WIRELESS MAIL CONTACT MAESTRO WIRELESS : (+852) 2869 0688 : (+852) 2525 4701 3603-3609, 36/F, 118 C DDRESS ONNAUGHT HEUNG...
  • Page 2 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 3: Revision History

    Corrected accessories details. This manual is written without any warranty. Maestro Wireless Solutions Ltd. reserves the right to modify or improve the product and its accessories which can also be withdrawn without prior notice. Besides, our company stresses the fact that the performance of the product as well as accessories depends not only on the proper conditions of use, but also on the environment around the places of use.
  • Page 4 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 5: Table Of Contents

    4.2 Using the Maestro Configuration Software ........
  • Page 6 7.6 Basic operations ..........Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd.
  • Page 7: Safety Precautions

    – Do not pull the antenna or power supply cable. Please attach or detach by holding the connector. – Connect the modem only according to the instruction manual. Failure to do it will void the warranty. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 8 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 9 – 15 pin sub-D connector – 4 pin power supply connector – SMA Cellular antenna connector (50 ) Dimensions: – Overall size: 74.3mm x 60mm x 21.7mm – Weight: 90g Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 10: Temperature Range

    In accordance with the European directive EN60590, if the ambient temperature exceeds or might exceed 65°C, it is required that the installer: - Avoid physical contact with the Maestro 100 2G when the temperature exceeds 65°C. - Adds a marking on the assembly indicating that this part is hot (for example showing the “symbol IEC 60417-5041: Caution, hot surface”;...
  • Page 11: Related Documents

    Chapter 2 Related documents This document presents technical and hardware specifications of the Maestro 100 2G industrial modem. It covers a hardware installation, quick start guide, accessories listing, and troubleshooting details. This document will not cover the embedded application details, neither the common 3GPP AT command list, for more information please refer to the following documentations available on our website: –...
  • Page 12 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 13: Hardware Installation

    3.4 Connecting the modem to external device Use Maestro standard DB15 to DB9 straight cable, detailed on page 23, to connect an external controller or a computer. Refer to section 5.2 for more details on some other cable option or adapter.
  • Page 14: Connecting The Dc Power Supply

    Note: If the Maestro 100 2G is connected with another DCE device please use a cross cable. 3.5 Connecting the DC power supply If delivered with the power cord accessory, on page 22, use the open ending of the power cord to connect a DC supply.
  • Page 15: Maestro 100 2G Easy Setup Guideline

    Boasting the reliability the M100 Series is known for, the M100 2G modems are the perfect devices to use in any of your projects facing tough conditions or extended lifetime requirements. Fitted with a standard fifteen pins RS232 port and Windows configuration tool the M100 2G can be set up with minimal effort.
  • Page 16 Once connected, the interface will switch to the “Modem Status” page, see Figure 4.2.2, displays the reception signal strength (RSSI, refreshed every five seconds), your SIM card network name, as well as the revision number for the embedded application and firmware. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 17 – IP Ping, – Command String scripting language, The last and not least page of the Maestro Configuration Software is the Terminal, which is a Windows HyperTerminal replacement with log, quick command features, see Figure 4.2.3. Figure 4.2.3: Terminal page - Maestro Configuration Software Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd.
  • Page 18 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 19: Equipments Description

    GSM frequency and an impedance of 50 ; incorrect antenna will affect communication and even damage the modem. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 20: 15-Pin D-Sub Female Connector (Rs232/Audio)

    It is recommended that CTS and DTR pins should never be short-circuited. If the application requires to use "flow- control spoofing" cables, make sure that they do not connect CTS to DTR. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 21: 4-Pin Micro-Fit Molex Connector (Power And Input/Output)

    – Direct connection with standard 9-pin RS-232 port (DTE) – Direct connection with common handset of telephone for voice call – Shielded cable – Cable length 1.1m (w/ connector) Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 22 – Polarization Linear Power cord with fuse - ACC-CA10 – 4-pin Microfit connector – 1m AWG20 cables with stripped wire end – 2.5A glass fuse with plastic holder Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 23 DIN rail mount - ACC-DIN – SPCC steel – Thickness: 1.2mm DB15 to DB9 adapter - OTH-004 – Plastic molded with screws – Length: 36mm (w/ connector) Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 24 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 25: Default Firmware Settings

    Note: Please note that the input port is put by default to High status internally, so you just need to short it to the ground to make it low, and open to make it high. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 26: Analog Input Port

    By default, auto-online mode is not active. To activate it, issue AT+WIOM=1,”GPIO22”,1,0 followed by AT+WIOM=4. This setting needs to be set once, and will be saved in memory. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 27: Troubleshooting

    7.4 No voice could be heard for the modem’s speaker output when a call is answered – Make sure a voice call has been made (refer to AT command guide) – Enter the AR+SPEAKER=1 command Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
  • Page 28: Debug, Or Further Command Using Smart Terminal As Example

    7.5 Debug, or further command using Smart Terminal as example First, you can find our Hyper Terminal substitute at the following address: http://www.maestro-wireless.com/ smart-terminal Then follow the steps: – Open the software, you can find the shortcut on your desktop, or access it by the Start menu > All Programs >...
  • Page 29: Basic Operations

    Incorrect PIN code (with +CME=1 mode) +CME ERROR: 3 PIN already entered (with +CME=1 mode) Saves parameters in non-volatile AT&W The configuration settings are stored memory Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. support@maestro-wireless.com...
