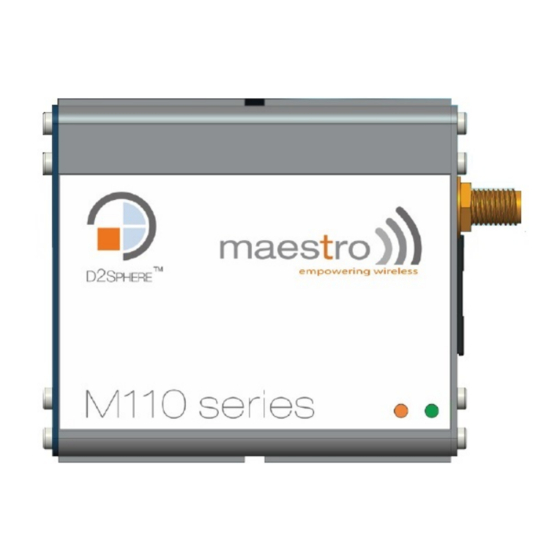

Summary of Contents for Maestro M111

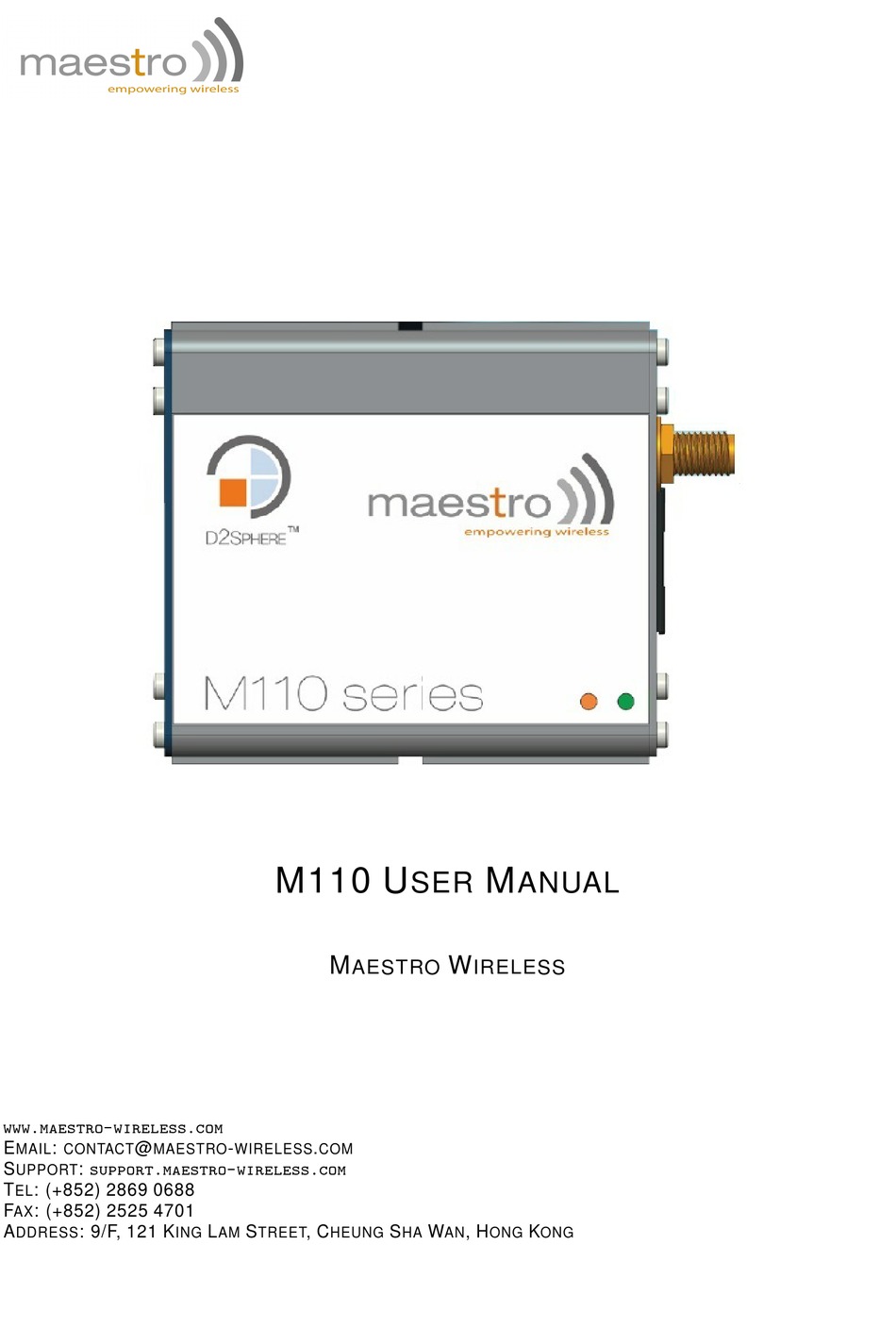

  • Page 1 M110 U ANUAL AESTRO IRELESS www.maestro-wireless.com MAIL CONTACT MAESTRO WIRELESS : support.maestro-wireless.com UPPORT : (+852) 2869 0688 : (+852) 2525 4701 : 9/F, 121 K DDRESS TREET HEUNG...
  • Page 2 Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 3 Revision history Version Date Details Originated by 31 Aug 2018 Initial Release Anthony Wong Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 4 This manual is written without any warranty. Maestro Wireless Solutions Ltd. reserves the right to modify or improve the product and its accessories which can also be withdrawn without prior notice. Besides, our company stresses the fact that the performance of the product as well as accessories depends not only on the proper conditions of use, but also on the environment around the places of use.
  • Page 5: Table Of Contents

    5.2 AT#IPCONNECT ..........Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd.
  • Page 6 11.4 Flow diagram of Auto TCP/UDP Connection ....... . . 12 TROUBLESHOOTING Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 7: Confidential, The Whole Document Is The Sole Property Of Maestro Wireless Solutions Ltd

    12.3 The modem does not respond to the terminal program ......13 ABBREVIATIONS Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 8: Safety Precautions

    – Do not pull the antenna or power supply cable. Please attach or detach by holding the connector. – Connect the modem only according to the instruction manual. Failure to do it will void the warranty. Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 9: Introduction

    Chapter 1 INTRODUCTION The aim of this document is to provide users of Maestro M110 Modems running mPack, a detailed description of the commands supported by mPack and various configuration / operation modes in which M110 series Modems could be used.
  • Page 10 Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 11: Basic Operation

    SIM card inserted in M110device.In either case, the commands are mPack AT commands as described below. Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 12: Default Settings

    OFF: No power Slow blink: No signal or CSQ < 4,99 Fast blink: Bad CSQ < 9 ON: Good signal or CSQ > 10 Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 13: Administration Commands

    #FLASH ID: 0xef,0x4015 info : AT#INFO=? 3.2 AT#CONFIGDEL Factory reset device configuration ALLOWED: exec Note: – Device restarts after this command is executed AT#CONFIGDEL Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 14: At#Reset

    – remainTime: time before next reset range: "000:01"- "167:59" (format hhh:mm) exec : AT#MRST=1,"100:00" state (1 minute after executing the exec command): Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 15: At#Nwrst

    – counter: 10-1000; count of consecutive network failures, after which the device will reset if option = 1. Default exec : AT#NWRST=1,10,18 state : AT#NWRST? #NWRST: 1,10,18 info : AT#NWRST=? #NWRST: (0-2),(5-120),(10-1000) Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 16 Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 17: Hardware Commands

    : AT#SERIAL=115200,"8N1",0 state : AT#SERIAL? #SERIAL: 115200,"8N1",0 info : AT#SERIAL=? #SERIAL: (1200,2400,4800,9600,19200,38400,57600,115200),("8N1","8N2","9O1","9E1"),(0-1) 4.2 AT#HFLW Enable or disable hardware flow control ALLOWED: exec-state Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 18: At#Setrtc

    1 = enter date, (value1,value2,value3) = (YY:MM:DD) 2 = stop the RTC clock exec : AT#SETRTC=1,18,03,05 state : AT#SETRTC? ERROR info : AT#SETRTC=? #SETRTC: (0-2),((0-23)/(0-99)),((0-59)/(1-12)),((0-59)/(1-31)) Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 19: At#Getrtc

    "DI": digital input " “DO": digital output "AN": analogue input exec : AT#VIO=2,”DO" state : AT#VIO? #VIO: 1,"AN" #VIO: 2,"DO" info : AT#VIO=? #VIO: (1,2),("DI","AN","DO") Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 20: At#Vamode

    – mode: "DI": digital input "DO": digital output "AN": analogue input – status: for mode = "DI" or "DO" : 0 or 1 Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 21: At#Opset

    – channel: 1 or 2 – status: 0 or 1 exec : AT#OPSET=1,1 state : AT#OPSET? ERROR info : AT#OPSET=? #OPSET: (1-2),(0-1) Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 22: At#Lgpara

    – mobileNum: mobile number to which Last Gasp SMS is sent (argument only makes sense when mode is 1) exec : AT#LGPARA=2,"+919876543210" state : AT#LGPARA? #LGPARA: 0,"+919876543210" info : AT#LGPARA=? #LGPARA: (0-2),(10-29) Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 23: Cellular Commands

    – password : password for cellular data access. If no password is needed, can omit the argument and mPack software will use a non-null but meaningless value when state is read – CID : context ID. Please consult Maestro team on when to use this parameter and what value to use exec : AT#IPCELLULAR=1,"CMHK"...
  • Page 24: At#Ipping

    : // destination can be reached AT#IPPING=2,"8.8.8.8",4,10,5000 AT#IPPING (to be specified) // destination cannot be reached AT#IPPING=2,"non-existing-ip",4,10,5000 AT#IPPING (to be specified) Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 25 : AT#IPPING? #IPPING: "8.8.8.8",4,10,5000 info : AT#IPPING=? #IPPING: (0-2),(120),(1-10),(1-10),(5000-60000) Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 26 Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 27: Socket Commands

    – delay: (deprecated, no need to enter) exec : AT#IPTCP=1,50002,"C","162.242.170.48" state : AT#IPTCP? #IPTCP: 1,50002,”C”,"162.242.170.48",1 #IPTCP: 2,0,”C”,"",1 info : AT#IPTCP=? #IPTCP: (1-2),(0-65535),("C","S"),(120),(0,1) Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 28: At#Ipudp

    #IPUDP: 1,50003,”C”,"162.242.170.47",1 #IPUDP: 2,0,”C”,"",1 exec : AT#IPUDP=? #IPUDP: (1-2),(0-65535),("C","S"),(120),(0,1) 6.3 AT#AUTOTCP Command to Start Auto TCP functionality ALLOWED: exec-state-info AT#AUTOTCP=(mode) – mode Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 29: At#Autoudp

    – mode 0: AUTOUDP connection OFF 1: AUTOUDP connection ON exec : AT#AUTOUDP=0 state : AT#AUTOUDP? #AUTOUDP: 0 info : AT#AUTOUDP=? #AUTOUDP: (0,1) Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 30: At#Otcp

    On-demand UDP socket connection. ALLOWED: exec-state-info AT#OUDP=(mode) – mode 0: UDP connection OFF 1: UDP connection ON exec : AT#OUDP=0 state : AT#OUDP? #OUDP: 0 Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 31: At#Schost

    – Some options are not yet implemented, and will be implemented stage by stage. Therefore, ERROR may be returned for some of the options Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 32 : AT#IPOPT=1 AT#IPOPT=5,2,"414243444546474849" state : AT#IPOPT? #IPOPT: #IPOPT: 1,0 #IPOPT: 2,0 #IPOPT: 3, #IPOPT: 4,0,0 #IPOPT: 5,0,"",1 info : AT#IPOPT=? #IPOPT: (1-4),(0-60000)[,(0-1)] Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 33: At#Auopt

    : AT#AUOPT=1,3600 AT#AUOPT=4,2,"4149" state : AT#AUOPT? #AUOPT: 1,3600 #AUOPT: 2,0 #AUOPT: 3,0 #AUOPT: 4,0,"4149" #AUOPT: 5,0 #AUOPT: 6,0,"01 info : AT#AUOPT=? Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 34 Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 35: Remote Control Commands

    6. If Read Response(s) of the AT command is (are) more than 160 characters, only the first 160 characters will be returned. Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 36: At#Tcpterm

    TCP. ALLOWED: exec-state-info Note: – Network watchdog ping is used by application when the device enters data mode AT#IPTCP=(idx),(port),(mode),(ip)[,(delay)] Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 37 – port: port used on the modem for incoming TCP connection. Default 23 – timeout: specified in seconds. Default 30 exec : AT#TCPTERM=2,"000000",23,30 state : AT#TCPTERM? #TCPTERM: 0,"000000",23,30 info : AT#TCPTERM=? #TCPTERM: (0-2),(16),(1-65535),(1-43200) Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 38 Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 39: Dota Commands

    – filename: up to 120 characters, in quotes – port: port of the server on which the update file is stored (the default value is set by Maestro, see note above) – ip: IP address of the server on which the update file is stored (the default value is set by Maestro, see note...
  • Page 40 0: stop the update process 1: stop the update process exec : AT#UPDATE=0 state : AT#UPDATE? #UPDATE: 0 info : AT#UPDATE=? ERROR Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 41: D2Sphere Commands

    : AT#IPD2S? #IPD2S: 4444,"5.35.253.3",1000 exec : AT#IPD2S=? #IPD2S: (0-65535),(120),(0-43200) 9.2 AT#D2S Enable or disable D2Sphere function ALLOWED: exec-state-info AT#D2S=(mode) – mode Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 42: At#Dvname

    AT#DVNAME=(name) – name: name of the device, in quotes exec : AT#DVNAME="M11x_001" state : AT#DVNAME? #DVNAME: "M11x_001" info : AT#DVNAME=? #DVNAME: (23) Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 43: Trigger Commands

    AT#DITRIG? #DITRIG: 1,3000,11250,10 #DITRIG: 2,0,3200,0 info : AT#DITRIG=? #DITRIG: (1,2)(0-32000),(0-32000),(0-10) 10.2 AT#DITRIGENB Enable DI trigger parameters ALLOWED: exec-state-info AT#DITRIGENB=(pin_number),(enb),(trigger_type) – pin_number: 1-2 Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 44: At#Msgper

    – interval: how often messages are generated, in sec. Value 0-60000 – count: number of messages generated. Value 0-100 exec : AT#MSGPER=2,10,3 state : AT#MSGPER? #MSGPER: 1,0,0 #MSGPER: 2,10,3 Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 45: At#Msgstr

    – msg1: concatenated with msg_ID for DI1 – msg2: concatenated with msg_ID for DI2 exec : AT#MSGSTR=2,"Maestro","001","234" state : AT#MSGSTR? #MSGSTR: 2,"Maestro","001","234" info : AT#MSGSTR=? #MSGSTR: (0-2),(120),(5),(5) Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 46 Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 47: Application Notes

    – UART/USB : 1 for UART; 2 for USB – IP-port : port of the TCP Socket Server – Client/Socket : Use "C" for modem as TCP client Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 48: Autotcp Server Setup Example

    – UART/USB : 1 for UART; 2 for USB – IP-port : port on the modem for TCP Socket Server – Client/Socket : Use "S" for modem as TCP server Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 49: Flow Diagram Of Auto Tcp/Udp Connection

    "DISCONNECT" will be seen and the port will go back to AT command (where AT commands are expected) Command Response Description (See table above) 11.4 Flow diagram of Auto TCP/UDP Connection Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 50 Figure 11.4.1: Auto TCP / UDP Flow Diagram Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 51: Troubleshooting

    – Check if your program has proper settings. Factory setting of the UART port of the modem is: 115200 bps 8 data bits 1 stop bit no parity bit Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 52 Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
  • Page 53: Abbreviations

    Chapter 13 ABBREVIATIONS (to be added) ==== END DOCUMENT ==== Confidential, the whole document is the sole property of Maestro Wireless Solutions Ltd. Please contact us on support.maestro-wireless.com...
