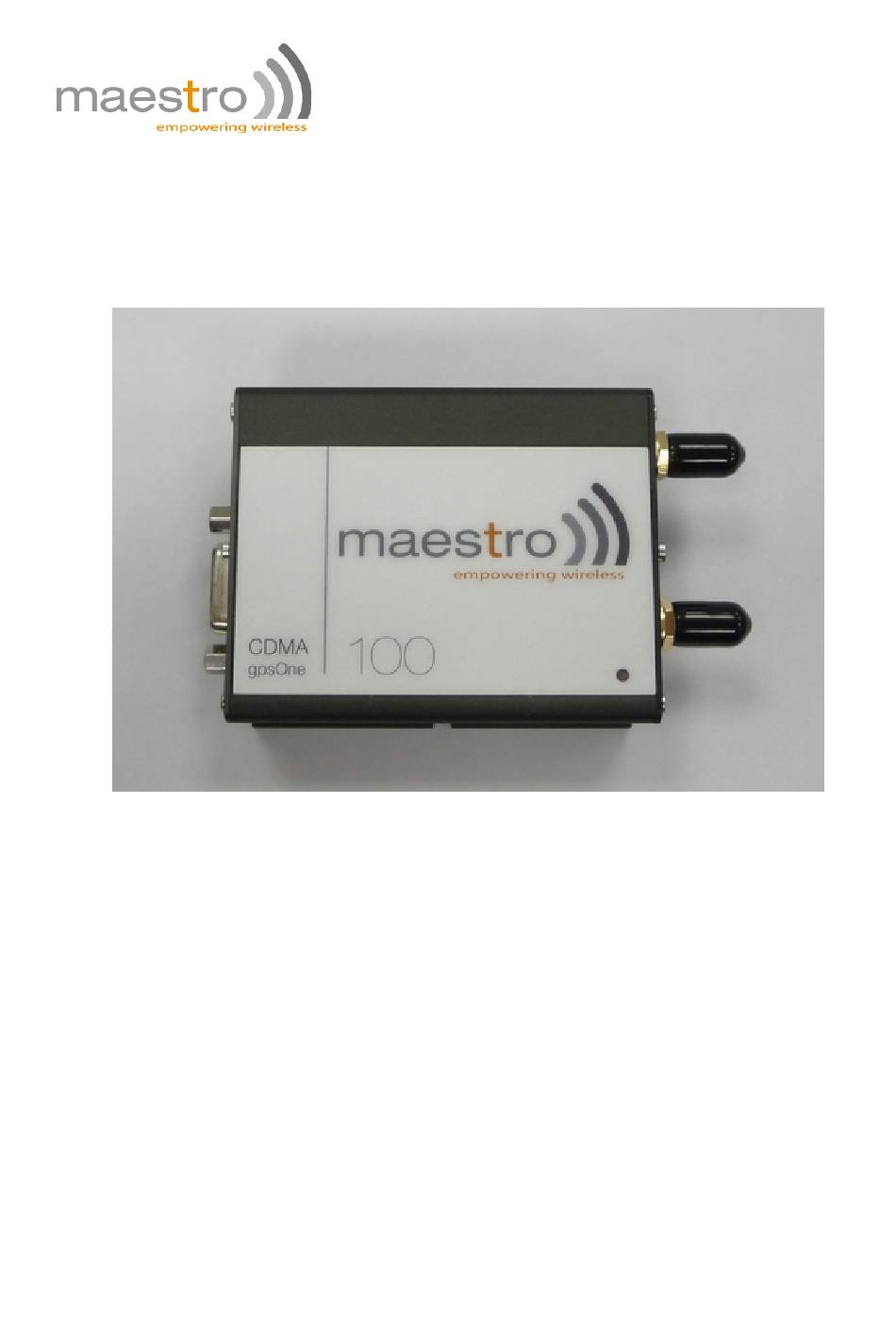

- Page 1 100 CDMA AESTRO & U . 0.4 UICK TART UIDE ANUAL MAESTRO WIRELESS MAIL CONTACT MAESTRO WIRELESS : 852 2869 0688 : 852 2525 4701 3603-3609, 36/F, 118 C DDRESS ONNAUGHT HEUNG...
-
Page 2: Revision History
User shall assume the entire risk of using or relying on this software, solution, application. In no event will Maestro Wireless Solutions Ltd. be liable for any loss or damage including without limitation, indirect or consequential loss, damage, or any loss, damage whatsoever arising from loss of data or profit arising out of, or in connection with, the use of this software, application or solution. - Page 3 Contents The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com...
-
Page 4: Safety Precautions
– Connect the modem only according to the instruction manual. Failure to do it will void the warranty The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... - Page 5 – Generic version (Provisioning for Carrier Requirement). The modem is based on CDMA 2000 / 1XRTT dual band technology. Depending on the service sub- scribed, Maestro 100 CDMA supports async data, circuit switch data and packet data. Data rates are up to 153Kbps.
-
Page 6: Equipments Description
– Apps notes on network registration details: AirPrime Q26 Elite Activation on the Sprint Network and AirPrime Q26 Elite Activation on the Verizon Network. You can find those documents in the package given by Maestro Wireless Solution, or directly for the Sierra Wireless website: http://www.sierrawireless.com/en/sitecore/content/Sierra%20Wireless/Support/ Downloads/AirPrime/Q_Series/AirPrime_Q26_Elite.aspx... -
Page 7: Status Indicator
– ON: modem is power-up – Flashing slowly: modem is in idle mode – Flashing rapidly: modem is in transmission/communication The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 8: Gps Antenna Connector
Current consumption (mA) 40mA max 2.3.4 15-Pin D-Sub Female connector (RS232) This connector provides serial link to the modem. The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 9: 4-Pin Connector (Power Input/Output)
DC power positive input The power cable included in the package shall be used for power supply connection: The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 10: Optional Accessories
– Direct connection with standard 9-pin RS-232 port (DTE) – Shielded cable – Cable length 1.1m (w/connector) Pin assignment: The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... - Page 11 DIN rail mount – Quick attachment / detachment to standard 35mm DIN rail – Zinc plated steel The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com...
-
Page 12: Installation
You can use the optional RS232 cable to connect the modem’s Sub-D connector to external controller/- computer. Connection example using optional RS232 cable The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 13: Connect The Dc Power Supply
The modem will turn on automatically. The status indicator on the modem will be lit when power on. After a few seconds it will go flashing slowly The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... - Page 14 P r e f e r r e d Roaming L i s t (PRL) +WEND: 0 << Phone i s Off L i n e OFFLINE RESET The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com...
- Page 15 Consult the carrier for setting up an account and the steps for automatic activation. Wavecom Product Support Tool can be requested from Maestro Wireless Solutions The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong...
-
Page 16: Troubleshooting
• baudrate at 115200 bps • 8 data bits • no parity bit • 1 stop bit The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 17: Debug, Or Further Command Using Smart Terminal As Example
5.4 Debug, or further command using Smart Terminal as example First, you can find our Hyper Terminal substitute at the following address: http://software.maestro-wireless. Then follow the steps: – Open the software, you can find the shortcut on your desktop, or access it by the Start menu > All Programs >... -
Page 18: Basic Operations
+WPRL: 57003 57003 represents VERIZON version Check ESN & +CGSN: A10000094119D8, MEID: A1000094119D8 AT+CGSN MEID 808FFD36 ESN: 808FFD36 The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... - Page 19 @<STRING>! by a string @<STRING>,OK! +WORG: #777 Close data mode +WCNT: 33 +WEND: 25 The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com...
-
Page 20: Specifications
– CDMA antenna SMA female connector – GPS antenna SMA female connector – 15 pin sub-D connector – 4-pin power supply connector The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 21: Temperature Range
– Weight: 100g Temperature range: – Operating: -30° C to +70° C – Storage: -40° C to +80° C The whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com...
