Operator's Manual / Manual del operador / Manuel de l'utilisateur
READ THIS BOOK
LEA ESTE MANUAL
LISEZ CE MANUEL
This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or
attempting any service or maintenance procedure to your Clarke American Sanders machine could result in injury to you or to other
personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine
before using it. If your operator(s) cannot read this manual, have it explained fully before attempting to operate this machine.
All directions given in this book are as seen from the operator's position at the rear of the machine.
PART No. LT068800
3/14
OBS-18DC
HDTR
Model: 07014A
EN
English (2 - 9)
ES
Español (10 - 17)
FR
Français (18 - 25)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OBS-18DC HDTR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clarke OBS-18DC HDTR

Summary of Contents for Clarke OBS-18DC HDTR

  • Page 1 This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your Clarke American Sanders machine could result in injury to you or to other personnel;...

  • Page 2: Table Of Contents

    ENGLISH Contents of this Book Operator Safety Instructions ................3 Introduction and Machine Specifications ............4 Machine Transportation ..................4 Machine Set-Up ....................5 Operating Instructions ..................7 Troubleshooting ....................8 Sanding Cuts and Sandpaper ................9 SECTION II Parts and Service Manual Base Assembly ....................

  • Page 3: Operator Safety Instructions

    DANGER: Failure to read the Owner’s Manual prior to operating or servicing your Clarke American Sanders machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have train- ing in the operation of this machine before using it.

  • Page 4: Introduction And Machine Specifications

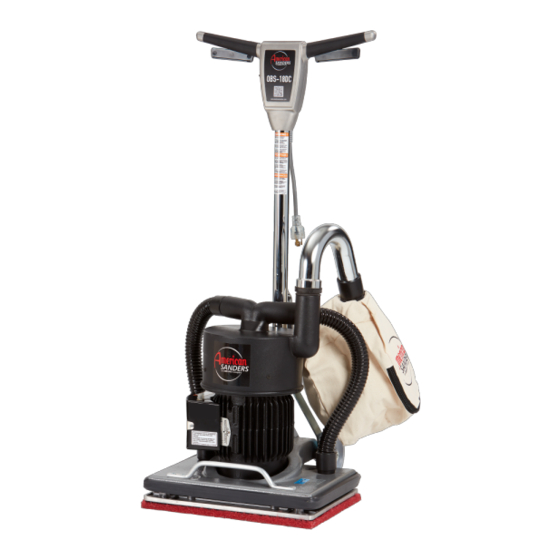

    ENGLISH Introduction & Machine Specifications The OBS-18 or OBS-18DC can be used on a variety of surfaces. It is an ideal tool for wood flooring maintenance and restoration work. It is also suitable for cleaning hard surfaces such as tile or Terrazzo. Model OBS-18DC Code Number 07014A...

  • Page 5: Machine Setup

    WARNING: Never put yourself or let others be in a posi- tion to get injured if the machine should tip or fall, while replacing the pad or changing abrasive. ® Clarke American Sanders Operator's Manual (EN) - OBS-18/18DC HDTR - 5 -...
  • Page 6 ENGLISH Machine Setup This sanding machine is designed to be operated with a remote vacuum 1.5" Hose from dust collection system or with the included dust bag. vacuum system 2" Hose from (not included) vacuum system (not included) Preparing Remote Vacuum Dust Collection Systems To prepare the machine for remote vacuum dust collection systems that have a 2”...

  • Page 7: Operating Instructions

    To prevent damage to the flooring and to reduce swirling, keep the machine in mo- tion while the motor is running. NOTE: For sanding cuts and sandpaper, see page 9. Figure 6 ® Clarke American Sanders Operator's Manual (EN) - OBS-18/18DC HDTR - 7 -...

  • Page 8: Troubleshooting

    Interlock not depressed. Depress Interlock before activating control lever. Defective switch/ Bad connection Contact an authorized Clarke American Sanders Dealer. Motor fails to start / runs Low voltage from excessive length Use a 14 Ga extension cord, not to exceed sluggish.

  • Page 9: Sanding Cuts And Sandpaper

    A very fine grain will close the pores on a wood floor making admission of a stain difficult. If glazing or burning should occur the abrasive has dulled and must be replaced. ® Clarke American Sanders Operator's Manual (EN) - OBS-18/18DC HDTR - 9 -...
  • Page 10 Este manual contiene información importante acerca del uso y la seguridad de la máquina. Si no lee el manual antes de utilizar su máquina Clarke American Sanders o de intentar realizar los procedimientos de reparación o mantenimiento de la misma, usted o el resto del personal podrían sufrir lesiones; asimismo, podrían producirse daños a la máquina o a otras propiedades.

  • Page 11: Instrucciones De Seguridad Para El Operador

    PELIGRO: Si no lee el manual de instrucciones antes de operar, reparar o realizar el mantenimiento de su máquina Clarke Ame- rican Sanders, el resultado puede ser que usted o el resto del personal sufra lesiones. Asimismo, pueden producirse daños a la máquina o a otras propiedades.

  • Page 12: Introducción Y Especificaciones De La Máquina

    ESPAÑOL Introducción y especificaciones de la máquina La OBS-18 y la OBS-18DC pueden utilizarse en una gran variedad de superficies. Por ello, se trata de una herramient a ideal para mantenimiento de pisos de madera y trabajos de restauración. También es adecuada para la limpieza de superficies duras como baldosas o terrazo.

  • Page 13: Instalación De La Máquina

    (ni deje que otras personas lo hagan) en una posición en la que pueda lesionarse si la máquina se inclina o cae. ® Clarke American Sanders Manual del operador (ES) - OBS18/18DC HDTR - 13 -...
  • Page 14 ESPAÑOL Instalación de la máquina Esta lijadora está diseñada para utilizarse con un sistema colector de polvo remoto mediante vacío o con la bolsa de polvo incluida. MANGUERA DE 1.50" DEL SISTEMA MANGUERA DE 2" DE ASPIRACIÓN DEL SISTEMA DE (NO INCLUIDO) Preparación de los sistemas colectores de polvo remotos mediante ASPIRACIÓN (NO...

  • Page 15: Instrucciones De Funcionamiento

    NOTA: para cortes de lija y papel de lija consulte la página 25. Figura 6 ® Clarke American Sanders Manual del operador (ES) - OBS18/18DC HDTR - 15 -...

  • Page 16: Resolución De Problemas

    ESPAÑOL Resolución de problemas Problema Causa Acción El motor no arranca. No hay potencia. Inspeccione la fuente de alimentación y la conexión El interbloqueo no está presionado. Presione el interbloqueo antes de activar la palanca de control. Interruptor defectuoso / mala conexión Póngase en contacto con un distribuidor autorizado de American Sanders Technology.

  • Page 17: Cortes De Lija Y Papel De Lija

    Si un corte de acabado apareciera inmediatamente glaseado o quemado, aumente el ritmo. Si esto ocurriera durante un corte final, significa que el abrasivo se ha desafilado y deberá cambiarse. ® Clarke American Sanders Manual del operador (ES) - OBS18/18DC HDTR...
  • Page 18 Ce Manuel contient des informations importantes concernant l’utilisation et le fonctionnement de cette machine dans des conditions de sécurité optimales. La non-lecture de ce manuel avant d’utiliser ou d’entretenir votre machine Clarke American Sanders risque de provoquer un accident ou d’endommager la machine ou son environnement. Vous devez avoir été...

  • Page 19: Consignes De Sécurité

    DANGER: Si vous ne lisez pas le manuel d’utilisation avant d’utiliser ou réparer votre appareil Clarke, vous risquez de vous blesser ainsi que d’autres personnes. Vous risquez également d’endommager l’appareil et de causer divers dommages maté- riels.

  • Page 20: Introduction Et Spécifications De L'appareil

    Demandez de l’aide si nécessaire. 4. Attachez l’appareil pour éviter qu’il ne bouge sur le véhicule de transport. PERSONNE #1 PERSONNE #2 PERSON #1 PERSON #2 Figure 2 Figure 1 ® Clarke -20- American Sanders Manuel de l’utilisateur (FR) - OBS-18/18DC HDTR...

  • Page 21: Préparation De L'appareil

    à basculer ou se renverser. ® Clarke American Sanders Manuel de l’utilisateur (FR) - OBS-18/18DC HDTR - 21 -...
  • Page 22 NOTE: Pour obtenir les meilleurs résultats, vider fréquemment le sac. Respecter toutes les mises en garde indiquées dans le présent manuel et sur le sac à poussières. ® Clarke -22- American Sanders Manuel de l’utilisateur (FR) - OBS-18/18DC HDTR...

  • Page 23: Utilisation De L'appareil

    REMARQUE: Pour avoir des conseils sur le ponçage et le papier abrasif, voir en page 33. Figure 6 ® Clarke American Sanders Manuel de l’utilisateur (FR) - OBS-18/18DC HDTR - 23 -...

  • Page 24: Dépannage

    Le verrou n’est pas enfoncé. Enfoncez le verrou avant d’actionner la manette de commande. Interrupteur défectueux, Contactez un détaillant Clarke agréé. mauvaise connexion. Le moteur démarre mal ou Tension faible à cause d’une Utilisez une rallonge électrique fonctionne trop lentement.

  • Page 25: Ponçage Et Papier Abrasif

    La grosseur des grains abrasifs doit être choisie avec soin. Un grain trop fin risque de refermer les pores du bois, nuisant ainsi à l’absorption ultérieure de la teinture. Si vous détectez une vitrification ou des traces de brûlure, le papier abrasif s’est émoussé et doit être remplacé. ® Clarke American Sanders Manuel de l’utilisateur (FR) - OBS-18/18DC HDTR - 25 -...
  • Page 26 NOTES...
  • Page 27 OBS-18DC HDTR Section II Parts Manual (56042631)

  • Page 28: Section Ii Parts And Service Manual Base Assembly

    BASE ASSEMBLY ® Clarke - 28 - FORM NO 56042631 American Sanders Operator's Manual - OBS-18/18 DC HDTR...
  • Page 29 NOTE 2: Lower Link Arm 61831A is no longer used in production. Items (3, 4, 5, 10, 23, 27) have replaced the old configuration as of March 2011. ® Clarke American Sanders Operator's Manual - OBS-18/18 DC HDTR FORM NO 56042631 - 29 -...

  • Page 30: Motor Assembly

    MOTOR ASSEMBLY ® Clarke - 30 - FORM NO 56042631 American Sanders Operator's Manual - OBS-18/18 DC HDTR...
  • Page 31 Label HDTR 1.3 X 3 [ ] = Not Shown NOTE 1: Used on machines after October 2011. NOTE 2: Used on machines before November 2011. ® Clarke American Sanders Operator's Manual - OBS-18/18 DC HDTR FORM NO 56042631 - 31 -...

  • Page 32: Handle Assembly

    HANDLE ASSEMBLY ® Clarke American Sanders Operator's Manual - OBS-18/18 DC HDTR - 32 -...
  • Page 33 HANDLE ASSEMBLY Item Ref. No. Description 442001 Clamp-Handle Tube 627561 Strain-Relief 40522A Cord Interconnect 85812A Screw5/16-18 X 7/8 Hex Hd Gr5 509240 Tongue, Handle Tube 920110 Nut, 5/16-18 Hex Lock 980652 Washer, 5/16 Lock 10687A Interlock Asm 21074A Handle, Front - Cfp 21075A Handle, Rear - Cfp 40931A...

  • Page 34: Electrical Schematics

    MATERIAL FINISH OR DIMENSION SUPERCEDED 25479 1/21/97 4/17/96 DIAGRAM RELEASE 25076A3 DRAWING NO. REV. SHEET REMOVE ALL BURRS AND 07076A-W BREAK SHARP EDGES SYM. CHANGE E.C.N. DATE ® Clarke American Sanders Operator's Manual - OBS-18/18 DC HDTR - 34 -...
  • Page 35 American Sanders Operator's Manual - OBS-18/18 DC HDTR - 35 -...
  • Page 36 U.S. LARKE MERICAN ANDERS ANADA IMITED ARRANTY Amano Pioneer Eclipse, Inc. warrants to the original end user, each new machine, new accessories and genuine replacement parts against defects in material and workmanship under normal use and service. Our obligation under this warranty is limited to repair or replacement of the defective item at our factory or by an Authorized Service Center.
