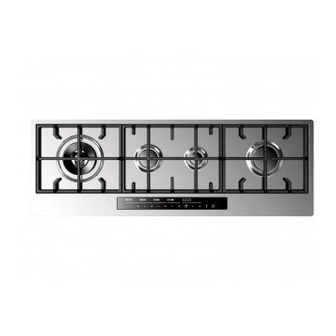

- Page 1 Instructions for use and warranty details Gas Cooktops Model No.: GCTE6010 GCTE7010 GCTE9010 and GCTE12010...
- Page 2 Congratulations on the purchase of your new Kleenmaid appliance. Your new Kleenmaid appliance has been designed and manufactured to give you years of reliable performance. For best results, carefully read the instructions on how to install your new appliance. Correct installation will avoid delays and unnecessary service call costs.
-
Page 3: Instructions For Use
Dear customer, We thank you and congratulate you on your choice. This new carefully designed product, manufactured with the highest quality materials, has been carefully tested to satisfy all your cooking demands. We would therefore request you to read and follow these easy instructions which will allow you to obtain excellent results right from the start. -
Page 4: Installation
Instructions for use Installation Programming the amount of time after which the burner turns off All the operations concerned with the installation A time, after which a burner turns off, can be set (electrical and gas connections, adaptation to type of independently for each burner. - Page 5 change the minutes in the same way described for the hours. LEVEL SET. When you press PT, the time setting will be saved. TURN-OFF TIME Unlocking the burners Sec. Sec. Sec. Sec. Sec. When a burner is locked, the relative display shows the letter “b”.
- Page 6 Mod: GCTE6010 The lighting of an LED means that the function is active for that burner. A flashing LED indicates that the timer of the relative burner has been activated. Setting Setting Setting Setting Timer Turning burner A burner B...
-
Page 7: Maintenance And Service
If the appliance is not perfroming as per the original installation contact Kleenmaid. DO NOT USE STEAM CLEANERS... -
Page 8: Instructions For The Installer
Instructions for the installer Installation This appliance is not provided with a combustion product discharge. It is recommended that it be installed in sufficiently aerated places, in terms of the laws in force. The quantity of air which is necessary for combustion must not be below 2.0 m /h for each kW of installed power. - Page 9 Mod: GCTE6010 gas inlet is located at the rear, right corner Note: Semifilotop models do not need to be lowered by 1.5 1 - AUXILIARY 2 - SEMI-RAPID 3 - RAPID Fig. 6 Mod: GCTE7010 gas inlet is located at the rear, right corner Note: Semifilotop models do...
- Page 10 Mod: GCTE9010 gas inlet is located at the rear, right corner Note: Semifilotop models do not need to be lowered by 1.5 1 - AUXILIARY 2 - SEMI-RAPID 3 - RAPID 4 - Wok Fig. 8 Mod: GCTE12010 gas inlet is located at the rear, right corner Note: Semifilotop models do not need to be lowered by 1.5 1120...
- Page 11 The supply connection point must be accessible when installed. The installer must test the operation of the appliance including gas leakage, ignition and turndown of all burners. If the appliance cannot be adjusted to perform correctly refer to the following fault finding table or visit www.kleenmaid-appliances.com.au...
- Page 12 Adaptation to varius types of gas (Fig. 12) factory setting, and will display a flashing ^ or v to indicate, respectively, a higher or lower flow than the factory setting. To confirm the minimum flow desired, you must press the Should the appliance be pre-set for a different type of PT key.
- Page 13 Error Problem type Possible cause Possible solution displayed Restore the gas and unlock the No gas burners Clean or reposition the Single burner locked Ionization electrode dirty or not hit by the flame electrode and unlock the burners Check the cables and unlock The cook top is not grounded the burners Parasite flame/flame detection...
-
Page 15: Warranty And Service
Purchase even though this warranty is in place will not bind Compass Capital Services trading as Kleenmaid to repair the appliance at no charge under this warranty and will require the Purchaser to pay for the service costs in full. - Page 16 Other products available in the Kleenmaid range of appliances Washing machines Clothes dryers Dishwashers Ovens Cooktops Steam ovens Microwave ovens Built in espresso coffee machines Rangehoods Freestanding ranges Sinks Taps Compass Capital Services Pty Limited trading as Kleenmaid ABN 96138214525...
