Summary of Contents for Kleenmaid GCT6020

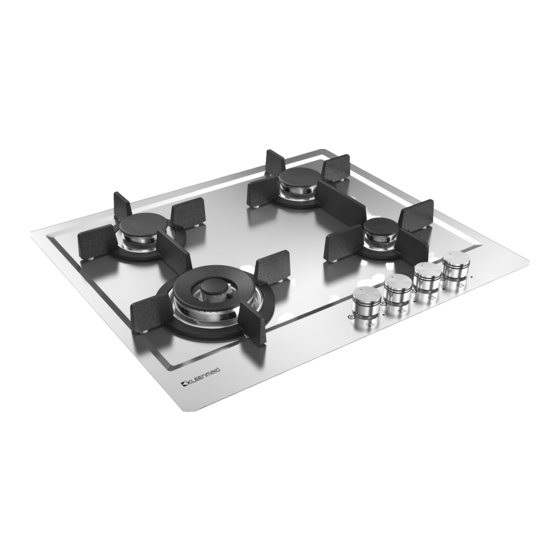

- Page 1 Instructions for use and warranty details Gas Cooktop Model No.: GCT6020 and GCT9020...
- Page 3 Congratulations on the purchase of your new Kleenmaid appliance. Your new Kleenmaid appliance has been designed and manufactured to give you years of reliable performance. For best results, carefully read the instructions on how to install your new appliance. Correct installation will avoid delays and unnecessary service call costs.
- Page 4 Dear Customer, we would like to thank you and congratulate you on your choice. This new product has been carefully designed and built using top quality materials, and meticulously tested to ensure that it meets all your culinary requirements. Please read and observe these simple instructions, which will enable you to achieve excellent results from the very first time you use it.
-
Page 5: General Notice
GENERAL NOTICE We invite you to read this instruction booklet carefully, before installing and using the equipment. It is very important that you keep this booklet together with the equipment for any future consultation. If this equipment should be sold or transferred to another person, make sure that the new user receives the booklet, so that they can learn how to operate the appliance and read the corresponding notice. -
Page 6: Instructions For The User
INSTRUCTIONS FOR THE USER It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by authorised personnel, in conformity with the regulations in force. The specific instructions are described in the booklet section intended for the installer. - Page 7 INSTRUCTIONS FOR THE USER Burner Flame safeguard sensor (where fitted) Injector Ignition spark plug If you have a problem with the cooktop, check the table below. You may be able to solve the problem and this will save you from paying for a service call. You will have to pay for a service call even in the warranty period if the problem is one listed below FAULT POSSIBLE CAUSES...
-
Page 8: Instructions For The Installer
INSTRUCTIONS FOR THE USER CLEANING Wash with warm soapy water and rinse with clean water. Where the stainless steel has become extremely dirty Before any operation, disconnect the appliance from with signs of surface discolouration (due to periods of the electrical supply. neglect or misuse) use a stainless steel cleaner Don’t use a steam cleaner for the cleaning the hob. -
Page 9: Installation Room
MODEL L (mm) P (mm) D (mm) easily identified in the case of a service call. GCT6020 INSTALLATION ROOM GCT9020 This appliance is not provided with a device for exhausting the products of combustion. Therefore, it is necessary to discharge these outside. - Page 10 INSTRUCTIONS FOR THE INSTALLER Gas Connection Elbow positioning It is possible to reposition the elbow if required by This appliance is supplied for use with Natural loosening the locking nut and elbow by using two Gas. However, it can be converted for use spanners.
-
Page 11: Testing Appliance Operation
INSTRUCTIONS FOR THE INSTALLER GAS CONVERSIONS AND ADJUSTMENTS Under these conditions the outlet pressure should not vary from the nominal outlet pressure of Data Label 1.00kPa by more than ± 0.20kPa This appliance is suitable for Natural Gas and Universal LPG; ensure that the available gas supply matches the Data Label. -
Page 12: Maintenance
INSTRUCTIONS FOR THE INSTALLER MAINTENANCE Maintenance Schedule No regular maintenance is required for the hotplates except cleaning. The appliance should be checked by an authorised person every 7 years to ensure the safe operation of the appliance. This is not covered by warranty. - Page 13 MAXIMUM MINIMUM...
- Page 14 MODEL: GCT6020 Depth of cooktop casing from benchtop surface : 55mm The gas Connection is male 1/2" BSP and is situated at the left hand rear of the appliance , 100 mm from the side and 50 mm from the rear of the cooktop.
-
Page 15: Wiring Diagram
1 1/2 10.8 Universal LPG 2.75 DOUBLE CROWN Natural 1.00 10.3 *TAPE BY PASS DIAMETER: ULPG - 1/100 mm NG - Turns from fully in. WIRING DIAGRAM MODEL: GCT6020 MODEL: GCT9020 TRIPOLAR IGNITION TRIPOLAR IGNITION TERMINAL GENERATOR TERMINAL GENERATOR MICRO-UNIT MICRO-UNIT... - Page 16 INSTRUCTIONS FOR USING THE MINI TRIVET The mini-trivet included with this cooktop is to be used for cooking vessels of diameter 120mm or smaller Incorrect fitment Correct fitment...
-
Page 18: Warranty And Service
Purchase even though this warranty is in place will not bind Compass Capital Services trading as Kleenmaid to repair the appliance at no charge under this warranty and will require the Purchaser to pay for the service costs in full. - Page 20 Other products available in the Kleenmaid range of appliances Washing machines Clothes dryers Dishwashers Ovens Cooktops Steam ovens Microwave ovens Built in espresso coffee machines Rangehoods Freestanding oven Compass Capital Services Pty Limited trading as Kleenmaid ABN 96138214525 Level 2,...
