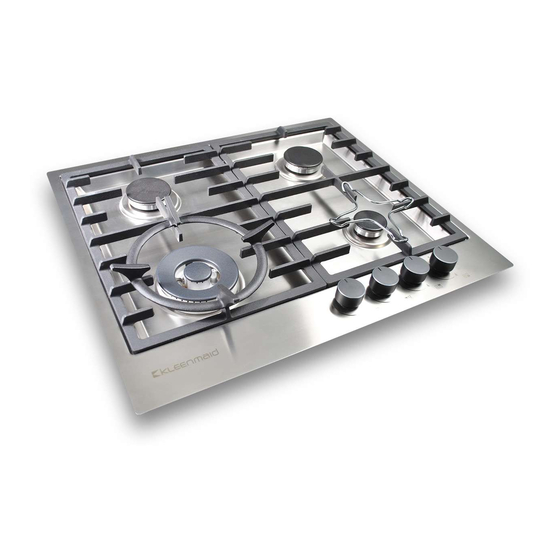

Summary of Contents for Kleenmaid GCT6030
- Page 2 user...
-
Page 4: Safety Setting
SAFETY SETTING We invite you to read this user manual carefully, before installing and using the equipment. It is very important that you keep this manual together with the equipment for any future consultation. If this equipment should be sold or transferred to another person, make sure that the new user receives the manual so that they can learn how to operate the appliance and read the corresponding notice. -
Page 5: Instructions For The User
Semi-rapid 16 - 18 cm Rapid 11.5 20 - 22 cm Wok burner for 10.3 20 - 22 cm model GCT6030 Wok burner for 14.4 14.4 24 - 26 cm model GCT9030 Wok burner for model 16.0 16.0... - Page 6 INSTRUCTIONS FOR THE USER Burner Flame safeguard sensor (where fitted) Injector Ignition spark plug If you have a problem with the cooktop, check the table below. You may be able to solve the problem and this will save you from paying for a service call. You will have to pay for a service call even in the warranty period if the problem is one listed below FAULT POSSIBLE CAUSES...
- Page 7 INSTRUCTIONS FOR USING THE MINI TRIVET The mini-trivet included with this cooktop is to be used for cooking vessels of diameter 120mm or smaller Incorrect fitment Correct fitment Examples of positioning of mini-trivet MODEL: GCT6030 MODEL: GCT9030 MODEL: GCT11030...
-
Page 8: Maintenance
INSTRUCTIONS FOR THE INSTALLER NOTE: Before making preparations for or commencing installation, the installer should refer to the current online version of the User Manual, which is available on the Kleenmaid website (see back cover for details). Important notice: The operations indicated below must be followed by authorised personnel exclusively, in conformity with the regulations in force. - Page 9 INSTRUCTIONS FOR THE INSTALLER Adjacent walls, cupboards and protection for Fastening the top combustible materials. Every cook-top is equipped with a special seal. A set of brackets is also supplied for mounting the The safety gap between the hob and the cook-top.
- Page 10 INSTRUCTIONS FOR THE INSTALLER Gas Connection approved thread sealing tape or approved thread sealing compound. The inlet of the regulator is a ½” parallel thread and This appliance is supplied for use with Natural is connected to consumer piping or hose assembly. Gas.
- Page 11 INSTRUCTIONS FOR THE INSTALLER Electrical connection Adjusting the burners The lowest flame point must always be properly adjusted and the flame must remain on even if The appliance is supplied with a standard 10 there is an abrupt shift from the maximum to the Amp service cord terminated by a 3-pin plug for minimum position.
- Page 12 MAXIMUM MINIMUM...
- Page 13 INSTALLATION MODEL GCT6030 1. Height allowance for case (including underside screws, measured from the underside of the perimeter case flange) = 65mm 2. Height of top of pan supports above underside of perimeter case flange = 22mm NOTE: "Underside of perimeter case flange" is the part of the hob...
- Page 14 INSTALLATION MODEL GCT9030 1. Height allowance for case (including underside screws, measured from the underside of the perimeter case flange) = 65mm 2. Height of top of pan supports above underside of perimeter case flange = 22mm NOTE: "Underside of perimeter case flange" is the part of the hob underside which rests directly on the benchtop material...
- Page 15 INSTALLATION MODEL GCT11030 1. Height allowance for case (including underside screws, measured from the underside of the perimeter case flange) = 65mm with screws 2. Height of top of pan supports above underside of perimeter case flange = 18.5mm NOTE: "Underside of perimeter case flange" is the part of the hob underside which rests directly on the benchtop material...
-
Page 16: Wiring Diagram
11.5 MJ/h 9.6 MJ/h 2 Semi-rapid burner 6.3 MJ/h 5.6 MJ/h 3 Auxiliary burner 3.4 MJ/h 3.4 MJ/h 4 WOK burner GCT6030 10.3 MJ/h 9.6 MJ/h 5 WOK burner GCT9030 14.4 MJ/h 14.4 MJ/h 6 WOK burner GCT11030 16.0 MJ/h 16.0 MJ/h... - Page 17 11.5 Universal LPG 2.75 SEMI-RAPID Natural 1.00 Adjust. Universal LPG 2.75 AUXILIARY Natural 1.00 Adjust. Universal LPG 2.75 WOK BURNER GCT6030 Natural 1.00 Adjust. 10.3 Universal LPG 2.75 14.4 WOK BURNER GCT9030 Natural 1.00 Adjust. 14.4 Universal LPG 2.75 16.0...
- Page 18 Kleenmaid Warranty, however, if repair is needed because of Product failure during normal Domestic Use, Kleenmaid has the option to repair or replace the defective Product or part of the Product with a product or part of like kind and quality.
- Page 19 Service under this warranty may be limited by the area in which you live. Service to remote and regional areas may incur additional travel costs which will be payable by you. You will be advised of this at the time you make a claim and Kleenmaid arranges to attend your premises.
- Page 20 Other products available in the Kleenmaid range of appliances Washing machines Clothes dryers Dishwashers Ovens Cooktops Steam ovens Microwave ovens Built in espresso coffee machines Rangehoods Freestanding ovens Refrigerators & Freezers Beverage Serving Cabinets Water Dispensers Vacuum Cleaners Compass Capital Services Pty Limited...
