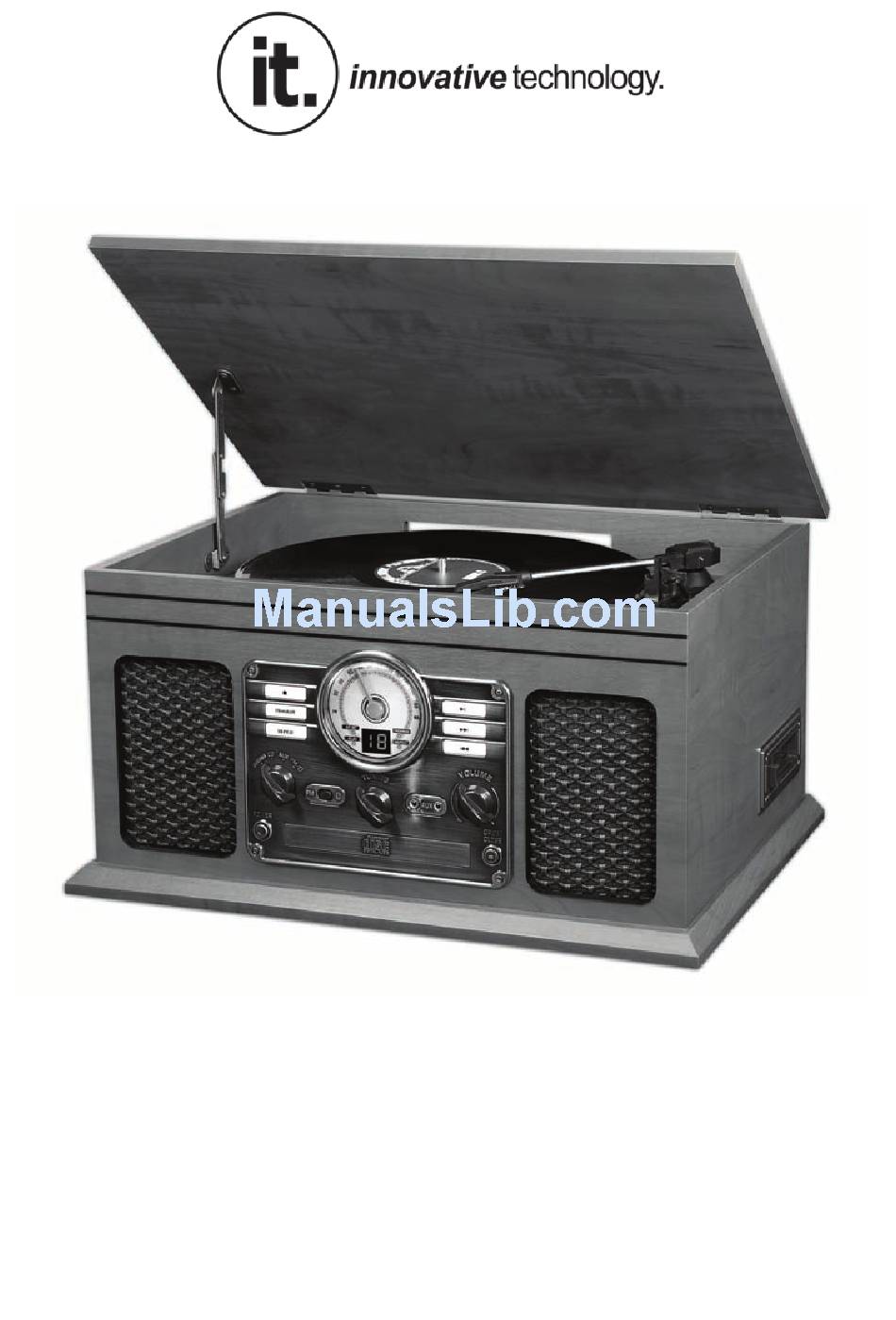

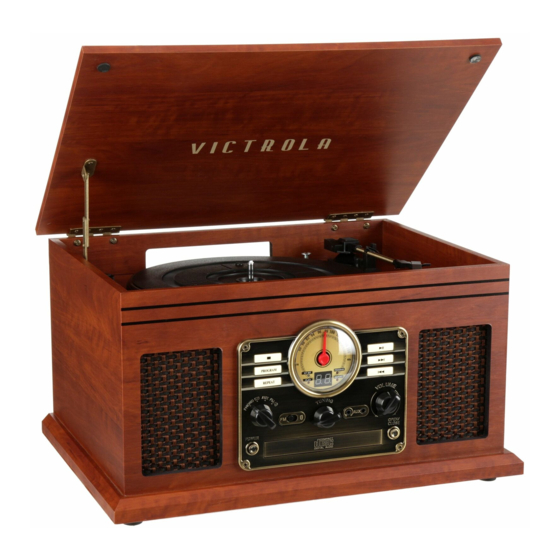

- Page 1 MODEL: ITVS-200B 6-IN-1 NOSTALGIC ENTERTAINMENT CENTER...
-
Page 2: Table Of Contents
Important Safety Instructions ......................... 3 Product Overview ............................4 Setup / Basic Operation..........................7 Listening to a Vinyl Record ..........................7 Listening to a CD ............................8 Listening to the FM Radio..........................9 Listening to an External Audio Device (AUX Mode) ..................9 Listening to an External Audio Device (Bluetooth Mode) ................ -
Page 3: Important Safety Instructions
PRODUCT COMPLIES WITH DHHS RULE 21 CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. -
Page 4: Product Overview
This equipment is a Class Ⅱ or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. -
Page 5: Right Side View
POWER Push to turn the unit ON or OFF. “PHONO, CD, AUX, FM/ ” SELECTION KNOB Rotate to select your desired function. “FM”, “ ” SLIDE SWITCH Slide to select either FM or Bluetooth. 4. 3.5mm AUX IN JACK Connects your external source to the AUX IN jack. 5. - Page 6 AC Power Cord Connect the AC plugs into a wall outlet. It is strongly recommended that this product should be operated only from the type of power source indicated on the marking label. Parts of the Turntable A.
-
Page 7: Setup / Basic Operation
In such cases, leave the unit for 1-2 hours after plugging it into an AC outlet to allow it to stabilize at the temperature of its surroundings. -
Page 8: Listening To A Cd
- Do not push the CD tray – always use the OPEN/CLOSE button. - It takes a moment for the unit to load a disc, during which all buttons will be temporarily deactivated. Repeat Playback... -
Page 9: Listening To The Fm Radio
2. While the CD is stopped, press the PROGRAM button. 3. “PROGRAM” indicator lights up and “01” blinks on the display. 4. Press ( ) to select a track number. 5. Press the PROGRAM button again to set the next program track, “02” appears and blinks... Repeat steps 4 thru 5 to program the additional tracks. -
Page 10: Listening To An External Audio Device (Bluetooth Mode)
To remove a disc from its storage case, press down on the center of the case and lift the disc • upward, holding it carefully by its edges. To clean a disc, wipe the surface from the center hole outward towards the outer edge with a soft, dry cloth. - Page 11 In order to shut off the power to this product completely, unplug the power cord from the • wall outlet. Be sure to unplug the unit if you do not intend to use it for an extended period of time.
-
Page 12: Specifications
Specifications GENERAL Power Requirements AC 100-240V~50/60Hz Power Consumption x 255 x 340mm | 18 x 10 x 13.4in( Dimensions (W x H x D) approx.) Weight . | 16 lbs (approx.) AMPLIFIER Output Power 5 W + 5 W Frequency Response 60 to 20,000 Hz SPEAKER SYSTEM Type... -
Page 13: Troubleshooting Guide
• • • sound output. or another interfering device. appliance, and relocate the unit. Unit fails to respond. It might result from external Disconnect the power cord • • • factors such as ESD and external audio device. (Electro-static discharge). - Page 14 No sound The unit is not switched to Ensure the unit is switched • • • Bluetooth mode to BT mode. Your device’s and/or the unit’s Move your Bluetooth • • volume is not turn up. device closer to unit Your device is too far from the Turn up the volume on •...
-
Page 15: Fcc Statement
FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 16: California Prop 65 Warning
CALIFORNIA PROP 65 WARNING "WARNING" This product contains chemicals known to the State of California to cause birth defects or other reproductive harm. For more information on these regulations and a list of chemicals, log on the following website address: http://www.oehha.ca.gov/prop65.html... - Page 17 Warranty is “Not” transferable. IT agrees, within the initial “90 Day” period, to repair or replace the product if it is determined to be defective at “No Charge”. It is further agreed that IT will cover the cost to repair or replace damaged “Parts” only for a total period of “One Year” from the date of the original purchase.
- Page 18 200B141200E...
