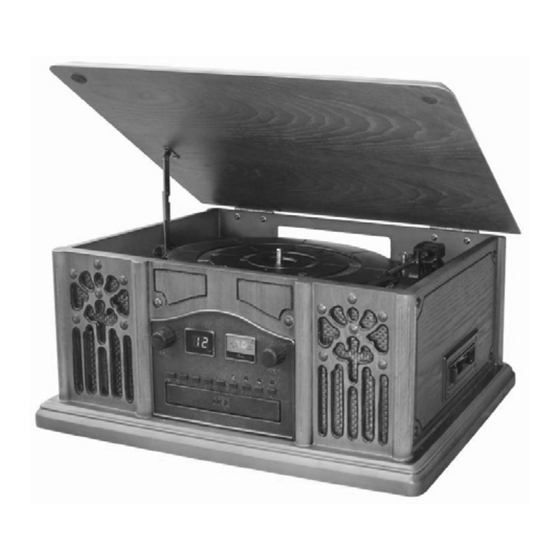

- Page 1 MODEL: ITRR-301 4-in-1 Wooden Music Center With Turntable, CD Player, Cassette Player, AM/FM Radio USER MANUAL PLEASE NOTE OUR NEW CUSTOMER SUPPORT TOLL FREE PHONE NUMBER (ONLY FROM USA) # 1-877-ITECH-97 (1-877-483-2497)
- Page 2 Read these instructions. Keep these instructions Heed all warnings Follow all instructions Do not use this apparatus near water. This apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus. Clean only with a dry cloth Do not block any ventilation openings.
-
Page 3: Setup / Basic Operation
Overview VOLUME / POWER ON/OFF Knob LED Display OPEN/CLOSE Button FR (Fast Rewind) Button FF (Fast Forward) Button STOP Button PLAY/PAUSE Button CD Button PHONO Button 10. AM Button 11. FM Button 12. RADIO DIAL SCALE 13. FM STEREO Indicator Light 14. -
Page 4: Condensation Warning
3. Adjust the volume to the desired level. CONDENSATION WARNING: When the unit is moved from a cold or warm place, or is used following a sudden temperature change, there is the danger that water vapor in the air may condense on the unit, preventing proper operation. In such cases, leave the unit for 1-2 hours after plugging it into an AC outlet to allow it to stabilize at the temperature of its surroundings. - Page 5 2. Tune to the desired frequency. 3. When a strong signal from an FM station is received, the FM stereo indicator (FM ST )(3) will illuminate. Note: Weaker stations cannot be received in stereo Antenna Position For optimal FM reception, stretch out the FM antenna wire located at the lower back of the unit and reposition it to adjust for better reception.
-
Page 6: Listening To A Cassette Tape
IMPORTANT: Never push both buttons together as this may damage the unit. NOTE: When the FF or FR button is depressed, you will hear your selection playing at a distorted speed. Simply release the button to continue playing at normal speed at the desired position in the selected track. - Page 7 Adjusting the Silver Screw This silver screw protects the phonograph chassis during transportation. If the speed of your phonograph seems slow or you hear a rubbing sound, turn the screw fully clockwise with a coin or screwdriver. Before transporting the unit, return the screw to its original position by turning it fully counter-clockwise.
- Page 8 Specifications AMPLIFIER Output Power..........2.0 W + 2.0 W Frequency Response ......... 60 to 20, 000 Hz TUNER section FM Section Frequency Range ........88 to 108 MHz AM Section Frequency Range ........530 to 1710 KHz CD PLAYER Frequency Response .........
-
Page 9: Troubleshooting Guide
Specific CD is noisy, or The CD is scratched, damaged The CD should be playback stops or or warped. changed. skips. The disc is very dirty. Carefully clean the CD. For further assistance with your product, call Innovative Technology at 1-877-ITECH-97 (1-877-483-2497) - Page 10 Limited Warranty 90 Days Labor, One Year Parts Innovative Technology Electronics Corp. (IT) warrants the product to be free from “Defects” in materials under normal use for a period of “One Year” from the date of the original purchase. The Warranty is “Not”...
