User Manual
Version V1.4
Oct. 2010

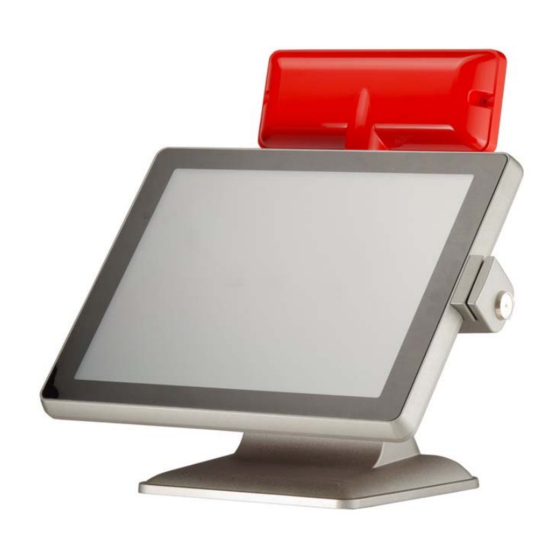

VariPOS™ / VariPPC™
© Copyright Poindus Systems 2010
P1 / 40

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VariPOS and is the answer not in the manual?

Questions and answers

Related Manuals for Poindus VariPOS

Summary of Contents for Poindus VariPOS

  • Page 1 User Manual Version V1.4 Oct. 2010 VariPOS™ / VariPPC™ © Copyright Poindus Systems 2010 P1 / 40...
  • Page 2 This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced or translated to another language without the prior written consent of the manufacturer. TRADEMARK ® Poindus / VariPOS are registered trademarks of Poindus Systems. ® ® ® ® ® Intel...
  • Page 3 Never spill liquid of any kind on the product. This device complies with the requirements of the VariPOS directive 2004/108/EC with regard to “Electromagnetic compatibility”.

  • Page 4: Table Of Contents

    4-7 Install the Metal Stand ..........22 4-8 Install the Wall Mount Kits........23 Jumper Settings 5-1 Motherboard Layout (D410 & D510 CPU)....24 Serial Port Pin 9 Mode Settings Spare parts List Appendix © Copyright Poindus Systems 2010 P4 / 40...

  • Page 5: Packing List

    1 Packing List 1-1 Standard items 【 VariPOS 】 ™ Power adapter System Power cord Driver bank CD 【 VariPPC 】 System Power cord Driver bank CD Wall Mount Kit Power adapter © Copyright Poindus Systems 2010 P5 / 40...

  • Page 6: Accessory Items

    *1: There are security screws and a screw driver for replacing the hard drive fixing screw. Customers can use the security screws to ensure HDD security. *2: VGA Cable is only for I/O interface with VGA port. © Copyright Poindus Systems 2010 P6 / 40...

  • Page 7: System Overview

    2 System Overview 【VariPOS™】 © Copyright Poindus Systems 2010 P7 / 40...
  • Page 8 【VariPPC™】 © Copyright Poindus Systems 2010 P8 / 40...

  • Page 9: I/O Interface

    2-1 I/O Interface 【Standard Version】 【COM 4 Version】 【VGA Version】 © Copyright Poindus Systems 2010 P9 / 40...

  • Page 10: Specification

    100 x 100mm Operating Temperature 0℃ ~ 40℃, 10% ~ 90% RH, non-condensing Storage Temperature -20℃ ~ 60℃, 10% ~ 90% RH, non-condensing *Poindus reserves the right to change the specification without prior notice. © Copyright Poindus Systems 2010 P10 / 40...

  • Page 11: System Assembly & Disassembly

    3. Release the screws of hinge cover 4. Remove the plastic hinge cover parts 5. Release the screws of base 6. Open the plastic cover from two sides 7. Release the screws of aluminium back frame © Copyright Poindus Systems 2010 P11 / 40...
  • Page 12 © Copyright Poindus Systems 2010 P12 / 40...

  • Page 13: Replace The Hdd

    5. Screw 4 x round screws on the HDD tray and insert the HDD tray into the whole system HDD slot 6. Fix HDD tray on the system with the 1x screw © Copyright Poindus Systems 2010 P13 / 40...
  • Page 14 3SMUH30061N0 ROUND WASHER HEAD SCREWS:m3*0.5-6MM,NI Security Screws* * There are security screws and a screw driver enclosed in product carton. * Customers can use the special security screws to ensure HDD security. © Copyright Poindus Systems 2010 P14 / 40...

  • Page 15: Install A Customer Display

    3. Connect the customer display into COM3 via the cable management slot and adjust COM3 voltage to +12V in BIOS (refer to Chapter 6) 4. Fasten the IO cover into the right position and turn the system on the right position. © Copyright Poindus Systems 2010 P15 / 40...

  • Page 16: Install A Second Display

    4-4 Install a Second Display 1. Slide the 2 display hinge into the hinge holder on VariPOS. 2. Tighten the 4 screws that attached in the accessory box. © Copyright Poindus Systems 2010 P16 / 40...
  • Page 17 3. Plug the VGA cable to VGA port on the terminal. 4. Don’t forget to insert the I/O cover. 5. Done © Copyright Poindus Systems 2010 P17 / 40...
  • Page 18 2. Connect the extension VGA cable enclosed with the accessory box to the VGA cable of the external monitor. 3. Plug the extension VGA cable to VGA port and install the I/O cover back to finish the installation. © Copyright Poindus Systems 2010 P18 / 40...

  • Page 19: Install A Cash Drawer

    BIT2 BIT1 BIT0 Attribute Reserved Write Write Reserved Read Cash Drawer “DIN bit0” pin input status Reserved Cash Drawer “DOUT bit0” pin output control Cash Drawer “DOUT bit1” pin output control Reserved © Copyright Poindus Systems 2010 P19 / 40...
  • Page 20 Cash Drawer I A22 Check status The I/O address A22h bit0 =0 mean the Cash Drawer is opened or not exist. The I/O address A22h bit0 =1 mean the Cash Drawer is closed. © Copyright Poindus Systems 2010 P20 / 40...

  • Page 21: Install The Msr & Ibutton Reader

    1. Open the right side cover of system. * MSR connection is supported on the right side 2. Connect MSR to System connector, system connector supports PS/2 and RS-232 interface. 3. Fasten the MSR screw on system MSR: RS-232 Interface System connector supports PS/2 and RS-232 interface © Copyright Poindus Systems 2010 P21 / 40...

  • Page 22: Install The Metal Stand

    4-7 Install the Metal Stand Power & VFD Cable Management © Copyright Poindus Systems 2010 P22 / 40...

  • Page 23: Install The Wall Mount Kits

    4-8 Install the Wall Mount Kits © Copyright Poindus Systems 2010 P23 / 40...

  • Page 24: Jumper Settings

    5 Jumper Settings 5-1 Motherboard Layout (D410 & D510 CPU) © Copyright Poindus Systems 2010 P24 / 40...
  • Page 25 Mini PCI-E Socket Power Button Connector IVT1 Inverter Connector FAN2 CPU Fan Connector LED1 LED Connector BAT1A CMOS Battery Connector DIO1 Digital Input / Output Connector Clear CMOS SATA Power Enable for SATA3 © Copyright Poindus Systems 2010 P25 / 40...
  • Page 26 JP6 : Clear CMOS Setup Description Normal operation Clear CMOS SJ3 : SATA Power Enable for SATA3 Description 5V SATA Power Enable Normal operation ● SJ3 setting SATA3 pin7 is GND or 5V. © Copyright Poindus Systems 2010 P26 / 40...

  • Page 27: Serial Port Pin 9 Mode Settings

    When the BIOS Main Menu is displayed, the following items can be selected. Use the arrow keys to select items and the enter key to accept and enter the sub-menu. Enter System Overview Advanced Settings Use this menu for set up super IO configuration. © Copyright Poindus Systems 2010 P27 / 40...
  • Page 28 Select Super IO Configuration Serial Port 1-4 Pin9 Mode Enter into serial port 1- 4 Pin9 Mode and set up the options. Select the serial port 1 Pin9 mode. Save and Exit © Copyright Poindus Systems 2010 P28 / 40...

  • Page 29: Spare Parts List

    SPARE PARTS: MAIN BOARD: PE01, PINEVIEW D510 V1.0 6PN115052110 LCD PANEL: AUO , 15" TFT, 1024x768 6PN117001710 LED PANEL FOR 2 DISPLAY 61V205510400 INVERTER:DUAL LAMP 5.5mA PLCD1715204BE 6CR000000010 MSR Module RS232 6CR000000020 MSR Module PS2 6CR842000000 I-BUTTON READER MODULE © Copyright Poindus Systems 2010 P29 / 40...
  • Page 30 POWER CORD (UK) TO MINI 3P POWER CORD (USA) TO MINI 3P 3CP000000010 POWER CORD (EU) TO MINI 3P 3CP000000020 AUDIO BOARD FOR PE01 V1.0 52FAUDV10010 CF BOARD FOR PE01 V.10 52F0CFV10000 © Copyright Poindus Systems 2010 P30 / 40...
  • Page 31 RAM: SO-DIMM 2G DDRII 667MHz 200P 6RM000000010 HDD 160G ASSY,PP01 720000000010 VFD BOARD: PE02 V1.0 52FVFDV1000A 52ADB0000010 AD BOARD FOR 2 DISPLAY 3CW000000180 VGA+POWER CABLE FOR 2 DISPLAY Extend VGA cable 3CW000000190 3CMD9MJT0100 COM3 CABLE RJ45/DB9 © Copyright Poindus Systems 2010 P31 / 40...
  • Page 32 LCD SIDE COVER: Gray 3P00040B0600 LCD SIDE COVER: White 3P00040E0400 LCD SIDE COVER: Black 3P00040B0200 HINGE COVER: Black 3P00050D0200 HINGE COVER: Gray 3P00050D0600 HINGE COVER: White 3P00050F0400 HINGE COVER: Green 3P00050D1000 © Copyright Poindus Systems 2010 P32 / 40...
  • Page 33 HINGE COVER: Red 3P00050D0800 PPC I/O cover: Red 3P00032D0800 PPC I/O cover: Gray 3P00032D0600 PPC I/O cover: White 3P00032F0400 PPC I/O cover: Green 3P00032D1000 PPC I/O cover: Black 3P0003D0200 © Copyright Poindus Systems 2010 P33 / 40...
  • Page 34 POS I/O cover w/o VFD: Gray 3P00030D0610 POS I/O cover w/o VFD: Red 3P00030D0810 POS I/O cover w/o VFD: Green 3P00030D1010 POS I/O cover w/o VFD: White 3P00030F0410 POS I/O cover w/o VFD: Black 3P00030D0210 © Copyright Poindus Systems 2010 P34 / 40...
  • Page 35 POS I/O cover W/VFD: Gray 3P00031D0610 POS I/O cover W/VFD: Red 3P00031D0810 POS I/O cover W/VFD: Green 3P00031D1010 POS I/O cover W/VFD: White 3P00031F0410 POS I/O cover W/VFD: Black 3P00031D0210 VFD cover: Gray 3P00060D0600 © Copyright Poindus Systems 2010 P35 / 40...
  • Page 36 VFD cover: Red 3P00060D0800 VFD cover: Green 3P00060D1000 VFD cover: White 3P00060F0400 VFD cover: Black 3P00060D0200 display rear cover: Gray 3P00090D0600 display rear cover: Red 3P00090D0800 © Copyright Poindus Systems 2010 P36 / 40...
  • Page 37 Green 3P00090D1000 display rear cover: White 3P00090F0400 display rear cover: Black 3P00090D0200 VFD LENS 3P00070P0910 display LENS: Black 3P00110K0200 display LENS: White 3P00110K0400 © Copyright Poindus Systems 2010 P37 / 40...

  • Page 38: Appendix

    3. At the Windows 7 Operation System environment, when customer want to use PCT touch multi-touch it is not required to install the touch driver. 4. Resistive touch is RS232 interface (COM6) and the PCT touch is USB interface. © Copyright Poindus Systems 2010 P38 / 40...
  • Page 39 5. Calibration with EETI touch utility: please into “tool” page and press “4 Points Calibration”. 6. Calibration in WIN7: Control panel Hardware and Sound Tablet PC setting Calibrate the screen from pen or touch input © Copyright Poindus Systems 2010 P39 / 40...
  • Page 40 June, 2010 Change the base installation steps V1.2 August, 2010 Change the Jumper Setting V1.3 September, 2010 Add second display installation V1.4 October, 2010 Update spare parts list Add calibration in Appendix © Copyright Poindus Systems 2010 P40 / 40...
