Replace I/O (VGA to LPT)
Model
Replace I/O

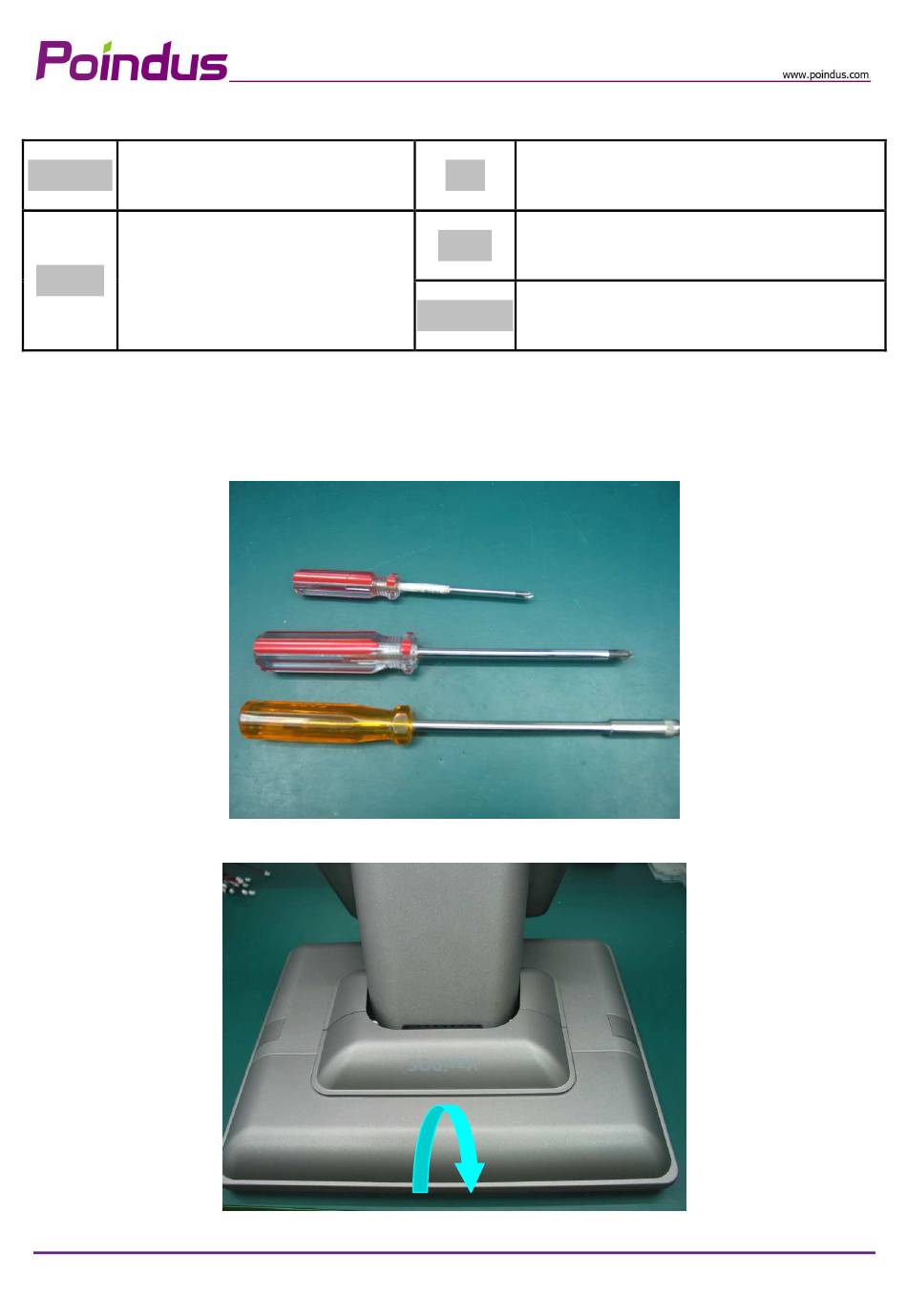

1. Please prepare 3 kinds of tools for disassemble the terminal. The Phillips screwdriver and 1.5 mm
Hexagon socket spanner.
2. Lay down the terminal to remove the rear cover.
Technical Info
VariPOS/VariPPC
No.
Date
Issue by
- 1 -
T059
26. Jul. 2012
Technical support
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Poindus VariPOS Series
Summary of Contents for Poindus VariPOS Series
- Page 1 Technical Info Subject Replace I/O (VGA to LPT) T059 Date 26. Jul. 2012 Model VariPOS/VariPPC Issue by Technical support Replace I/O 1. Please prepare 3 kinds of tools for disassemble the terminal. The Phillips screwdriver and 1.5 mm Hexagon socket spanner. 2.
- Page 2 3. Push to remove the I/O cover. 4. Remove the accessories cover from the two sides. - 2 -...
- Page 3 5. Loosen the 8 screws to remove system rear housing. 6. Push (remove HDD first) and pull rear cover upward. - 3 -...
- Page 4 7. Loose one screw from inverter and move it a little outwards (purple area, 1 screw) to allow easier access to the screw of audio board. Unplug and remove the VGA cable (yellow area, total 3 connectors and 1 grounding cable). Remove the audio board (red area, total 4 screws, 4 cables and 1 audio board).
- Page 5 9. Please follow below pictures to install IDE/LPT cable and I/O bracket. Plug the IDE cable (orange area, plug smaller connector to MB, bigger connector to CF card). Smaller connector Bigger connector Install the CF board (red area, 3 screws). - 5 -...
- Page 6 CF board cables installation IDE Cable IDE Cable (to MB) Power Switch Cable (to Power Switch) Power Button Cable (to MB) Push inverter back and fix the screw (purple area). Make sure the LCD cable is connected. Install the I/O bracket (blue area, 3 screws). Plug LPT cable on MB and fix the LPT port to IO bracket with 2 hex screws (brown area).
- Page 7 10. Put back rear housing and fix with 8 screws. - 7 -...
- Page 8 11. Change I/O label. 12. Put back the LCD side covers and IO Cover Finish~ - 8 -...
