Steering Wheel Control Interface
Introduction & Features
The SWI-CP5 interface allows the retention of steering wheel controls (SWC), rear seat controls (RSC) and retained
accessory power (RAP) whenever replacing a factory radio. Use of this interface also allows you to program two radio
functions to each SWC button by using short press/long press dual command functionality. The SWI-CP5 works in
vehicles with either data or analog SWC.
Features
Compatible in vehicles equipped with LAN, LIN, CAN, Class II, Analog or Serial Data SWC
Easily configurable using either a PC, smartphone, tablet or manually
Audible feedback for programming confirmation
Retains memory even if power is lost
Ability to assign two radio functions to one SWC button
Updatable via the Android Application, Apple Application, PC Application or USB flash drive.
Create and save custom vehicle configuration files for later use.
Highly visible tricolor LED to keep the user informed of the modules status.
Equipped with a manual learning function for compatibility with unlisted vehicles.

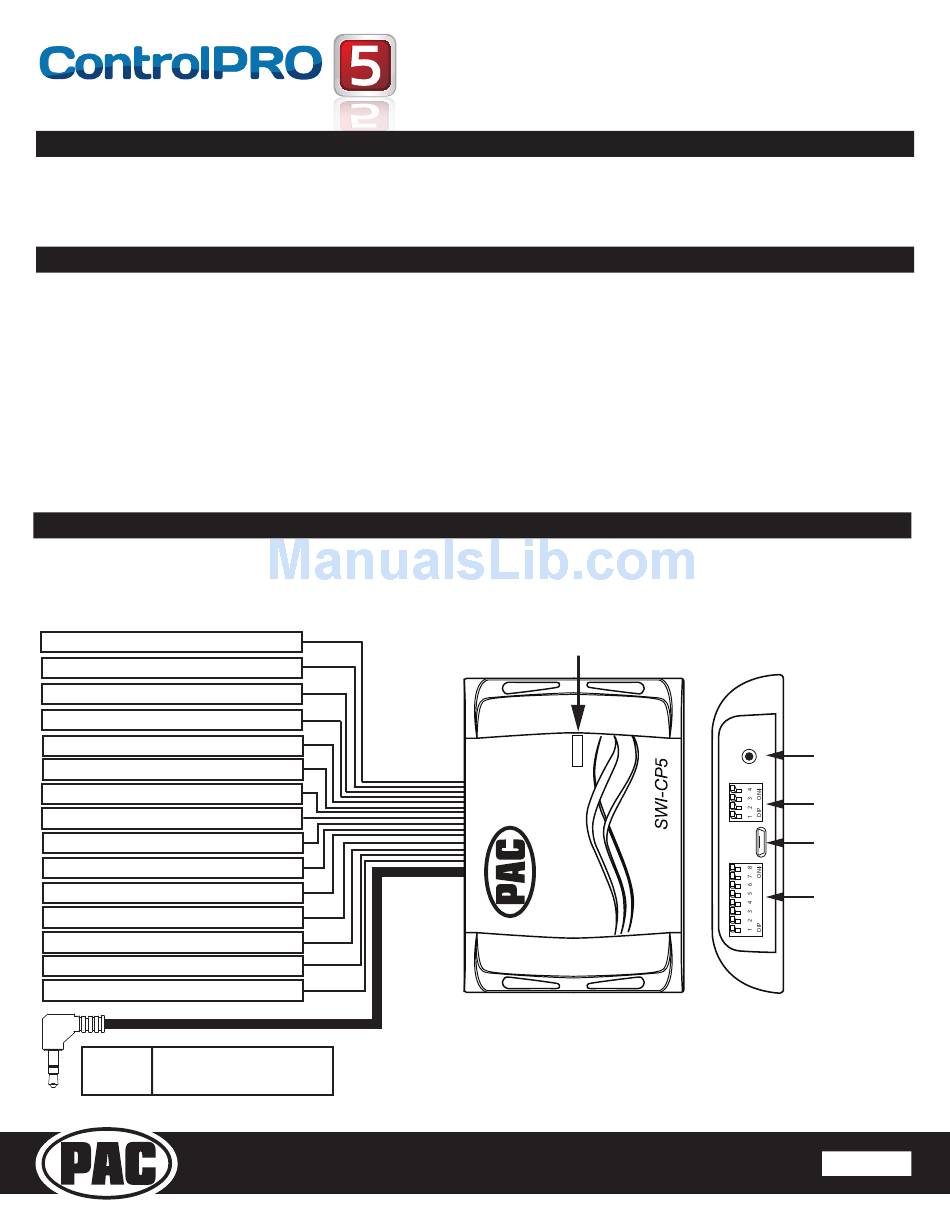

Interface & Wiring Overview
Please visit www.pac-audio.com/controlpro/App to download the smartphone or PC application that provides vehicle
specific wiring and vehicle configuration processes.
Black
(-) Chassis Ground
Yellow
(+) Constant 12v Input
Red
(+) Accessory 12v Input
Red/White
(+) Accessory 12v Output
White
(-) Analog SWC Input 1
White/Black
(-) Analog SWC Input 2
White/Red
(-) Analog SWC Input 3
Light Green
(+) 12v Analog SWC Input
Pink
(+) Dual Wire CAN Hi Input
Pink/Black
(-) Dual Wire CAN Low Input
Dark Green
SW CAN Input
Purple
Class II Data Input
Yellow/Black
12v Serial Data Input
Blue
HVAC Output
Blue/Yellow SWC Output - Kenwood/Newer JVC
SWC Output - Alpine, JVC, Clarion,
3.5mm Jack
Pioneer, Sony, Boyo, Dual, Advent,
Lightning Audio or Visteon
Pacific Accessory Corporation
Pacific Accessory Corporation
TM
| Santa Ana, California 92705 | Ph. 866-931-8021 | support@pac-audio.com
®
©2013 Pacific Accessory Corporation
www.pac-audio.com

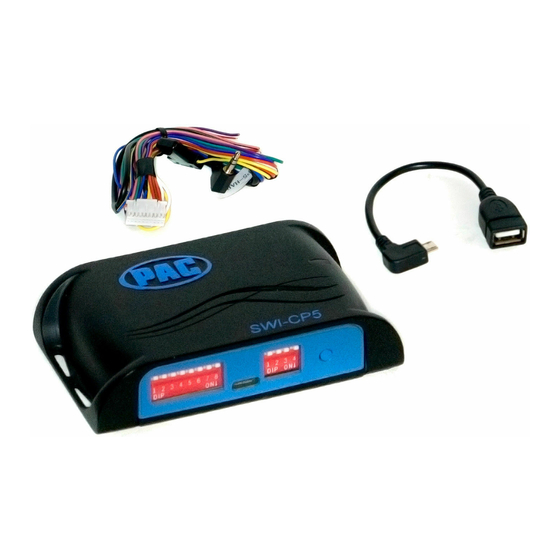

Universal Steering Wheel Control Retention Interface
Status LED
SWI-CP5
Programming Button
Radio Dipswitches
USB Port
Vehicle Dipswitches
Vehicle Dipswitches
Rev. 012014
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWI-CP5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PAC SWI-CP5

  • Page 1 Steering Wheel Control Interface Introduction & Features The SWI-CP5 interface allows the retention of steering wheel controls (SWC), rear seat controls (RSC) and retained accessory power (RAP) whenever replacing a factory radio. Use of this interface also allows you to program two radio functions to each SWC button by using short press/long press dual command functionality.
  • Page 2 The dipswitches on the side of the interface must be manually set to the proper configuration by the user. These vehicle specific dipswitch settings can be found by downloading your device specific application from www.pac-audio.com/controlpro/app. If you wish to re-assign button functions or use short press/long press dual command functionality, please follow the button re-assignment procedure outlined on page 5.
  • Page 3 3. Place the configuration file on the root directory of a USB flash drive (formatted to FAT32, it is best that this file be the only thing on the flash drive) 4. Connect the flash drive to the supplied USB adapter then connect the supplied USB adapter to the SWI-CP5 5. Connect the main harness to the SWI-CP5 6.
  • Page 4 LED will remain active & keep the radio on for 10 minutes unless the driver side door is opened. In vehicles that do not support RAP the LED and accessory output will shut off when the key is switched or removed from the ignition. Pacific Accessory Corporation | Santa Ana, California 92705 | Ph. 866-931-8021 | support@pac-audio.com ® Rev. 012014 ©2013 Pacific Accessory Corporation...
  • Page 5 Product Updates (Firmware) The SWI-CP5 can be updated with new firmware as it becomes available using the device specific application or a USB flash drive. If using the application to update, please follow the procedures outlined there to update your interface. If using a USB flash drive, follow the procedure below.
