Introduction & Features

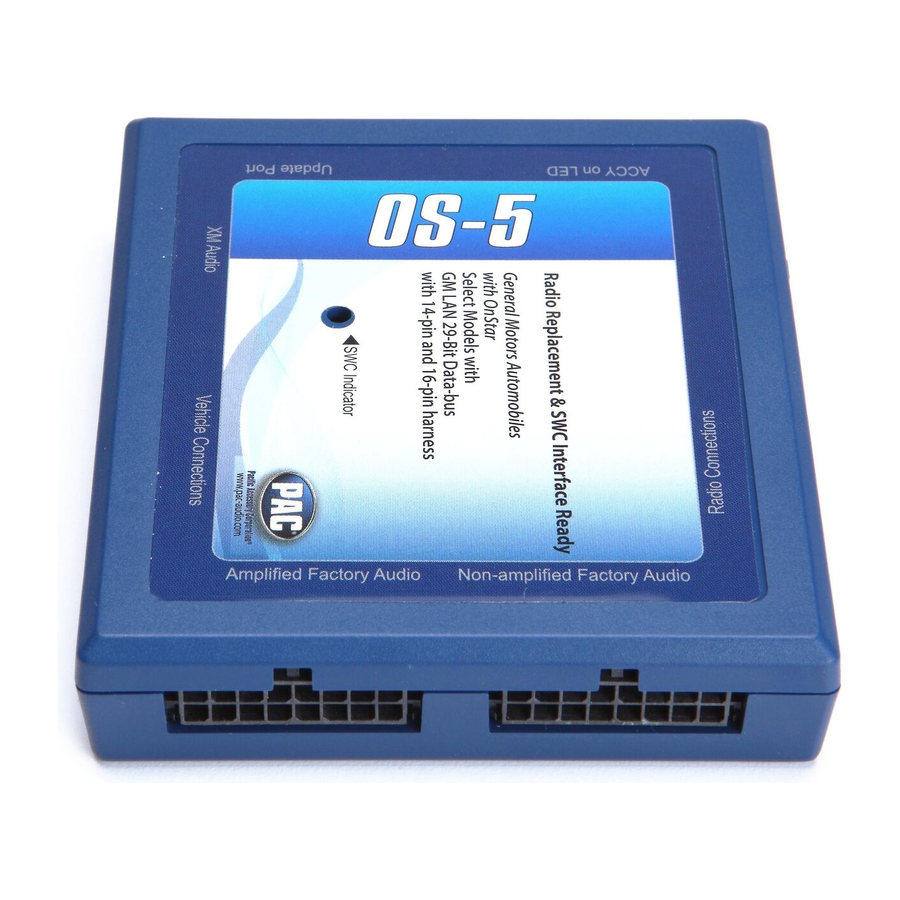

The OS-5 interface allows the replacement of a factory radio in select General Motors vehicles with 29-bit LAN radios.
Using this interface will retain factory features such as OnStar, warning chimes, Rear Seat Controls (RSC), factory XM
Radio and the BOSE amplifier when the original radio is removed. The OS-5 also provides data bus driven outputs such
as retained accessory power (RAP), vehicle speed sensor (VSS), illumination, reverse trigger and parking brake.

Important Notes

1. The OS-5 will retain the use of the factory XM receiver. Factory SWC or RSE controls must be present for use of this feature.
2. SWI interface must be used in conjunction for SWC retention.
3. RSC buttons that are identical to the SWC will mimic the SWC function for function.

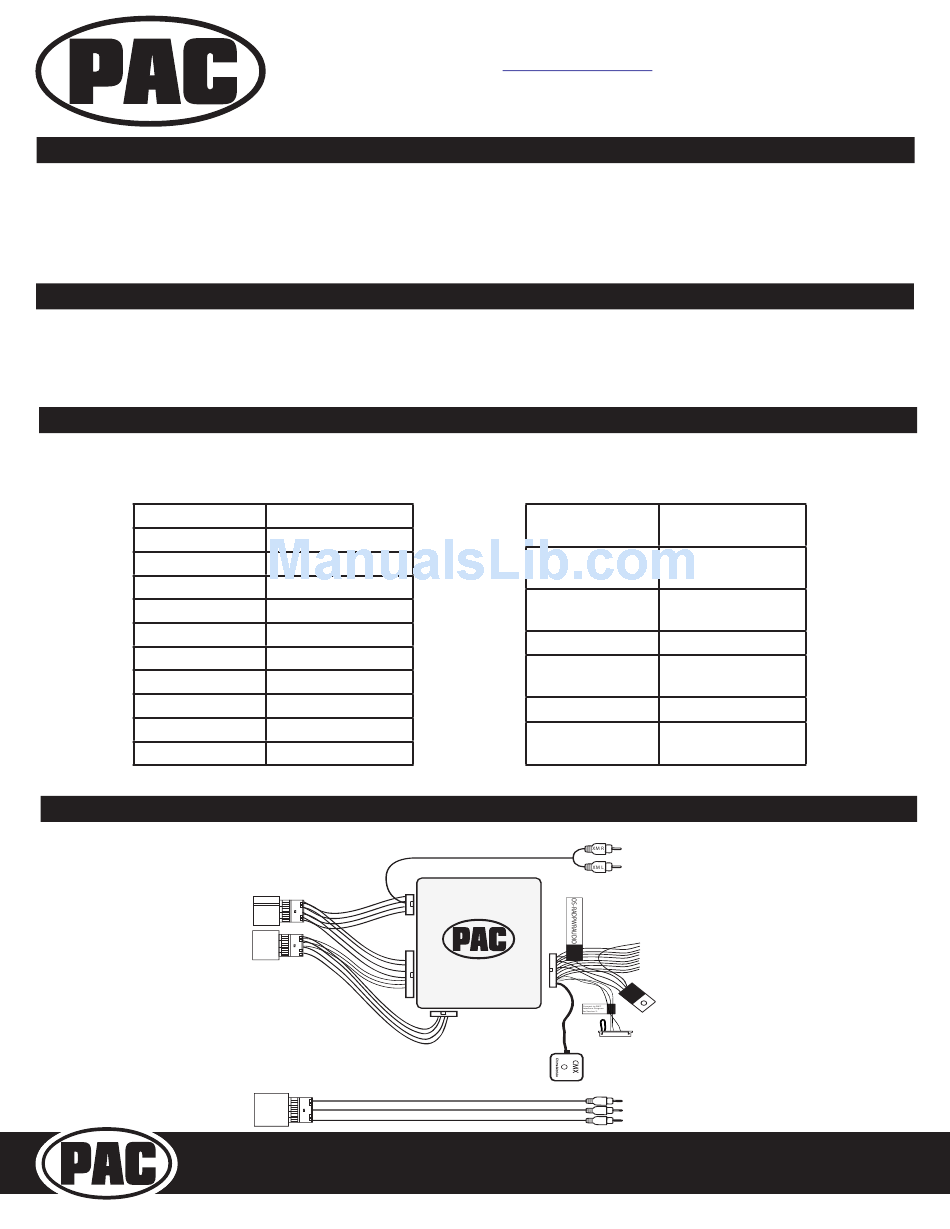

Wiring Connection Chart

Yellow
Black
Red
White
White / Black
Grey
Grey / Black
Green
Green / Black
Purple
Purple / Black
Illustration / Schematic
Vehicle
Connections
Aftermarket Radio Connections
Battery +12v
Ground
Accessory Output
Front L + input
Front L - input
Front R + input
Front R - input
Rear L + input
Rear L - input
Rear R + input
Rear R - input
Wiring
Pacific Accessory Corporation
Radio Replacement
with
Red / White
Purple / White
Blue
OnStar® Volume
Blue / White
Amp Turn On Input
Orange / White
Illumination Output
Green
Reverse Output (+)
Brown Loop
Mute Loop - See
installation note 7.
XM Audio
Connections
Aftermarket
Connections
SWC Interface
Connections
Sub, Center Channel
& Rear Camera
Connections
Retention for General
OnStar®
Motors Vehicles
Parking Brake
Output (-)
Vehicle Speed
Output
Adjust
(+)
Radio
OS-5
