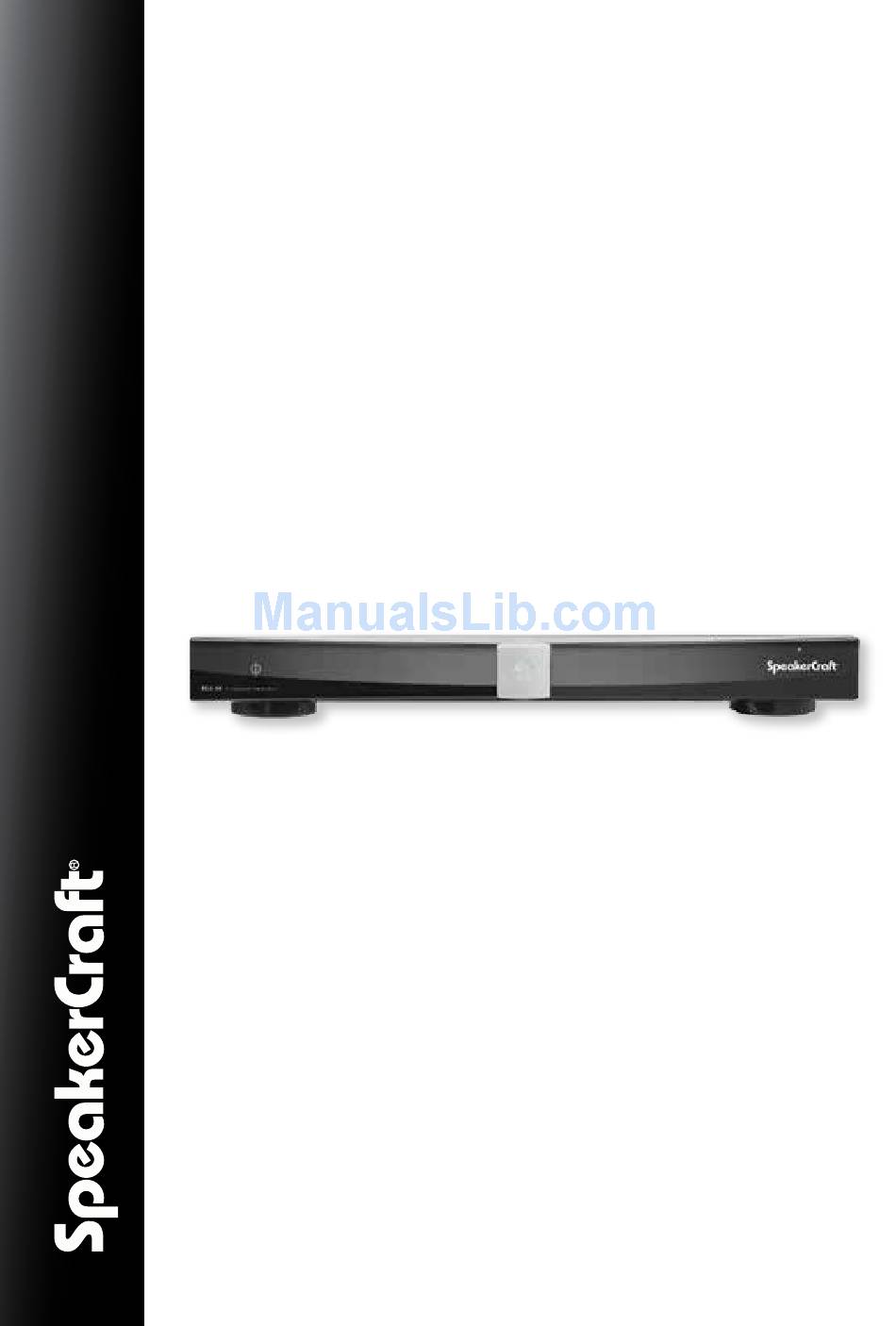

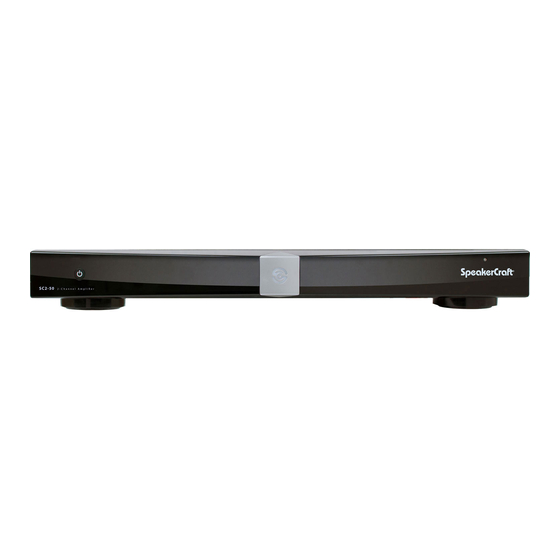

Page 1 SC2-50, SC2-100, SC2-150 2-Channel amplifiers installation guide...
Page 2: Table Of Contents
CONGRATULATIONS! Thank you for purchasing a SpeakerCraft 2-Channel Amplifier, one of the most flexible and convenient amplifiers ever offered. Like all SpeakerCraft products, your new amplifier is built to the highest standards of quality control and reliability. With proper installation and operation, you’ll enjoy years of trouble-free use.
Page 3 “Mains Plug”) is used as the disconnect device and shall remain accessible and operable at all times. 18. Do not expose batteries to excessive heat such as sunshine, fire or the like. SpeakerCraft – 1-800-472-5555 – 1-707-778-5733...
Page 4: Introduction
A/V System in a remarkably convenient way. This guide contains information for the proper use of the SpeakerCraft SC2-50 (50 watts x 2), the SpeakerCraft SC2-100 (100 watts x 2) and the SpeakerCraft SC2-150 (150 watts x 2) 2-Channel Amplifiers.
Page 5: Features And Benefits
FEATURES ANd BENEFITS REAL wORLd pOwER The SC2-50, the SC2-100 and the SC2-150 deliver 50 watts, 100 watts, and 150 watts per channel at 8 ohms and 100 watts, 220 watts, 270 watts per channel at 4 ohms respectively. You’ll get tremendous bass and dynamics from every pair of speakers connected.
Page 6 COmpACT 1U dESIGN The SC2-50, the SC2-100 and the SC2-150 all share the same compact low profile design requiring only a single rack space (1U). dESIGNEd ANd ENGINEEREd IN ThE USA Limited two-year parts and labor warranty.
Page 7: Installation Considerations
(see Figure 2). Place the SpeakerCraft 2-Channel Amplifier so that there is at least 7” of free air space above the chassis. If the amplifier is located on a carpeted surface, place a board under the amplifier’s feet.
Page 8 INSTALLATION CONSIdERATIONS TURN-ON mOdES The SpeakerCraft 2-Channel Amplifier draws more current than a preamplifier’s switched AC outlet can safely supply. Also, your preamplifier may “thump” at dangerous volumes if the amplifier is already on when the preamp turns on. It is usually best to turn the amplifier on only when it is needed. The Turn-On Mode selector switch gives you three options for turning the amplifier on and off.
Page 9: Bridged Mode
These speaker selectors provide an easy way to terminate all of the wires for more than three pairs. Testing and troubleshooting a new system is much easier with the individual room labels and on/off switches of a SpeakerCraft speaker selection system. Additionally, SpeakerCraft speaker selection systems offer impedance matching features which will allow you to connect up to ten pairs of speakers to your SpeakerCraft 2-Channel Amplifier.
Page 10 2 conductor speaker wire. For most applications, we recommend you use 16 or 18 gauge wire. For wiring runs longer than 80 feet, we recommend 14 gauge wire. The binding posts of the SpeakerCraft 2-Channel Amplifier will accommodate up to 12 gauge wire. Larger sizes can be accommodated by attaching banana plugs to the wire.
Page 11: Front And Rear Panel Details
MAIN BUS INPUT OUTPUT Bridge mode switch “Turn-On Mode” switch Level Adjustment screws enable you to 3.5 mm mini-jack for preset the maximum system volume (or 12V DC control output match levels with another amplifier) SpeakerCraft – 1-800-472-5555 – 1-707-778-5733...
Page 12: Speaker Connections
T5AL, 250V RIGHT CAUTION: replace only with same type and rating of fuse. ATTENTION: remplacer uniquement avec le même type et calibre du fusible. IEC receptacle for Replaceable main Binding posts for AC power cord power fuse speaker connections www.SpeakerCraft.com...
Page 13: Installation
INSTALLATION SETTING ThE TURN-ON mOdE SwITCh The SpeakerCraft 2-Channel Amplifier has three turn-on modes. Select which mode you desire by sliding the mode switch. See Installation Considerations on page 6 for more information about each of the turn-on modes. Audio sense is the factory default setting.
Page 14: Speaker Wire Connections
If you label the wires for their destination, rather than which terminal of the 1. Label all wires. SpeakerCraft 2-Channel Amplifier they are connected to, it will be easier to reconfigure your system in the future. A. Split the speaker wire insulation so that at least two inches of each conductor are separated.
Page 15 The connectors are gold-plated RCA phono jacks. Connect them to another amplifier’s inputs with a standard audio patch cable. The outputs are not buffered; if you wish to daisy-chain more than 5 SpeakerCraft 2-Channel Amplifier amplifiers you will need a buffered distribution amplifier.
Page 16 CAuTIoN! Typically a preamp/receiver’s switched outlet is not rated for a power amplifier. The SC2-50, the SC2-100 and the SC2-150 draw 200 watts, 300 watts, and 400 watts maximum from an AC wall outlet respectively. Use a dedicated AC wall outlet along with the amplifier’s auto turn on circuit to ensure adequate power.
Page 17: Operation
SpeakerCraft 2-Channel Amplifier itself. CLEANING ANd mAINTENANCE The internal parts of the SpeakerCraft 2-Channel Amplifier are electronic and require no maintenance. Once a year it is appropriate to twist the RCA connectors on each input to remove corrosion and improve conductivity. You can clean the amplifier with soft cloth or paper towel dampened with water or a mild detergent.
Page 18 The rear panel Input Level adjustment screws allow you to adjust the level of the SpeakerCraft System Integration Amplifier relative to other amplifiers in your system and / or to limit maximum safe gain to protect speakers in the system.
Page 19 Input Level Control adjustments to minimize the chance of a reoccurrence. Perpetually overdriving your speakers and amplifier is considered abuse and will void the manufacturer’s warranty of all affected products. SpeakerCraft – 1-800-472-5555 – 1-707-778-5733...
Page 20: Troubleshooting Guide
TROUBLEShOOTING GUIdE When there is a problem, consult this guide first. If the problem persists, or you have additional questions, call your local SpeakerCraft dealer or SpeakerCraft Technical Support at 1-800-472-5555. The most common problems relate to hook up. Call from your telephone extension nearest the system.
Page 21: Specifications
13 ½” (34.35 cm) deep Weight 10.7 lb., 4.8 kg. 10.8 lb., 4.9 kg. 10.8 lb., 4.9 kg. 100-120/220-240 V~, 100-120/220-240 V~, 100-120/220-240 V~, AC Mains: 50/60 Hz, 200 W 50/60 Hz, 300 W 50/60 Hz, 400 W SpeakerCraft – 1-800-472-5555 – 1-707-778-5733...
Page 22 6:0 0 AM to 4:0 0 PM PT o n t h e w e B w w w.speakercraf t .com e m a i l t e C h n i C a l s u p p o r t techsuppor t@speakercraf t .com www.SpeakerCraft.com...
Page 23 This warranty is not transferable to subsequent purchasers of the product. To obtain warranty service, contact the authorized dealer where you purchased your product or take the unit to the nearest authorized SpeakerCraft dealer (with proof of purchase – claims made without proof of purchase will be denied) who will test the product and if necessary, forward it to Core Brands for service.
Page 25 Blank page no print...
Page 26 Job: SpeakerCraft Size: 8,5” x 11” -> print pdf SpeakerCraft SC2-50 / SC2-100 / SC2-150 Installation Guide – 24 pages 1/1 color black only Final print pdf – Rev A ’English’ ONLY 09/02/2014 Format: 5.5” x 8.5” (open format 8.5” x 11”)
Page 27 P/N 10001833 Rev. A 09/2014...
