GPSTrackerManual_TK102B

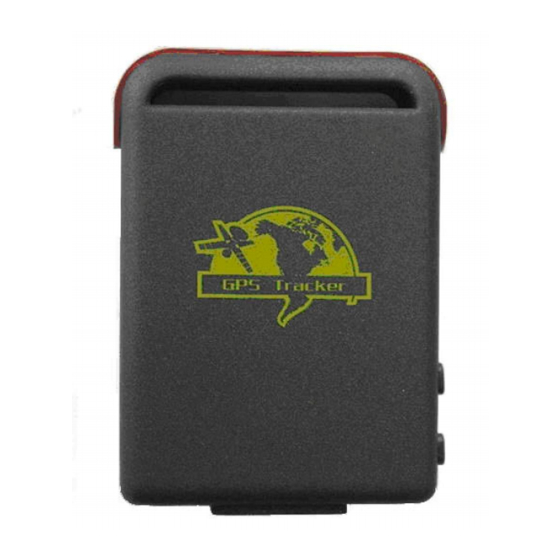

GSM/GPRS/GPS TRACKER
MANUAL TK-102B
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly.
Make sure to read this manual carefully before using this product. Please note that specification and
information are subject to changes without prior notice in this manual. Any change will be integrated in the
latest release. The manufacturer assumes no responsibility for any errors or omissions in this document.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TK-102B and is the answer not in the manual?

Questions and answers

Summary of Contents for ZY International TK-102B

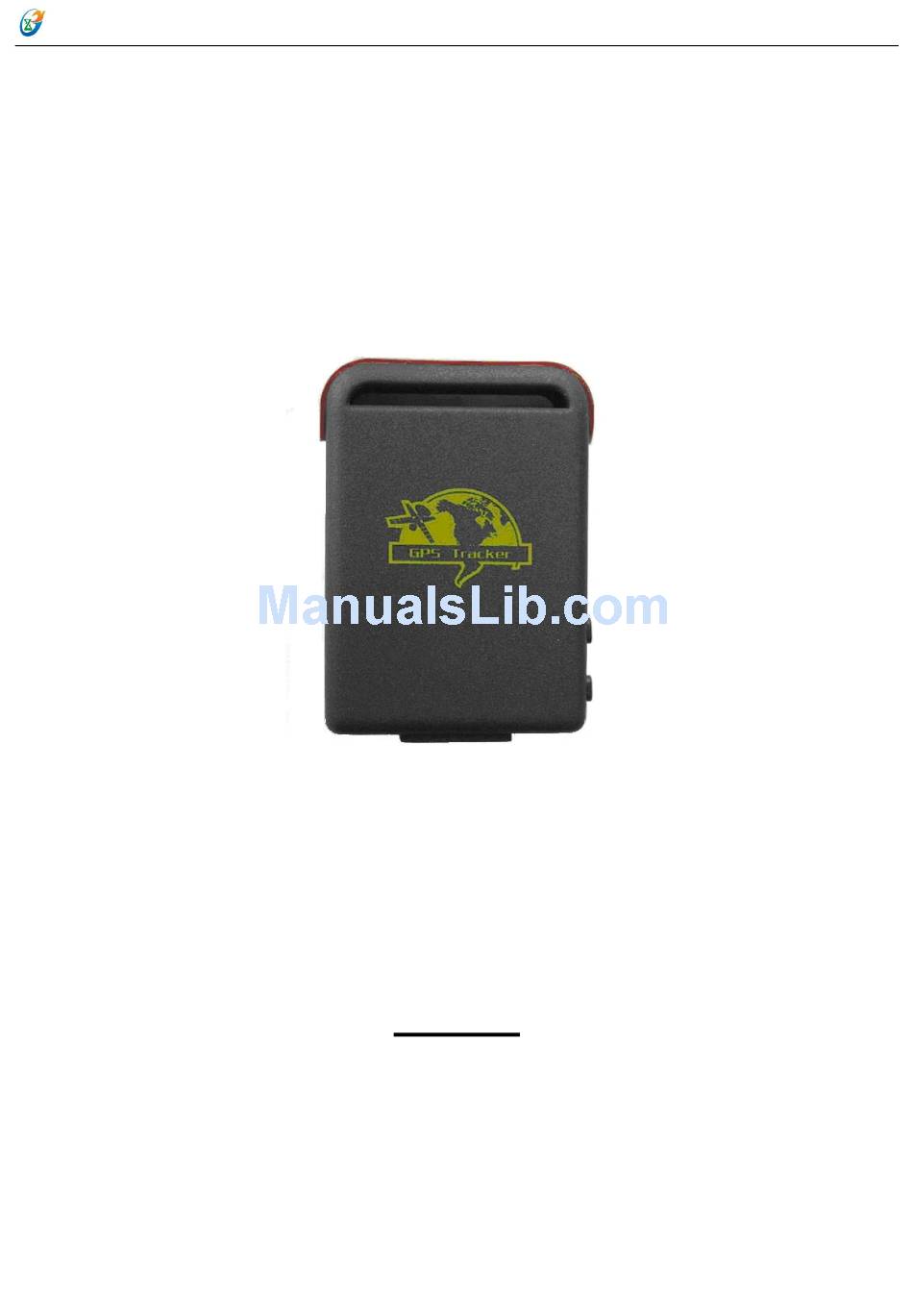

  • Page 1 ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B GSM/GPRS/GPS TRACKER MANUAL TK-102B Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.
  • Page 2: Table Of Contents

    ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B Content 1. Summary ............................... 3 2 Applications ..............................3 3 Hardware Description............................. 3 3.1 Front face ..............................3 3.2 Rear face ………………………………………… ……………………………………………………………………..3 3.3 Side face ..............................3 3.4 Bottom face ..............................4 3.5 Interior ................................ 4 4 Specs.
  • Page 3: Summary

    ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B 1. Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. 2 Applications  Vehicle rental / Fleet management etc  Powerful magnet+water proof, adsorbing in the hidden place of car.
  • Page 4: Bottom Face

    ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B Microphone Built-in GSM/GPRS antennas 3.4 Bottom face 3.5 Interior Install the battery like this GSM Card Slot 4 Specs. Content Specs. Dim. 64mm x 46mm x 17mm(1.8”*2.5”*0.65”) Weight Network GSM/GPRS Band 850/900/1800/1900Mhz GPS chip SIRF3 chip...
  • Page 5: Usage

    ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B 12—24V input Car charger output 110-220V input Wall charger output Battery Chargeable changeable 3.7V 800mAh Li-ion battery Standby 80hours Storage Temp. -40°C to +85°C Operation Temp. -20°C to +55°C Humidity 5%--95% non-condensing 5 Usage 5.1 SIM card installation Make sure that there is no call transfer and call display is on, and PIN code off.
  • Page 6: Startup

    ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B Do charge the battery to capacity in 8 -12 hours for first use. Please use the battery and charger provided by the manufacturer. This unit adopts built-in Li-ion battery, and full battery will support around 80 hours use on end. After first use, the battery can be charged fully in 3-5hours.
  • Page 7: Change The Password

    ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B fail” is received, check out the format of commands sent and password as well. Attention, begin+123456,the symbol“+” in the following, please don't add “+” in SMS, only begin123456 in SMS. This description is only for quick understand.
  • Page 8: Real-Time Polling

    ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B 5.7 Real-time polling If there is no authorized number, when any number dials up the unit, it will report a 5.7.1 Geo-info; If there is already an authorized number, then it will not respond when an unauthorized number calls it up.
  • Page 9: Voice Surveillance

    ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B Report a Geo-info at 30s intervals to the authorized numbers for 5 times: 5.9.1 Send SMS command “fix030s005n +password” to the tracker device, it will report the Geo-info at 30s intervals for 5 times. (s:second, m:minute, h:hour). This command set must be in 3 digits and the maximum value is 255.
  • Page 10: Data Load

    ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B tracker will store the tracking position and alerts automatically in the flash upon the pre-set condition, when GSM signals get back, all the event alerts will be auto-sent to the authorized numbers or monitoring platform (server), but the stored tracking data should be loaded to the monitoring platform via SMS command.
  • Page 11: Movement Alert

    ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B message to the authorized numbers when it breaches the district. 5.14.1 Set up: When the unit stays immobile in a place for 3-10 minutes, the user can Send SMS stockade+password+space+latitude,longitude; latitude,longitude to unit to set the restricted district.
  • Page 12: Sos Button

    ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B 5.16.2 Cancel: Send SMS nospeed+password to deactivate the overspeed alert Remark: It is recommended that the speed alarm is set at not less than 50km/h. For below that rate, it may cause the excursion of the GPS signal influenced by clouds etc.
  • Page 13: Gprs Setting

    ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B If the local time zone is negative as “-8”, then it should set as SMS: “time zone123456 -8”. 5.21 GPRS setting User must send SMS via cell phone to set up IP, port and APN before starting GPRS.
  • Page 14: Modes Switch Between "Sms" And "Gprs

    ZY INTERNATIONAL LIMITED GPSTrackerManual_TK102B 5.22.3 IP and port setup 5.22.3.1. Send SMS as below via a cell phone: adminip + 123456 + Space + IP Address + Space + Port Number. If succeeded, “adminip OK” is returned by the device in SMS.
  • Page 15: Faults & The Solutions

    Please make sure SIM Card is GSM Net and installed correctly; No GSM Signals also call display should be on; but no call transfer and PIN code off. ZY INTERNATIONAL LIMITED (Alibaba Gold Supplier) Website: http://www.zhyichina.com http://www.zhyichina.cn E-Mail: info@zhyichina.com...
