ZY INTERNATIONAL LIMITED
GPS103 User Manual of GSM/GPRS/GPS

Function introduction

The portable satellite positioning system is a new product,which Set multiple functions of security,
positioning, monitoring surveillance, emergency alarms and tracking in its entirety. its compact size, easy to use,
easy to operate, mainly used for location and tracking in vehicles and other mobile object
The product fully supports the functions of SMS / GPRS / Internet data transmission,to make it more
widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many
other areas of management.
Features
1、Support bothGPS / GSM station positioning ways.
2、Support SMS/GPRS/Internet Network data transfer (GPRS/Internet instructions in CD enclosed ）
3、Support GPRS on-line and the line re-connected automatically.
4、Support work based on existing GSM/GPRS network.
5、Support configuration by remote terminal.
6、Standby current is only 80mA.
7、Support for point-to-point, point to group,group-to-group monitoring.
8、Set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in
its entirety.
ZY INTERNATIONAL LIMITED
ADD:RM 1202,12/F,TUNG CHUN COMMERCIAL CENTRE,438-444 SHANGHAI STREET,KOWLOON,HONGKONG
TEL: 86-755-26783978 , 852-21375268 FAX:86-755-26787909 , 852-21375270
http://www.zhyichina.com
GPS103CarTrackerManual.pdf
Tracker for Vehicle
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPS103 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZY International GPS103

Summary of Contents for ZY International GPS103

  • Page 1: Function Introduction

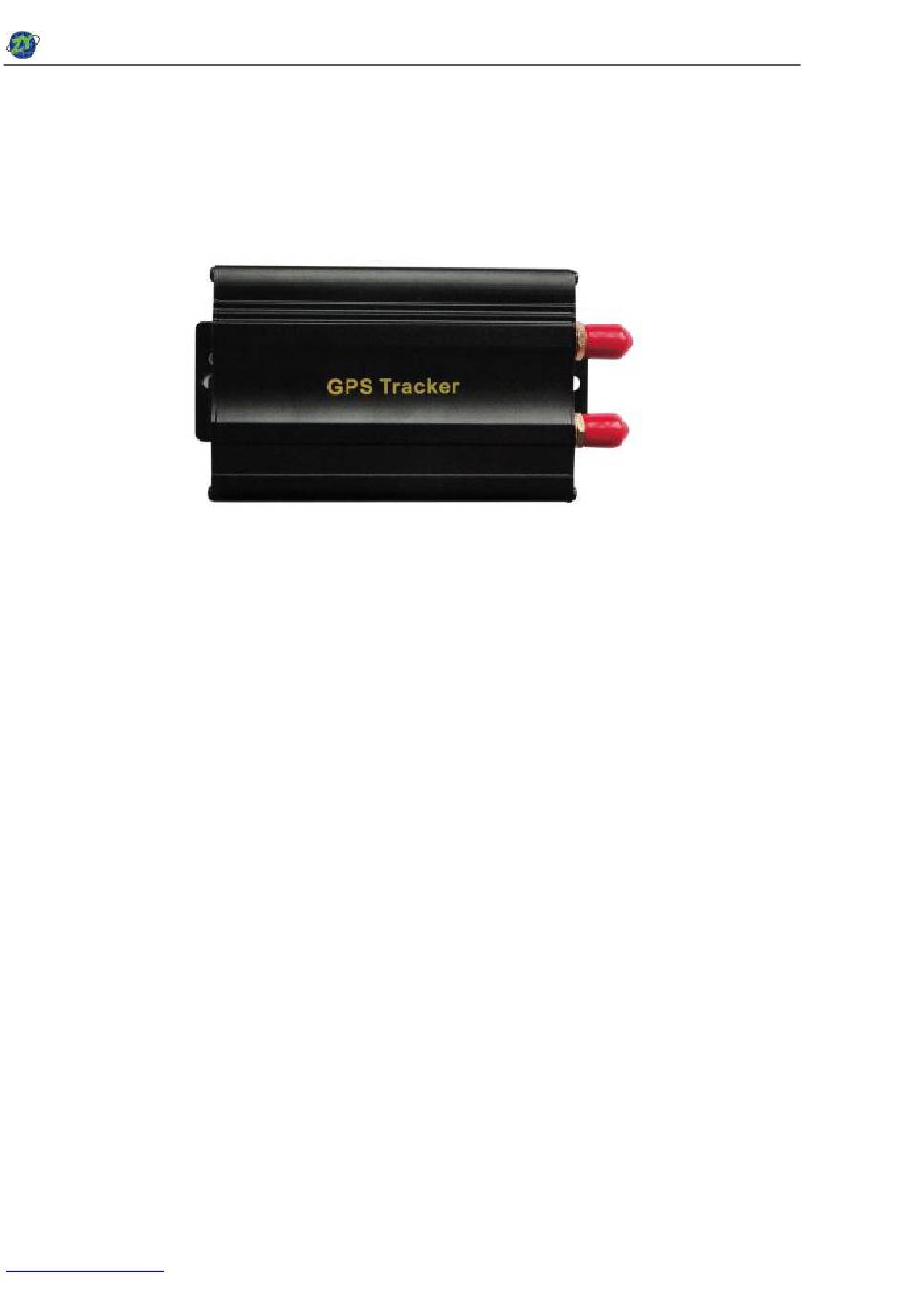

    ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf GPS103 User Manual of GSM/GPRS/GPS Tracker for Vehicle Function introduction The portable satellite positioning system is a new product,which Set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. its compact size, easy to use,...

  • Page 2: Hardware Description

    ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf Hardware description 、 2 、SIM card slot GSM Antenna plug 、monitor jack 3、SIM card slot 、Sensor plug 5、GPS Antenna 、power/GSM LED indicator 7、outside cable 9、backup battery swich PHOTOES NAME NOTE Main Unit 7.5cm*5.4cm*2.5cm GPS Antenna 5 meters long...

  • Page 3: Specification

    ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf GSM Antenna 3 meters long Harness Plug 6 PIN Relay Manual 4.Specification content specification Dim. 83*54*26mm Weight 115g Network GSM/GPRS Band 850/1800/1900Mhz or 900/1800/1900Mhz GPS chip SIRF3 chip GSM/GPRS Simcom300d or Simcom340d GPS sensitivity -159dBm GPS accuracy...
  • Page 4 ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf input ACC:12V sensor：0V ：0V SOS botton Battery Chargeable changeable 3.7V 800mAh Li-ion battery Storage Temp. -40°C to +85°C Operation -20°C to +55°C Temp. Humidity 5%--95% non-condensing Starting : Wiring of installation 1． 1、Insert the wiring harness with the allocation of products to the correct wiring holes..

  • Page 5: Sim Card Installation

    ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf wiring of installation: SIM card installation Please make sure that the SIM card is able to execute the function of incoming calls display , no calls can be diverted and the PIN code is locked. The SMS format must be TXT format,and can ’ t recognize the PDU format.
  • Page 6 ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf of losing the new password. Attention:Make sure the new password is in 6 digits,or else the tracker can not recognize the password. The “+” in the command,pls don ’t type “+”,space means press the space keyboard on your cell phone.

  • Page 7: Voice Surveillance

    ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf digits and at maximum 255 in value. 8.2 Send SMS “t030s***n+password” to the tracker device of vehicle terminal,it will reply SMS heaps of times.. Cancellation: Send SMS “ notn+password” to the tracker devicie of vehicle terminal to telete the “auto track”.
  • Page 8 ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf Cancel: Send SMS “nostockade+password to deactivate this function. 11.5. Movement alert Set up:when the unit stays immobile in a place for 3-10 minutes,the user can send SMS “move+password” to the tracker device.It will reply “move OK”.In case of such a movement(the default distance is 200m),it will send SMS “Move”...
  • Page 9 ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf for example: send SMS command “door-123456” to the tracker device in vehicle, It will reply “ set up door – mode ok ”and set up the door in negative trigger as well.At this time,you need to connect the blue wire to the door trigger port in order to activate door alarm.
  • Page 10 ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf 5.17 GPRS setting User must send SMS visa cell phone or software to set up IP,port and APN before starting GPRS. 17.1 Setting up APN 17.1.1 APN standards for Access Point Name and differs from country to country. For more information about the local APN, inquire with your local GPRS network operator.

  • Page 11: Faults & The Solutions

    ZY INTERNATIONAL LIMITED GPS103CarTrackerManual.pdf about the the voltage range.otherwise,it won’t work properly or distroy the product. Faults & The solutions Faults Solution Startup Fail Please check out the power wiring in correct place. Call Fail Check the GSM antenna connected. Chec k whether the SIM card in place.
