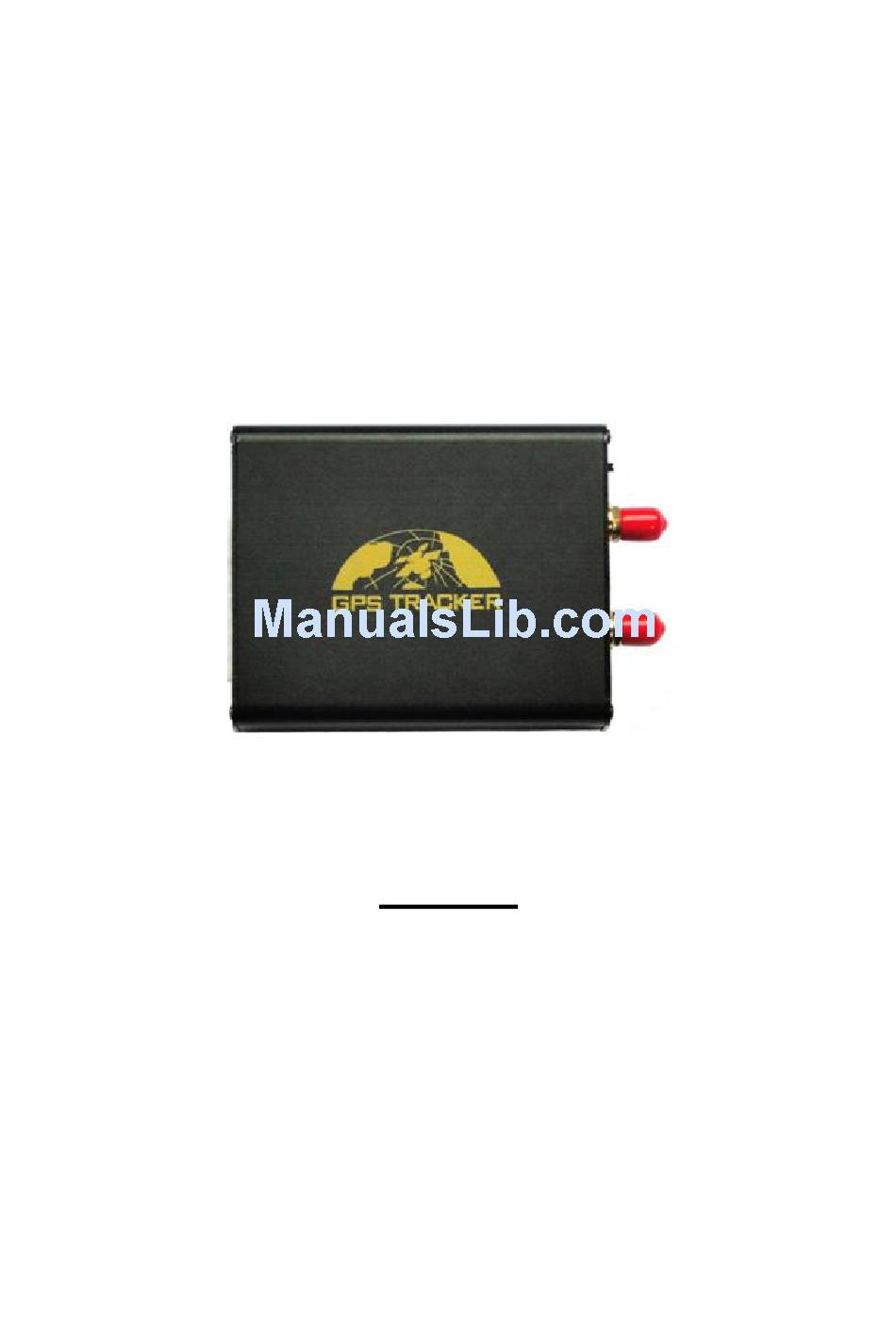

GSM/GPRS/GPS Vehicle Tracker
Model A/B User Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device
smoothly and correctly. Make sure to read this manual carefully before using this
product. Please note that specification and information are subject to changes without
prior notice in this manual. Any change will be integrated in the latest release. The
manufacturer assumes no responsibility for any errors or omissions in this document.
Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TK-106A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ZY International TK-106A

  • Page 1 GSM/GPRS/GPS Vehicle Tracker Model A/B User Manual Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.
  • Page 2: Table Of Contents

    1. Function Introduction ......................4 2. Applications ........................... 5 3. Hardware Description ......................5 4. Accessories ..........................5 5. Specifications ........................7 6. Operating Instructions ......................7 6.1. Terminal Installation ....................7 6.2 Installation wiring diagram ................... 8 6.2.1 Main unit installation wiring diagram ..............8 6.2.2 Relay box (JD01) wiring diagram ...............
  • Page 3 7.23.2 ARM / LOCK by Remote controller ..............18 7.24. Disarm ........................18 7.24.1 Disarm by SMS ....................18 7.24.2 Disarm by Remote Controller ................. 18 7.24.3Alarm Pause ....................18 7.25 Find Vehicle via Remote Controller ................18 7.26. Remote Boot Release ....................19 7.27.
  • Page 4: Function Introduction

    7.44 Sleep Mode ......................28 7.45 Check IMEI ......................28 7.46 Terminal (local) Time Setting ..................28 7.47 TCP/UDP switch ...................... 29 7.48 Configure parameters by USB ................... 29 7.49 GPRS Setting ......................29 7.49.1 Configure APN ....................29 7.49.2 Configure GPRS User Name and password ............. 30 7.49.3 Configure IP and Port ..................
  • Page 5: Applications

    2. Applications Used widely for positioning and tracking vehicle and other moving objects. 3. Hardware Description (JP1)16PIN harness port (JP2)8PIN harness port (JP3)Camera port (JP4)4PIN harness port Internal SIM2 slot 4. Accessories Picture Name Note 3 meters GPS Antenna 2 meters GSM Antenna...
  • Page 6 1.5meters Microphone Harness 16PIN Harness 4PIN Relay 12V/40A Shock Sensor Optional Siren Optional Remote controller Optional Central locking relay box Optional (JD01) Camera Optional Temperature Sensor Optional...
  • Page 7: Specifications

    Fuel Sensor Optional 5. Specifications Content Specification 92*71*26mm Weight 170g Network GSM/GPRS Band 850/900/1800/1900Mhz GPS Module SIRF3 chip -159dBm Sensitivity GPSAccuracy Cold status 45s GPS Start Warm status Time Hot status 1s Applicable 12 V/24V vehicle power Backup Chargeable changeable 3.7V 500mAh Li-ion battery Battery Storage Temp -40°...
  • Page 8: Installation Wiring Diagram

    6.1.5 Knowing about the type of the door trigger is positive or negative. Please connect the green wire to the door control circuit if it is positive, and connect blue wire if it is negative. 6.1.6 Electric lock is set default central lock. If vehicle central lock is vapor lock, refer to 7.21.
  • Page 9: Relay Box (Jd01) Wiring Diagram

    6.2.2 Relay box (JD01) wiring diagram 6.2.3 Central locking system wiring diagram 6.3. SIM card installation 6.3.1 Use a tweezers or a sharp thing to touch the SIM CARD popup switch, the SIM...
  • Page 10: Function And Operation

    CARD slot will pop up, take out the SIM card slot to load the SIM card, and then put the SIM card slot back to its original position after confirm the SIM card in the right place. 6.3.2 Installing the second internal SIM card need open the case 6.3.3 Please make sure that the SIM card is GSM network and able to execute the function of incoming calls display, no calls can be diverted and the PIN code is locked.
  • Page 11: Initialization

    7.4 Initialization Send SMS “begin+password” to the unit, it will reply “begin OK” and initialize all the settings to default factory settings.(default password: 123456) For example: Send SMS “begin123456”, it will reply “begin ok”. (No quotation marks “”when sending all the SMS) 7.5 Change Password 7.5.1 Send SMS “...
  • Page 12: Single Locating

    monitor ok!" and switch to monitor mode, and then call the number in device to monitor the voice. 7.7.3 Send SMS command "tracker+password" to tracker device, It will reply "tracker ok" and restore to track mode. 7.8 Single Locating 7.8.1 Any number calls the tracker device, it will reply a SMS including the position of latitude and longitude if authorized number has not been set yet.
  • Page 13: Automatic Update Positions Of Vehicle Turns

    7.9.2 Track with unlimited times upon time interval: Send SMS “fix030s***n+password” to the tracker device, it will reply the latitude & longitude continuously at interval of 30 seconds. Note: the interval must not less than 20s. 7.9.3 Smart track upon time and distance interval: Please set "track with unlimited times upon time interval"...
  • Page 14: Location Based Service (Lbs)

    7.13 Location based service (LBS) When the tracker device doesn’t received valid GPS signals, tracker will positioning by location based service(LBS), the messages includes the GPS coordinates of the last position in SMS mode, but the LAC in message is the current new position,you can also send command “address+password”...
  • Page 15: Multi-Logging

    7.15.3 Multi-logging Send SMS:”save030s***n+password” to tracker device, it will reply “save ok”. 7.15.4 Logging Clearance: send SMS: “clear+password” to tracker device, it will reply “clear ok”. 7.16 Data Load Current date Load: Send SMS: “load+ password” to tracker device, it will reply: “load ok” 7.16.1 if the device is working well under GPRS mode;...
  • Page 16: Remote Controller (Optional)

    "ACC+password" to tracker, it will reply "ACC ok". And tracker will send "ACC on+latitude & longitude" to authorized numbers when detect ignition action, that means the vehicle has been started; and tracker will send “ACC off+latitude & longitude" to authorized numbers, that means ACC off. 7.19.2 Send "noACC+password"...
  • Page 17: Setting For Button Sos/Remote Start Function

    7.20.2. Setting for Button SOS/Remote Start Function 7.20.2.1 Button function is SOS default 7.20.2.2 Send SMS command“startkey+password+ start”to tracker, it will reply “startkey start ok!”,long-press the remote start will be t rigger. 7.20.2.3 Send SMS command“startkey+password+ sos”to tracker, it will reply “startkey start ok!”,long-press the SOS will be t rigger.
  • Page 18: Arm / Lock By Remote Controller

    ACC”.If engine turned off, but door is open, then the car can’t enter ARM state and reply “set up fail! pls close the door” 7.23.2 ARM / LOCK by Remote controller In disarm states, short-press remote control button ,the door of the vehicle will lock, it enter sound and light arm states, siren beeps one time, turn light blink one time, no SMS message.
  • Page 19: Remote Boot Release

    press any button to stop. 7.26. Remote Boot Release Long-press button for 2 seconds in disarm state, vehicle boot will be open. 7.27. Alerts Function 7.27.1 SOS Emergency Alarm 7.27.1.1 SOS via Remote Controller Press button for 3 seconds; siren will not beep and turn light will not flash, tracker device will send SMS “help me!+lat./long.”...
  • Page 20: Multi-Area Management

    7.27.3. Multi-area management 7.27.3.1 Set Area Send SMS command "area+password+space+latitude,longitude+space+areaname,distanceM" to tracker(distance unit: M for meter, K for kilometer), it will reply "area01 ok". Example: Send "area123456 22.353648,113.543678 school,800M". Note: 5 areas at most and the distance between two points can't be less than the total distance in the 2 commands, and different areas can't cover each other.
  • Page 21: Over Speed Alarm

    7.27.5 Over Speed Alarm Set up: Send SMS “speed+password+space+080” to the unit (suppose the speed is 80km/h), and it will reply “speed OK!”. When the target moves exceeding 80km/h, the unit will send SMS “speed+080!+ latitude & longitude” to the authorized numbers.
  • Page 22: Low Battery Alarm

    7.27.7.2 Temperature Alerts Canceling; Send SMS command “notemperature+password” to tracker, it will reply “notemperature OK” 7.27.7.3.Switch between Celsius and Fahrenheit The default temperature unit is Celsius, in the sms commend C =℃ F=° F switch from “C” “F” sending command “temperature+password+space***F, ***F”...
  • Page 23: Accident Alarm (Optional)

    7.27.11 Accident Alarm (Optional) 7.27.11.1When tracker detects accident occurred (severe impact) during normal driving, it will send “Accident! + latitude & longitude " to all authorized phone numbers. 7.27.11.2 This function is active as default. To disable this functions, send "Accident+password+space+off"...
  • Page 24: Acc Alarm

    7.28.4 Acc Alarm The tracker will send SMS “ACC alarm+lat/long” to the authorized numbers in 3 minutes interval when the engine of the car is turned on, that is the key is rotated to ACC.ON position to start the car in arm state; Siren will sound for 30 seconds, send disarm command “disarm+password”...
  • Page 25: No Gsm Alarm

    7.32 No GSM Alarm When Vehicle enters GSM Blind area, the siren beeps in Non quite mode without sms sending if DOOR,SHOCK SENSOR/ACC alarms are triggered. 7.33 Cut off oil and power system 7.33.1 Send SMS command “stop+password” to the GPS, it will reply “Stop engine Succeed”...
  • Page 26: Park Warning

    7.37 Park warning When ACC is off and door is open, turn light will flash, informing cars behind. Press any button to stop it 7.38 Automatic Central Locking System When Vehicle is on (step on footbrake and then turn on ACC), step on the footbrake to lock the door automatically, during driving process, press Button to lock or press...
  • Page 27: Cancel Startup Appointment

    2) The footbrake is in stepping while you take out the key, appointment fail. 7.39.4 Cancel startup appointment 1). Push footbrake and pull out key to stop engine .Startup appointment will be not activated. 2). Open car door or turn on engine can cancel startup appointment. 3).
  • Page 28: Reset By Sms

    reply following SMS after the command. executed Power: ON/OFF Battery: 100% Door:OFF ACC:ON GPS:OK GPRS:OFF line GSM Signal:21 (1-32) the higher digit it shows; the stronger of GSM reception it receives. Oil:65.5% 65.7% Temperature: +32.0 7.43 Reset by SMS Send SMS “reset+password” to tracker device to reset the GSM module and GPS module of the tracker device, it will reply “reset ok”.
  • Page 29: Tcp/Udp Switch

    7.47 TCP/UDP switch Send command: "gprs+password,0,0" switch back to TCP mode, and TCP is the default mode. Second command:"gprs+password,1,1" switch to UDP mode. 7.48 Configure parameters by USB Copy the Serial debugging tool (SSCOM.EXE) to computer, connect the tracker with computer and open serial debugging tool with the USB cable (optional parts), then choose correct COM port, baud rate is 19200, send serial port command (Tick "send new "...
  • Page 30: Configure Gprs User Name And Password

    ” and if succeeded, the tracker will reply “APN OK 7.50.1.3 E.g. Send SMS command “APNONE123456 CMNET”. If ” succeeded, tracker will reply “APN OK Notes: 123456 refer to password of tracker and CMNET is the APN of the china mobile.
  • Page 31: Modes Switch Between "Sms" And "Gprs

    7.50.2 Activate this function: Send "less gprs123456 on", tracker will reply "less gprs on ok". 7.50.3 Deactivate this function: Send "less gprs123456 off", tracker will reply" less gprs off ok". Note: 123456 is the password of tracker, and replace it with the new if you have changed.
  • Page 32: Cautions

    8. Cautions Please comply with the instructions to extend the unit life: 8.1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry. 8.2. Don’t use & store the unit in dusty places. 8.3. Don’t put the unit in overheated or overcooled places. 8.4.
  • Page 33 Siren Fail DC12V/24V/1A. Siren can’t be triggered if connect to Siren’s voltage is negative trigger.
