Quick Start Guide & Installation manual
Guide de d'emarrage et Guide d'installation
Guía de inicio rápido y Manual de instalación

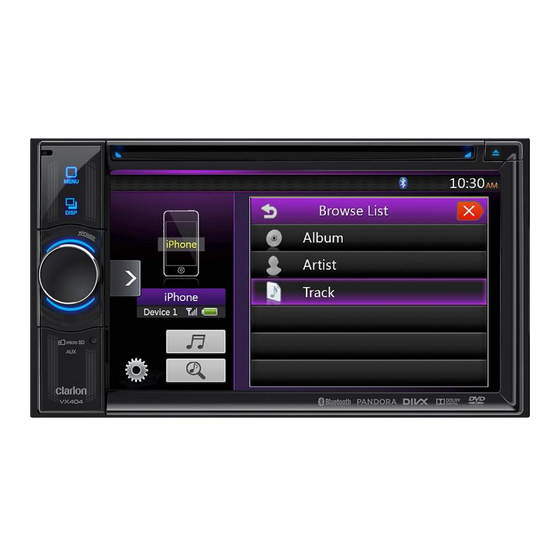

VX404
DVD MULTIMEDIA STATION WITH 6.2" TOUCH PANEL CONTROL
Station multimédia DVD avec commande par écran tactile de 6.2 pouces
Estación multimedia DVD con control de panel táctil de 6.2 pulgadas
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clarion VX404
Summary of Contents for Clarion VX404
- Page 1 Quick Start Guide & Installation manual Guide de d’emarrage et Guide d’installation Guía de inicio rápido y Manual de instalación VX404 DVD MULTIMEDIA STATION WITH 6.2” TOUCH PANEL CONTROL Station multimédia DVD avec commande par écran tactile de 6.2 pouces...
-
Page 2: Clarion Product Registration Information
Register at www.clarion.com - it’s easy to keep your Clarion product up to date. à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité... -
Page 3: Table Of Contents
Select the BT Phone Mode ............18 Bluetooth Telephone Settings ...........19 Registering Your Cellular Phone (Pairing) ........20 Select the Cellular Phone ............21 Obtaining the Phone Book Data ..........21 Telephone Operations ...............21 13. TUNER OPERATIONS ............21 14. HDMI MODE ................22 Select HDMI source ..............23 VX404... -
Page 4: Precautions
Using it in that condition may cause an accident, fire, or electric shock. • Use a fuse with the same specification only when replacing the fuse. Using a fuse with a different specification may causes a fire. • For the installation of this unit or a change in the installation, ask your authorized dealer or a nearest Clarion service center for safety. Professional skills and experiences are required to do so. • As the driver, you alone are responsible for your driving safety. • In order to avoid a traffic accident, do not operate the system while driving. -
Page 5: Information For Users
1.When the inside of the car is very cold and the player is used VX404 soon after switching on the heater, moisture may form on the disc (DVD/ CD) or the optical parts of the player and proper playback may not be possible. If moisture forms on the disc (DVD/CD), wipe it off with a soft cloth. - Page 6 ® the Bluetooth SIG, Inc. And any use of such marks by Clarion Co.,Ltd. is under license. Other trademarks and trade names are those of their respective owners. • Pandora. the Pandora logo. and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc.
-
Page 7: Operational Panel
• Press and hold this button for 2 seconds to turn off the monitor. Press any place of the screen to turn on the monitor again. [RESET] Button • Press this button to hardware reset the unit. Note: When the [RESET] button is pressed, frequencies of radio stations, titles, etc. stored in memory are cleared. VX404... -
Page 8: Turning The Power On
• Press [MENU] button on the PANEL to show main source menu. • Change page by dragging left or right or touching other buttons. • Touch the icons on the screen to enter corresponding work mode, such as Disc mode, Tuner mode, Telephone mode, etc. VX404... -
Page 9: Dvd Video Player Operations
Flicking to right or left it will switch to next or previous page of main menu. Moving the menu position 1. Touch any quadrate icon on main menu more than 2 seconds, the icon will float on main menu. 2. Scrolling the floating icon to any position you want. VX404... -
Page 10: Operate The Dvd Player Menu
11 - Repeat button 12 - Audio button 13 - Subtitle button 1. Showing the root menu of the DVD Video, touch [ ] button during playback. Touch and hold it during playback to show the title menu. VX404... -
Page 11: Cd Player Operations
• Touch the title of current folder, play list will show files and folders in upper folder. 1 - Option button 2 - Elapsed playing time indicator 3 - Rotation effect 4 - Page turning button 5 - System time VX404... -
Page 12: Usb/Sd Audio Operations
• Files protected with any DRM cannot be played. 14. Album art 15. Shortcut button 16. Current ID3 info area 17. Elapsed playing time indicator/Seek bar 18. Direct button 19. Scan button 1. Option button 2. Play/Pause button 3. Previous Track /Fast Backward button VX404... -
Page 13: Usb/Sd Video Operations
8 - Bluetooth status indicator 6 - Next Track/Fast Forward button 9 - Playback information 7 - ID3 information 10 - Shortcut button 8 - Next Page[ ] / Previous Page[ ] button 9 - Category list 10 - System time VX404... -
Page 14: Ipod Audio Playlist Mode Screen
8 - Next Page[ ] / Previous Page[ ] button 9 - System time 10 - Bluetooth status indicator 11 - Playback status indicator 12 - Art work 13 - Shortcut button 14 - Progress bar 4 - Back to father folder VX404... -
Page 15: Pandora Operations
Touch this button Thumbs-down current track and play next track. 5 - Play/Pause button Use to control playback and pause. (1). Touch the button during playback. Playback pauses. (2). To resume playback touch the key again. 6 - Next track button 7 - Thumbs-up 8 - System time VX404... -
Page 16: Pandora Bluetooth Mode
Touch this button to sort the list by first letter, touch again to sort the list by date. 3 - Station list, touch to select station play. When the desired station is not displayed, touch and flick the station list up or down. • Pandora mode Setting screen VX404... -
Page 17: Bluetooth Audio Player Operations
• For detailed information on the playable Bluetooth audio players, see our home Registering your Bluetooth Audio Player (Pairing) page: www.clarion.com You can register up to 5 Bluetooth audio players. Selecting the Bluetooth Audio Mode Your mobile phone Bluetooth version is under 2.0. -
Page 18: Selecting The Bluetooth Audio Player
Touch [ ] button, the display will return to the Bluetooth audio mode screen. Note: • Occasionally, depending on the environment, playback sounds may be fragmented, VX404... -
Page 19: Bluetooth Telephone Operations
• When no Bluetooth Telephone connected, the icon [ ] is displayed at the top of the screen. • When the connection with a Bluetooth Telephone has been established, the icon [ ] and signal level indicator are displayed at the top of the screen. VX404... -
Page 20: Bluetooth Telephone Settings
] or [ ] button of the Automatic Connection item to set the function ON or OFF. Note: The “auto-connect” is effective to the cellular-phone of last connecting. Setting Automatic Answer If a call comes in, answer automatically after 5 seconds. VX404... -
Page 21: Registering Your Cellular Phone (Pairing)
] button to display the Inquiring Device screen. • To delete the cellular phone registration 1. Touch the [ ] button to delete the device. A confirmation screen is displayed. 2. Touch the [ ] button to confirm delete. VX404... -
Page 22: Select The Cellular Phone
2. Enter the telephone number by using the Ten-Key pad displayed on the screen. 5. Step up 6. Frequencies display 7. System time 8. Bluetooth status indicator 9. Preset list 10. DX/Local indicator 11. Band button 12. Shortcut button 13. Option button VX404... -
Page 23: Hdmi Mode
(1) Connection with the iPhone 4 and iPhone 4s iPhone 4 and iPhone 4s HDMI cable sold in the market Apple Genuine 30pin cable VX404 Apple Genuine 30pin-Digital AV adapter (2) Connection with the iPhone 5, iPhone 5s and iPhone 5c... -
Page 24: Select Hdmi Source
Press DISP button to display the HDMI video screen . 16. CAMERA INPUT OPERATIONS This HDMI mode is only indicate the screen of the iPhone, Android. Can‘t operate by the touch screen of VX404 Switching to Camera mode Touch [Camera] button on Main Menu. -
Page 25: Rear Source Operations
Rear As an additional safety feature, the audio from camera with built-in Source. microphones can be heard through the VX404. DVD Video in Rear 1. Touch the button to access the front source. -
Page 26: Dvd Video Rear Source Control Info Mode
Same as iPod function of front Touch BACK button to return. keep running. source 7 - Front/Rear button If the screen displays Rear Source, touch to switch to Front Source. If the screen displays Front Source, touch to switch to Rear Source. VX404... - Page 27 • Confirm the battery voltage of the vehicle to be installed. This unit is designed only for vehicles with DC 12V power supply. • Disconnect the negative terminal of the battery before connecting wires, otherwise an electric shock, injury by short circuit may occur. VX404...
- Page 28 • When wiring the connecting cables in a vehicle with an airbag system, never feed the cables through a place where it may affect the operation of the airbag. An airbag not operating correctly in an emergency may cause increased injury. VX404...
-
Page 29: Installation
1. Do not open the case. There are no user- serviceable parts inside. If you drop anything into 1. Before Starting the unit during installation, consult your dealer or an authorized Clarion service center. 2. Use a soft, dry cloth to clean the case. Never use a rough cloth, thinner, benzine, or alcohol 1. -
Page 30: Installing The Main Unit
In some cases the center panel may require modification. (Trimming, filing, etc.) For NISSAN vehicle For TOYOTA vehicle • Removing the Main Unit Figure 4 When the main unit is to be removed, disassemble it in the reverse of the order in “INSTALLING THE MAIN UNIT”. VX404... -
Page 31: Wire Connections
• In the optional devices, the RCA cables and the Connector cables are separately-sold items. • When connect the HDMI cable, be sure to fix with the HDMI cable holder Main Unit VX404 8- Hexagonal screws (M5x8) HDMI CABLE Mounting bracket... -
Page 32: Cautions On Wiring
Phone interrupt Grass- green Parking brake cord Purple Whit Fuse holder Reverse gear cord Note: Figure 7 *1: Connecting the PHONE INTERRUPT terminal The phone interrupt will mute the audio if the lead receives a negative or ground signal. VX404... - Page 33 2. Pass the Parking brake signal cord through, and fold it back in the direction of the arrow. Parking brake Parking brake signal Electro-tap cord Parking brake signal cord Parking brake signal cord Parking brake cord (Grass- green) Stopper Parking brake cord (Grass-green) VX404...
- Page 34 Clarion Co., Ltd. All Rights Reserved. Copyright © 2013: Clarion Co., Ltd. Printed in China / Imprimé en Chine / Impreso en China 2014/6...
