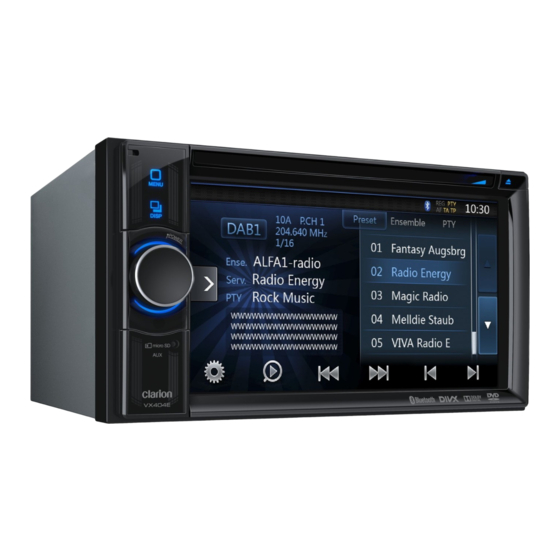

DVD MULTIMEDIA STATION WITH 6.2" TOUCH PANEL CONTROL
STATION MULTIMÉDIA DVD AVEC COMMANDE PAR ÉCRAN TACTILE DE 6,2 POUCES
DVD-MULTIMEDIA-STATION MIT 6,2"-TOUCHPANEL-STEUERUNG
STAZIONE MULTIMEDIALE DVD DOTATA DI PANNELLO DI CONTROLLO DA 6,2" CON TECNOLOGIA A SFIORAMENTO
ESTACIÓN MULTIMEDIA DVD CON PANTALLA TÁCTIL DE 6,2 PULGADAS
DVD MULTIMEDIASTATION MET BEDIENING VIA 6,2 INCH AANRAAKSCHERM
DVD-MULTIMEDIESTATION MED 6,2-TUMS PEKSKÄRMSSTYRNING
STACJA MULTIMEDIALNA DVD Z 6,2-CALOWYM PANELEM DOTYKOWYM
ΣΤΑΘΜΟΣ ΠΟΛΥΜΕΣΩΝ DVD ΜΕ ΠΙΝΑΚΑ ΕΛΕΓΧΟΥ ΜΕ ΟΘΟΝΗ ΑΦΗΣ 6,2"
MULTIMEDIÁLNÍ DVD STANICE S OVLÁDÁNÍM PROSTŘEDNICTVÍM 6,2PALCOVÉHO DOTYKOVÉHO PANELU
МУЛЬТИМЕДИЙНАЯ СТАНЦИЯ DVD С 6,2-ДЮЙМОВЫМ СЕНСОРНЫМ ЭКРАНОМ
Advertisement
Table of Contents
Related Manuals for Clarion VX404E
Summary of Contents for Clarion VX404E
- Page 1 Snabbguide och monteringsanvisning Podręcznik wprowadzający oraz Podręcznik montażu Οδηγός γρήγορης εκκίνησης και Εγχειρίδιο εγκατάστασης Úvodní příručka a Montážní příručka VX404E DVD MULTIMEDIA STATION WITH 6.2” TOUCH PANEL CONTROL STATION MULTIMÉDIA DVD AVEC COMMANDE PAR ÉCRAN TACTILE DE 6,2 POUCES DVD-MULTIMEDIA-STATION MIT 6,2”-TOUCHPANEL-STEUERUNG STAZIONE MULTIMEDIALE DVD DOTATA DI PANNELLO DI CONTROLLO DA 6,2”...
- Page 2 To prevent direct exposure to the laser beam, do not try to open the enclosure. !CAUTION USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. VX404E...
-
Page 3: Table Of Contents
Registering Your Cellular Phone (Pairing) ........20 Select the Cellular Phone .............21 Obtaining the Phone Book Data ...........21 Telephone Operations ..............21 12. TUNER OPERATIONS ..............22 13. DAB OPERATIONS ..............23 14. HDMI MODE ................24 Select HDMI source ..............25 Select DISP source ..............25 15. AUX ....................25 VX404E... -
Page 4: Precautions
It may cause an accident, fire, or electric which can be determined by turning the equipment off and on, the user shock. For that case, consult your authorized dealer or a nearest Clarion is encourage to consult the dealer or an experienced radio technician for service center. - Page 5 1. When the inside of the car is very cold and the player is used VX404E soon after switching on the heater, moisture may form on the 10R -047201 disc (DVD/ CD) or the optical parts of the player and proper playback may not be possible.
- Page 6 • The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth ® SIG, Inc. And any use of such marks by Clarion Co.,Ltd. is under license. Other trademarks and trade names are those of their respective owners. VX404E...
-
Page 7: Operational Panel
• Press this button to display main menu; press again to return current source. • Press and hold this button for 2 seconds to turn off the monitor. Press any place of the screen to turn on the monitor again. VX404E... -
Page 8: Turning The Power On
• Press [MENU] button on the PANEL to show main source menu. • Change page by dragging left or right or touching other buttons. • Touch the icons on the screen to enter corresponding work mode, such as Disc mode, Tuner mode, Telephone mode, etc. VX404E... -
Page 9: Dvd Video Player Operations
Flicking to right or left it will switch to next or previous page of main menu. Moving the menu position 1. Touch any quadrate icon on main menu more than 2 seconds, the icon will float on main menu. 2. Scrolling the floating icon to any position you want. VX404E... -
Page 10: Operate The Dvd Player Menu
Touch and hold it during playback to show the title menu. * Depending on the disc, the title or root menu may not be called. 2. Touch the title or root menu screen. And touch the Show Cursor button. VX404E... -
Page 11: Cd Player Operations
8 - Previous Track /Fast Backward button 9 - Shortcut button. 10 - Play/Pause button 11 - Next Track/Fast Forward button 12 - Shuffle button 13 - Direct Searching button 14 - Scan Start/Stop button 15 - Rotation Effect On/Off button VX404E... -
Page 12: Usb/Sd Audio Operations
• Files protected with any DRM cannot be played. 11. Bluetooth status indicator 12. Mute status indicator 13. Playback status information 14. Album art 15. Shortcut button 16. Current ID3 info area 17. Elapsed playing time indicator/Seek bar 18. Direct button 19. Scan button VX404E... -
Page 13: Usb/Sd Video Operations
8 - Bluetooth status indicator 8 - Next Page[ ] / Previous Page[ ] button 9 - Playback information 9 - Category list 10 - Shortcut button 10 - System time 11 - Bluetooth status indicator 12 - Playback status indicator VX404E... -
Page 14: Ipod Audio Playlist Mode Screen
7 - Category list 8 - Next Page[ ] / Previous Page[ ] button 9 - System time 10 - Bluetooth status indicator 11 - Playback status indicator 12 - Art work 13 - Shortcut button 14 - Progress bar VX404E... -
Page 15: Ipod Video Play Mode Screen
• This system will not operate or may operate improperly with some Bluetooth audio players. • For detailed information on the playable Bluetooth audio players, see our home page: www.clarion.com Selecting the Bluetooth Audio Mode 1. Touch the [Bluetooth Audio] key to select the Bluetooth Audio mode. -
Page 16: Registering Your Bluetooth Audio Player (Pairing)
When the pairing operation completes, the registered Bluetooth audio player is set as the current device, after selecting the favorite icon, the display return to the device list screen. Touch [ ] button, the display will return to the Bluetooth audio mode screen. VX404E... -
Page 17: Selecting The Bluetooth Audio Player
The corresponding cellular phone is set as current telephone. 4. Touch the [ ] button to return to the previous screen. Controlling the Bluetooth Audio Player Note: • Occasionally, depending on the environment, playback sounds may be fragmented, or switch noises may be generated. VX404E... -
Page 18: Bluetooth Telephone Operations
OFF. • When the connection with a Bluetooth Telephone has been established, the icon ] and signal level indicator are displayed at the top of the screen. Note: The “auto-connect” is effective to the cellular-phone of last connecting. VX404E... -
Page 19: Registering Your Cellular Phone (Pairing)
• The input level of the microphone can be affected by its surroundings. Adjust the level if the person on the other end of the telephone has a reception problem. 3. Touch the [ ] button to display the Inquiring Device screen. VX404E... -
Page 20: Select The Cellular Phone
Telephone screen. • To delete the cellular phone registration 1. Touch the [ ] button to delete the device. A confirmation screen is displayed. 2. Touch the [ ] button to confirm delete. VX404E... -
Page 21: Tuner Operations
Mode Setting 14. Shortcut Button The DX / Local setting changes the tuner sensitivity in order to separate closely 15. Radio Text Display spaced stations. This feature is useful in areas that have many radio stations in close proximity. VX404E... -
Page 22: Dab Operations
Ensemble. If you select “ALL Service”, Seek Tuning you can see all Services in all Ensembles. To go back to Ensemble You can tune to the Ensemble and list just press “back” button. select the Service which is currently broadcast. VX404E... -
Page 23: Hdmi Mode
3. When the desired station is tuned in, touch the Preset Scan [ ] button Apple Genuine VX404E Apple Genuine 30pin cable 30pin-Digital AV adapter again to keep in the station. 4. When scanning the services, this Service Link setting image will display. -
Page 24: Select Hdmi Source
Press DISP button to display the HDMI video screen . This HDMI mode is only indicate the screen of the iPhone, Android. Can‘t operate by the touch screen of VX404E Note: Depending on the application and model of the mobile phone, there is the case that black frame appears around the screen. -
Page 25: Camera Input Operations
1. Touch the Rear button on Main Menu 4 - Play/Pause button to access the Rear Source. 5 - Next Chapter /Fast Forward button 2. Select a source to play. 6 - Elapsed playing time 7 - Menu List button 8 - Front/Rear button VX404E... -
Page 26: Dvd Video Rear Source Control Info Mode
Touch BACK button to return. Same as iPod function of front keep running. source 7 - Front/Rear button If the screen displays Rear Source, touch to switch to Front Source. If the screen displays Front Source, touch to switch to Rear Source. VX404E... - Page 27 • Confirm the battery voltage of the vehicle to be installed. This unit is an accident. designed only for vehicles with DC 12V power supply. • Disconnect the negative terminal of the battery before connecting wires, otherwise an electric shock, injury by short circuit may occur. VX404E...
- Page 28 • When wiring the connecting cables in a vehicle with an airbag system, never feed the cables through a place where it may affect the operation of the airbag. An airbag not operating correctly in an emergency may cause increased injury. VX404E...
-
Page 29: Installation
1. Do not open the case. There are no user- serviceable parts inside. If you drop anything into the unit during installation, consult your dealer or an authorized Clarion service center. 2. Use a soft, dry cloth to clean the case. Never use a rough cloth, thinner, benzine, or alcohol etc. -
Page 30: Installing The Main Unit
Vehicles other than NISSAN and TOYOTA • Removing the Main Unit For TOYOTA vehicle For NISSAN vehicle When the main unit is to be removed, disassemble it in the reverse of the order in Figure 4 “INSTALLING THE MAIN UNIT”. VX404E... -
Page 31: Wire Connections
• In the optional devices, the RCA cables and the Connector cables are separately- sold items. • When connect the HDMI cable, be sure to fix with the HDMI cable holder DAB404E VX404E Main Unit 8- Hexagonal screws (M5x8) Radio Antenna... - Page 32 After the connection, fix the cord by a clamp or Gray/Black insulation tape for protection. Gray White White/Black Green Green/Black Fuse (15A FUSE) Note: *1: Connecting the PHONE MUTE terminal It will mute the audio if the lead receives a negative or ground signal. Fuse holder Figure 7 VX404E...
- Page 33 2. Pass the Parking brake signal cord through, and fold it back in the direction of the arrow. Parking brake Parking brake signal cord Parking brake signal Electro-tap Parking brake signal cord cord Parking brake cord (Grass- green) Stopper Parking brake cord (Grass-green) VX404E...
- Page 34 Declaration of conformity Intyg om överensstämmelse We Clarion declares that this model VX404E is following the provision of Directive Härmed intygar Clarion att denna modell VX404E uppfyller kraven i direktiv 1999/5/EC with the essential requirements and the other relevant regulations.
