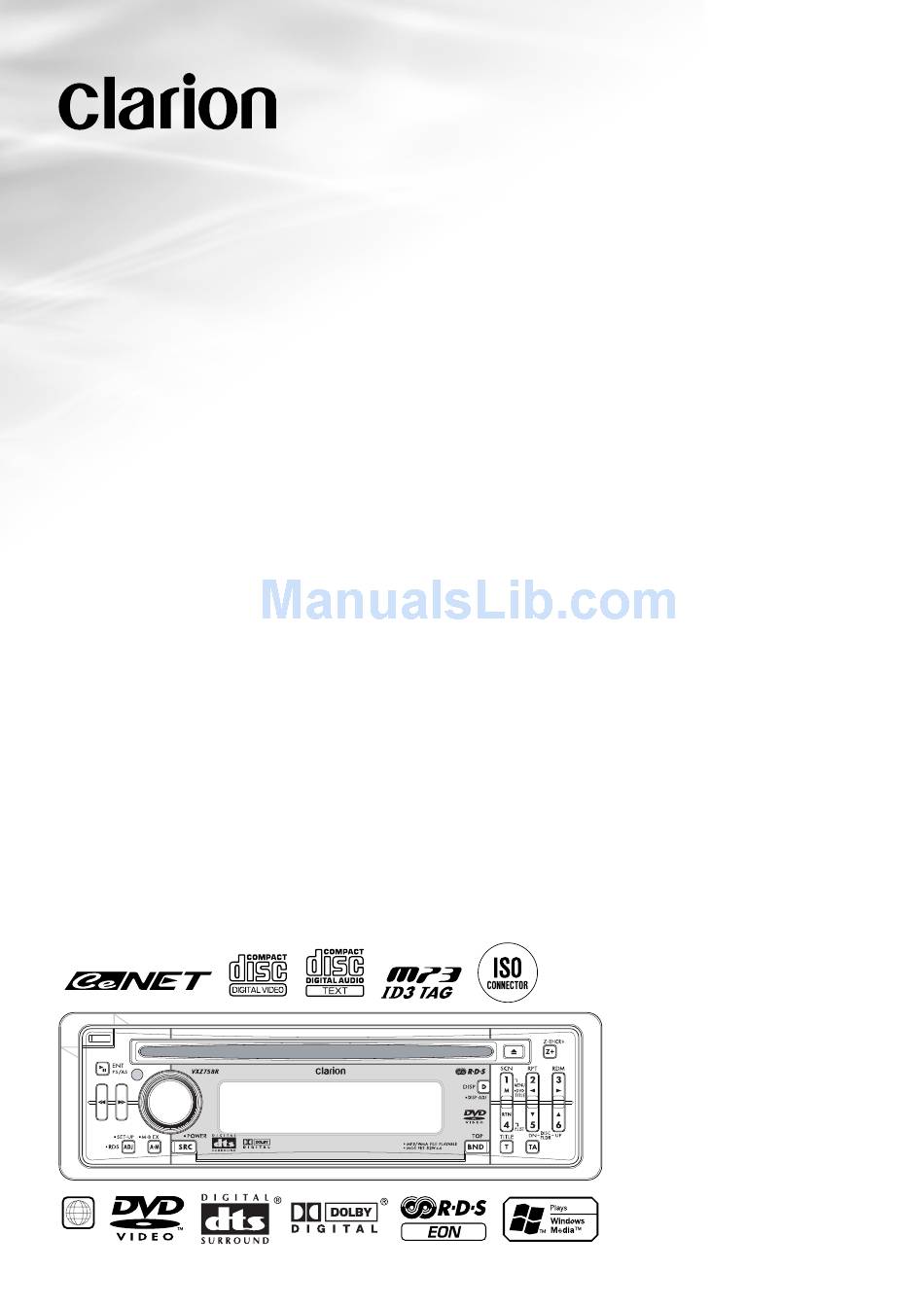

- Page 1 Owner’s manual / Mode d’emploi Bedienungsanleitung / Istruzioni per l’uso Gebruiksaanwijzing / Manual de instrucciones Bruksanvisning / Manual de instruções VXZ758R DVD/VCD/CD/MP3/WMA Receiver/ CeNET Control • Récepteur DVD/VCD/CD/MP3/WMA / Contrôle CeNet • DVD/VCD/CD/MP3/WMA-Receiver mit CeNET-Steuerung • Lettore DVD/VCD/CD/MP3/WMA/ Comando CeNET •...
- Page 2 Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.
-
Page 3: Table Of Contents
3. Driving on extremely bumpy roads which cause severe vibration may cause the sound to skip. INFORMATION FOR USERS:. CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANU- FACTURER WILL VOID THE WARRANTY. VXZ758R... -
Page 4: Handling Compact Discs
• Do not use any solvents, such as commer- cially available cleaners, anti-static spray, or thinner to clean compact discs. • After using special compact disc cleaner, let the compact disc dry off well before playing it. Be sure to unfold and read the next page. VXZ758R... -
Page 5: Main Unit
Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen. Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo. VXZ758R / Hauptgerät... -
Page 6: Nomenclature
• Press and hold for 1 second or longer to perform folder random play while an MP3/ WMA disc is playing. VXZ758R [DIRECT] buttons • Stores a station into memory or recalls it directly while in the radio mode. -
Page 7: Major Button Operations When External Equipment Is Connected To This Unit
• Selects a station. [PS/AS] button • Performs preset scan in the TV mode. • Press and hold for 2 seconds or longer to per- form auto store in the TV mode. • Performs service scan while in the DAB mode. VXZ758R... -
Page 8: Display Items
LCD Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. VXZ758R Z-Enhancer Plus indication : Reception band indication : Track number indication... -
Page 9: Dcp
• The connector connecting the unit and the DCP is an extremely important part. Be careful not to damage it by pressing on it with fingernails, screwdrivers, etc. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. VXZ758R... -
Page 10: Dvd Video System
Extra disc, only the first session will be recognizesd. VXZ758R ● About CD Extra discs A CD Extra disc is a disc in which a total of two sessions have been recorded. The first session is Audio session and the second session Data session. -
Page 11: Remote Control
[ENT] button Press this button to enter the setup item. [DVD TITLE] button DVD VIDEO:Displays the title screen. [SET UP] button Displays the setup screen of the unit. VXZ758R... -
Page 12: Inserting The Batteries
PBC is turned off.): TRACK number CD: TRACK number. Inserting the Batteries 1. Open the rear battery cover. Rear cover VXZ758R Receiver for remote control unit Operationg range : 30° in all directions Signal transmitter 2. Insert the two supplied size AA (SUM-3, R6/ 1.5V) batteries orienting the plus and minus... -
Page 13: Functions Of The Remote Control Unit Buttons
(MP3/WMA disc). Switches reception band. Moves preset channels up and down. No function. No function. Preset scan. When pressed and held for 2 seconds or longer: Auto store. No function. No function. Switches between TV and VTR. No function. VXZ758R... -
Page 14: Operations
3. Press and hold the [SRC] button for 1 second or longer to turn off the power for the unit. VXZ758R Note: Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (unfold). -
Page 15: Adjusting The Tone
1. Press the [A-M] button and select “SW-VOL 0”. 2. Turn the [ROTARY] knob to select from -6 to +6 or OFF. 3. When the adjustment is complete, press the [A-M] button several times until the function mode is reached. VXZ758R... -
Page 16: Adjusting The Balance
4. When the adjustment is complete, press the [A-M] button several times until the function mode is reached. VXZ758R Adjusting the balance ∗ This function cannot be adjusted when as follows: “Pro Logic” is set to “ON”, the speaker system is set to “5.1ch”, DVD/DTS-CD is being played. -
Page 17: Radio Operations
Manual memory 1. Select the desired station with seek tuning, manual tuning or preset tuning. 2. Press and hold one of the [DIRECT] buttons for 2 seconds or longer to store the current station into preset memory. VXZ758R... -
Page 18: Auto Store
• Be careful not to press and hold the [PS/AS] but- ton for 2 seconds or longer, otherwise the auto store function is engaged and the unit starts stor- ing stations. VXZ758R RDS Operations RDS (Radio Data System) This unit has a built-in RDS decoder system that sup- ports broadcast stations transmitting RDS data. - Page 19 “TA” in the display lights and the unit automati- cally receives a TP station by “TP-SEEK”. Note: • If a TP station is not received, the unit continues the search operation. Pressing [TA] button again goes off “TA” in the display and stops TP station searching. VXZ758R...
-
Page 20: Selecting Pty
Press the [TA] button or [SRC] button during the PTY broadcast, the PTY interrupt is cancelled and the unit returns to PTY standby mode. VXZ758R Selecting PTY 1. Press and hold the [ADJ] button for 1 second or longer to switch to the RDS mode. -
Page 21: Pty Preset Memory
News Today’s events Information Sports Education Drama Culture Science Variety Pop music Rock music Easy music Light music Classics Other music Weather Finance For children Social Religion Phone in Travel Leisure Jazz Country Nation music Oldies Folk music Documentaries VXZ758R... -
Page 22: Dvd Operations
33). ∗ When the TA, ALARM or PTY interrupt ends, the volume returns to the level it had before the inter- rupt. VXZ758R DVD Operations Loading a disc Insert the disc into the DVD/CD insertion slot with its labeled side facing up, then the disc will start playing. -
Page 23: Dvd-Video Operations
• Press the [ ] button, and playback resumes from the scene where playback is stopped. Pausing playback Press the [ ] button during playback. ∗ Playback pauses. ■ To resume playback • Press the [ ] button, and playback resumes. VXZ758R... -
Page 24: Slow Playback
• No audio is reproduced during fast-forward and fast-rewind operation. • The menu screen may appear when the button is pressed. VXZ758R Searching with a chapter/title number You can locate the beginning of the scene using the chapter numbers or title numbers recorded on the DVD-Video disc. -
Page 25: Repeat Playback
• It may take time to switch among subtitles. ● To turn off subtitles Press the [SUB TITLE] button several times, and subtitles are turned off. In initial setting: DVD-Video Operations : Indicates that 8 audios : Indicates that 8 Subtitle 1 Subtitle 2 Subtitle X VXZ758R... -
Page 26: Switching Angles
(ON) and non-display (OFF) of the playback status. Title number Chapter number Audio format VXZ758R By pressing the button for 1 second or longer while the playback status is displayed, you can switch among time displays. • TITLE ELAPSED: Elapsed time of the title •... -
Page 27: Watching A Video Cd (V-Cd)
When this button is pressed again within about 2 seconds, playback starts from the beginning of the previous track. This operation cannot be performed on some discs with PBC. Track Playback direction VXZ758R... -
Page 28: Random Playback
You cannot do this operation when PBC is ON for a disc with PBC functions. VXZ758R Changing audio output You can change the audio output method. ∗ This function can only be used from the remote control unit. -
Page 29: Playback Control (Pbc)
You can also enjoy a still picture at high or standard resolution. When the PBC is turned on The beginning of a disc is played each time the PBC is turned on or off. ∗ ∗ VXZ758R... -
Page 30: Listening To A Cd
Note: • If the CD playing is not a CD-text CD or no user title has been input, “NO TITLE” appears in the display. VXZ758R Skipping a track (searching) Press the TRACK up [d]/ TRACK down [a] buttons. ∗ Tracks are skipped, as many as the times the button is pressed, and playback starts. -
Page 31: Listening To An Mp3/Wma
Personally constructed WMA files are used at your own responsibility. Precautions when creating MP3/WMA disc ● Usable sampling rates and bit rates: 1. MP3: Sampling rate 32 kHz-48 kHz, Bit rate: 8 kbps-320 kbps / VBR 2. WMA: Bit rate 32 kbps-192 kbps VXZ758R... -
Page 32: Pausing Playback
Also, if the damage is in a severe condition, play stops showing the “DISC ERROR” display. VXZ758R After disc selection, the play mode is automatically engaged. • Example showing WMA/ID3 Tag display. Note: •... -
Page 33: Folder Select
2 In case of a file on which ID3 Tag information data have been recorded... If any cursor button input was not made for a specified period of time after file selection, ID3 Tag screen is displayed. Press the [RTN] button or [MENU] button VXZ758R... - Page 34 ∗ Scan playback starts from the first track of the next folder to the one currently being played back. ■ To cancel folder scan playback Press the [SCN] button again. VXZ758R Listening to one track repeatedly (Track repeat playback) This operation plays back the track currently being played back repeatedly.
-
Page 35: Play List Mode
Changing the display of the playback status ∗ This function can only be used from the remote control unit. By pressing the [P.TIME] button for 1 second or longer, you can switch among time displays. TRACK ELAPSED TRACK REMAIN VXZ758R... -
Page 36: Changing Initial Settings Such As Menu Language, Etc
7. Press the [SET UP] button on the remote control unit or press the [ADJ] button on the unit to return to the original mode from the setup mode engaged. VXZ758R (Main menu) Main unit Remote control Main unit Remote control... - Page 37 “Setting up the TV type” in the section “TV Operations” for details. Setting up the angle mark display You can set up so that the angle mark appears on scenes where the angles can be switched. ∗ The factory default setting is “ON”. ” VXZ758R...
- Page 38 Languages SELECT in the order: ENGLISH FRENCH SPANISH CHINESE JAPANESE 3. Press the [ENT] button. VXZ758R Setting up the subtitle language ” ∗ The factory default setting is “OFF”. 1. Following the steps 1 to 3 in “Selecting the monitor menu”, select “SUBTITLE” from “PREFERENCES”, and press the “...
-
Page 39: Country Code List
7384 7480 7479 7587 7666 7683 7673 7685 7775 7784 7767 7876 6578 7879 7977 8076 8084 8165 8279 8377 8365 8375 8373 9065 6983 8390 8369 6772 8389 8482 6569 7166 8665 8969 8985 7079 7173 7176 8374 VXZ758R... -
Page 40: Setting Up The Parental Level
PASSWORD VERIFICATION screen. 4. Press the ten-key buttons to input a 4-digit password. ∗ Factory default setting is “0000”. VXZ758R Setting up the password for setting up of the parental level 1. Following the steps 1 to 3 in “Selecting the monitor menu”, select “PASSWORD”... - Page 41 SMALL SMALL SMALL SMALL SMALL SMALL SMALL SMALL 4. Press the [ENT] button. 5. Press the “ ” button to go back to the left pane. 6. Repeat steps 2 to 4 to turn on/off each speaker. SUB- WOOFER VXZ758R...
- Page 42 “SP-GAIN” from “AUDIO SETUP”. 2. Press the [ENT] button to display the SP- GAIN screen. VXZ758R ” button 3. Press “ ” or “ ” buttons to select the speaker. Each time you press the buttons, you can switch among speakers.
-
Page 43: Adjusting The Dynamic Range
1. Following the steps 1 to 3 in “Selecting the monitor menu”, select “Dolby PL” from “AUDIO SETUP”. 2. Press “ ” button to go to the right pane. 3. Press “ ” or “ ” buttons to select “ON” or “OFF”. 4. Press the [ENT] button. VXZ758R... -
Page 44: Common Operations
∗ Up to 30 characters can be entered. ∗ The factory default setting is “Welcome to Clarion”. 1. Press and hold the [DISP] button for 1 second or longer to switch to the display adjust mode. -
Page 45: Adjusting The Display Contrast
2. Press the [a]/[d] button to select “AMP CANCEL”. 3. Turn the [ROTARY] knob to select “ON” or “OFF”. ● ON: Uses with connected AMP. ● OFF: Uses with inside AMP. 4. Press the [ADJ] button to return to the previ- ous mode. VXZ758R... - Page 46 2. Press the [a]/[d] button to select “TEL- SP”. 3. Turn the [ROTARY] knob to select “RIGHT” or “LEFT”. VXZ758R ● RIGHT: Telephone calls can be heard on the front right speaker connected to this unit. ● LEFT: Telephone calls can be heard on the front left speaker connected to this unit.
-
Page 47: Other Operations
This unit requires special wiring to mute the au- dio signal automatically when a cellular tele- phone rings in the car. ∗ This function is not compatible with all cellular tele- phones. Contact your local authorized Clarion dealer for information on proper installation and compat- ibility. AUX function... -
Page 48: Operations Of Accessories
• If a CD-text CD is not input its disc title or a track title, “NO TITLE” appears in the display. VXZ758R Procedure to scroll a title Set “AUTO SCROL” to “ON” or “OFF”. (The factory default setting is “ON”. Refer to the subsection “Setting the method for title scroll”... -
Page 49: Disc Random Play
This function continues automatically until it is cancelled. 1. Press and hold the [RDM] button for 1 second or longer. 2. To cancel disc random play, press the [RDM] button again. VXZ758R... -
Page 50: Tv Operations
In the quick tuning mode, you can quickly tune the desired frequency. VXZ758R 1. Press the [BND] button and select the desired band (TV1 or TV2). ∗ If “MANU” is not lit in the display, press and hold the [BND] button for 1 second or longer. -
Page 51: Setting The Tv Area
TV Operations 3. Turn the [ROTARY] knob to select “ON” or “OFF”. ● ON: Sets the diver setting to ON. ● OFF: Sets the diver setting to OFF. 4. Press the [ADJ] button to return to the previ- ous mode. VXZ758R... -
Page 52: Digital Radio/Dab Operations
∗ If no operation is performed for more than 7 seconds, manual tuning is cancelled and the display returns to the previous mode. VXZ758R Switching programmes 1. Press the [SRC] button to receive a DAB station. 2. Press the [a]/[d] button to switch programmes in the DAB station. - Page 53 You can set ON up to 6 information items. You can select any of the 6 items below: INFORMATION item ENGLISH Contents Travel Transport flash Warning Warning / Service News News flash Weather Area weather flash Event Event announcement Special Special event VXZ758R...
-
Page 54: Display Language
∗ For details on “Emergency broadcast”, refer to the section “RDS operation” of each owner’s manual. ●Cancelling an emergency broadcast VXZ758R Switching the PTY and INFO display language You can select one of 4 languages (English, Ger- man, Swedish or French) for the PTY and INFO shown in the display. -
Page 55: In Case Of Difficulty
2. Turn down sound volume. Function can also be restored by turning the power off and on again. 3. If the sound is muted again, consult Clarion dealer. Write MP3/WMA files onto the disc properly. Use MP3/WMA files encoded properly. -
Page 56: Error Displays
A DISC inside the CD changer cannot be played because it is loaded upside-down. If an error display other than the ones described above appears, press the reset button. If the problem persists, turn off the power and consult Clarion dealer. VXZ758R Cause This is a failure of DVD deck’s mechanism... -
Page 57: Specifications
Auto Antenna Rated Current: 500 mA or less Weight: Main unit: 1.6 kg Remote control unit: 100 g (including battery) Dimensions: Main unit: 178 (W) × 50 (H) × 156.5 (D) mm Remote control unit: 54 (W) × 155 (H) × 27 (D) mm VXZ758R... - Page 58 VXZ758R...
- Page 60 Clarion Co., Ltd. All Rights Reserved. Copyright © 2005: Clarion Co., Ltd. PE-2741E Printed in China / Imprimé en Chine / Gedruckt in China / Stampato in Cina 2005/3 280-8178-00 Gedrukt in China / Impreso en China / Tryckt i Kina /...
