IMPORTANT
The use of this manual is specifically
intended for a qualified installation and
service agency. All installation and service
of these units must be performed by a
qualified installation and service agency.
!
WARNING
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, injury or death,
and could cause exposure to substances
which have been determined by various
state agencies to cause cancer, birth
defects or other reproductive harm. Read
the installation, operating and maintenance
instructions thoroughly before installing or
servicing this equipment.
THIS MANUAL IS THE PROPERTY OF THE OWNER.
PLEASE BE SURE TO LEAVE IT WITH THE OWNER
WHEN YOU LEAVE THE JOB.
INSTALLATION AND SERVICE MANUAL
Certified for Commercial and Residential Use
FOR YOUR SAFETY
The use and storage of gasoline or other
flammable vapors and liquids in open
containers in the vicinity of this appliance
is hazardous.
!
To prevent premature heat exchanger
failure do not locate ANY gas-fired units in
areas where chlorinated, halogenated or
acid vapors are present in the atmosphere.
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS:
• Open windows.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier,
call your fire department.
Inspection on Arrival
1. Inspect unit upon arrival. In case of damage, report it
immediately to transportation company and your local
Modine sales representative.
2.
Check rating plate on unit to verify that power supply meets
available electric power at the point of installation.
3. Inspect unit upon arrival for conformance with description of
product ordered (including specifications where applicable).
Part 5H74925 Rev.A
gas-fired unit heaters
model HD
A
G
S
R
CAUTION
6-576.1
July, 1998
R
Advertisement
Table of Contents
Related Manuals for Modine Manufacturing HD
Summary of Contents for Modine Manufacturing HD

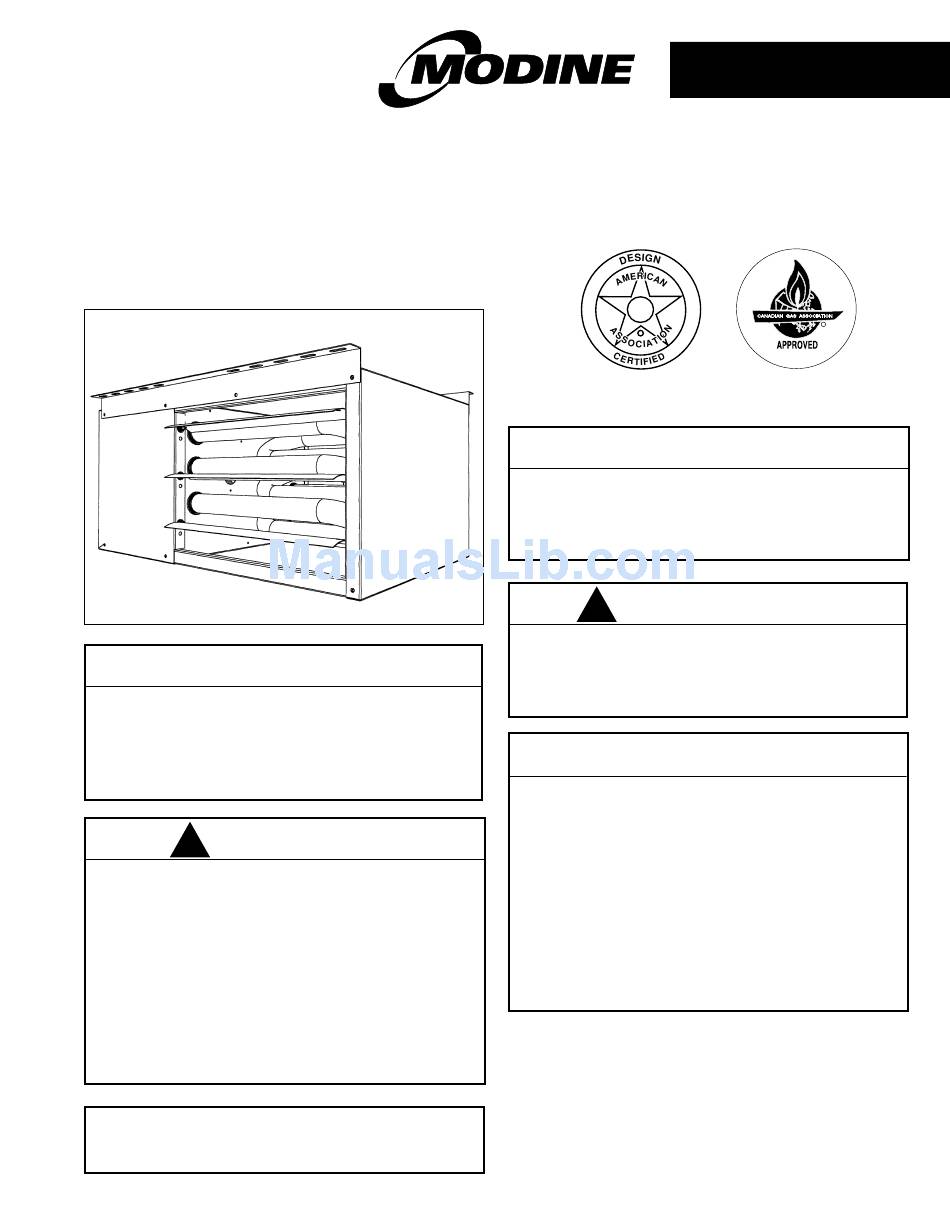

- Page 1 6-576.1 Part 5H74925 Rev.A July, 1998 INSTALLATION AND SERVICE MANUAL gas-fired unit heaters model HD Certified for Commercial and Residential Use FOR YOUR SAFETY The use and storage of gasoline or other flammable vapors and liquids in open containers in the vicinity of this appliance is hazardous.
-
