ENGLISH

ELECTRICAL CONNECTIONS

To prevent short circuits, we recommend that you disconnect the battery's negative terminal and
make all electrical connections before installing the receiver.
• Be sure to ground this receiver to the car's chassis again after installation.
Notes:
• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC
IN-CAR ENTERTAINMENT dealer.
• It is recommended to connect to the speakers with maximum power of more than 50 W (both
at the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less
than 50 W, change "AMP GAIN" setting to prevent the speakers from being damaged (see
page 21 of the INSTRUCTIONS).
• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.
• The heat sink becomes very hot after use. Be careful not to touch it when removing this
receiver.
A

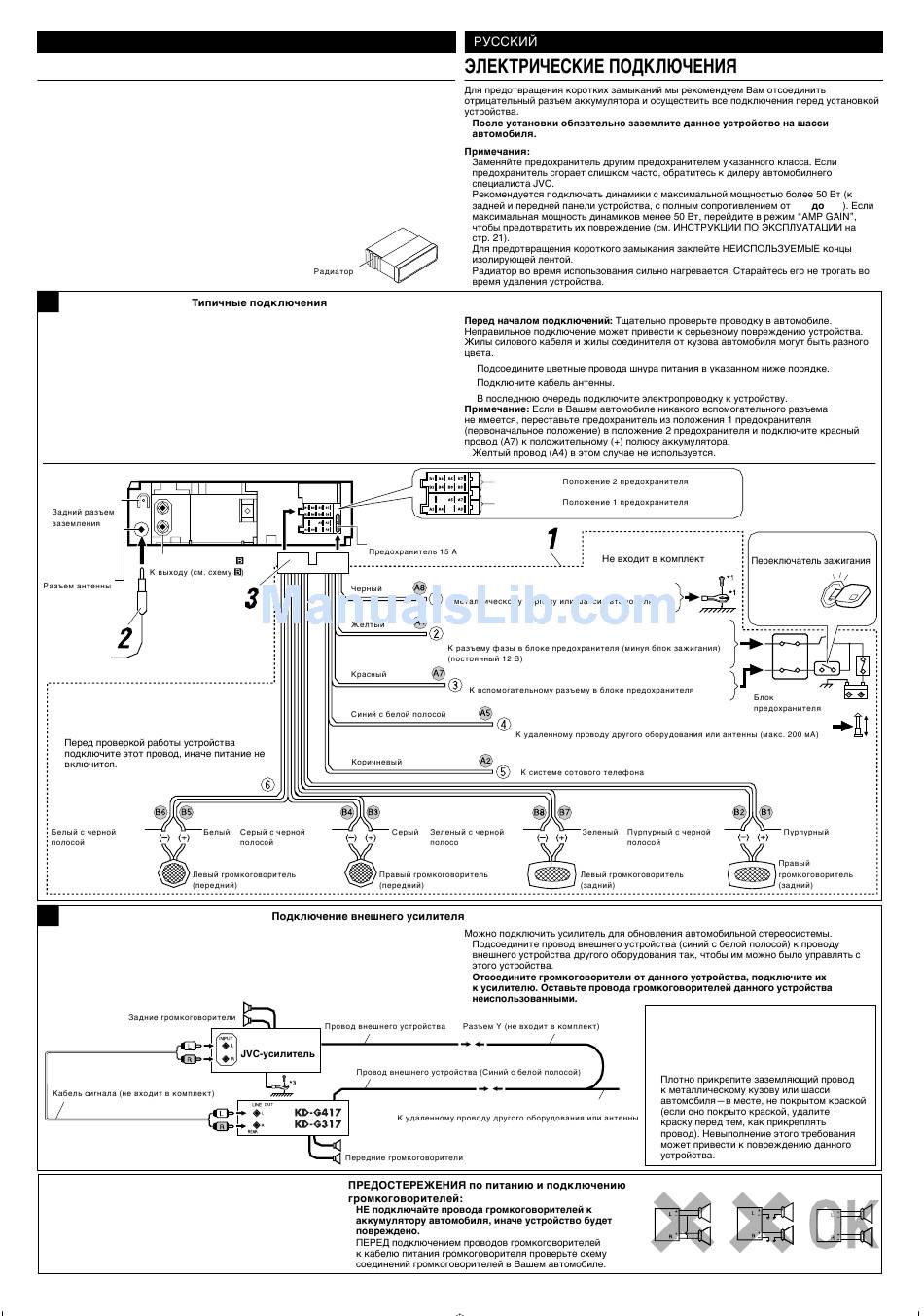

Typical connections /
Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause
serious damage to this receiver.
The leads of the power cord and those of the connector from the car body may be different in
color.
1
Connect the colored leads of the power cord in the order specified in the illustration below.
2
Connect the aerial cord.
3
Finally connect the wiring harness to the receiver.
Note: If your vehicle does not have any accessory terminal, move the fuse from the fuse
position 1 (initial position) to fuse position 2, and connect the red lead (A7) to the positive (+)
battery terminal.
• The yellow lead (A4) is not used in this case.
Rear ground
terminal
Line out (see diagram
Aerial terminal
* 2 Before checking the operation of this
receiver prior to installation, this lead must be
connected, otherwise power cannot be turned
on.
2
*
White with black stripe White
Left speaker (front)
B
Connecting the external amplifier /
You can connect an amplifier to upgrade your car stereo system.
• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so
that it can be controlled through this receiver.
• Disconnect the speakers from this receiver, connect them to the amplifier. Leave the
speaker leads of this receiver unused.
Rear speakers
Signal cord (not supplied for this receiver)
PRECAUTIONS on power supply and speaker
connections:
• DO NOT connect the speaker leads of the power cord to
the car battery; otherwise, the receiver will be seriously
damaged.
• BEFORE connecting the speaker leads of the power cord to the
speakers, check the speaker wiring in your car.
Heat sink
15 A fuse
)
Black
* 2
Yellow
* 2
Red
Blue with white stripe
Brown
Gray with black stripe Gray
Right speaker (front)
Remote lead
JVC Amplifier
Remote lead (Blue with white stripe)
To the remote lead of other equipment or power aerial if any
Front speakers
•
•
•
•
•
•
•
1
2
3
•
Fuse position 2 /
Fuse position 1 /
* 1 Not included for this receiver
* 1
To metallic body or chassis of the car
To a live terminal in the fuse block connecting to the car battery
(bypassing the ignition switch) (constant 12 V)
To an accessory terminal in the fuse block
To the remote lead of other equipment or power aerial if any (200 mA max.)
To cellular phone system
Green with black stripe Green
Left speaker (rear)
•
•
Y-connector (not supplied for this receiver)
2
4 Ω
Ignition switch
Fuse block
Purple with black stripe Purple
Right speaker (rear)
* 3 Firmly attach the ground wire to the metallic
body or to the chassis of the car—to the place
not coated with paint (if coated with paint,
remove the paint before attaching the wire).
Failure to do so may cause damage to the
receiver.
* 3
8 Ω
