Dimplex System 18 Installation And Servicing Instructions page 17

8 8 . . 0 0 F F L L U U E E O O P P T T I I O O N N S S
8 8 . . 1 1 C C O O N N C C E E N N T T R R I I C C A A I I R R / / F F L L U U E E D D U U C C T T S S P P E E C C I I F F I I C C A A T T I I O O N N S S

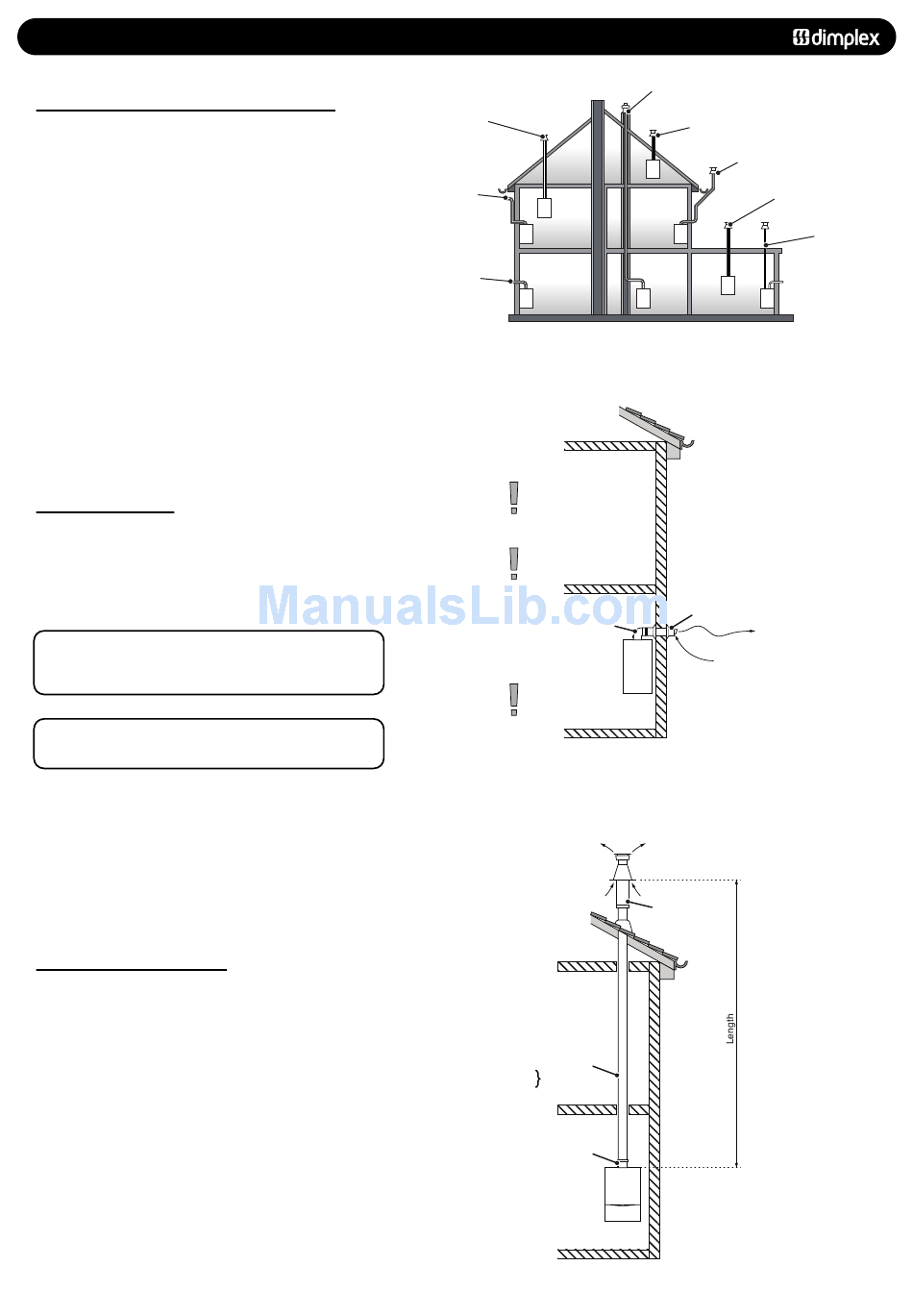

The different flue applications shown in Fig. 20 are available as
kits comprising the connecting parts to the appliance and end
terminal. Flue extension ducts and extension elbows are
available as accessories.
8 8 . . 2 2 K K i i t t A A + + T T e e l l e e s s c c o o p p i i c c H H o o r r i i z z o o n n t t a a l l W W a a l l l l T T e e r r m m i i n n a a l l
( ( C C 1 1 3 3 ) ) - - P P a a r r t t N N o o . . 9 9 5 5 6 6 1 1 2 2 0 0
60/100mm concentric, horizontal flue system Fig. 21, with a
maximum length of 10M.
The standard telescopic terminal is 615mm max length and
430mm min length, but can be cut to a minimum flue length of
250mm, which is suitable for single, 100mm (4"), brick walls.
N N o o t t e e : : If the telescopic flue kit is installed without any flue
extensions, it can be fitted horizontally. The maximum
length for 60/100mm horizontal concentric flue = 10M
N N o o t t e e : : Dimplex System 18 only, with maximum concentric
flue length of 10m, the heat input will be reduced by 7.6%
8 8 . . 3 3 K K i i t t B B V V e e r r t t i i c c a a l l C C o o n n c c e e n n t t r r i i c c F F l l u u e e T T e e r r m m i i n n a a l l
( ( C C 3 3 3 3 ) ) - - H H B B L L P P a a r r t t 9 9 5 5 6 6 0 0 8 8 1 1
60/100mm concentric, vertical flue system, Fig. 22, with a
maximum length of 12M.
The kit comprises of the roof terminal, vertical adaptor with
sampling point and bracket.
The maximum length is measured from the top of the
appliance casing to the underside of the air cowl.
For installation details refer to the flue kit instructions.
Vertical flue kit - Part no. 956081
External vertical flue kit
- Part no. 956085
Standard telescopic
horizontal flue kit
- Part no. 956120
Standard telescopic horizontal flue kit - Part no. 956120
The pluming from the flue may
cause nuisance to neighbours
or other buildings.
Horizontal terminal has a
built-in fall in the flue to allow
condensate to drain away.
93 flanged elbow (concentric)
with sampling point
If horizontal flue requires
extension pipe. the flue
should be installed such
that there is no section less than
1.5° - 3° to the horizontal,
falling back towards the boiler.
Vertical flue kit - Part no. 956081
Suitable for 25 - 45°
Pitch Angle
60/100 flue accessories:
0.5m flue extension duct - 956092
1m flue extension duct - 956093
93 flue extension elbow - 956091
45 flue extension elbow (2x) - 956090
Pitched roof flashing kit - 956089
Flat roof flashing plate - 840512
93 flanged flue elbow - 956086
Max. length12m.
Top of Boiler
Min. length 0.6m.
to underside of Cowl
Vertical flue socket
with sampling point.
Chimney flue liner kit
- Part no. 956082
Vertical flue kit - Part no. 956081
Raised external flue outlet kit
- Part no. 956084
Vertical flue kit - Part no. 956081
with flat roof flashing plate
Optional Flue Systems
60/100 flue accessories:
0.5m flue extension duct - 956092
1m flue extension duct - 956093
93 flue extension elbow - 956091
45 flue extension elbow (2x) - 956090
Vertical flue turret - 956087
Ø60/100mm concentric
standard horizontal wall
terminal.
Max. length 10,000mm.
Min. length 250mm.
Kit A +
Roof terminal
with rain cover
and pitched roof
flashing kit.
Kit B
© Dimplex Boilers 2008
Split pipe vertical flue outlet kit
- Part no. 956080
with flat roof flashing plate
F F i i g g . . 2 2 0 0
F F i i g g . . 2 2 1 1
F F i i g g . . 2 2 2 2
1 1 7 7
