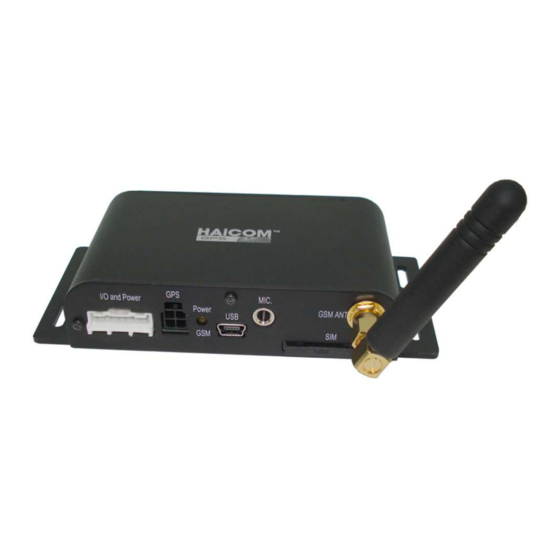

Haicom HI-605X Easy Manual

Gps/gprs tracker
Hide thumbs

Advertisement

Quick Links

Download this manual
Easy Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the HI-605X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haicom HI-605X

Summary of Contents for Haicom HI-605X

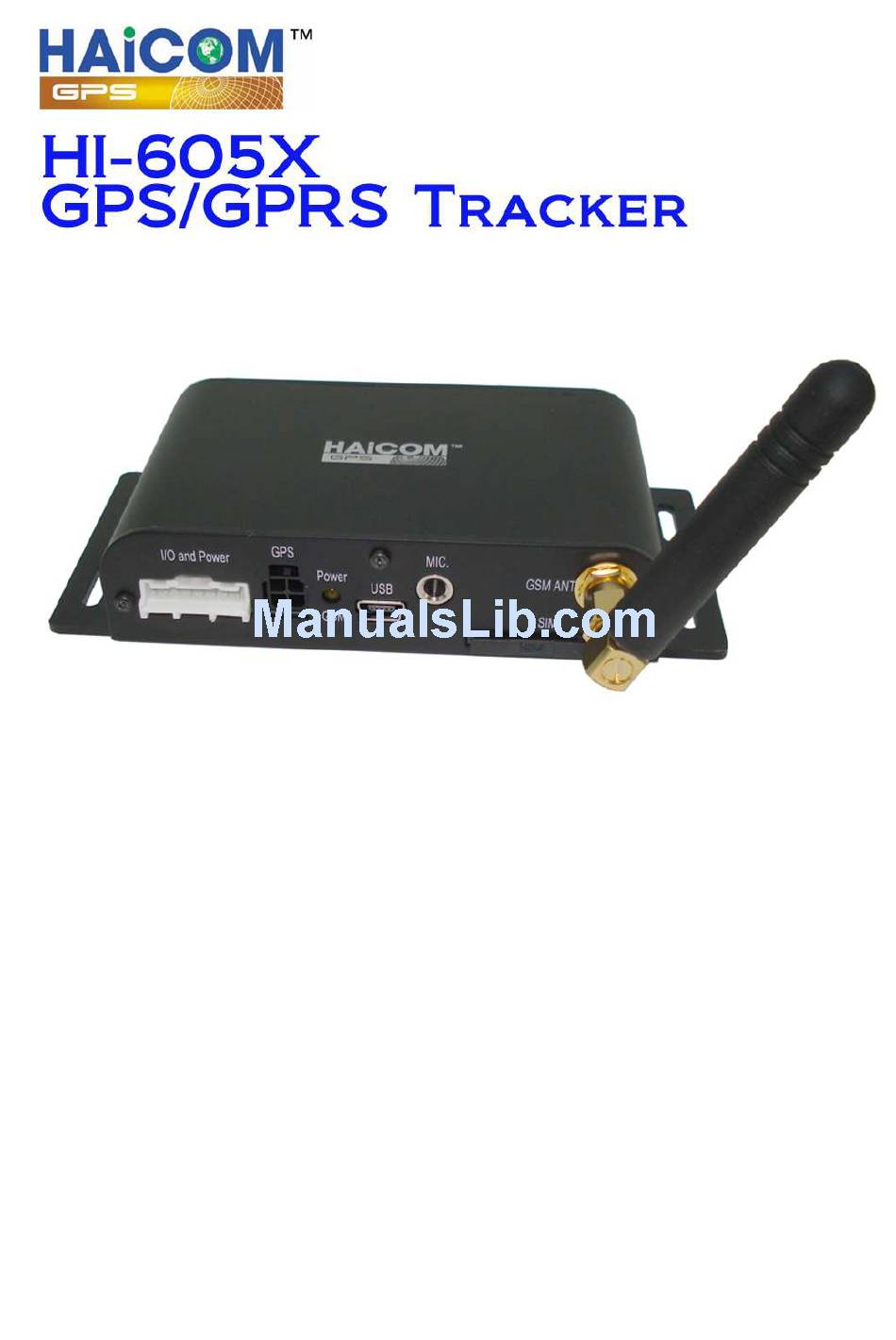

  • Page 1 Easy Manual...
  • Page 2 (850/900/1800/1900) GSM communication module with powerful microcontroller into a compact/ lightweight size. HI-605X is secured in a solid enclosure for simple installation without sweat and hassle. Nevertheless, not only it provides user with real time GPS location and accurate vehicle status all the time on server, but also it allows user to command vehicle remotely by one-click on computer.
  • Page 3 HI-605X Characteristics Items Items Specification Specifications s s s Items Items Specification Specification Power Supply DC +9V - +28V Backup Battery (Optional) 550mAh Normal power consumption 85mA/h Dimension 116mm x 55mm x 24mm Operating temperature -20℃ to 55℃ Humidity 5% to 95% Non-condensing...
  • Page 5 Dimensions...

  • Page 9: Getting Started

    (Make sure to disable the SIM card pin code requirement. Do this from your mobile phone.) Close the tray. Note the tray does not quiet sit flush with the unit when closed. 2. Connect the GSM antenna and GPS receiver to HI-605X...
  • Page 10 CD and perform the set up from your computer. 1. Connect the mini USB to the computer port. Connect the HI 605X to the USB cable. The HI-605X will initially show all lites illuminated. 2. Open the tracker set up program by double clicking on “tracker.exe”...
  • Page 11 3. Click “Get Parameter” 4. A message will show “Get Finish” and all the trackers current set up will appear. Please double check with your local telecomm service provider to make sure the SIM card APN (Access Point Name) and fill in and program to the tracker.
  • Page 12 “ or any name. Also, please double check if the IP and port settings (the below red block) was correctly (for with Haicom GPRS tracking: http://www.tracking.haicom.com.tw:8090/Default.aspx The above settings are the must to make the tracker to start sending data back to our server and show on the platform.
  • Page 13 X series trackers User guides for USB settings and SMS features 1. USB Settings : A. Press to get the tracker current settings B. Press to save the settings changed C. Press to download the GPS data logger records D. Press to delete and clean out the GPS logger records. To avoid the records capacity too full (the full capacity is about 257,000 points) and slow down the download time, the records deleting is recommended after download the GPS data logger.
  • Page 14 1. The continue SMS sending time interval to certain preset phones. The setting is recommended to set more than 10 (s), 10 seconds, and set “ 0 “ means switch off this function. 2. The continue GPRS GPS coordinates sending time interval to the server. The setting is recommended to set more than 15 (s), 15 seconds, and set “...
  • Page 15 7. Buzzer sound or silent when press the buttons (only available for the HI-602X and the optional car kit box) L: Set up the APN (Access Point Name) from the SIM card telecomm service provider M: Set up the IP/Domain address of the tracking server for the GPRS data to send to 1.
  • Page 16 colume time) the tracker will switched on again to work normal. The automatic sleep and weak up will be cycled continuesly base on the settings. The mode is suitable for the condition that the user only need to know the tracker updated locations in some fix time and let the tracker go sleeping mode (switched off) to save power consumption.
  • Page 17 Terms Explanations System Config: 1. IMEI: Tracker imei # 2. Version: Tracker firmware version 3. SMS intervals[s]: Interval of tracker send real time position with Google map hyperlink via SMS 4. GPRS interval[s]: Interval of tracker send real time position to the server via GPRS 5.
  • Page 20 SMS Command for X seris Code Format Function 100 #0000,100 Request all setting values back 151 #0000,151,0000000000,0000000000,0000000000 Set Security Phone Number.(10 Max.) 152 #0000,152,0000000000,0000000000,0000000000 Set SOS Phone Number (10Max.) 153 #0000,153,0000000000,0000000000,0000000000 Set SMS Phone Number (10 Max.) 154 #0000,154 Get Security Phone Setting 155 #0000,155 Get SOS Phone Setting 156 #0000,156...
  • Page 21 EXAMPLE：#0000,210,60.250.68.23,9101,9120,1943,0 SMS initial code 0000 password (default is 0000) 210 Initial command code 60.250.68.23,9101,9120,1943,0 Varies parameters Fill in “ * “ between the comma when the above parameters unchanged. Fill in nothing between the comma to empty the data (originally there are some parameters in between, such as the APN, USER and the PASS) Different parameters will divided by comma: “...
  • Page 22 GPRS: The continue GPRS GPS coordinates sending time interval to the server. The setting is recommended to set more than 15 (s), 15 seconds. LOG: The GPS data logger recording time interval. The setting is recommended to set more than 3 (s), 3 seconds. Geo: The geo-fencing setting range (in diameter) The setting is recommended to set more than 500 (m), 500 meters.
  • Page 23 (Set Power Saving Mode) Mode：Set up the sleeping mode: 0 Full power、1 GPS off、2 all off、3 fixed on/off time Hour1：Time setting, hours Minute1：Time setting, minutes Second1：Time setting, second ( please consult the above USB setting guides “Time To Sleep” Q ) Hour2：Time setting, hours Minute2：Time setting, minutes Second2：Time setting, second ( please consult the above USB setting guides “Time To...
  • Page 24 (Inform Tracker send TX000 to Server) Request the tracker and the server to perform the two ways synchronize communications (In order to let the tracker and the server to do the two way settings and information exchanges, they must stay in connection status. But, under some circumstances, the tracker is not connected to the server, such as under GPS off mode (sleeping mode) although the GSM is active but the tracker do not stay connect with the server.
  • Page 25 SMS GPS coordinates send back guides: EXAMPLE: $T120808R1,GPS,A,N,24”59’58.26,E,121”29’21.65,000030.0,182.57,120808,074222*(0124971 23456789),http://maps.google.com/maps?q=24.999518,121.489352 Explanations: SMS initial code T120808R1 Firmware version SMS message type (please consult the below SMS message type list) GPS fixed status (A in 3D fixed ,V not fixed yet) Coordinates (Format: degree" minute' second) N,24”59’58.26,E,121”29’21.65 000030.0 Speed ( Sea mile)
  • Page 26 * Update new firmware 1. Decompress the files. 2. Run the TRACKER program 3. Plug the tracker to the computer USB port 4. Press the GET PARAMETER and see the current settings 5. Press the UPDATE 6. Open the firmware (2 files) 7.
  • Page 27 8. The firmware start loading 9. The below message shown and press OK...
  • Page 28 1. Initial registration from the GPRS web tracking platform: http://www.tracking.haicom.com.tw:8090/ New user; please register before login.
  • Page 29 3. The tracker imei # is shown on the bottom of the sticker: 4. After login, select the “ Manage " for Add New Tracker...
  • Page 30 * Program tracker from Haicom GPRS web tracking web site 1. Make sure the tracker connected to the GSM network and start sending back the data 2. On the Manage/Device Settings section, select the tracker and press Load 3. Change the prefer settings...
  • Page 31 4. Press Setup and will show: Device information update successfully...
  • Page 32 How to generate the detail report print out with address 1. Select the preferred from and to date and click “ Search “ 2. Click “ Download “ and the csv file will be saved as Excel file 3. Click “ Address Transfer.zip “ for the transfer program...
  • Page 33 1. Click “ Address Transfer program icon to run the program “ 2. Select the csv Excel file 3. Click “ Transfer Address (3) “ 4. After the translate program running, the “ Translate successful ! “ message will appeared. In the mean time, there will extra Excel file with (Address) saved on your desktop.
  • Page 34 The example of the detail report printout HI-603X installation video guides How to connect and install Haicom Tracker http://www.youtube.com/watch?v=9ytNRmu6TMQ&feature=channel_video_title How to connect and install HI-603X http://www.youtube.com/watch?v=yVAqvhHLzvU&feature=channel_video_title...
  • Page 35 How to calculate the historical total travel distance: 1. Click the preferred start point 2. Click the start point icon...
  • Page 36 3. Click the preferred end point 4. Click the end point icon 5. Click the Distance icon to get the total traveled distance...
  • Page 37 How to send command from the GPRS tracking platform: 1. Click Manage -> Command Send: 2. Click to send commands from the platform: Status Open (0) means the relay is stay connection. To cut the relay (cut off the ignition, oil pump, power, etc.), select Close (1)
  • Page 38 3. Click the Select to see the command sending status:...
  • Page 39 Set up GeoFencing function steps: Basically, there are two ways to set up the geo fence function and both ways are independent to each other. For instance, if you set up the geo fence alarm on the map radius, the trigger will only report to the tracking site. If you set up the geo fence function from the Manage ->...
  • Page 40 3. Make sure click “ Yes “ on the Enable section so that the geo fencing function will work. Then, click Setup to complete the procedures. In the mean time, the Update Time will show the time that you set up and show Update Successful on the side: 2.
  • Page 41 b. Connect the tracker to your computer and set up geo fence from the set up program: c. The geo fence will triggered only once and user will set up again from the SMS command to activate the alarm once again:...
