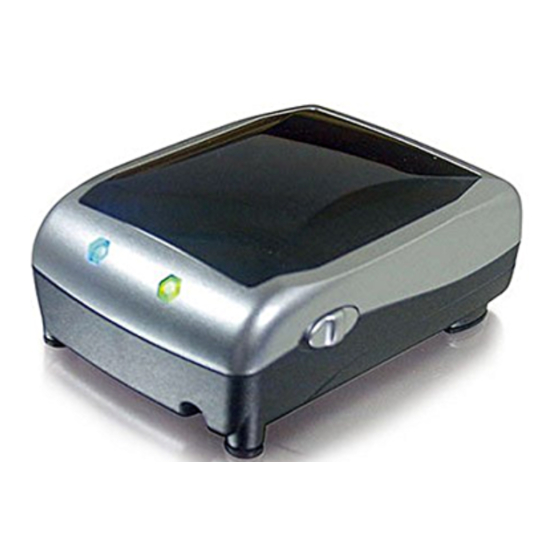

Haicom HI-406BT User Manual

Bluetooth gps receiver
Hide thumbs Also See for HI-406BT:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI-406BT and is the answer not in the manual?

Questions and answers

Related Manuals for Haicom HI-406BT

Summary of Contents for Haicom HI-406BT

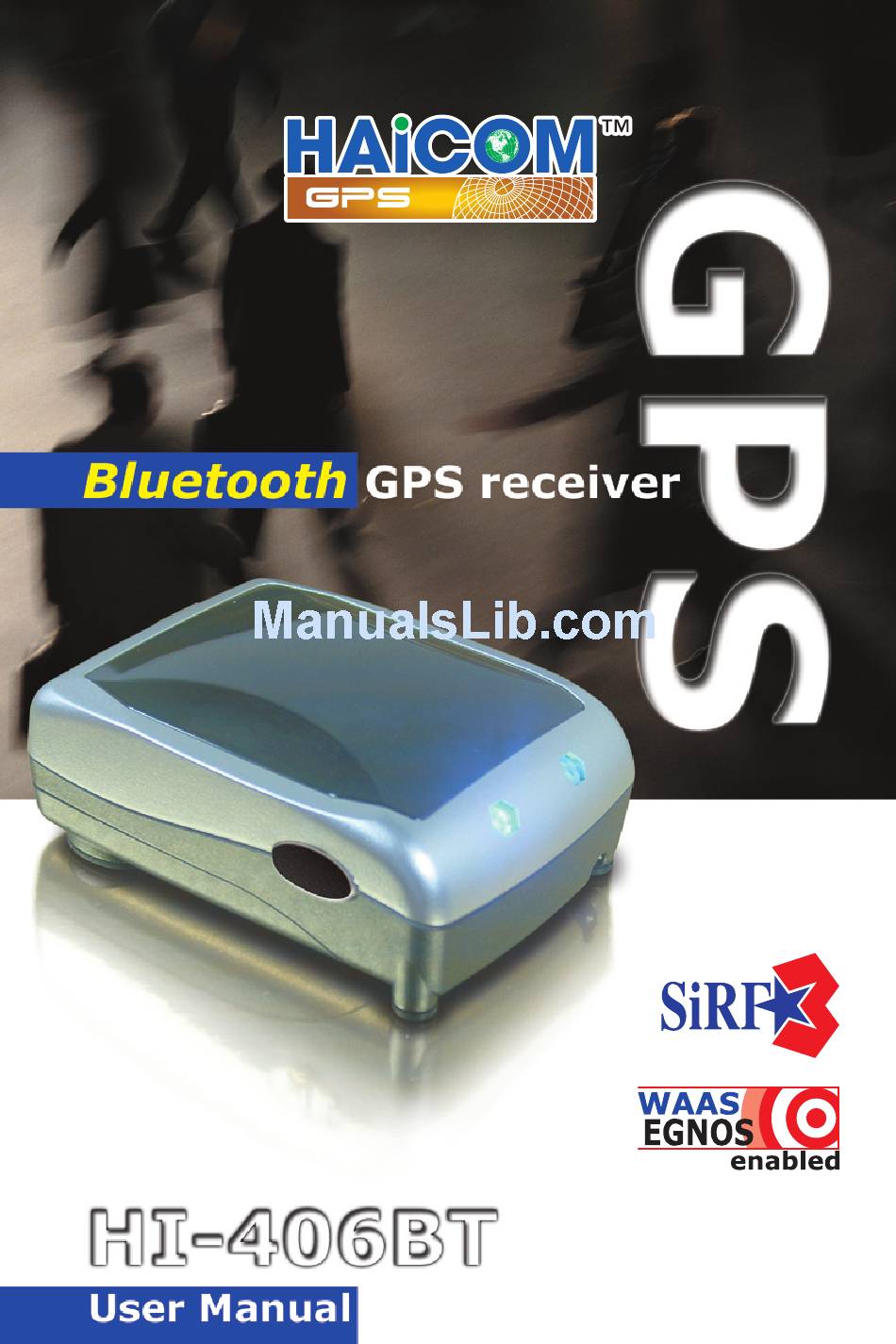

  • Page 2 HI-406BT Bluetooth GPS receiver...

  • Page 3: Table Of Contents

    Table of Contents ........... 1.1 Overview ........1.2 Main Features ..2.1 Setting up: Bluetooth GPS receiver .......... 11 3. Dimensions 4. Packaging ......12 4.1 Standard Packaging ....... 15 4.2 Optional Packaging ......19 5. System Specifications 6. Get Connected; Installation Guide ......

  • Page 4: Overview

    Equipped with the most powerful and ultra high sensitive SiRF StarIII chip set, HI-406BT can get the 3D fix in very short time and under poor reception environment, such as in the middle of the car, next...

  • Page 5: Main Features

    1.2 Main Features: • 20 Channels "All-In-View" Tracking • Position accuracy of 10 meters 2D RMS • Cold/Warm/Hot Start Time: 42/38/1 Seconds (Signal Strength > 30 dB-HZ) • Reacquisition Time: 0.1 seconds • Support Standard NMEA-0183 at 19200 bps baud rate (Defined by customer 4800 up to 57600) •...

  • Page 6: Setting Up: Bluetooth Gps Receiver

    2.1 Setting up: Bluetooth GPS receiver STEP 1: Open the battery cap and put the battery (406-BTT) into the battery compartment. Push down and pull out...
  • Page 7 DC charger to the car cigarette lighter. As soon as they connected, the solid amber light on the right side in front of HI-406BT will turned on (stay on) meaning the battery charging. AC charger to home...
  • Page 8 STEP 3 As soon as the battery fully charged, the amber light will turned off, then, unplug the charger. Indicator for power charging and GPS status Indicator for battery low (Red) and Bluetooth status (Blue)
  • Page 9 STEP 4 There is switch on side of HI-406BT. The switch on the right side is for Bluetooth GPS receiver. As soon as turn on the switch on the side, the GPS receiver will start to function and search the satellites.

  • Page 10: Led Indicator

    Bluetooth GPS Switch LED indicator Status color Amber HI-406BT battery charging LED off HI-406BT battery fully charged Green (blinking) GPS in 3D fixed Green (Stay on) GPS searching more satellite and not in 3D fixed yet Blue (blinking) Bluetooth searching host device...
  • Page 11 As soon as turn on the switch on the right side, the Bluetooth will also start to function and searching. The blue light on the left side in front of HI-406BT will turned on (Blinking) meaning the Bluetooth is searching the host device and not get paired yet.

  • Page 12: Dimensions

    3. Dimensions Unit: mm Top View Button View 64.80 46.40 Side View Front View Back View 24.00...

  • Page 13: Packaging

    4.1 Standard Packaging: Model Name model# Bluetooth GPS receiver HI-406BT Rechargeable Li-Polymer 406-BBT 3.7V 1000 mAh battery Mini1394 to USB cable 401-USB Cigarette lighter adaptor USB-DCC with USB female plug Carrying pouch BAG-002 HI-406BT user manual MAU-406 Mini CD CDR-01...

  • Page 16: Optional Packaging

    4.2 Optional Packaging: Model Name model# 1. MMCX external antenna ANT-MMC 2. mini-1394 to PS/II connecting cable PS2-1394 3. AC power adaptor with USB female plug USB-ACC ANT-MMC PS2-1394 USB-ACC...
  • Page 17 MMCX antenna Under blocking area, the external antenna can extend the signal reception from HI-406BT...
  • Page 18 PS2-1394 By connecting to different optional connecting cables, HI-406BT can be a wired PS/II GPS receiver and used with all kinds of mobile devices.
  • Page 19 HI-406BT as a GPS mouse By counecting different optional counecting cables, HI-406BT can be all kinds of wired GPS receiver solutions.

  • Page 20: System Specifications

    5. System Specifications Main Features General Chipset SiRF Star III Channel Supports 20-channel Frequency L1 (1575.42MHz), CA code TTFF (Open Sky) Hot Start 8 sec. Warm Start 38 sec. Cold Start 42 sec. Acquisition Sensitivity 17dBHz Warm 23dBHz Cold 30dBHz Tracking Sensitivity -159dBm Position Accuracy...
  • Page 21 Bluetooth General Frequency 2400MHz to 2483.5MHz Modulation Method GFSK, 1Mbps, 0.5BT Gaussian Asynchronous: 723.2kbps/57.6kbps Max. Data rate Synchronous: 433.9kbps/433.9kbps Transmission Power 4dBm(Class 2) (Maximum) Hoping 1600hops/sec,1MHz channel space Receiving Signal Range -84 to -15dBm Receiver IF Frequency 1.5MHZ center frequency Baseband Crystal OSC 16MHz Compliant...
  • Page 22 GPS Firmware Protocol NMEA/SiRF Binary Baud Rate 19200 bps Update Rate Datum WGS84 Environmental Temperature Operating Temperature 10°C to +55°C Storage Temperature 20°C to +65°C Relative Humidity 5% to 95%, non-condensing LED Indicator LED 1 Color BT Active Low Power Blue Flashing Blue LED 2...

  • Page 23: Get Connected; Installation Guide

    6. Get Connected; Installation Guide 6.1 Laptop PC Installations Run "My Bluetooth Places" and Double Click the "Find Bluetooth Devices " icon Double Click "HI-406BT"...
  • Page 24 Double Click "GPS OUTPUT on HI-406BT"...
  • Page 25 Key in pin code: “0000” Connected...

  • Page 26: Pda Installations

    6.2 PDA Installations Double Click the Bluetooth icon...
  • Page 27 Double click “HI-406BT”...
  • Page 28 Key in pin code: “0000” Found the host device...
  • Page 29 For Connected with device Select the correct com port...
  • Page 30 Start GPS, NMEA message inflow More satellites info...
