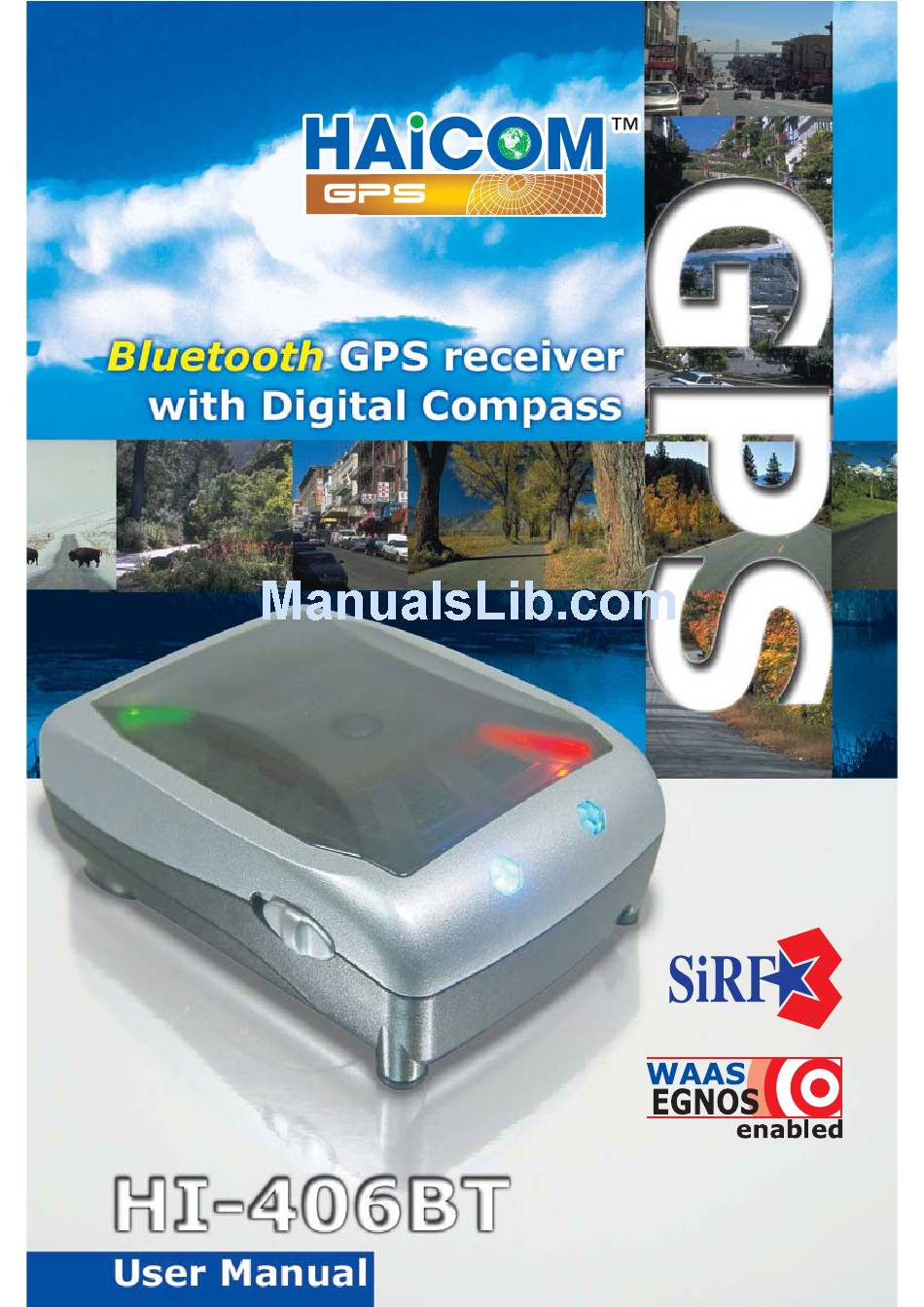

  • Page 2 HI-406BT Bluetooth GPS receiver with Digital Compass...

  • Page 3: Table Of Contents

    Table of Contents 1.1 Overview 1.2 Main Features 2.1 Setting up: Bluetooth GPS receiver 2.2 Setting up: Digital Compass ... 14 3. Dimensions 4. Packaging 4.1 Standard Packaging 4.2 Optional Packaging 5. System Specifications 6. Get Connected; Installation Guide 6.1 Laptop PC Installations 6.2 PDA Installations...

  • Page 4: Overview

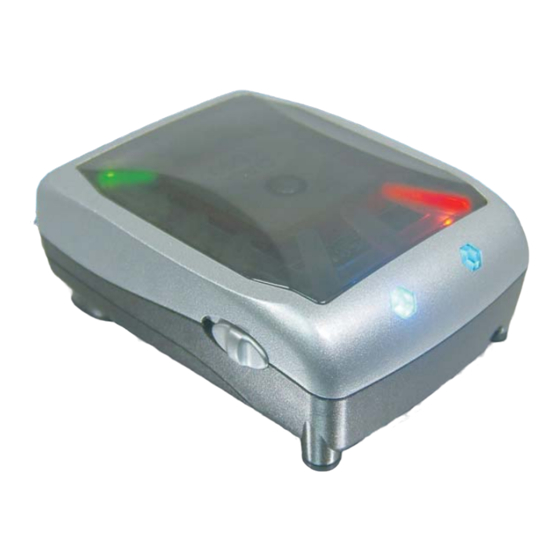

    1.1 Overview Introduction HI-406BT-C is a GPS (Global Positioning System) receiver in wireless Bluetooth interface with build- in active antenna and extra digital compass functions. With HI-406BT-C, your mobile devices, such as, Smartphone, PocketPC, laptopPC, tabletPC, etc. can receive GPS data wirelessly and perform the GPS applications, such as, car navigation, personal navigation, route planning, tracking, etc.

  • Page 6: Main Features

    1.2 Main Features: • 20 Channels "All- In-View" Tracking • P osition accuracy of 10 meters 2D RMS • Cold/W arm/Hot Start Time: 42/38/1 Seconds (Signal Strength > 30 dB-HZ) • R eacquisition Time: 0.1 seconds • Support Standard NMEA -0183 at 38400 bps baud rate (Defined by customer 4800 up to 57600) •...

  • Page 7: Setting Up: Bluetooth Gps Receiver

    2.1 Setting up: Bluetooth GPS receiver STEP 1: Open the battery cap and put the battery (406-BTT) into the battery compartment. Push down and pull out...
  • Page 8 STEP 2 Connect the inclusive AC charger to home electronics outlet or connect the inclusive DC charger to the car cigarette lighter. As soon as they connected, the solid amber light on the right side in front of HI-406BT-C will turned on (stay on) meaning the battery charging.
  • Page 9 STEP 3 As soon as the battery fully charged, the amber light will turned off, then, up-plug the charger. Indicator for battery low (Red) and Bluetooth status (Blue Indicator for power charging and GPS status...
  • Page 10 Meanwhile, the LED indicator on the right side in front of HI-406BT-C will turned green (stay on - the GPS receiver not get 3D fixed yet) Please make sure place the HI-406BT-C outdoor open space so that it can get the proper satellite signal.
  • Page 11 LED indicator Status color Amber HI-406BT-C battery charging LED off HI-406BT-C battery fully charged Green (blinking) GPS in 3D fixed Green (Stay on) GPS searching more satellite and not in 3D fixed yet Bluetooth searching host device Blue (blinking) Bluetooth paired and connected Blue (stay on) HI-406BT-C battery low Bluetooth GPS Switch...
  • Page 12 STEP 5: As soon as turn on the switch on the right side, the Bluetooth will also start to function and searching. The blue light on the left side in front of HI-406BT-C will turned on (Blinking) meaning the Bluetooth is searching the host device and not get paired yet.

  • Page 13: Setting Up: Digital Compass

    HI-406BT-C on horizontal surfaced and no grater than 30 degree angle. The digital compass or the Bluetooth GPS receiver can work independently or work simultaneously. Even the Bluetooth GPS receiver switch turned off, the compass can work and the HI-406BT-C become...

  • Page 15: Dimensions

    3. Dimensions Top View 46.40 Front View Unit: mm Button View 64.80 Side View Back View 24.00...

  • Page 16: Packaging 4.1 Standard Packaging

    4. Packaging 4.1 Standard Packaging: Model Name 1. Bluetooth GPS receiver with digital compass 2. Rechargeable Li-Polymer 3.7V 1100 mAh battery 3. Mini1394 to USB cable 4. AC power adaptor with USB female plug 5. Cigarette lighter adaptor with USB female plug 6.

  • Page 18: Optional Packaging

    4.2 Optional Packaging: Model Name 1. MMCX external antenna 2. mini-1394 to PS/II connecting cable ANT-MMC PS2-1394 model# ANT-MMC PS2-1394...
  • Page 19 MMCX antenna Under blocking area, the external antenna can extend the signal reception from HI-406BT-C PS2-1394 By connecting to different optional connecting cables, HI-406BT-C can be a wired PS/II GPS receivr and used with all kinds of mobile devices.
  • Page 20 HI-406BT-C as a GPS mouse By counecting different optional counecting cables, HI-406BT-C can be all kinds of wired GPS receiver solutions.

  • Page 21: System Specifications

    5. System Specifications Main Features General Chipset Channel Frequency TTFF (Open Sky) Hot Start Warm Start Cold Start Acquisition Sensitivity Warm Cold Tracking Sensitivity Position Accuracy Dynamic Conditions Altitude(Maximum) Velocity(Maximum) Acceleration(Maximum) SiRF Star III Supports 20-channel L1 (1575.42MHz), CA code 8 sec.
  • Page 22 Bluetooth General Frequency Modulation Method Max. Data rate Transmission Power (Maximum) Hoping Receiving Signal Range Receiver IF Frequency Baseband Crystal OSC Compliant Electrical Main power input Power consumption Backup Power Operation time 2400MHz to 2483.5MHz GFSK, 1Mbps, 0.5BT Gaussian Asynchronous: 723.2kbps/57.6kbps Synchronous: 433.9kbps/433.9kbps 4dBm(Class 2) 1600hops/sec,1MHz channel space...

  • Page 23: Led Indicator

    GPS Firmware Protocol Baud Rate Update Rate Datum Environmental Temperature Operating Temperature Storage Temperature Relative Humidity LED Indicator LED 1 Color Blue Flashing Blue LED 2 Color Green Flashing Green Orange NMEA/SiRF Binary 19200 bps WGS84 10°C to +55°C 20°C to +65°C 5% to 95%, non-condensing BT Active Low Power...

  • Page 24: Get Connected; Installation Guide

    6. Get Connected; Installation Guide 6.1 Laptop PC Installations Run "My Bluetooth Places" and Double Click the "Find Bluetooth Devices " icon Double Click "HI-406BT"...
  • Page 25 Double Click "GPS OUTPUT on HI-406BT"...
  • Page 26 Key in pin code: “0000” Connected...

  • Page 27: Pda Installations

    6.2 PDA Installations Double Click the Bluetooth icon...
  • Page 28 Double click “HI-406BT”...
  • Page 29 Key in pin code: “0000” Found the host device...
  • Page 30 For Connected with device Select the correct com port...
  • Page 31 Start GPS, NMEA message inflow More satellites info...
