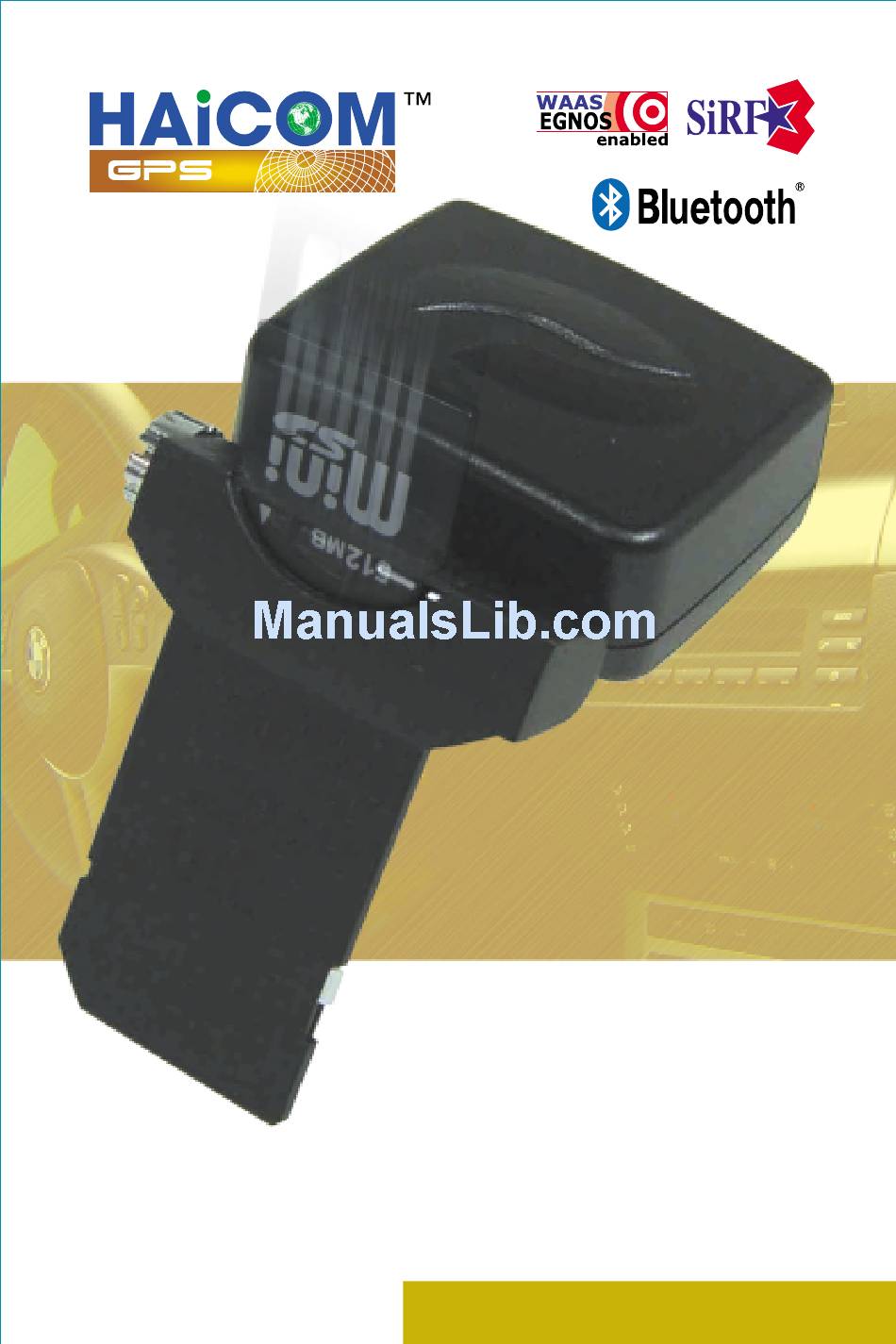

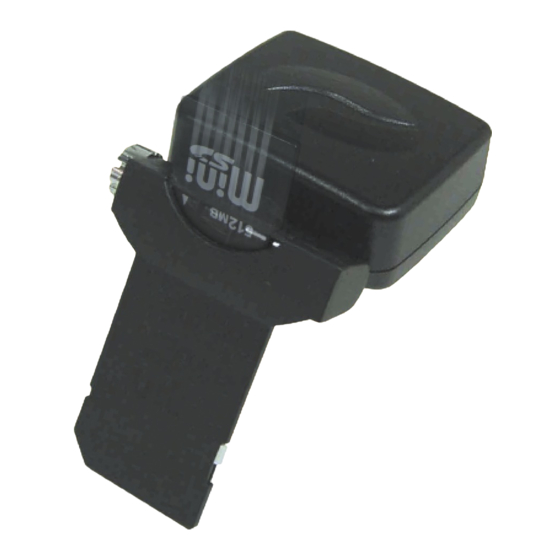

HI-505SD
Bluetooth
®
GPS Receiver
with SD interface
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI-505SD and is the answer not in the manual?

Questions and answers

Related Manuals for Haicom HI-505SD

Summary of Contents for Haicom HI-505SD

  • Page 1 HI-505SD Bluetooth ® GPS Receiver with SD interface USER MANUAL...
  • Page 2 To insert in: Push down to the end and hear a “click” sound Take out the device To take it out: Push down to the end HI-505SD will spring up...
  • Page 3 SD (Security Digital) interface Introduction: HI-505SD is a standard Bluetooth GPS receiver with standard ® miniSD™ to SD adaptor. HI-505SD equipped with the most recent 20 channel ultra high sensitive SiRF StarIII GPS chipsets and wireless Bluetooth module. Simply plug HI-505SD into ®...
  • Page 4 HI-505SD advantages: 1. Simply plug in the HI-505SD into any SD slot from the standard mobile device with Bluetooth become the all-in-one GPS navigator. HI-505SD provides the flexibility for GPS enable in different devices and different occasion usages. 2. Unlike other SD GPS receivers occupied the SD slot, HI-505SD allow user to use any memory size miniSD™...

  • Page 5: Standard Accessories

    Accessories: Standard Accessories: Model Name HI-505SD Bluetooth Tool CD User Manual GPS receiver unit ® model # HI-505SD CDR-01 MAU-505...

  • Page 6: Optional Accessories

    Optional Accessories: Adapting box MMCX External antenna PDA charging cable (plug on the adapting box)
  • Page 7 HI-505SD Bluetooth lighter outlet MMCX external antenna plug LED Indicator (Red) LED off Receiver switch off LED flashing GPS Position Fixed LED stay on GPS Signal searching ® GPS receiver installed on cigarette Bluetooth status LED LED Indicator (Blue) LED off...
  • Page 8 HI-505SD on a PDA: A complete all-in-one GPS navigator HI-505SD + PDA with horizontal mapping software...
  • Page 9 HI-505SD with PDA phone as a all-in-one GPS navigator HI-505SD with laptop PC with SD Slot...
  • Page 10 HI-505SD + PDA as a portable navigator...
  • Page 11 Dimension: 46mm 34mm 13mm 18mm 80mm 24mm 43mm 20mm 18mm...

  • Page 12: Gps Receiver

    GPS Receiver Specification Chipset Interfaces Protocol Baud Rate Max. Update Rate Datum Channel Frequency Hot Start Warm Start Cold Start Reacquisition Tike Position Accuracy Macimum Altitude Maximum velocity Voltage Power consumption Antenna Type External Antenna Connector Dimension LED Indicator SiRF Star ®...

  • Page 13: Specifications

    ® Bluetooth Specifications: Bluetooth ® V1.1 Compliances Frequency Range: Interface: Receiver Sensetivity: Transmitting Power: RF Input Impedance: Frequency hopping: Baseband Crystal OSC: Data Rate: Operating Temperature: Storage Temperature: Transmitting Range: Power Consumption: 2.4 ~ 2.4835 GHz unlicensed ISM band USB/UART/SPI -80 dBm @ 0.1% BER Class 2 -6 dBm ~ +4 dBm 50 ohms...
  • Page 14 HI-505SD as a regular GPS mouse: By connection different optional connecting cables, HI-505SD can be all kinds of independent wired GPS receiver solutions.

  • Page 15: Connecting To A Notebook

    Connecting to a Notebook Connect HI-505SD to your Notebook as a USB GPS Receiver...
  • Page 16 Disassemble Step 1: Turn the silver knob down to the end Step 2: The silver knob spring out Step 3: Separate the two parts...
  • Page 17 Assemble Step 1: Put two parts in position Step 2: Push the silver knob in * Make sure two triangle align during disassemble or assemble Step 3: Turn the silver knob back to other end...

  • Page 18: Bluetooth Installation

    ® Bluetooth Installation Follow the instructions below to link HI-505SD to a PDA (Personal Digital Assistant). 1. Activate “Bluetooth Manager” on your pocket PC. Tap New, Connect, to access other devices via Bluetooth.
  • Page 19 2. Search Bluetooth device “HI-505SD”. Select Explore a Bluetooth device, and tap Next. 3. Search for the Bluetooth device. Tap Next, and then select HI-505SD...
  • Page 20 4. To establish Bluetooth link, select Connect to SPP Slave, tap Next and then Finish. 5. Tap HAICOM BT GPS:SPP slave, and select Connect from the dropdown menu. The installation has been completed.
  • Page 21 For Connected with device Start GPS, NMEA message inflow Select the correct com port More satellites info...

  • Page 22: Gps Technical Data

    GPS Technical Data ONE-PULSE-PER-SECOND (1PPS) OUTPUT The one-pulse-per-second output is provided for applications requiring precise timing measurements. The output pulse is 1usec in duration. Rising edge of the output pulse is accurate to +/-1usec with respect to the start of each GPS second. Accuracy of the one-pulse-per-second output is maintained only when the GPS receiver has valid position fix.

  • Page 23: Software Interface

    SOFTWARE INTERFACE This section describes the details of the serial port commands through which the GPS module is controlled and monitored. The serial port commands allow users to set the receiver parameters, configure output message type, and retrieve status information. The baud rate and protocol of the host COM port must match the baud rate and protocol of the GPS receiver serial port for commands and data to be successfully transmitted and received.
  • Page 24 NMEA Messages The serial interface protocol is based on the National Marine Electronics Association's NMEA 0183 ASCII interface specification. This standard is fully define in "NMEA 0183, Version 3.01" The standard may be obtained from NMEA, www.nmea.org GGA - GPS FIX DATA Time, position and position-fix related data (number of satellites in use, HDOP, etc.).
  • Page 25 Field Example Description 104549.04 UTC time in hhmmss.ss format, 000000.00 ~ 235959.99 2447.2038 Latitude in ddmm.mmmm format Leading zeros transmitted Latitude hemisphere indicator, 'N' = North, 'S' = South 12100.4990 Longitude in dddmm.mmmm format Leading zeros transmitted Longitude hemisphere indicator, 'E' = East, 'W' = West Position fix quality indicator 0: position fix unavailable...
  • Page 26 GLL - LATITUDE AND LONGITUDE, WITH TIME OF POSITION FIX AND STATUS Latitude and longitude of current position, time, and status. Format: $GPGLL,<1>,<2>,<3>,<4>,<5>,<6>,<7>*<8><CR><LF> Example: $GPGLL,2447.2073,N,12100.5022,E,104548.04,A, A*65<CR><LF> Field Example Description 2447.2073 Latitude in ddmm.mmmm format Leading zeros transmitted Latitude hemisphere indicator, 'N' = North, 'S' = South 12100.5022 Longitude in dddmm.mmmm format...

  • Page 27: Gsa - Gps Dop And Active Satellites

    GSA - GPS DOP AND ACTIVE SATELLITES GPS receiver operating mode, satellites used for navigation, and DOP values. Format: $GPGSA,<1>,<2>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<3>, <3>,<3>,<3>,<3>,<4>,<5>,<6>*<7><CR><LF> Example: $GPGSA,A,3,26,21,,,09,17,,,,,,,10.8,02.1,10.6*07<CR><LF> Field Example Description Mode, 'M' = Manual, 'A' = Automatic Fix type, 1 = not available, 2 = 2D fix, 3 = 3D fix 26,21,,,09, PRN number, 01 to 32, of satellite 17,,,,,,...

  • Page 28: Gsv - Gps Satellite In View

    GSV - GPS SATELLITE IN VIEW Number of satellites in view, PRN number, elevation angle, azimuth angle, and C/No. Only up to four satellite details are transmitted per message. Additional satellite in view information is sent in subsequent GSV messages. Format: $GPGSV,<1>,<2>,<3>,<4>,<5>,<6>,<7>, ...
  • Page 29 RMC - RECOMMANDED MINIMUM SPECIFIC GPS/TRANSIT DATA Time, date, position, course and speed data. Format: $GPRMC,<1>,<2>,<3>,<4>,<5>,<6>,<7>,<8>,<9>,<10>, <11>,<12>*<13><CR><LF> Example: $GPRMC,104549.04,A,2447.2038,N,12100.4990,E, 016.0,221.0,250304,003.3,W,A*22<CR><LF> Field Example Description 104549.04 UTC time in hhmmss.ss format, 000000.00 ~ 235959.99 Status, 'V' = navigation receiver warning, 'A' = valid position 2447.2038 Latitude in dddmm.mmmm format Leading zeros transmitted...
  • Page 30 VTG - COURSE OVER GROUND AND GROUND SPEED Velocity is given as course over ground (COG) and speed over ground (SOG). Format: GPVTG,<1>,T,<2>,M,<3>,N,<4>,K,<5>*<6><CR><LF> Example: $GPVTG,221.0,T,224.3,M,016.0,N,0029.6,K,A*1F<CR><LF> Field Example Description 221.0 True course over ground, 000.0 ~ 359.9 degrees 224.3 Magnetic course over ground, 000.0 ~ 359.9 degrees 016.0 Speed over ground,...
  • Page 31 Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
